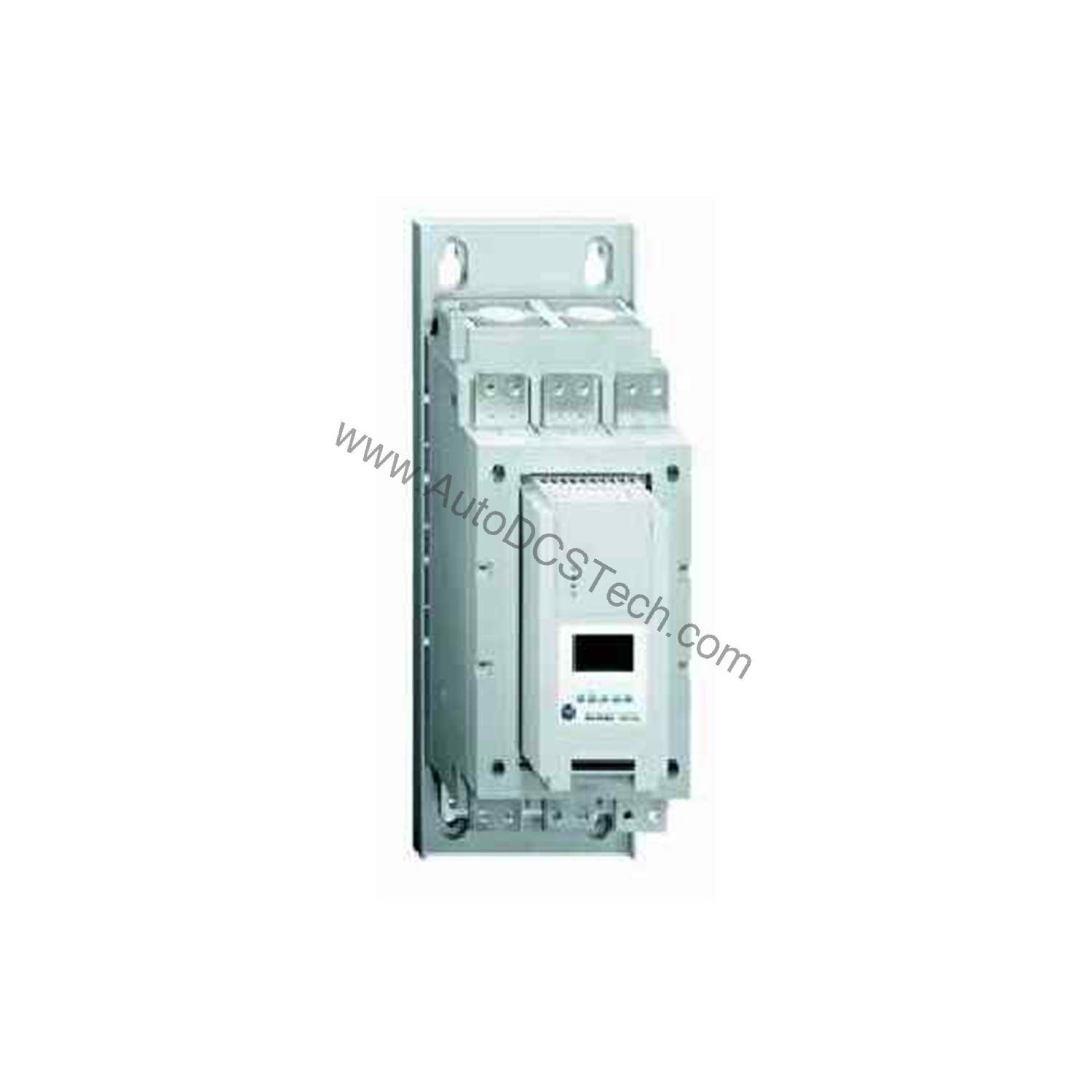

Allen-Bradley 150-F43NCR SMC-Flex Solid State Controller 43A Open Enclosure

Product Overview

The Allen-Bradley 150-F43NCR is a Solid State Controller from the SMC-Flex line, designed for motor control in industrial automation. It features an open enclosure, making it suitable for panel mounting in controlled environments. With a controller rating of 43 A and 30 Hp at 460V AC, this unit handles moderate to high-power motors efficiently. The input line voltage range of 200-575V AC, 3-phase, 50 and 60 Hz offers flexibility across global installations. A control voltage of 24V AC/DC (5-480 A units) simplifies integration with standard control systems.

Technical Specifications Breakdown

Key parameters for the 150-F43NCR are listed below for quick reference:

Industry Applications

Use it in conveyor systems, pumps, and compressors where mechanical shock and water hammer must be minimized. The wide input voltage range supports installations in regions with varying power standards. By reducing inrush current, the unit helps avoid nuisance tripping of upstream protection devices, lowering operational costs.

Installation & Setup Guidance

Mount the open enclosure controller inside a clean, dry panel with adequate ventilation. Ensure the input line voltage matches the 200-575V AC, 3-phase supply. Connect the control voltage to a 24V AC/DC source. Follow standard wiring practices for solid state controllers, using appropriately rated conductors and fuses. Verify that the motor rating does not exceed 43 A or 30 Hp at 460V AC.

Maintenance & Reliability

Inspect the controller periodically for dust accumulation and loose connections. Keep the enclosure free from moisture and corrosive atmospheres. The solid state design offers high reliability with no moving contacts to wear. Monitor ambient temperature to stay within the unit's operating limits. Regular thermal imaging can detect potential issues early.

The Challenge of Reliable Motor Starting in Harsh Environments

This component delivers precise control and protection, reducing wear on equipment and improving system uptime.

Compatibility & Integration

The SMC-Flex series integrates with common automation networks via optional communication modules. The 24V AC/DC control voltage aligns with standard PLC and relay logic systems. Verify compatibility with your motor starter and overload protection scheme. The controller's 500/575V AC rated voltage ensures safe operation at higher line voltages.

Selection Guide & Purchasing Advice

When selecting a solid state controller, match the ampere and horsepower ratings to your motor. The 150-F43NCR fits motors up to 30 Hp at 460V AC. For larger or smaller loads, consult the SMC-Flex family. AutoDCSTech stocks this unit and can advise on lifecycle status. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

If the motor fails to start, check the control voltage and input line connections. Verify that the controller rating matches the motor load. Overheating may indicate inadequate ventilation or an overload condition. Use the built-in diagnostics (if available) to identify fault codes. For persistent issues, consult the product manual or contact AutoDCSTech support.
