Product Overview

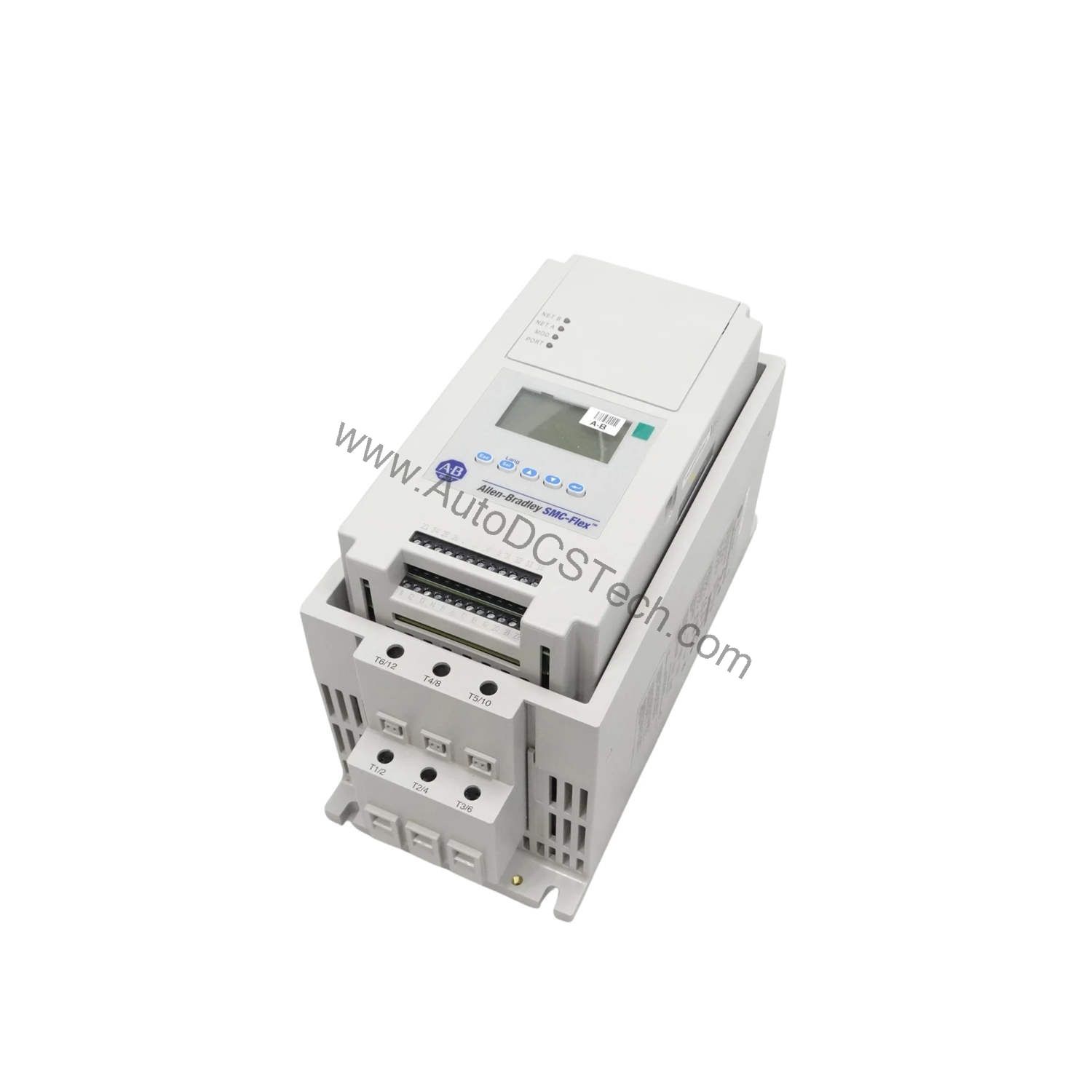

The Allen-Bradley 150-F5NCD is a solid state controller from the SMC-Flex series, designed for three-phase motor soft starting and stopping. This unit provides reliable control for industrial applications requiring smooth acceleration and deceleration. With a 5 A controller rating and 3 HP at 460V AC, it suits moderate power loads. The open enclosure design requires installation in a properly cooled cabinet.
Technical Specifications Breakdown
Key parameters for the 150-F5NCD are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Allen Bradley |
| Category | Drives |
| Product Line | SMC-Flex |
| Part Number | 150-F5NCD |
| Weight | 15.00 lbs (6.80 kg) |
| Bulletin Number | Solid State Controller |
| Enclosure Type | open |
| Controller Rating | 5 A, 3 Hp @ 460V AC |
| Input Line Voltage | 200-575V AC, 3-phase, 50 and 60 Hz |
| Control Voltage | 100-240V AC (5-480 A units) |
| Rated Voltage | 500/575V AC |
Industry Applications
This controller is well-suited for conveyors, pumps, and fans where controlled starting reduces mechanical stress and current spikes. The 200-575V AC input range allows use across global industrial sites. For cost-conscious operations, the 150-F5NCD helps lower maintenance costs by minimizing wear on driven equipment.
Installation & Setup Guidance
Mount the controller in a clean, dry enclosure with adequate ventilation. Ensure the input line voltage matches the 200-575V AC, 3-phase supply. Connect control power per the 100-240V AC specification. Use appropriate fusing and follow local electrical codes. Verify all connections before energizing.
Maintenance & Reliability
Periodically inspect the enclosure for dust buildup and ensure cooling airflow is unobstructed. Check terminal connections for tightness. The solid-state design offers long service life with minimal routine maintenance.
Compatibility & Integration
The SMC-Flex series integrates with standard motor control centers. The 150-F5NCD supports multiple operating modes including soft start, soft stop, and current limit start. It communicates via discrete I/O; consult the manual for detailed wiring.
Selection Guide & Purchasing Advice
When selecting this controller, verify your motor's full-load current does not exceed 5 A. The 150-F5NCD is available from AutoDCSTech. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
Availability & Condition at AutoDCSTech
| Part Number | 150-F5NCD |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
