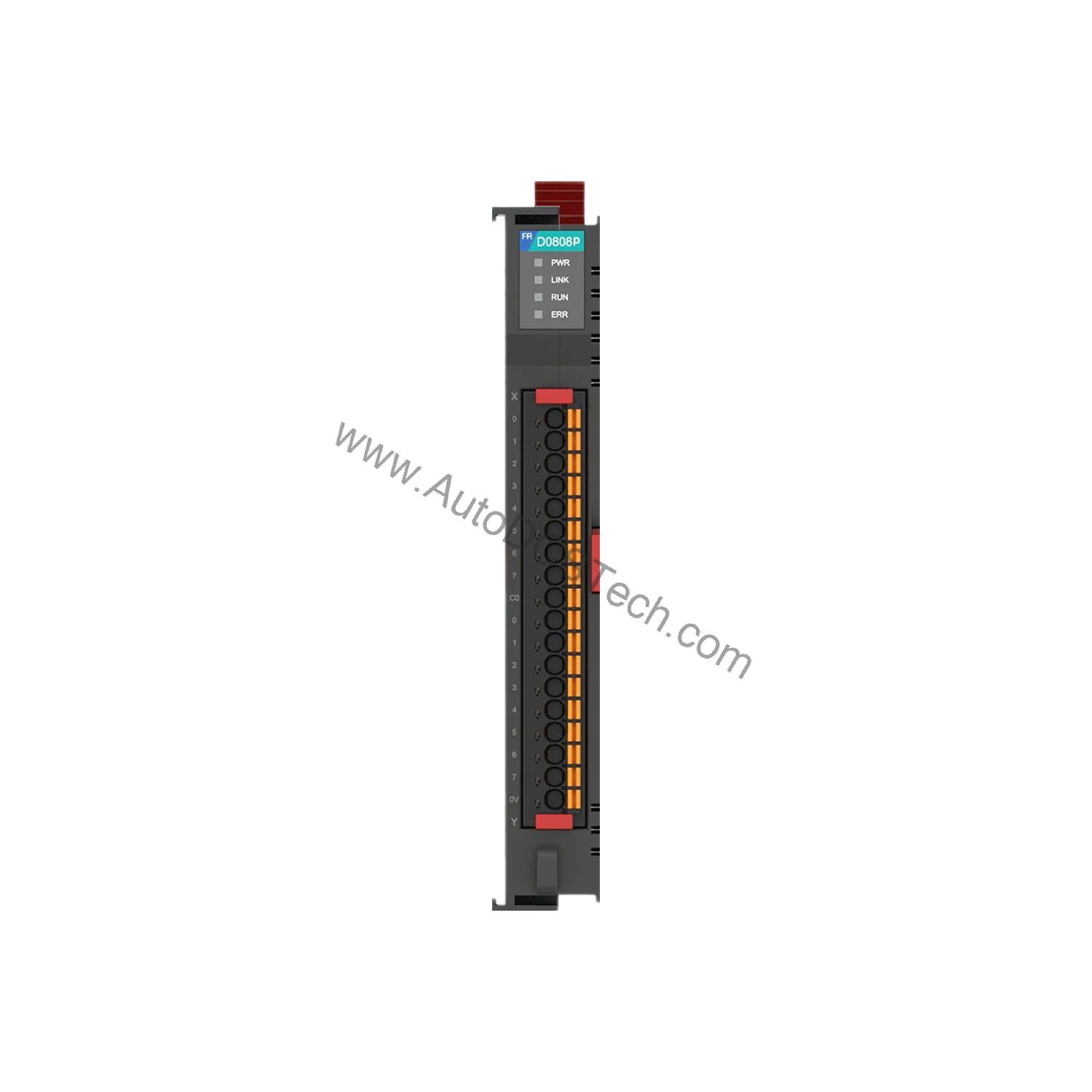

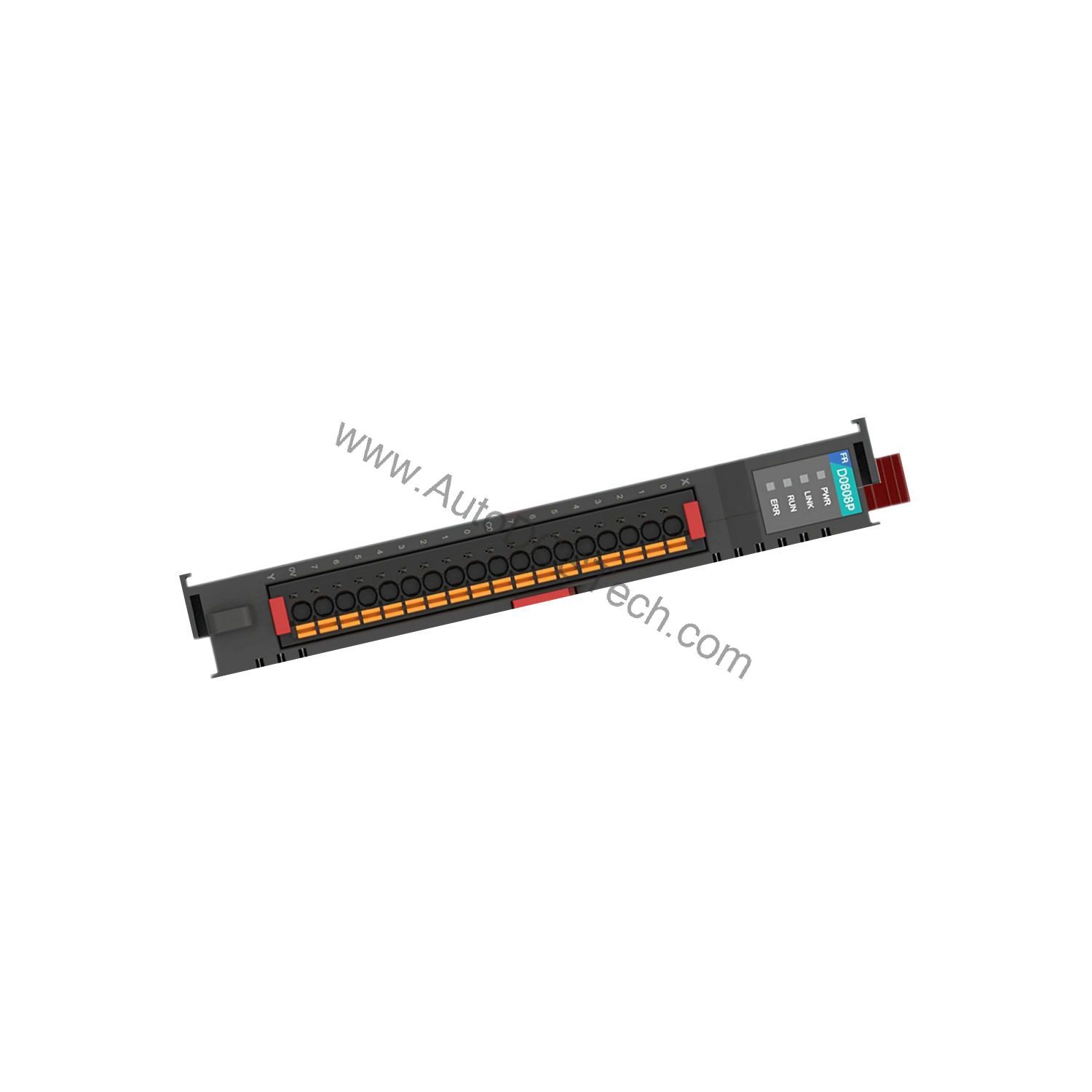

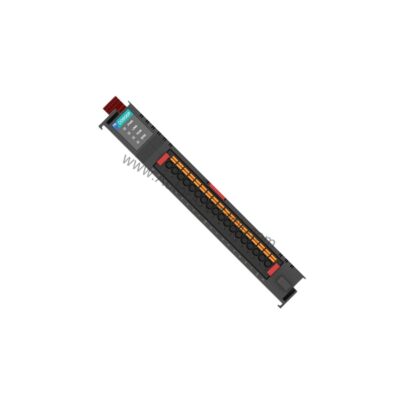

Flexem FR-D0808P Digital Mixed Module 8 In/8 Out 24VDC

Technical Specifications Breakdown

Key parameters for the FR-D0808P are listed below for quick reference:

Real-World Applications

Packaging Machinery: The FR-D0808P can monitor presence sensors (inputs) and actuate pneumatic valves (outputs) in a wrap-around labeling machine. The 7mA input current is suitable for standard inductive proximity sensors, while the 0.5A outputs drive small solenoid valves directly.

Material Handling Conveyors: Use the 8 PNP outputs to control indicator lights or small contactors in a sorting system. The 24VDC rated output matches typical PLC power supplies, so no extra power conversion is needed.

Assembly Stations: In a semi-automatic workbench, the module handles both operator pushbuttons (NPN or PNP) and output signals to a light curtain or warning beacon. The compact size allows mounting inside a small junction box near the workstation, saving long cable runs.

Installation & Setup Guidance

Mount the FR-D0808P on a standard DIN rail. The 18mm width allows high-density packing—you can fit more I/O points per meter compared to wider modules. Ensure adequate airflow around the module; while the weight is only 65g, proper support prevents mechanical stress on the rail. Wire inputs using shielded cable for noisy environments, and keep output wiring separate from power lines to avoid interference. For output groups, verify that the total current per group does not exceed the rated value (0.5A times the number of output points in that group). Use fusing on the common line to protect the module in case of a short circuit.

Maintenance & Reliability

Periodically inspect the terminal connections for tightness, especially after thermal cycling. The module's operating environment should be clean and dry; dust accumulation on the PCB can lead to tracking and intermittent faults. Since the module is compact, ensure that adjacent devices do not block ventilation. For long-term reliability, verify that the input voltage stays within the specified range (0~28.8V DC for inputs, 19.2~28.8VDC for outputs). Overvoltage conditions, even transient, can damage the internal circuitry.

Compact Digital I/O for Space-Constrained Panels

The Flexem FR-D0808P digital mixed module combines 8 input channels and 8 output channels in a slim 18mm-wide housing. This design directly addresses the common problem of dwindling cabinet space in modern automation systems. By integrating both signal acquisition and control output into one unit, the FR-D0808P reduces wiring complexity and panel footprint, which translates to lower enclosure costs and faster installation.

Cost-Efficiency Through Flexible Input Wiring

The bidirectional input design accepts both NPN and PNP sensors without additional adapters. This flexibility means your engineering team can standardize on one module for mixed sensor ecosystems. From a cost perspective, this reduces spare parts inventory—you no longer need separate modules for different transistor types. The 0~28.8V DC input range also provides tolerance for voltage fluctuations in industrial environments, minimizing false triggering and unplanned downtime.

Compatibility & Integration

The FR-D0808P is a generic digital I/O module that works with most PLCs and industrial controllers that accept 24VDC signals. The NPN/PNP compatibility on inputs makes it easy to interface with a wide range of sensors. Outputs are PNP (sourcing), which is common in modern PLC systems. For integration, you can connect the module to a fieldbus coupler if your system uses remote I/O—check the coupler's manual for wiring diagrams. The module itself does not require any configuration beyond wiring, as it is a passive I/O device.

Selection Guide & Purchasing Advice

When selecting a digital mixed module, consider the total I/O count, wiring style, and current requirements. If you need more outputs, you can pair it with additional output modules. For purchasing, AutoDCSTech provides genuine Flexem parts with competitive pricing. Contact AutoDCSTech to verify current stock and lead times. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

Inputs not reading: Check sensor wiring polarity. Since inputs are bidirectional, ensure the sensor type matches the wiring (NPN or PNP). Measure the voltage at the input terminal—it should be within 0~28.8V DC when active.

Outputs not energizing: Verify that the output load is within the rated current (0.5A per point). If the load draws more, the module may go into protection. Check the output group's total current limit.

Intermittent operation: Loose terminal screws are a common cause. Tighten all connections. Also inspect the DIN rail mounting—vibration can cause intermittent contact.

Module not recognized: Since this is a passive I/O module, it does not communicate with a master. If used with a bus coupler, ensure the coupler is powered and the module is properly connected to the backplane.
