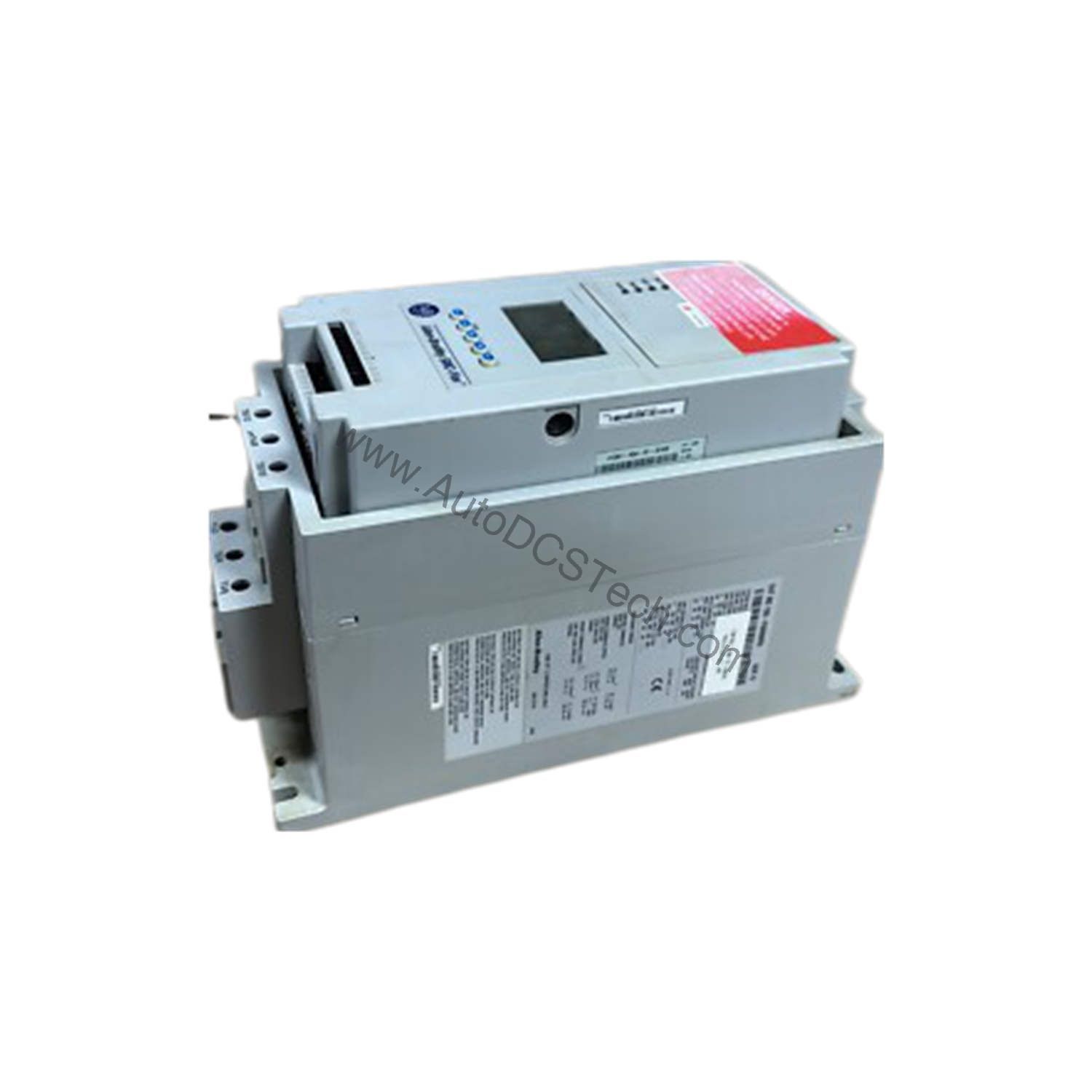

Allen-Bradley 150-F60FHD SMC-Flex Solid State Controller 60A IP65

Optimize Motor Starting with the Allen-Bradley 150-F60FHD SMC-Flex Controller

Industrial motor startups often cause mechanical stress and electrical disturbances. The Allen-Bradley 150-F60FHD SMC-Flex Smart Motor Controller addresses these challenges with a microprocessor-controlled start for three-phase induction motors. This solid-state controller reduces inrush current and torque spikes, extending equipment life and minimizing downtime.

Technical Specifications Breakdown

Key parameters for the 150-F60FHD are listed below for quick reference:

Industry Applications and Cost-Benefit

For example, in conveyor systems, the Soft Start mode reduces mechanical shock, lowering maintenance costs. In pump applications, the Linear Speed Acceleration mode prevents water hammer, protecting pipelines. The 150-F60FHD also supports Dual Ramp and Pre-set Slow Speed modes, offering flexibility for different load profiles. By minimizing electrical stress, it reduces energy waste and extends motor life, delivering a strong return on investment.

Installation and Setup Guidance

Mount the controller in a clean, dry location within its operational temperature range of 23 to 104 °F. Ensure the input line voltage matches the 200-208V AC, 3-phase supply. The control circuit requires 100-240V AC. Use a 225A Class J fuse with a 10KA maximum fault limit for power circuit protection. Connect the DPI communication port to a HIM module for local monitoring. Verify all wiring per the provided manual before energizing.

Maintenance and Reliability

Inspect the enclosure seals periodically to maintain the IP65 rating. Clean the heatsink fan (factory-installed 20VA) to ensure proper cooling. The controller includes electronic motor overload protection via i2 t algorithm, plus protections for stall, under-load, over/under voltage, voltage unbalance, and jam detection. These features reduce unplanned downtime. Store the unit between –4 and 167 °F when not in use.

Compatibility and Integration

The 150-F60FHD integrates via an integral DPI communication port, enabling connection to HIM modules for parameter adjustment and diagnostics. It offers four programmable auxiliary outputs with electromagnetic relay control (NO/NC) for normal, up-to-speed, fault, alarm, network, or external bypass signals. This flexibility simplifies integration into existing control systems.

Selection Guide and Purchasing Advice

When selecting a motor controller, verify that the voltage and current ratings match your motor. The 150-F60FHD is cUL-us, CE, CCC, and UL certified, ensuring compliance with global standards. For lifecycle status and availability, please verify with AutoDCSTech before ordering. AutoDCSTech stocks this model and can assist with application questions.
