Product Overview

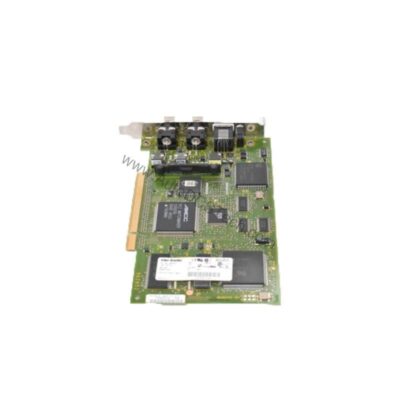

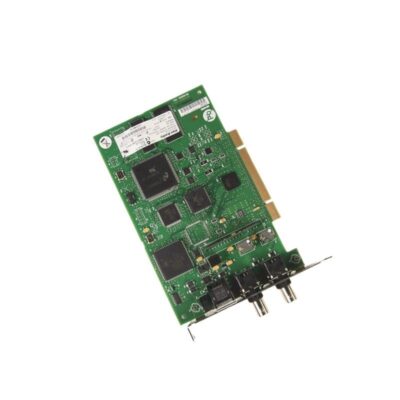

The 1784-PCIC is an Allen-Bradley PCI card designed for ControlNet communication. Manufactured by Allen-Bradley/Rockwell Automation, it belongs to the PLC 5 series. Its primary function is to allow computers to interface with ControlNet networks, making it essential for system configuration, monitoring, and troubleshooting in industrial environments.
Technical Specifications Breakdown
Key parameters for the 1784-PCIC are listed below for quick reference:
| Feature | Specification |
|---|---|
| Brand | Allen-Bradley / Rockwell Automation |
| Series | PLC 5 |
| Part Number | 1784-PCIC |
| Product Type | ControlNet PCI card |
| Dimensions | 4.2 x 6.5 inches |
| Network Port Interface | RJ45 |
| ControlNet Interface | BNC |
| Cable | 1786-CP |
| Compatible Slots | 5 / 3.3 Volts PCI, 32 / 64-bit PCI, PCI-X |
| Power Dissipation | 3.5 Watts |
| Isolation Voltage | 50 Volts |
Industry Applications
In discrete manufacturing, the 1784-PCIC card connects PCs to ControlNet for real-time data acquisition and control. In process industries, it supports configuration of PLC 5 controllers and remote I/O monitoring. Its compact 4.2 x 6.5 inch footprint fits standard PCI slots, minimizing panel space requirements.
Installation & Setup Guidance
Before installation, power down the host computer and ground yourself to discharge static electricity. Access the expansion slots and insert the 1784-PCIC card securely. Use only a 1786-CP cable when connecting the programming terminal to the card. For communication ports, Category 2 wire is recommended. The card is compatible with 5 Volt and 3.3 Volt PCI slots, as well as 32-bit, 64-bit, and PCI-X slots.
Maintenance & Reliability
The 1784-PCIC card operates reliably within a working temperature range of 0 to 50 degrees Celsius. For storage and transportation, maintain temperatures between -40 and 85 degrees Celsius. Periodically inspect the card for dust accumulation and ensure connectors are clean. The card is certified by CE, CSA, UR, EEx, and C-tick standards, confirming its quality and safety.
Compatibility & Integration
This card integrates with ControlNet networks using RJ45 and BNC connectors. The RJ45 port connects programming terminals to ControlNet devices, while redundant BNC connectors provide robust ControlNet connectivity. The 1784-PCIC is tested to withstand 600 Volts for 60 seconds, ensuring electrical robustness.
Selection Guide & Purchasing Advice
When selecting a ControlNet communication card, verify slot compatibility and environmental conditions. The 1784-PCIC is a reliable choice for legacy and current systems. Please verify current lifecycle status and availability with AutoDCSTech before ordering. AutoDCSTech offers genuine Allen-Bradley parts with expert support.
Availability & Condition at AutoDCSTech
| Part Number | 1784-PCIC |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
