Allen-Bradley 1790-0W8X 8-Relay Output Expansion Module

Product Overview

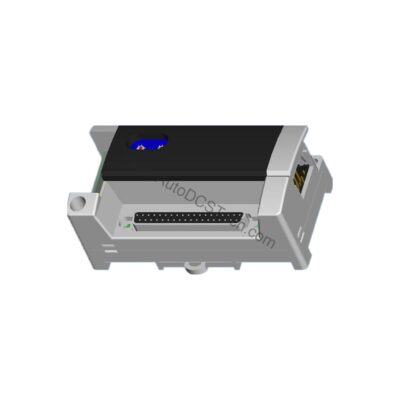

The Allen-Bradley 1790-0W8X is an 8-relay output expansion module designed for industrial automation systems that require reliable discrete output switching. This module features Form A (normally open, single pole single throw) relay outputs, making it suitable for controlling loads such as solenoids, indicators, and small motors.

Technical Specifications Breakdown

Key parameters for the 1790-0W8X are listed below for quick reference:

Industry Applications

This module is well-suited for discrete manufacturing lines where multiple on/off control points are needed. For example, in packaging machinery, the 1790-0W8X can control conveyor diverters and reject actuators. In material handling systems, it manages solenoid valves for pneumatic cylinders. The Form A contacts provide reliable switching for both DC and AC loads, reducing the need for separate interface relays.

Installation & Setup Guidance

Mount the module in a suitable enclosure that meets environmental requirements. Connect the 37-pin D-shell connector to the base controller using a compatible cable. Wire field loads to the relay output terminals, ensuring the load voltage and current do not exceed the rated values. Apply 24V DC nominal field power within the 19.2…28.8V DC range. Verify that the total current draw from all channels stays within the power supply capacity. Use the green status indicators to confirm channel activation during commissioning.

Maintenance & Reliability

Inspect the module periodically for signs of dust or moisture accumulation. Ensure the enclosure maintains proper ventilation. The expected contact life of 300 Kcycles for resistive loads and 100 Kcycles for inductive loads indicates that periodic replacement may be needed in high-cycle applications. Monitor for increased on-state voltage drop or erratic switching as signs of contact wear.

Compatibility & Integration

The 1790-0W8X is an expansion module designed for Allen-Bradley control systems that accept 37-pin D-shell expansion connections. It integrates as a discrete output block, with each relay controlled independently. The photocoupler isolation (1250V AC rms) protects the logic side from field transients.

Selection Guide & Purchasing Advice

When selecting the 1790-0W8X, verify that your controller supports expansion modules with a 37-pin D-shell interface. Confirm that the load type (resistive or inductive) and switching frequency align with the contact life ratings. For applications requiring higher current or different voltage ranges, consider alternative modules. AutoDCSTech offers this module with detailed specifications to help you make an informed decision.

Troubleshooting & Common Issues

If a channel fails to energize, check the status indicator: a green LED confirms the logic command is present. If the LED is on but the load does not operate, measure the output voltage at the terminals. A voltage drop exceeding 0.5V at rated current may indicate contact wear. For intermittent operation, inspect the wiring connections and verify the field power supply voltage is within the 19.2…28.8V DC range. If the module does not communicate, check the 37-pin connector for bent pins or poor contact.
