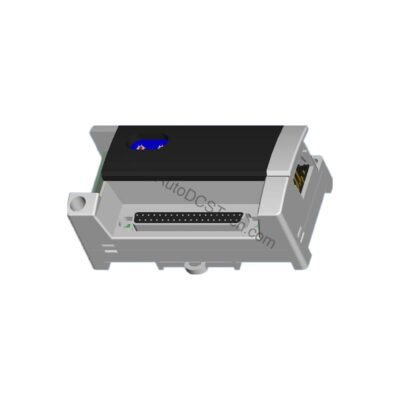

Allen-Bradley 1790-T0V16X 24V DC 16 Sinking Output Module

Product Overview

For maintenance engineers managing discrete output control, the Allen-Bradley 1790-T0V16X offers a robust and straightforward solution. This 24V DC 16 sinking output module is designed for base and expansion configurations, providing reliable on/off control for actuators, relays, and indicators. With its nonisolated, sinking outputs, it simplifies wiring in common-positive systems, reducing installation complexity and potential failure points.

Technical Specifications Breakdown

Key parameters for the 1790-T0V16X are listed below for quick reference:

Industry Applications

Common applications include:

• Conveyor Control: Driving solenoid valves and motor starters in material handling systems. The 0.5 ms off-to-on delay ensures fast response for precise timing.
• Packaging Machinery: Controlling pneumatic actuators and indicator lights. The 16 green status LEDs allow immediate visual verification of each output, speeding up troubleshooting.
• Assembly Stations: Managing pick-and-place operations where 24V DC sinking outputs interface with PLC inputs of other devices. The 4.0A per common rating handles multiple loads per group.

Installation & Setup Guidance

When installing this module, ensure the field power supply is within the 10…28.8V DC range. Use copper or copper-clad aluminum conductors with a maximum screw torque of 7 lb-in on the M3.0 terminal block. Each common group (8 points) can handle up to 4.0A total, so distribute loads accordingly to avoid exceeding the common rating. The photocoupler isolation simplifies grounding by separating I/O from logic circuits.

Maintenance & Reliability

For reliable operation, periodically inspect the terminal block connections for tightness and signs of corrosion. The green status LEDs provide instant feedback on output states, making it easy to identify a failed channel without a multimeter. Since the module has no moving parts, the primary wear mechanism is connector degradation; annual torque checks are recommended.

Compatibility & Integration

It uses DeviceNet power from the base module, with a supply voltage range of 11…28.8V DC and maximum power dissipation of 1.2W at 28.8V DC. The sinking output configuration is compatible with common-positive field devices.

Selection Guide & Purchasing Advice

When selecting the 1790-T0V16X, verify your system's common voltage and load requirements. For applications needing more than 0.5A per output, consider using an interposing relay. AutoDCSTech stocks this module and can confirm current lifecycle status and availability before ordering.

Troubleshooting & Common Issues

If an output fails to energize, first check the green LED: if off, verify the logic signal and field power. If the LED is on but the load does not activate, measure the on-state voltage drop (max 0.5V DC) across the output. A higher drop indicates a failed output transistor. For intermittent faults, inspect the terminal block for loose wires or oxidation.
