Product Overview

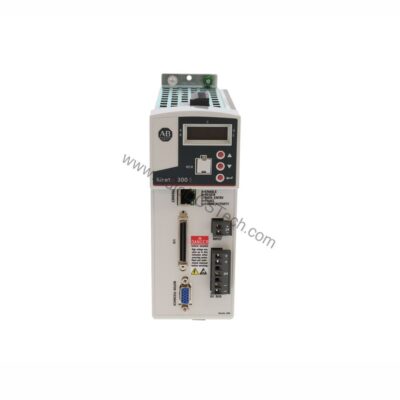

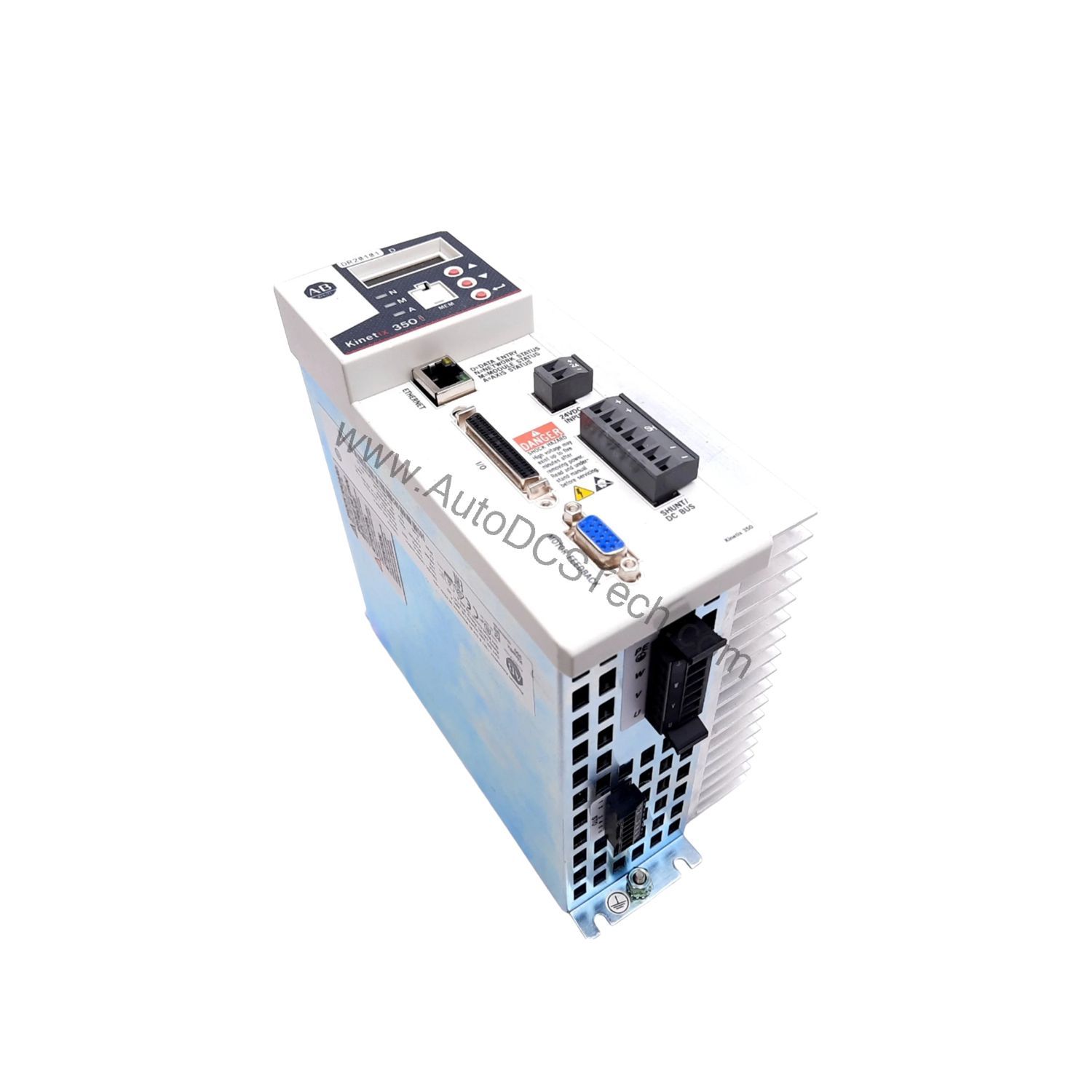

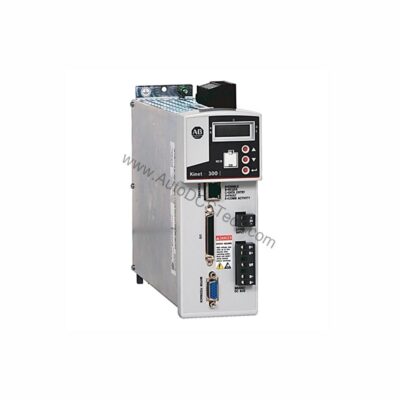

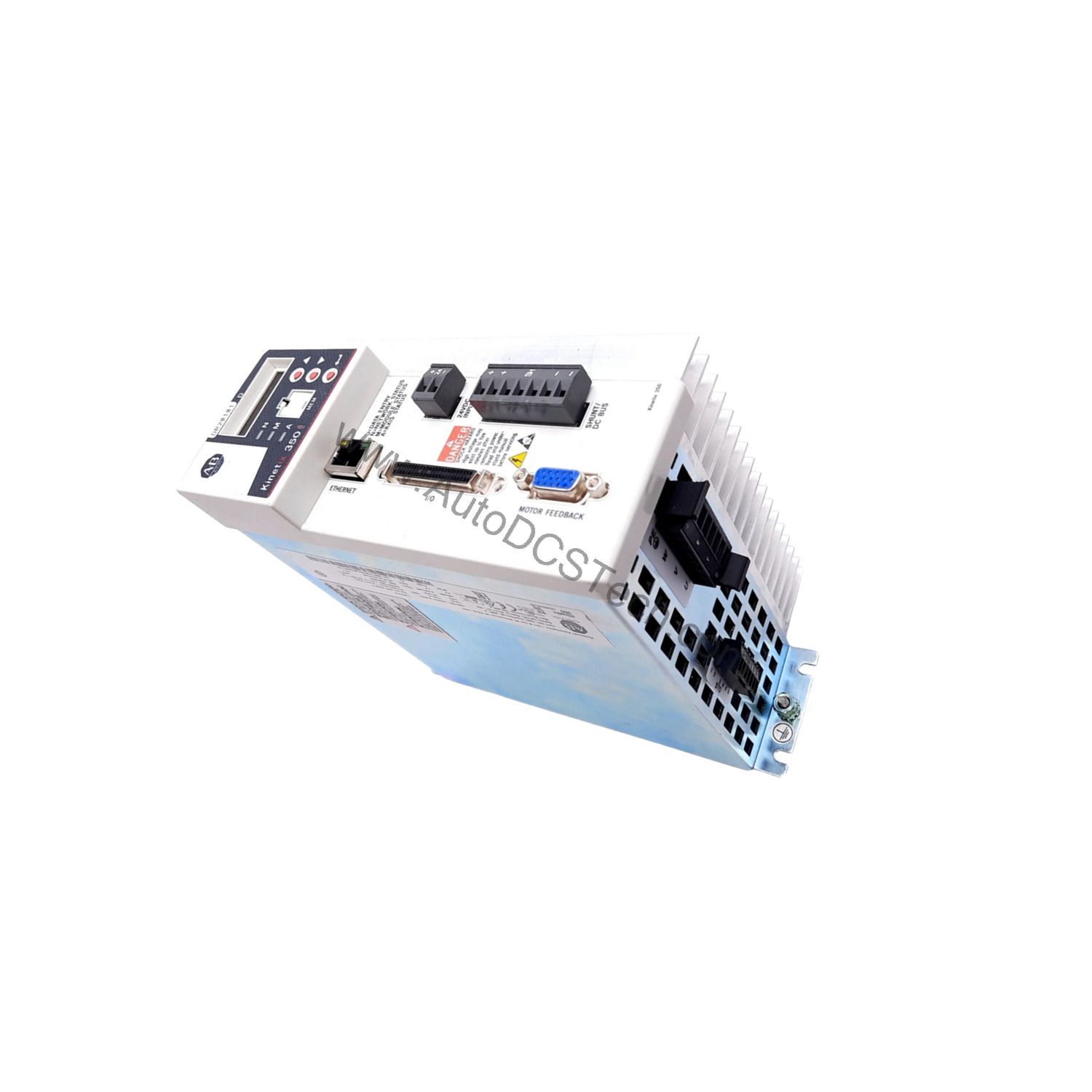

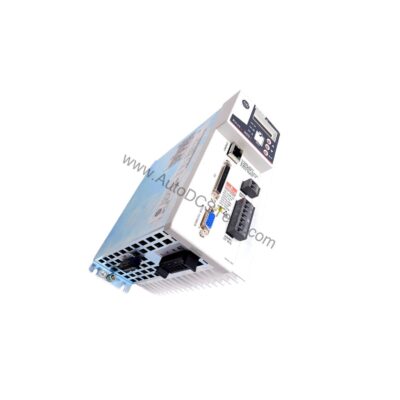

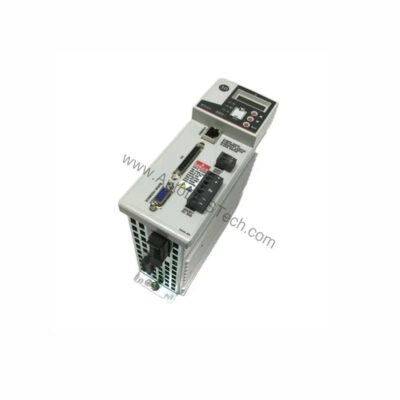

The Allen-Bradley 2097-V32PR2-LM is a Kinetix 300 Ethernet I/P single-axis servo drive from Rockwell Automation. This drive is part of the 2097 Kinetix 300 Drives product bulletin and is designed for motion control applications.
Technical Specifications Breakdown
Key parameters for the 2097-V32PR2-LM are listed below for quick reference:
| Feature | Specification |
|---|---|
| Input Voltage | 80…264V rms single-phase (240V nom) |
| Input Frequency | 48…62 Hz |
| Continuous Output Current (rms) | 4.0 A |
| Continuous Output Current (0-pk) | 5.7 A |
| Peak Output Current (rms) | 12.0 A |
| Peak Output Current (0-pk) | 17.0 A |
| Continuous Power Output | 0.8 kW |
| Safe Torque-Off | Yes |
| Integrated AC (EMC) Line Filter | Yes |
| Dimensions | 9.37 x 7.29 x 3.08 in (238 x 185.1 x 78.2 mm) |
| Weight | 3.7 lbs (1.7 kg) |
Industry Applications
The integrated Safe Torque-Off feature allows for safe machine access during maintenance without removing power from the drive, reducing downtime and improving operational ROI. Its compact form factor (9.37 x 7.29 x 3.08 in) enables installation in space-constrained cabinets.
Installation & Setup Guidance
Mount the drive with adequate clearance for airflow. Use the integrated AC line filter to reduce electromagnetic interference. Connect the control power backup input (20…26V DC, 500 mA nominal) to maintain logic and communication circuits during main power loss. The front panel RJ-45 Ethernet interface supports 10 Mbps communication for network integration.
Maintenance & Reliability
Inspect the drive periodically for dust accumulation and ensure ambient temperature remains within the specified operating range. The drive's robust design includes a shunt circuit (on at 390V DC, off at 375V DC) to protect against overvoltage conditions. No internal adjustments are required during normal operation.
Compatibility & Integration
The 2097-V32PR2-LM is compatible with controllers that support integrated motion over Ethernet I/P, including ControlLogix 1756-L7x and CompactLogix 5370. This simplifies wiring and reduces system cost by eliminating additional motion control hardware.
Selection Guide & Purchasing Advice
When selecting this drive, verify that your application's continuous current requirement does not exceed 4.0 A rms. For higher power needs, consider other models in the Kinetix 300 series. AutoDCSTech stocks the 2097-V32PR2-LM and can provide lifecycle status and availability upon request.
Availability & Condition at AutoDCSTech
| Part Number | 2097-V32PR2-LM |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
