Product Overview

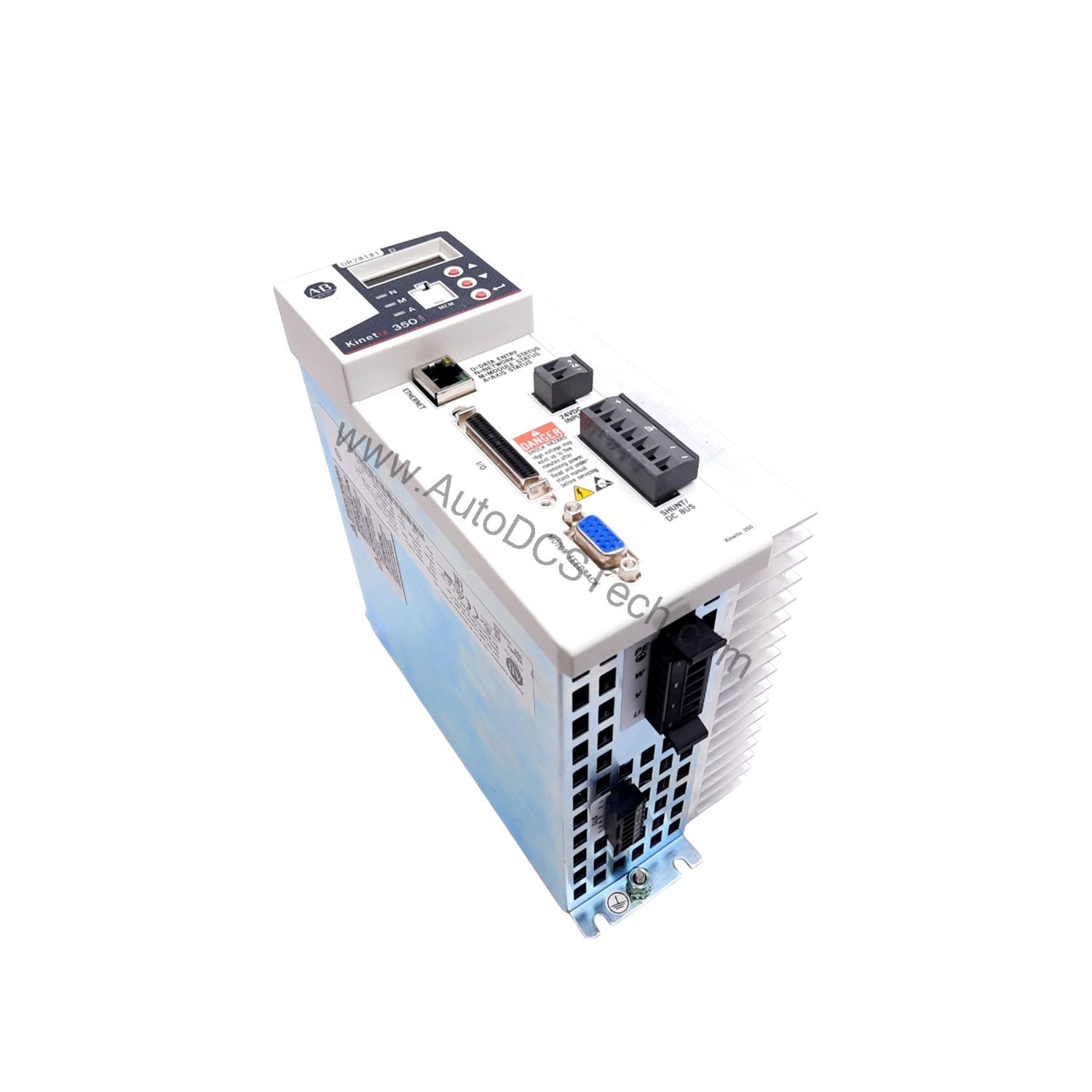

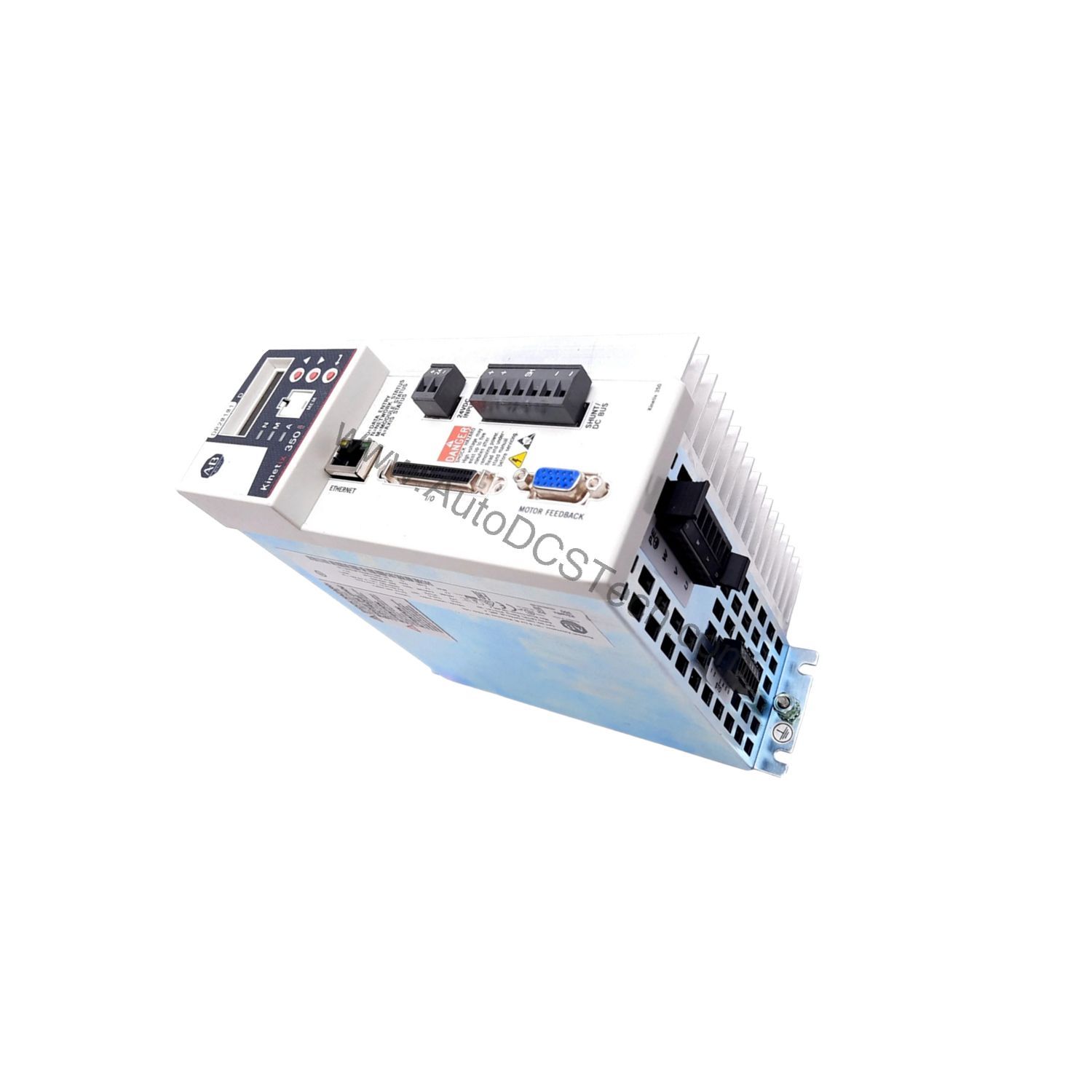

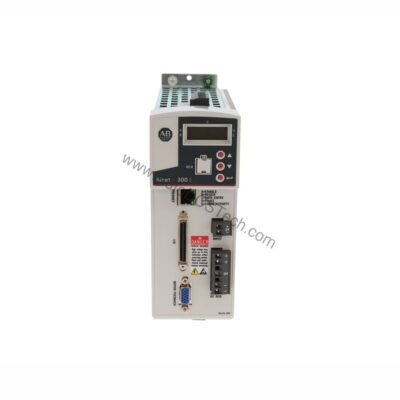

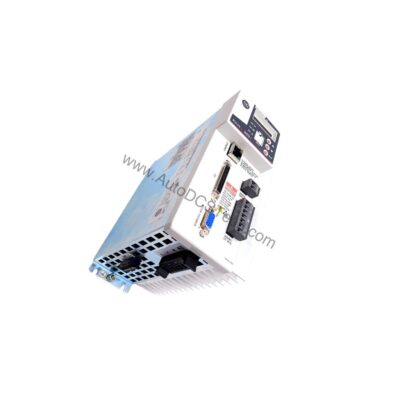

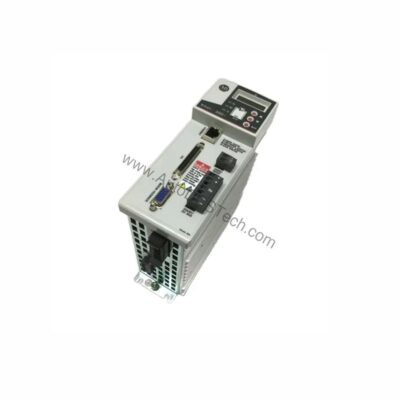

The Allen-Bradley 2097-V32PR4 is a Kinetix 300 Ethernet I/P indexing servo drive designed for cost-sensitive, low axis-count applications. This drive integrates an AC line filter and Safe Torque-Off functionality, enhancing machine safety and productivity. It simplifies network wiring through a single Ethernet/IP port, reducing panel layout costs and enabling seamless integration into manufacturing networks.
Technical Specifications Breakdown
Key parameters for the 2097-V32PR4 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Input Voltage | 80…264V rms single-phase (240V nom) |
| Input Frequency | 48…62 Hz |
| Continuous Output Current (0-pk) | 11.3 A |
| Continuous Power Output | 1.70 kW |
| Peak Output Current (0-pk) | 33.9 A |
| Safe Torque-Off | Yes |
| Operating Temperature | 32-104 F (0-40 C) |
| Dimensions | 9.37 x 9.04 x 3.42 in (238 x 230 x 87.0 mm) |
| Weight | 4.9 lbs (2.2 kg) |
Industry Applications
Its 1.7 kW continuous power and 11.3 A output handle moderate loads reliably.
Installation & Setup Guidance
Mount the drive in a clean, ventilated enclosure within the 0-40°C operating range. Use the 4-character display for quick diagnostics during commissioning. Smart Motor Technology automatically configures motor parameters when used with MP-Series or TL-Series motors, reducing setup time. Ensure control power backup (20-26V DC, 500 mA nominal) is available for proper operation.
Maintenance & Reliability
Inspect the integrated AC line filter and cooling vents periodically for dust accumulation. Verify Safe Torque-Off functionality during routine safety checks. The drive's robust design minimizes failures, but regular inspection of connections and ambient temperature ensures long-term reliability.
Compatibility & Integration
The 2097-V32PR4 integrates via Ethernet/IP for motion control, remote I/O, and HMI communication. It supports MP-Series and TL-Series servo motors and actuators. The drive is part of the Kinetix 300 series, offering scalable power for single-axis applications.
Selection Guide & Purchasing Advice
When selecting a servo drive for indexing or simple motion tasks, the 2097-V32PR4 provides a cost-effective solution with built-in safety features. Contact AutoDCSTech for lifecycle status and availability before ordering.
Availability & Condition at AutoDCSTech
| Part Number | 2097-V32PR4 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
