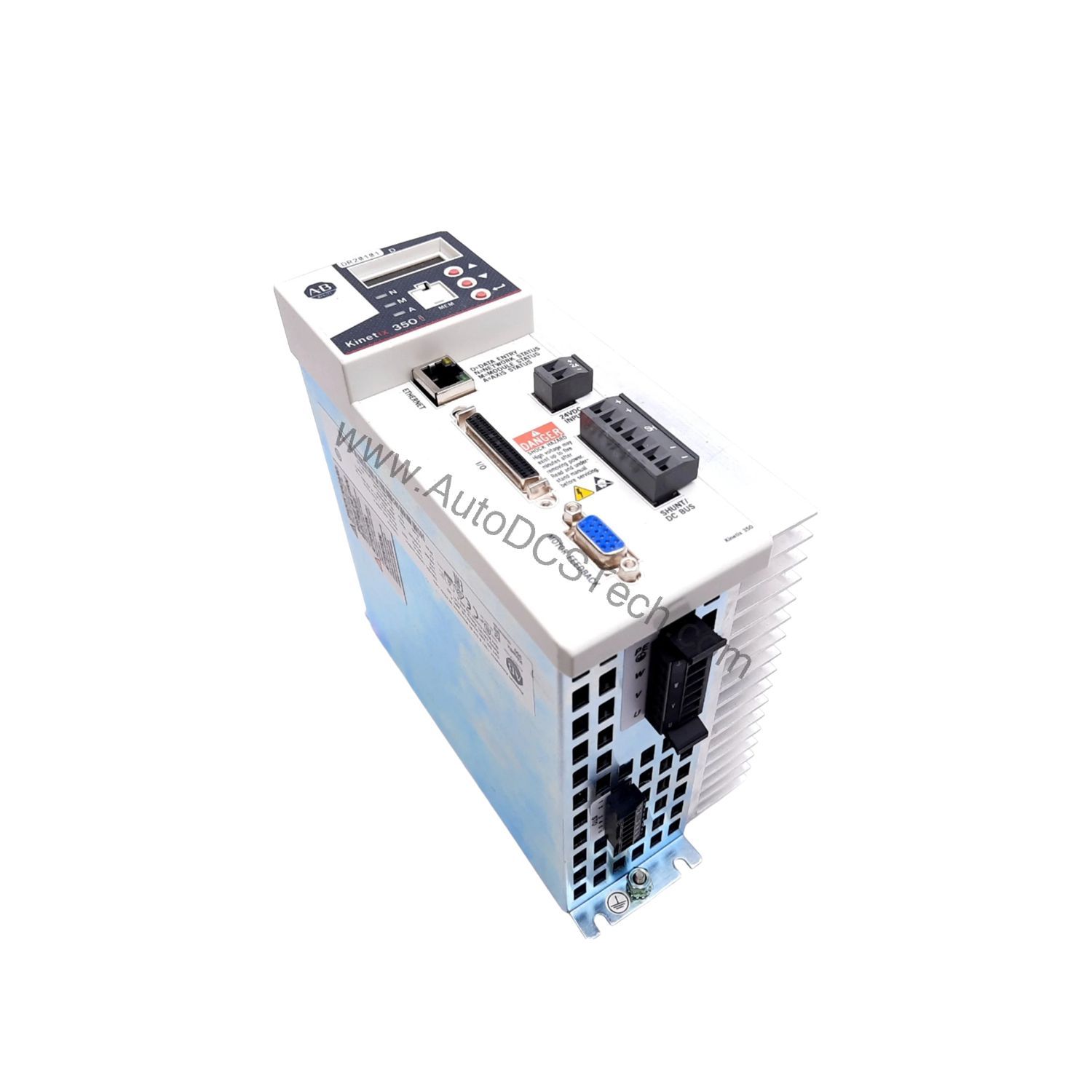

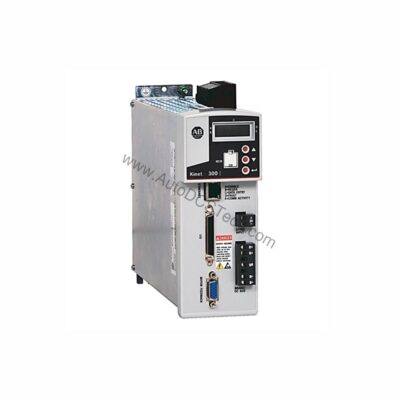

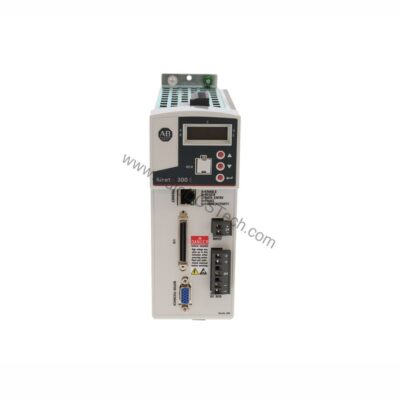

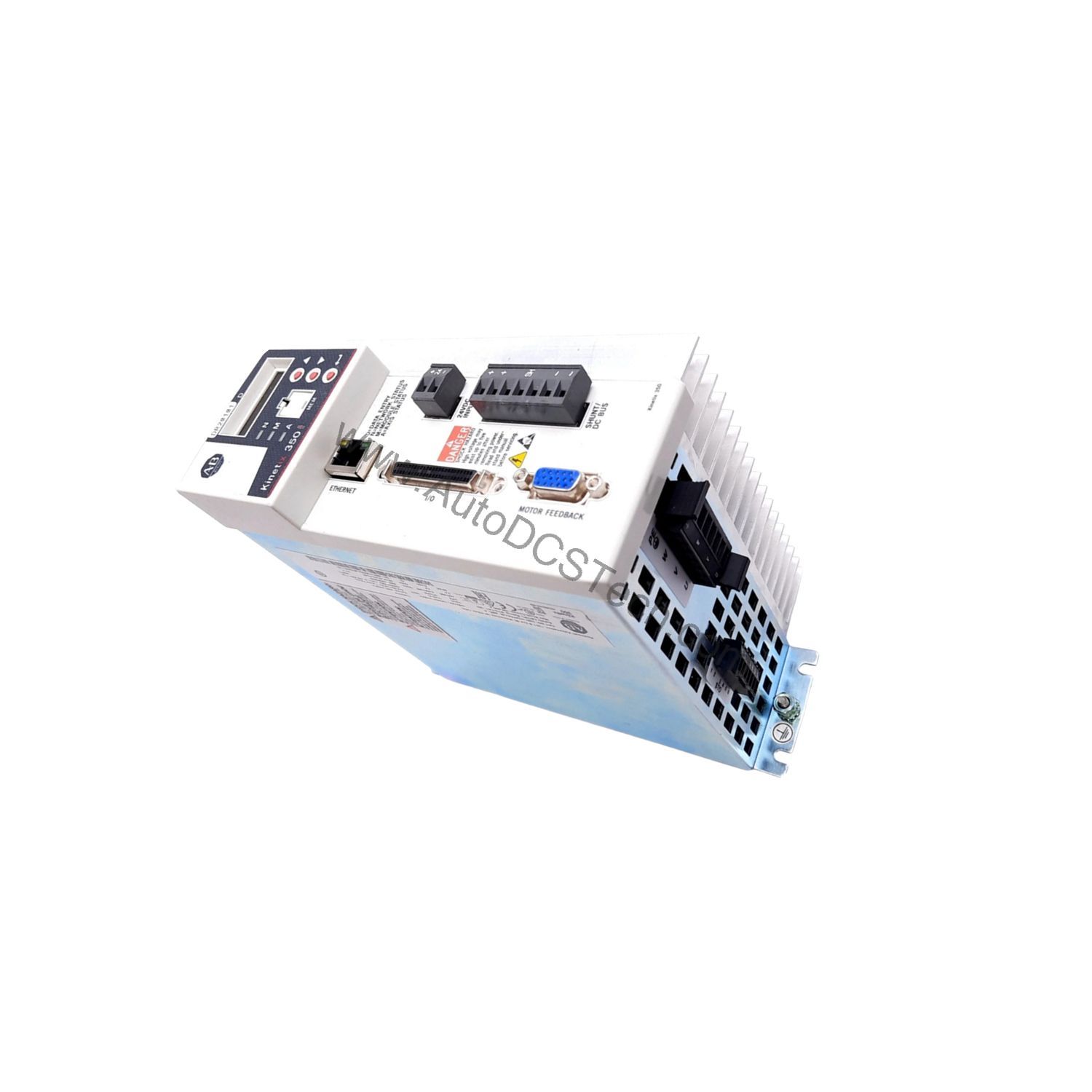

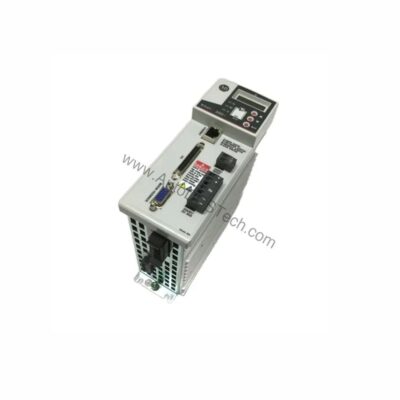

Allen-Bradley 2097-V33PR3-LM Kinetix 350 Servo Drive with STO

Technical Specifications Breakdown

Key parameters for the 2097-V33PR3-LM are listed below for quick reference:

Reliable Motion Control for Demanding Applications

Industrial automation engineers often face the challenge of integrating precise motion control with stringent safety requirements. The Allen-Bradley 2097-V33PR3-LM Kinetix 350 Ethernet/IP servo drive directly addresses this need. It combines single-axis servo control with an integrated Safe Torque Off (STO) function, simplifying system design and reducing wiring complexity. This drive is engineered for applications where both productivity and personnel protection are paramount.

Optimizing System Performance and Safety

Application Versatility

The wide input voltage range (80-264 VAC, single or three-phase) allows deployment across global facilities without additional transformers. Its 4.0 A continuous output and 12.0 A peak current deliver the torque needed for rapid acceleration and deceleration cycles. The integrated STO feature meets SIL 3 requirements, enabling safe maintenance access without removing power from the entire cabinet.

Installation Best Practices

Proper mounting reduces electrical noise and improves reliability. Maintain a minimum clearance of 25 mm (1.0 inch) top and bottom, and 3 mm (0.12 inch) on sides. Use a bonded, paint-free subpanel to minimize electromagnetic interference (EMI). The control power back-up input (20-26 VDC, 500 mA nominal) maintains bus voltage during brief line dips, preventing nuisance faults.

Maintenance and Reliability

Periodically inspect cooling fans and air filters for dust accumulation. The drive's overvoltage detection threshold is set at 430 VDC, protecting internal components. With a short-circuit current rating of 100,000 A symmetrical, it withstands severe fault conditions. Verify that the ambient temperature stays within the specified range to ensure long service life.

Compatibility and Integration

This reduces programming effort and simplifies data exchange. Use Studio 5000 software for straightforward configuration and tuning.

Selection and Purchasing

When selecting a servo drive, consider your motor's continuous and peak current requirements. The 2097-V33PR3-LM provides 1.0 kW continuous power and supports motors up to 3.0 kW peak. For pricing, availability, and lifecycle status, contact AutoDCSTech. Our team can confirm stock and recommend suitable alternatives if needed.
