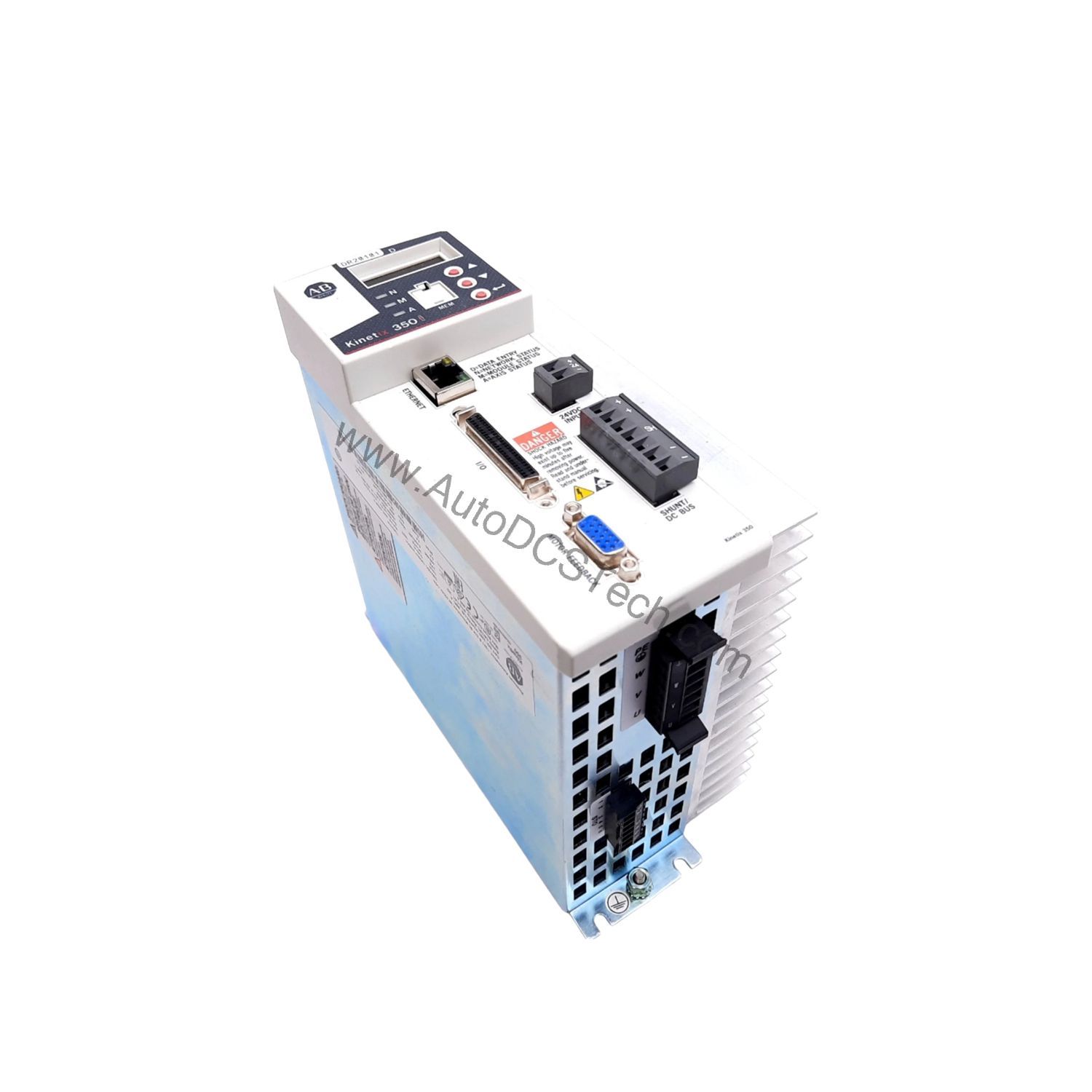

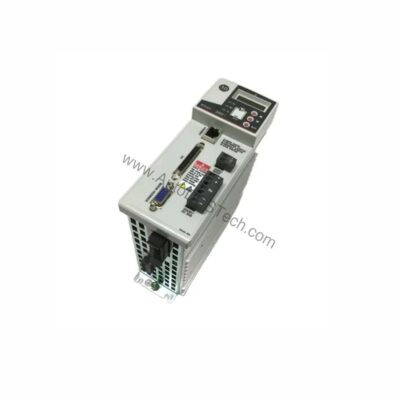

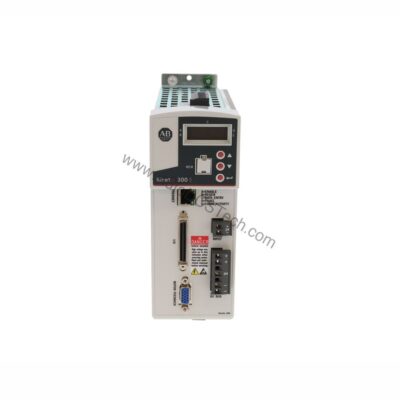

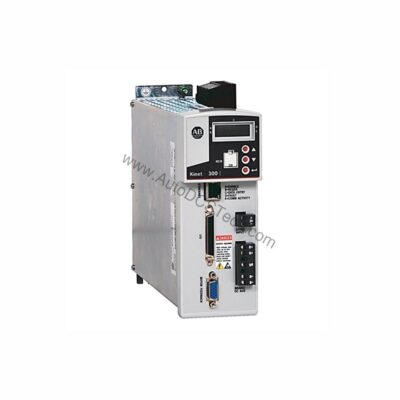

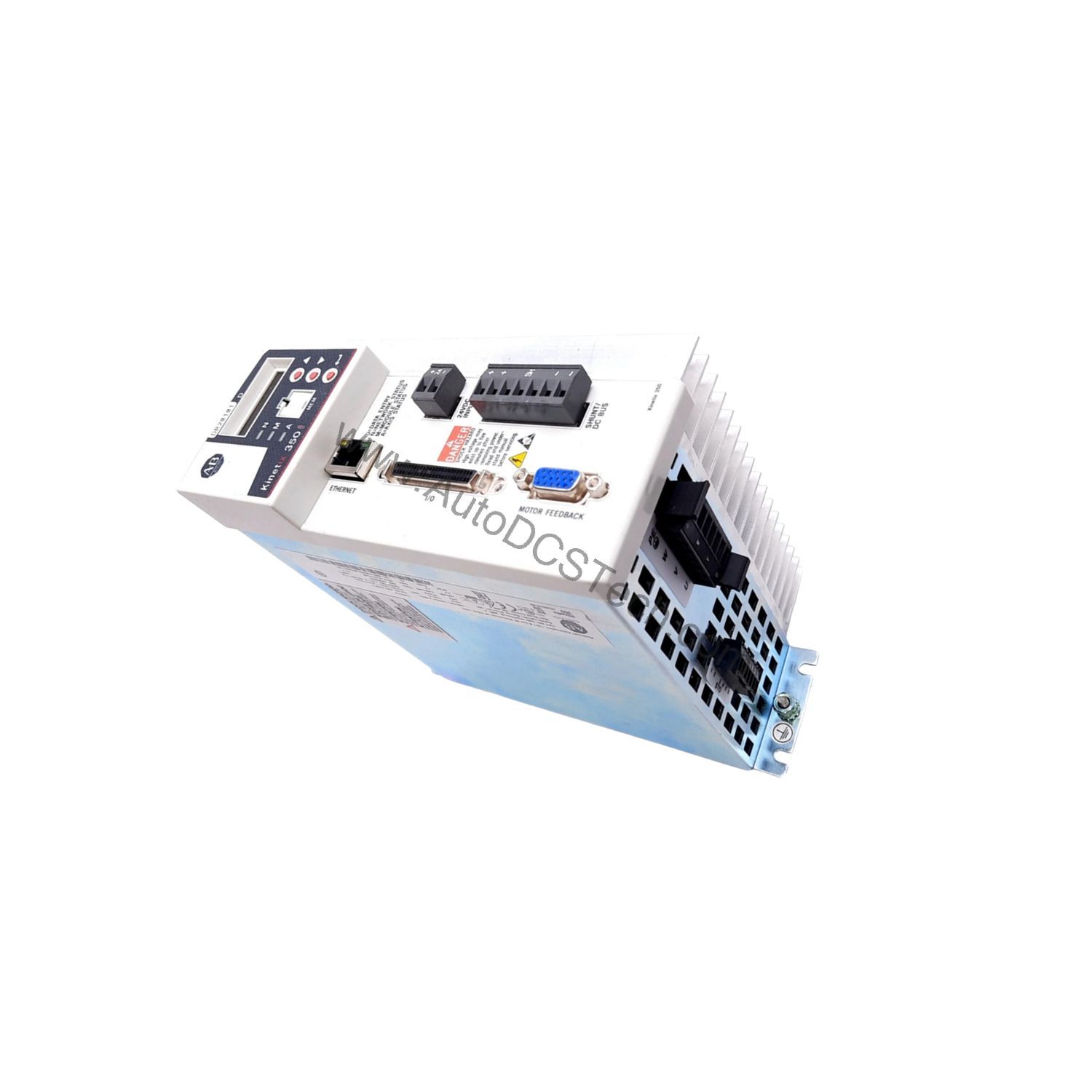

Allen-Bradley 2097-V33PR5 Kinetix 300 EtherNet/IP Indexing Servo Drive

Technical Specifications Breakdown

Key parameters for the 2097-V33PR5 are listed below for quick reference:

Industry Applications

The 2097-V33PR5 supports up to 32 index positions with S-Curve and trapezoidal motion profiles, enabling smooth acceleration and deceleration. Its EtherNet/IP connectivity allows direct integration with PLCs and HMIs, reducing commissioning time. The Safe Torque-Off feature enhances worker safety during maintenance, meeting ISO 13849-1 PLd/SIL2 requirements.

Installation and Setup Guidance

Install the 2097-V33PR5 inside an enclosure with proper climate control. Account for the unit power dissipation of 67 Watts when sizing heaters or coolers. Maintain minimum clearances of 3 mm (0.12 in) on both sides and 25 mm (1 in) at the bottom and rear for ventilation. For UL applications, use recommended fuses and circuit breakers: KTK-R-30 (30 A) and 1489-A1C300 for single-phase 120/240VAC; KTK-R-20 (20 A) and 1489-A3C200 for three-phase. Connect control power backup at 20…26V DC, 500 mA nominal.

Maintenance and Reliability

Inspect the drive periodically for dust buildup and ensure ventilation paths remain unobstructed. The operating temperature range of 0-40°C must be maintained to prevent thermal derating. The drive's Safe Torque-Off function should be tested regularly to confirm proper operation. No internal adjustments are required; rely on the integrated diagnostics via EtherNet/IP for status monitoring.

Solving Precision Motion Challenges with the Allen-Bradley 2097-V33PR5

In automated manufacturing, achieving precise, repeatable positioning is critical for applications like pick-and-place, packaging, and assembly. The Allen-Bradley 2097-V33PR5 Kinetix 300 EtherNet/IP Indexing Servo Drive addresses this need by delivering accurate indexing control with flexible power options.

Compatibility and Integration

The 2097-V33PR5 is compatible with MP-Series and TL-Series motors, including models like MPL-A320H, MPL-A320P, TLY-A2530P, and TLY-A2540P. It also works with Linear Thruster actuators and linear stages. Smart Motor Technology automatically identifies connected motors, simplifying setup. The drive supports indexing, PTO, analog, and EtherNet/IP commanded control modes.

Selection Guide and Purchasing Advice

When selecting the 2097-V33PR5, verify that your motor and actuator are compatible with the drive's 8.0 A continuous output current (rms) and 2.00 kW power rating. The drive's flexible input voltage allows use in various global installations. For current lifecycle status and availability, contact AutoDCSTech before ordering. AutoDCSTech stocks this model and can provide expert support for your motion control needs.
