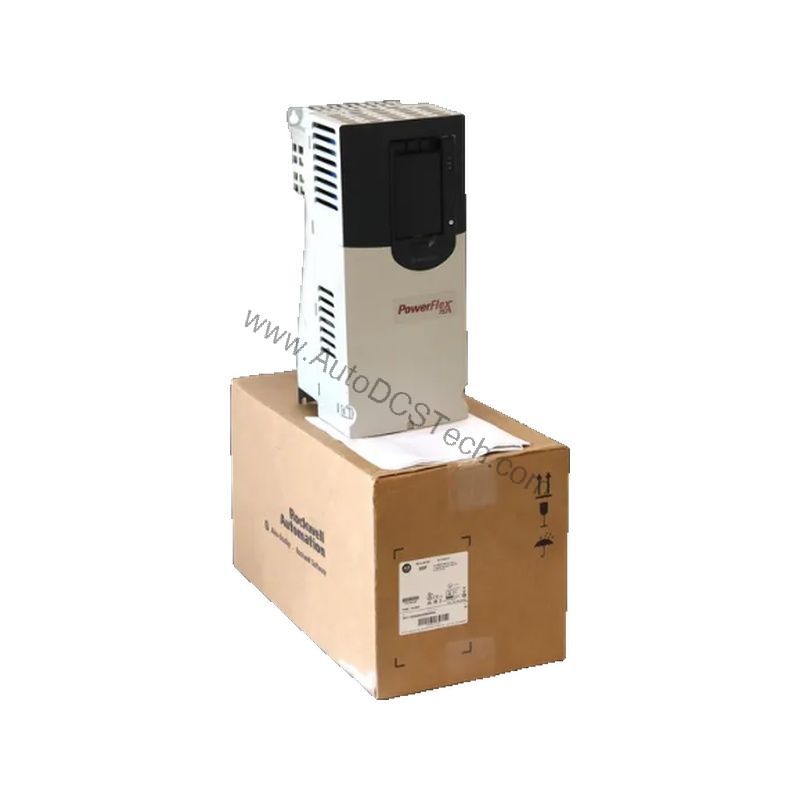

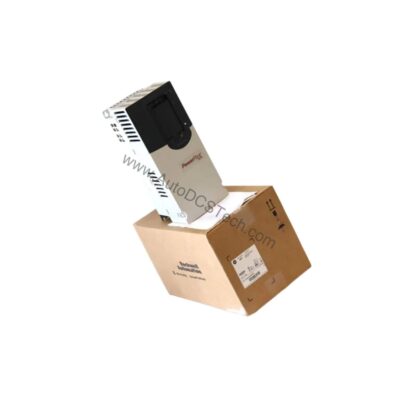

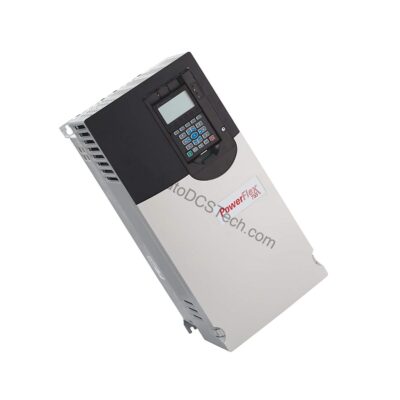

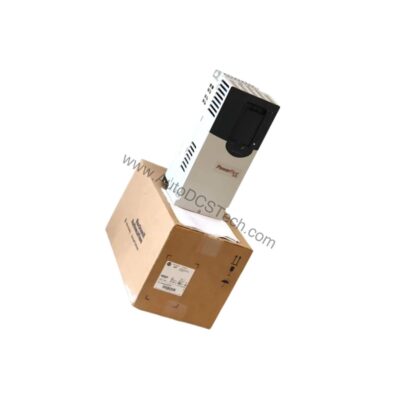

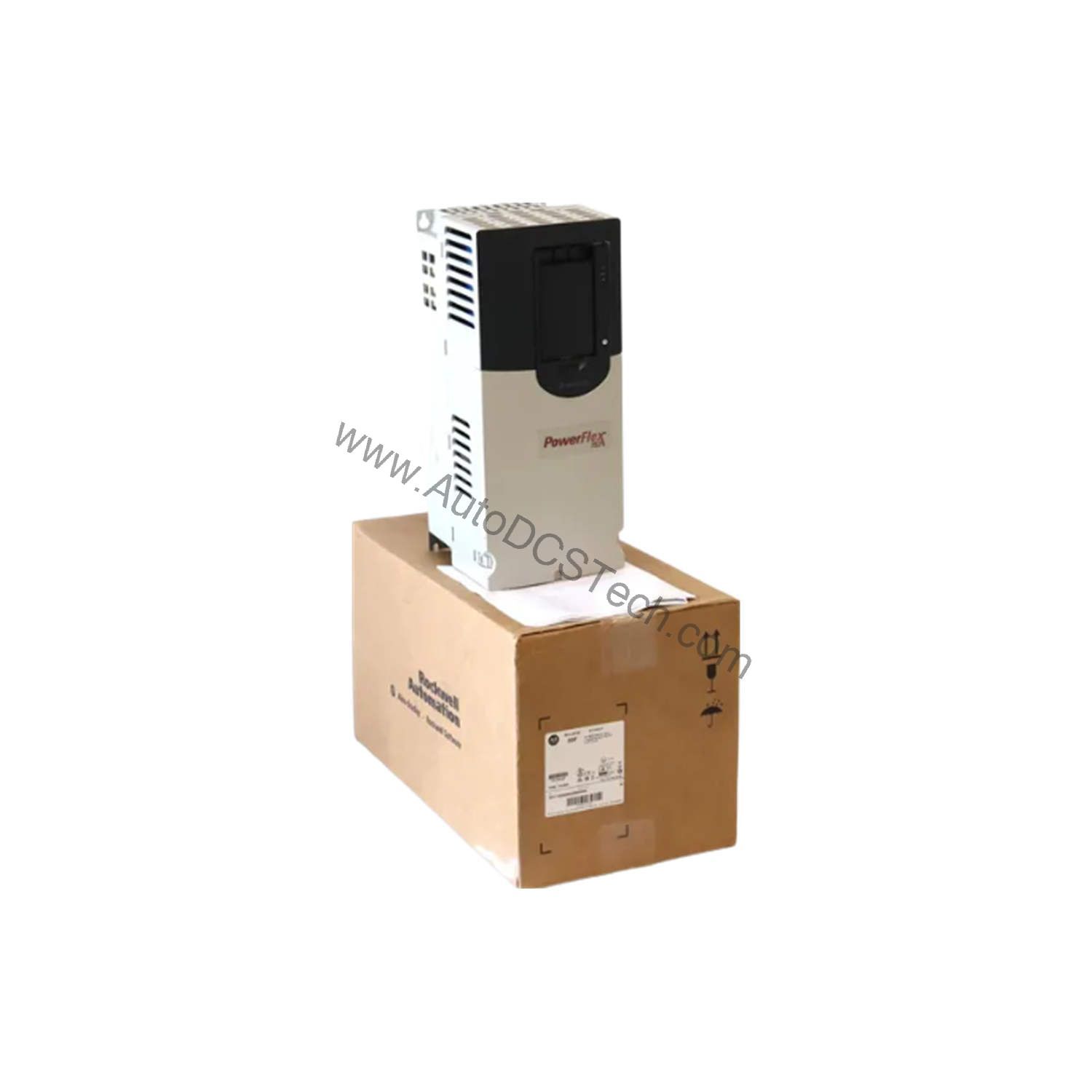

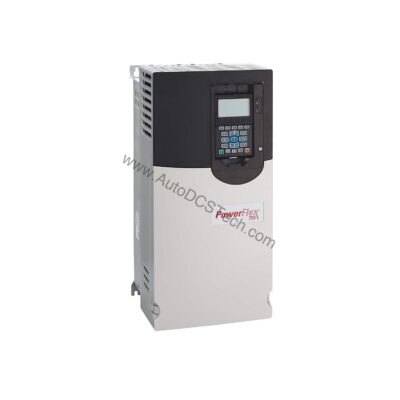

Allen-Bradley 20F11NC072AA0NNNNN PowerFlex 753 AC Drive, 72A, 37kW

Technical Specifications Breakdown

Key parameters for the 20F11NC072AA0NNNNN are listed below for quick reference:

Industry Applications

This drive is well-suited for material handling systems where controlled acceleration and deceleration reduce mechanical stress. In pumping stations, the integrated filtering and DC terminals help maintain stable operation despite line disturbances. For fan applications in HVAC, the dynamic braking transistor enables rapid stopping, improving safety and process control.

Installation & Setup Guidance

Mount the open-type enclosure in a clean, dry cabinet with adequate airflow. Ensure the AC input voltage matches the 400V AC rating and that DC bus connections are properly terminated. The default CM capacitor jumper is removed; verify this setting per your system grounding requirements. No door-mounted HMI is included, so plan for remote interface if needed.

Maintenance & Reliability

Periodically inspect the drive for dust accumulation on heat sinks and ensure ambient temperature stays within 0 to 50 degrees Celsius. Check DC terminal connections for tightness and verify that the braking transistor circuit is functional. Storage conditions should remain between -40 and 70 degrees Celsius.

Solving High-Torque Motor Control in Harsh Industrial Environments

Industrial engineers often face the challenge of controlling high-torque motors in environments with fluctuating power quality. The Allen-Bradley 20F11NC072AA0NNNNN, part of the PowerFlex 753 series, directly addresses this need. This AC drive delivers robust performance for applications requiring precise speed and torque regulation, such as conveyors, pumps, and fans, while maintaining reliability under demanding conditions.

Compatibility & Integration

The PowerFlex 753 series supports embedded I/O and is compatible with common industrial networks via optional communication modules. The open enclosure allows flexible integration into existing control panels. Verify compatibility with your motor voltage and current ratings before installation.

Selection Guide & Purchasing Advice

When selecting a replacement or new drive, confirm that the normal-duty current (72 Amps) and power (37 kW) meet your motor requirements. The 20F11NC072AA0NNNNN is available from AutoDCSTech, a trusted supplier of industrial automation parts. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
