Allen-Bradley 22B-D1P4F104 PowerFlex 40 Drive, 0.5 HP, 480V AC

Product Overview

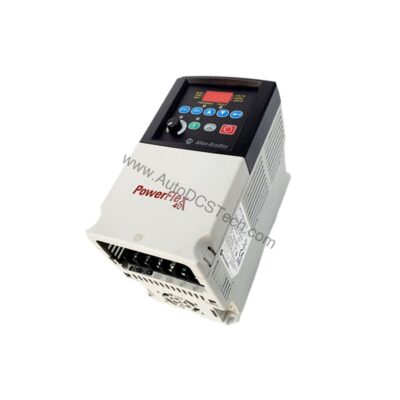

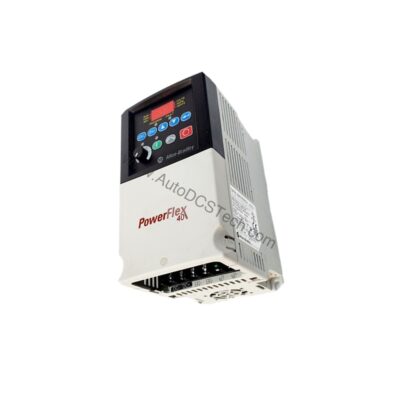

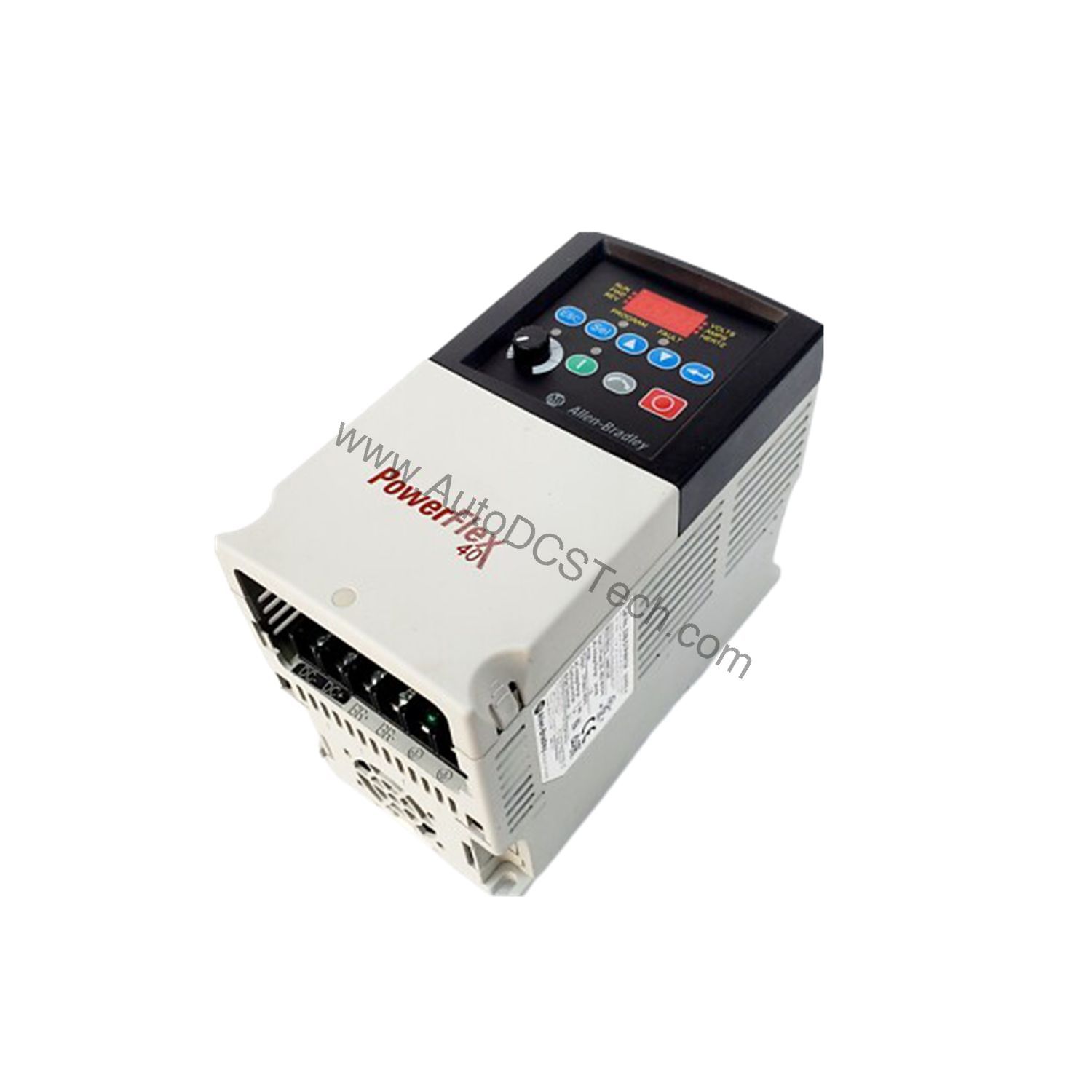

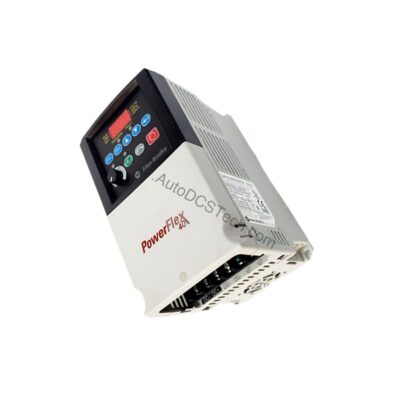

The Allen-Bradley 22B-D1P4F104 is a three-phase adjustable frequency drive designed to control the speed and torque of industrial variable speed motors. It operates with 480 Volts AC input and delivers 0.5 horsepower with a current rating of 1.4 Amperes. The drive features a flange mount enclosure rated IP20 and NEMA/UL Type Open, making it suitable for panel-mounted installations. An integral keypad with a 4-digit display and 10 LED indicators provides intuitive out-of-the-box operation via the potentiometer and control keys. The RS-485 communication port enables programming from a personal computer, while the programming keys mirror those of other PowerFlex drives for consistent setup.

Technical Specifications Breakdown

Key parameters for the 22B-D1P4F104 are listed below for quick reference:

Industry Applications

This drive is well-suited for conveyor systems, pumps, and fans where variable speed control improves process consistency and energy savings. In material handling, the 22B-D1P4F104 enables smooth acceleration and deceleration, reducing mechanical stress. For HVAC applications, it adjusts fan speed based on demand, lowering operational costs. The RS-485 communication allows integration with PLC networks for centralized monitoring and control.

Installation and Setup Guidance

Mount the drive on a DIN rail using the A or B frame provisions for secure installation. Ensure the enclosure is in a clean, dry environment to maintain the IP20 rating. Connect the 3-phase 480V AC input per local electrical codes. Use the integral keypad for initial parameter setup; the 4-digit display and LEDs guide you through programming. For advanced configuration, connect via the RS-485 port to a PC using PowerFlex software. Always follow the user manual for wiring and commissioning steps.

Maintenance and Reliability

Periodically inspect the drive for dust accumulation on the heatsink and ensure ventilation paths are clear. Verify that all connections remain tight and free of corrosion. The IP20 enclosure protects against solid objects but not moisture, so avoid wet environments. No internal adjustments are required; routine visual checks suffice for reliable operation.

The Evolution of Adjustable Frequency Drives in Modern Industry

Industrial automation has evolved from simple motor starters to sophisticated adjustable frequency drives that deliver precise speed and torque control. The Allen-Bradley 22B-D1P4F104 PowerFlex 40 drive exemplifies this progress, offering a compact yet powerful solution for variable speed motor applications.

Compatibility and Integration

The 22B-D1P4F104 integrates with Allen-Bradley PLC systems via RS-485 communication. Its programming keys are consistent with other PowerFlex 40 drives, allowing you to clone settings across multiple units. The drive supports standard Modbus RTU protocols over RS-485 for seamless data exchange with controllers and HMIs.

Selection Guide and Purchasing Advice

When selecting this drive, confirm your motor's voltage and current ratings match the 480V AC, 1.4 A output. For applications requiring CE compliance, note that this model has no CE compliant filter; consider alternative versions if needed. Contact AutoDCSTech for current availability and lifecycle status before ordering. Our team can help verify compatibility with your existing system.

Troubleshooting and Common Issues

If the drive fails to start, check that the input power is present and within the rated voltage. Verify the keypad is properly connected and the display shows no fault codes. For communication issues, inspect the RS-485 wiring for polarity and termination. Refer to the PowerFlex 40 manual for specific fault code explanations. Always disconnect power before any inspection.
