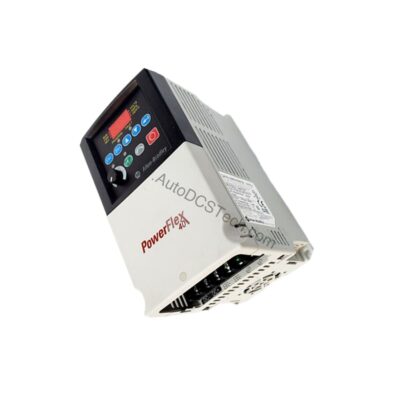

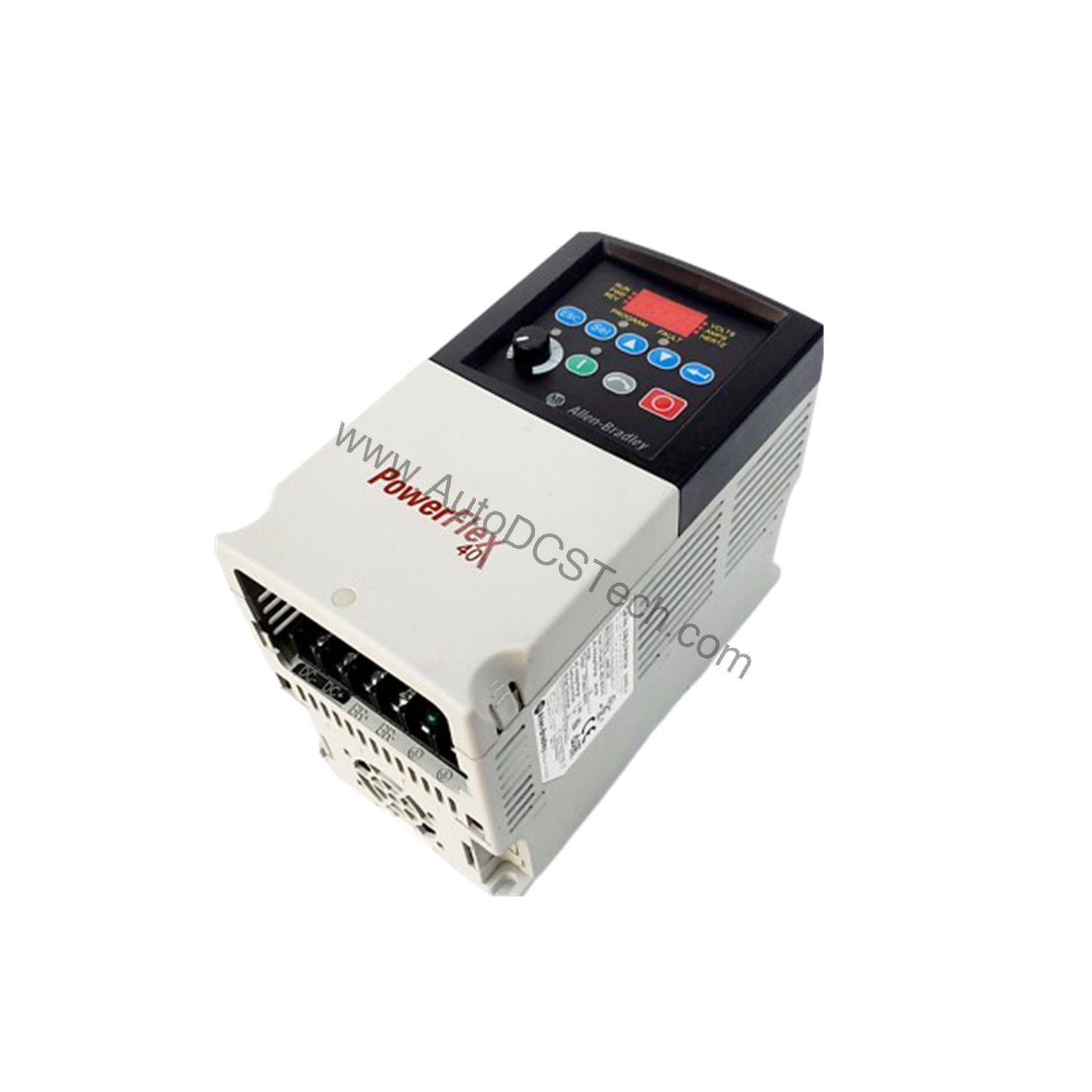

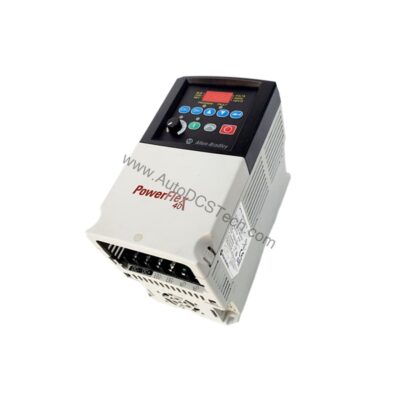

Allen-Bradley 22B-D1P4N104 PowerFlex 40 AC Drive, 0.5 HP, 1.4 A

Product Overview

The Allen-Bradley 22B-D1P4N104 is a PowerFlex 40 Adjustable Frequency AC Drive designed for precise motor speed control in industrial automation. This compact drive delivers 0.5 HP (0.4 kW) output power with a continuous output current of 1.4 Amperes. It operates on a 342-528 VAC, 3-phase supply, making it suitable for global OEM applications. The drive supports Sensorless Vector Control (SVC) and Field Oriented Control (FOC) for enhanced performance in machine tools, fans, pumps, conveyors, and material handling systems.

Technical Specifications Breakdown

Key parameters for the 22B-D1P4N104 are listed below for quick reference:

Industry Applications

In machine tools, the sensorless vector performance provides auto-boost and slip compensation for consistent torque. For fans and pumps, the integral PID control reduces energy consumption. Conveyor systems benefit from the compact panel-mount design and programmable I/O. Compared to similar drives, the 22B-D1P4N104 offers a cost-effective balance of power and features for light industrial loads.

Installation & Setup Guidance

Mount the drive in a clean, dry environment free from volatile or corrosive vapors, gas, or dust. Use the integral keypad for local Start/Stop/Jog control and frequency adjustment via the potentiometer. For remote operation, connect hardwired signals to the I/O terminals: 3 fixed discrete inputs for START/STOP/REV, 4 fully programmable discrete inputs, and 4 programmable discrete outputs. Analog input options include 0…10V or 4…20 mA (unipolar) and +/- 100V (bipolar). The analog output provides 0-10 VDC or 4-20 mA. Use the RS-485 port for communication with PC tools like Drive Explorer or Drive Tool SP.

Maintenance & Reliability

Inspect the drive periodically for dust buildup on the heatsink and ensure ambient temperature remains within 10-50°C. The drive can be mounted at altitudes up to 1000 m without derating. Follow ESD precautions when handling the unit, as it contains sensitive assemblies. The integral keypad LCD aids in troubleshooting by displaying fault codes and operating parameters.

Compatibility & Integration

It is compatible with PowerFlex 40 series accessories and PC-based configuration tools. The drive supports both unipolar and bipolar analog inputs, allowing connection to various sensors and controllers.

Selection Guide & Purchasing Advice

When selecting this drive, verify your motor's voltage and current ratings match the 1.4 A output and 342-528 VAC input. AutoDCSTech stocks the 22B-D1P4N104 and can advise on lifecycle status and availability. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
