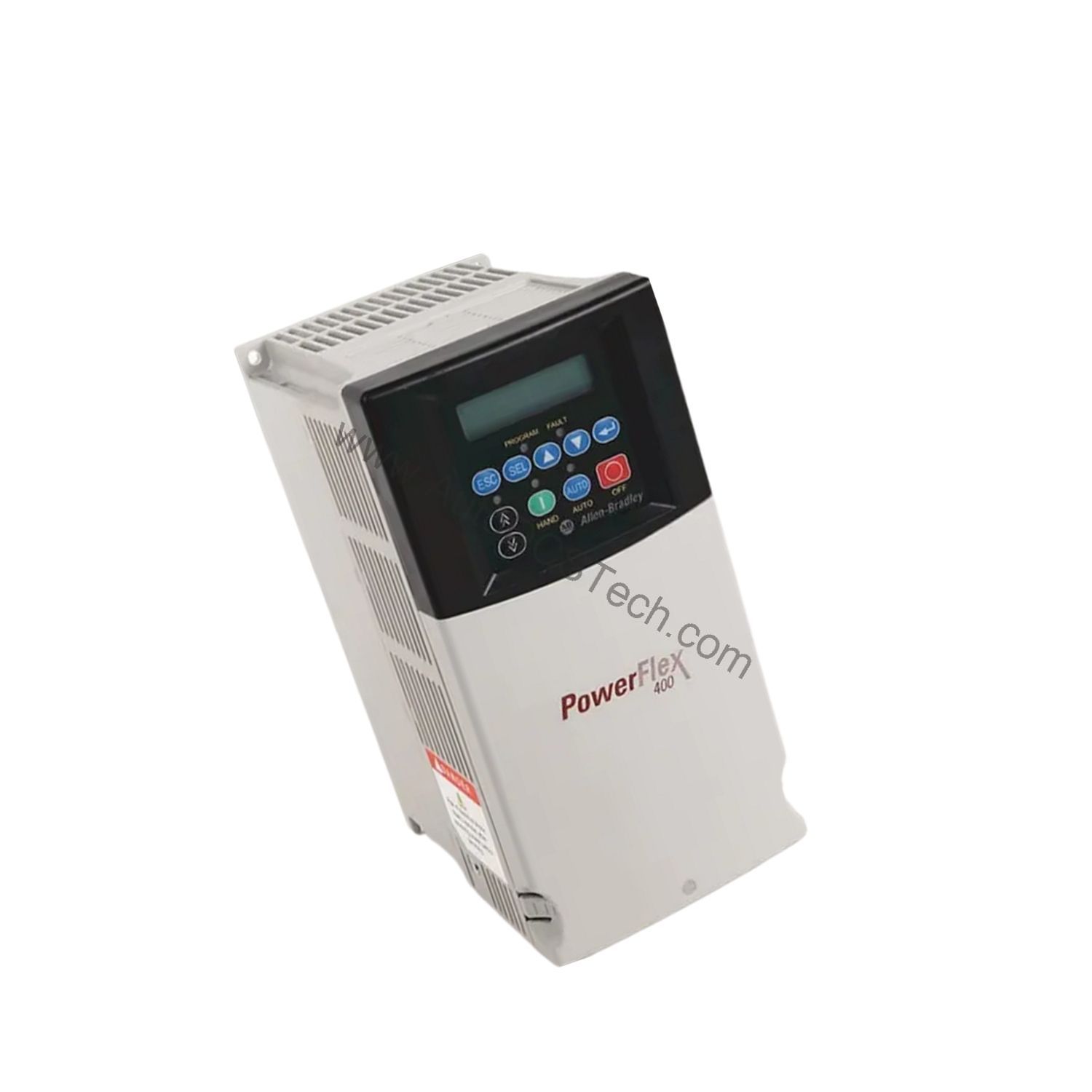

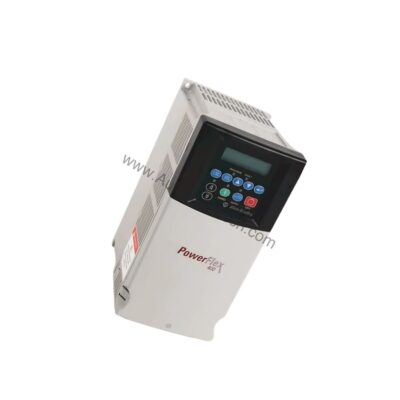

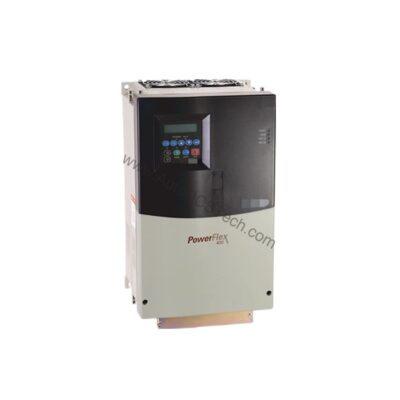

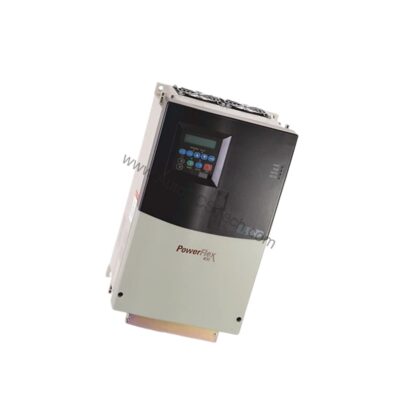

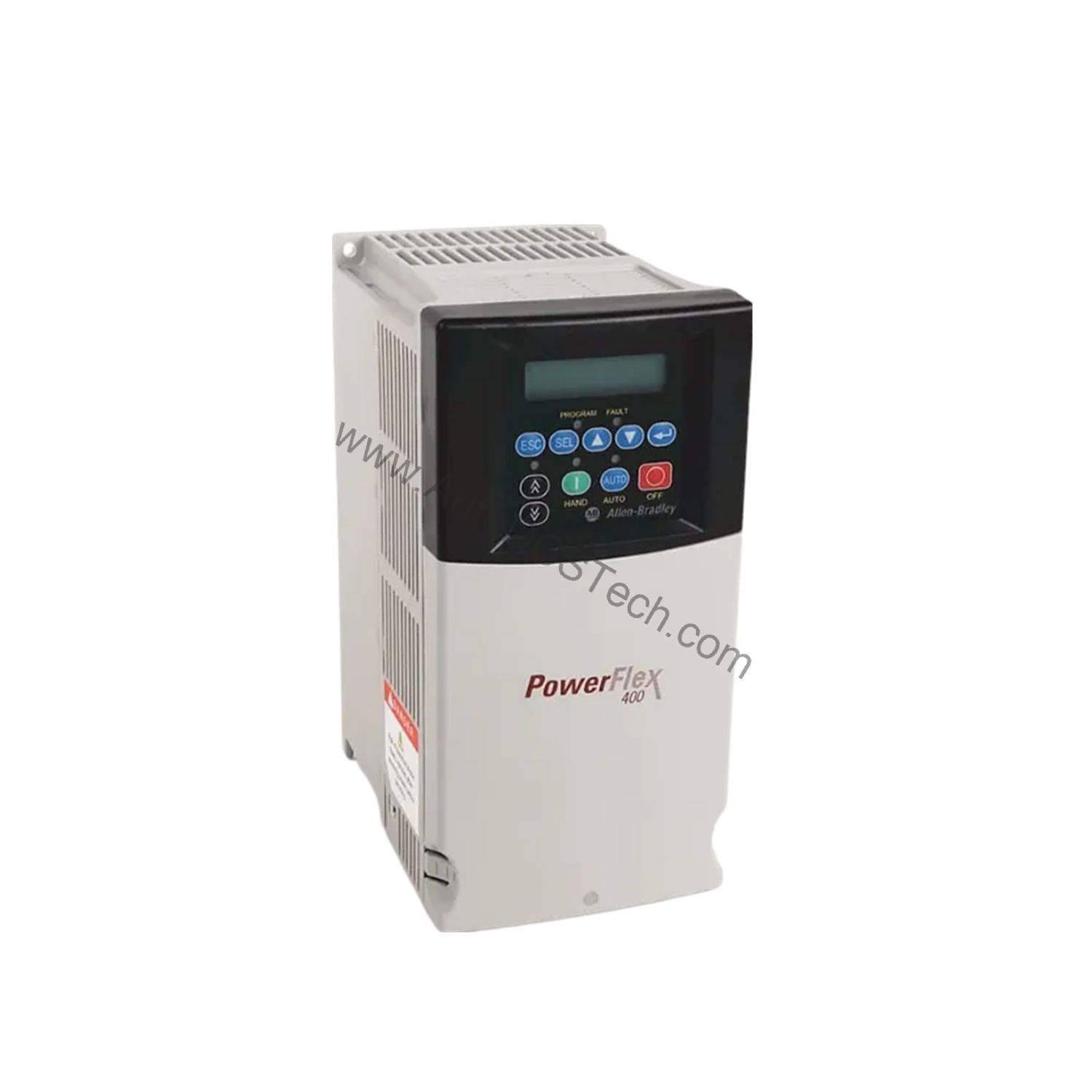

Allen-Bradley 22C-B012H103 PowerFlex 400 AC Drive 3HP

Technical Specifications Breakdown

Key parameters for the 22C-B012H103 are listed below for quick reference:

Applications and Industry Use Cases

• HVAC Fans and Blowers: The built-in PID control loop maintains constant pressure or airflow by adjusting fan speed, reducing energy consumption and noise.
• Centrifugal Pumps: In water and wastewater treatment, the drive regulates flow and pressure, preventing water hammer and reducing wear on pumps and valves.
• Cooling Towers and Condensers: By matching motor speed to cooling demand, the drive optimizes efficiency and reduces operating costs.

The PowerFlex 400's PID loop is a key feature. It subtracts the PID feedback from the reference point, generates an error value, and then adjusts the output frequency to minimize that error. This closed-loop control ensures precise process variable regulation, which is critical for maintaining product quality and system stability.

Installation and Setup Guidance

Proper installation is essential for reliable operation. The drive's flexible mounting options allow you to choose the best configuration for your cabinet. When mounting, ensure adequate clearance for airflow and heat dissipation. The flange mount option is particularly beneficial in tight spaces, as it directs heat outside the enclosure.

Configuration is straightforward thanks to the configurable control keypad and auto-configuration feature. You can set parameters locally using the keypad or remotely via the integral RS485 communications. This flexibility lets you tailor the drive to your specific application without needing specialized tools. The drive also supports Drive Serial Interface (DSI) communication modules, including DeviceNet, EtherNet/IP, PROFIBUS DP, LonWorks, and BACnet networks, allowing seamless integration into existing control systems.

Maintenance and Reliability

To ensure long-term reliability, follow a periodic inspection schedule. Check for dust accumulation on the heatsink and clean it as needed to maintain proper cooling. Verify that all electrical connections are tight and free from corrosion. The drive's robust IP66 back enclosure protects against moisture and contaminants, but regular inspection of the overall installation is still recommended.

Because the drive is designed for fan and pump applications, it experiences less mechanical stress than constant-torque applications, which can extend its service life. However, always monitor operating temperatures and ensure the ambient conditions stay within the specified 45 degrees Celsius limit.

The Allen-Bradley 22C-B012H103 PowerFlex 400 Adjustable Frequency Drive

Industrial facilities face a constant challenge: keeping fans and pumps running efficiently while minimizing energy waste and unplanned downtime. The Allen-Bradley 22C-B012H103 PowerFlex 400 adjustable frequency drive from Rockwell Automation directly addresses this need. Designed specifically for fan and pump applications, this drive provides precise speed control that translates into substantial energy savings and reduced mechanical stress on your equipment.

This unit is a member of the proven PowerFlex 400 series, known for its reliability and ease of use. It delivers 3 Horsepower of control, operates on 240 Volts AC input, and is configured for Three-Phase power. With an amperage rating of 12 Amps, it is well-suited for a range of fractional and integral horsepower motors in HVAC, water treatment, and material handling systems.

The drive features a configurable control keypad and supports auto-configuration, simplifying setup and commissioning. You can configure it either locally via the keypad or remotely through its communication interfaces, offering flexibility to match your plant's control architecture.

Built for Demanding Environments

The 22C-B012H103 is engineered to perform in challenging industrial settings. It features an IP20, NEMA/UL Type 1 enclosure for conventional mounting inside or outside of a control cabinet, operating in ambient temperatures up to 45 degrees Celsius (113 degrees Fahrenheit). This makes it suitable for many general-purpose applications.

For more demanding installations, the drive offers a flange mount option, allowing the heatsink to be mounted through the back of the enclosure. This design efficiently dissipates heat, reducing the thermal load inside the cabinet and extending the life of surrounding components. The back of the drive is rated IP66, NEMA/UL Type 4X/12, making it suitable for both indoor and outdoor use where washdown or corrosive environments are a concern. Furthermore, the UL Plenum rating permits direct mounting in air handling systems, simplifying installation in HVAC applications.

Compatibility and Integration

The 22C-B012H103 offers multiple communication options to fit your plant's infrastructure. The integral RS485 port allows for programming via a PC and supports multi-drop network configurations. For broader connectivity, the DSI modules provide access to industrial networks like EtherNet/IP and PROFIBUS DP. This makes the drive a versatile component in both new installations and retrofit projects.

Selection Guide and Purchasing Advice

When selecting a drive for your application, verify that the voltage, phase, and horsepower ratings match your motor and power supply. The 22C-B012H103 is a solid choice for 3 HP, three-phase motors on 240V AC systems. Before ordering, please verify current lifecycle status and availability with AutoDCSTech. As an industrial automation parts supplier, AutoDCSTech can provide genuine Allen-Bradley components and assist with your procurement needs.

Troubleshooting and Common Issues

If the drive does not operate as expected, start by checking the input power and motor connections. Ensure the control wiring is correct and that the keypad is functional. If the drive trips on overcurrent, inspect the motor and cables for shorts or ground faults. For communication issues, verify the RS485 wiring and network settings. Always refer to the official Rockwell Automation documentation for detailed troubleshooting procedures.

For any technical questions or to confirm the suitability of this drive for your application, contact AutoDCSTech. Our team can provide expert guidance and support.
