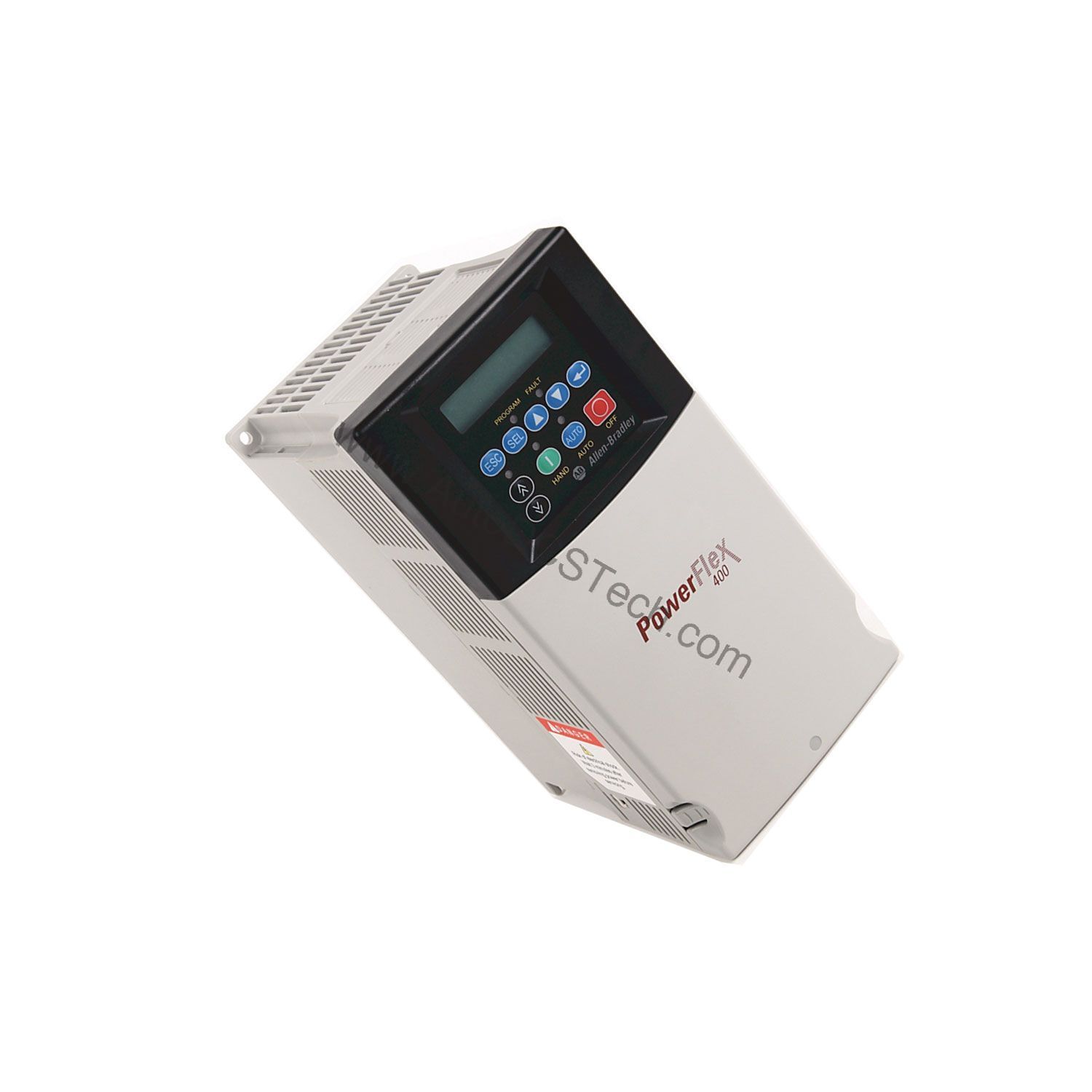

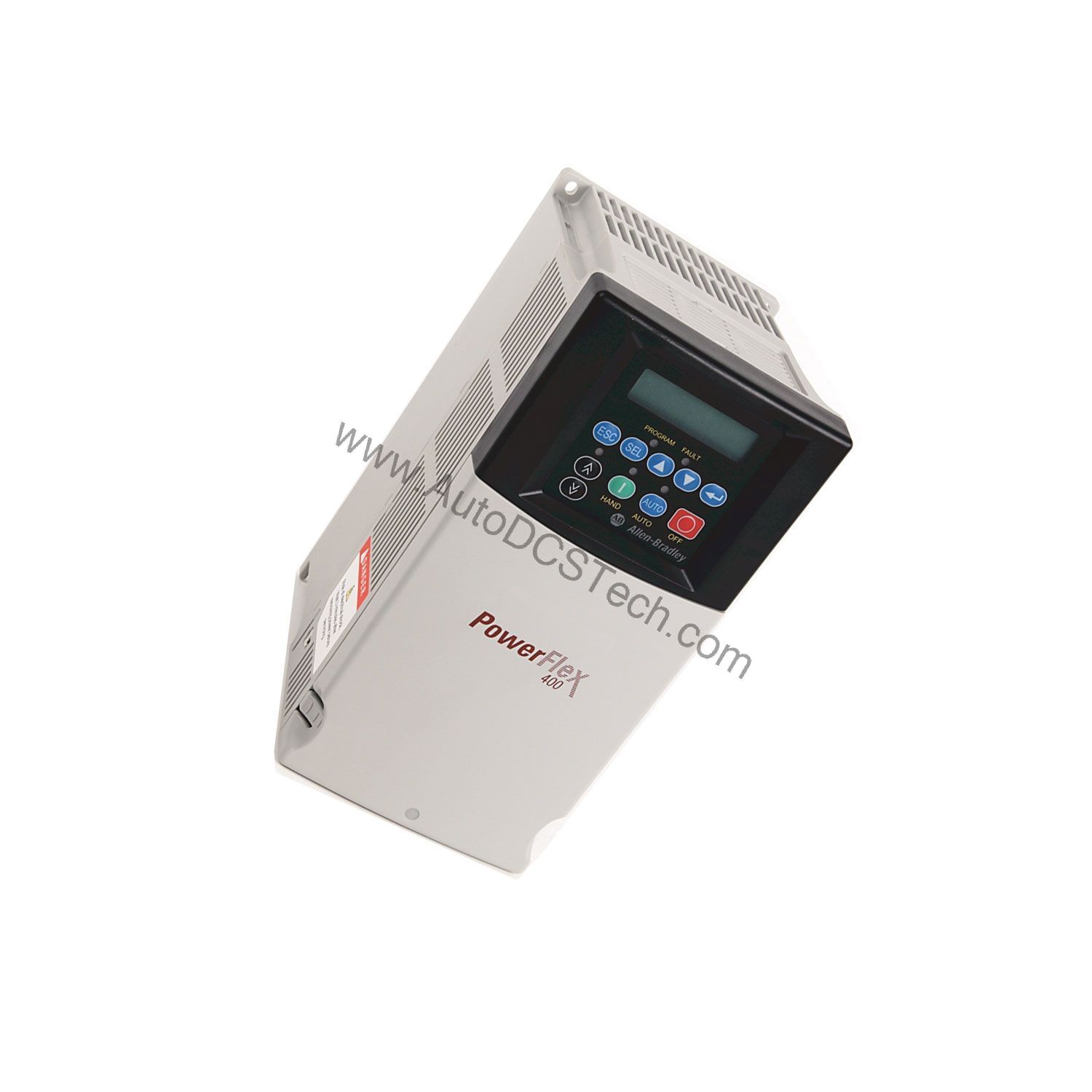

Allen-Bradley 22C-B017N103 PowerFlex 400 AC Drive

Technical Specifications Breakdown

Key parameters for the 22C-B017N103 are listed below for quick reference:

This drive is designed to support up to 5 Horsepower or 3.7 kilowatts of output, with an output current rating of 17.5 Amps. It operates on 240 Volts AC, three-phase power, making it a fit for common industrial supply systems.

Protective Features That Simplify Installation

Installing a drive in an industrial environment often involves worrying about power quality and motor safety. The 22C-B017N103 addresses these concerns with several protective features:

• Ground fault protection ensures reliable operation by detecting and responding to ground faults.
• Electronic motor overload protection helps extend motor life by preventing overheating.
• 6kV transient protection offers amplified robustness for systems operating at 380 to 480 Volts AC, shielding the drive from voltage spikes.

These features not only protect your equipment but also reduce the risk of unplanned downtime.

Built for Fan and Pump Applications

The PowerFlex 400 series is specifically tailored for fan and pump control. The 22C-B017N103 includes a built-in PID (Proportional, Integral, and Differential) regulator loop. This control loop is invaluable for maintaining a process variable such as flow or pressure at a precise setpoint. The drive works by subtracting the PID feedback from the reference and generating an error value, then adjusting the output to minimize that error. This means you can achieve accurate process control without needing an external controller.

Installation and Setup Guidance

When installing the 22C-B017N103, follow the user manual for proper wiring and configuration. The drive is designed for panel mounting, so ensure adequate ventilation and clearance for heat dissipation. The on-screen regulator bar allows you to start, stop, and change the speed orientation of the drive directly from the front panel. LED indicators provide fault status and system configuration information, making setup and troubleshooting more straightforward.

Maintenance and Reliability

To keep the drive operating reliably, perform periodic inspections. Check for dust accumulation on the heatsink and ensure the enclosure's IP20 rating is maintained by keeping the panel closed. Verify that all wiring connections remain tight and that the ambient temperature stays within the specified range. Regular maintenance will help extend the life of the drive and prevent unexpected failures.

The Allen-Bradley 22C-B017N103: A Dependable Choice for Fan and Pump Control

This standard AC drive is engineered for panel mounting and delivers the performance and protective features that plant engineers appreciate. Let's take a closer look at what this drive brings to your operation.

Communication and Control Flexibility

The 22C-B017N103 supports a range of communication options. It is compatible with driver serial interface communication modules including BACnet, LonWorks, IP/EtherNet, and PROFIBUS. The fundamental RS485 communications can be used for programming from a PC. Additionally, the drive can be utilized in a multi-drop network formation, allowing multiple drives to be controlled from a single master. A serial converter component provides connectivity to any regulator with a DF1 port, expanding integration possibilities.

Compatibility and Integration

The 22C-B017N103 is designed to work with a variety of control systems. Its support for BACnet, LonWorks, IP/EtherNet, and PROFIBUS means it can integrate into building automation systems or industrial networks. The RS485 port allows for PC-based programming and multi-drop networking, giving you flexibility in how you set up your control architecture.

Selection Guide and Purchasing Advice

When selecting a replacement or new drive for your application, consider the voltage, horsepower, and enclosure requirements. The 22C-B017N103 is a standard AC drive from Allen-Bradley, known for quality and reliability. At AutoDCSTech, we stock this model and can help you verify it meets your needs. Contact us to check current availability and lifecycle status before ordering.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
