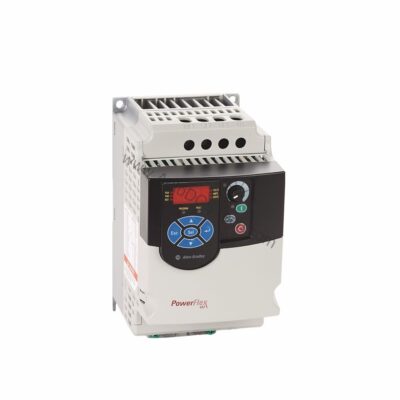

Allen-Bradley 22F-D6P0N103 PowerFlex 4M AC Drive 3 HP

Technical Specifications Breakdown

Key parameters for the 22F-D6P0N103 are listed below for quick reference:

This drive is engineered for applications that require reliable variable speed control. In conveyor systems, the 22F-D6P0N103 helps maintain consistent throughput while reducing mechanical stress. Its V/Hz control with sinusoidal PWM provides smooth motor operation, which is essential for handling fragile materials or precise positioning.

In the textile industry, the drive supports processes that demand adjustable speeds for different fabric types. The integrated HIM with a four-digit display and ten LED indicators allows operators to monitor status and adjust output frequency locally, directly influencing motor speed. This hands-on control reduces setup time and improves operational flexibility.

Installation & Setup Guidance

The 22F-D6P0N103 supports both panel mounting and DIN rail mounting, offering flexibility for various cabinet layouts. The supplied mounting tabs simplify direct panel installation. For multi-drive arrays, the zero-stacking configuration allows drives to be placed with minimal clearance, significantly reducing panel space requirements.

Before installation, verify that the input voltage matches your facility's supply (380-480VAC, 3-phase). Ensure adequate ventilation around the drive to maintain safe operating temperatures. The removable Metal Oxide Varistor (MOV) permits use on ungrounded systems, but confirm your system grounding before finalizing the setup.

Maintenance & Reliability

Regular inspection is key to long service life. Periodically check that all connections are tight and free of dust or debris. The IP20 / NEMA UL Type Open enclosure offers basic protection, but in dusty or humid environments, additional cabinet filtration may be necessary.

The relay pre-charge feature limits inrush current, reducing stress on internal components. This contributes to overall reliability. For maximum uptime, schedule routine checks of the cooling fan and ensure the ambient temperature stays within the rated limit of 50°C (122°F).

PowerFlex 4M Adjustable Frequency AC Drive – Compact Speed Control for Industrial Motors

Industrial motor control demands precision, reliability, and space efficiency. The Allen-Bradley 22F-D6P0N103 PowerFlex 4M Adjustable Frequency AC Drive delivers all three in a compact, panel-mount package. Designed for simple speed control and energy savings, this drive is a practical choice for conveyor systems and textile machinery, where consistent performance and minimal downtime are critical.

Compatibility & Integration

The drive includes a built-in RS485 communication port, allowing connection to PLCs or SCADA systems. For more advanced networking, optional communication protocols are available, including Dual Ethernet I/P, DeviceNet, and ProfiBus DP. This flexibility makes the drive suitable for both standalone and networked installations.

Selection Guide & Purchasing Advice

When selecting a variable frequency drive, consider your motor's full-load current and the required speed range. The 22F-D6P0N103 provides 6.0 A output current, which is suitable for motors up to 0.75 kW (1.0 HP) in many applications. Verify that your motor's voltage and phase match the drive's output specifications.

For a reliable supply of genuine Allen-Bradley parts, AutoDCSTech offers this drive with expert support. Contact our team to confirm availability and lifecycle status before ordering. We help you find the right drive for your application, ensuring minimal downtime and maximum productivity.
