In the fast-paced world of industrial automation, reliable connections are the backbone of uptime and productivity. As factories evolved from rigid relay panels to flexible PLC-based systems, the need for robust, field-proven terminator kits became critical. The FANUC A02B-0047-C800 Terminator Kit with HONDA Connector represents this evolution—a compact, high-performance component engineered to ensure signal integrity in even the harshest conditions.
Product Overview

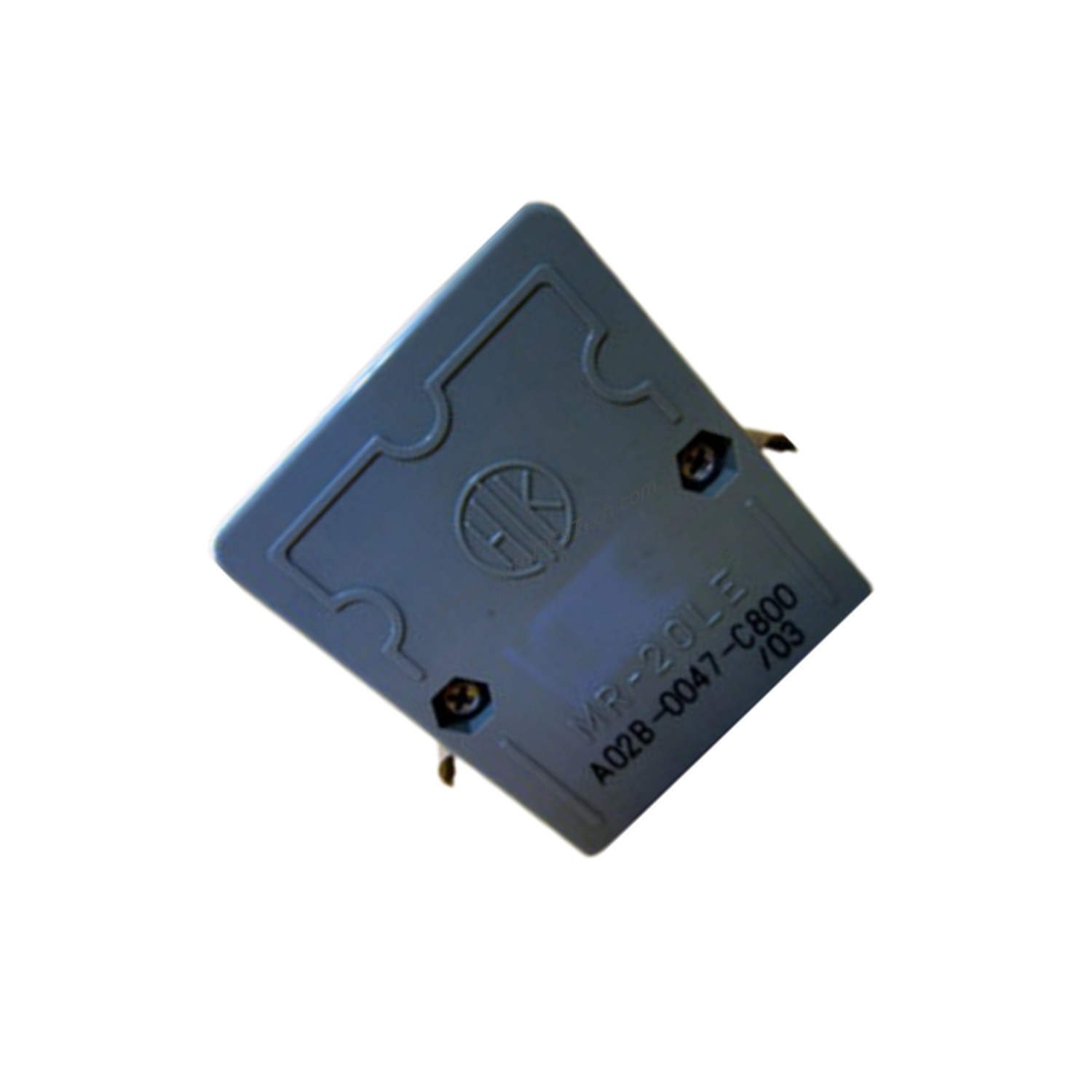

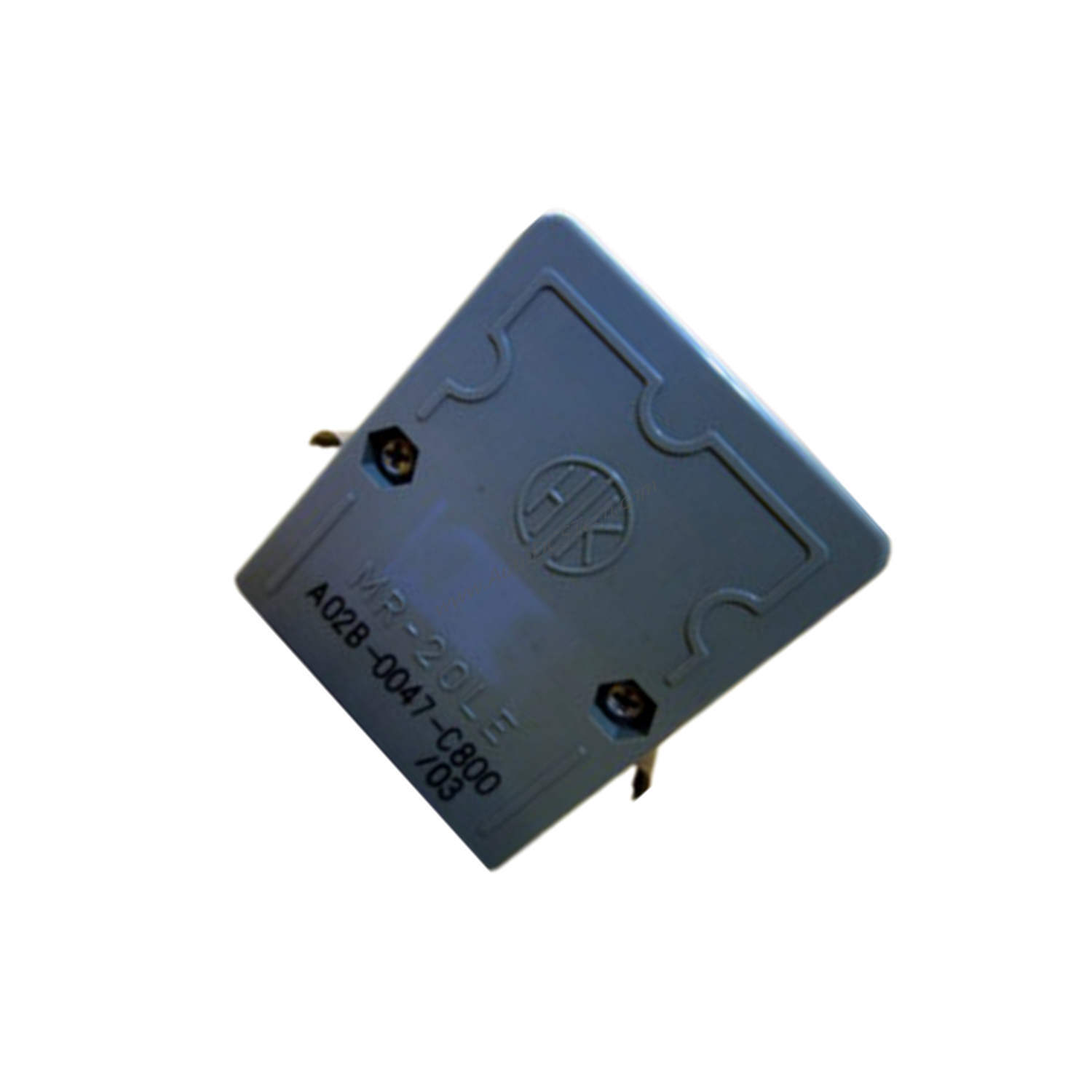

The FANUC A02B-0047-C800 is a Terminator Kit with HONDA Connector from the trusted A02B product line. Designed for straightforward termination of wiring, this unit features a 20-pin male connector that provides a stable, square-shaped interface. Its lightweight construction—weighing just 0.13 lbs (0.06 kg)—makes it easy to handle during installation and reduces strain on mounted assemblies.
Technical Specifications Breakdown
Connector and Termination
The A02B-0047-C800 uses a 20-pin male connector with a straight connection direction. Termination is achieved via receptacles or crimp pins, offering flexibility for field wiring. Contact resistance is rated at 5 milliohms or less, ensuring minimal power loss and excellent conductivity.
Electrical Performance
Insulation resistance is rated at 1,000 megaohms or more at 500 Volts DC, providing strong isolation between circuits. The kit also withstands 1,000 Volts AC for 1 minute, confirming its ability to handle high-voltage stress without breakdown.
Environmental Tolerance
Operating temperature ranges from -40 to 105°C in non-condensing environments, making the kit suitable for extreme cold or heat. Humidity tolerance is 90% to 95% relative humidity (non-condensing), adding reliability in damp factory settings.
Industry Applications
Robotic Workcells
In robotic arms and controllers, the A02B-0047-C800 terminates signal cables cleanly, preventing loose connections that cause intermittent faults. Its wide temperature range supports operation near heat-generating motors.
CNC Machine Tools
For CNC machines that experience vibration and temperature swings, this terminator kit provides a secure, low-resistance connection. The square connector shape and crimp termination resist loosening over time.
Installation & Setup Guidance
Before installation, verify that the 20-pin male connector matches your cable assembly. Use appropriate crimp tools for the receptacles or crimp pins to ensure consistent contact resistance. Mount the kit in a location that avoids condensation and direct exposure to liquids. For best results, torque connections to manufacturer specifications (not provided here—refer to your system manual).
Maintenance & Reliability
Periodically inspect the connector for signs of corrosion or physical damage. Clean with a dry, lint-free cloth if needed; avoid solvents that may degrade the housing. The high insulation resistance (1,000 megaohms or more) and low contact resistance (5 milliohms or less) contribute to long-term signal integrity, reducing unplanned downtime.
Selection Guide & Purchasing Advice
When ordering the FANUC A02B-0047-C800, confirm compatibility with your existing HONDA connector system. SpareTechPLC stocks this terminator kit and can assist with availability and lead times. Please verify current lifecycle status with SpareTechPLC before ordering to ensure the product meets your project timeline.
Frequently Asked Questions
Q1: What is the weight of the A02B-0047-C800?
A: The terminator kit weighs 0.13 lbs (0.06 kg), making it lightweight and easy to install.
Q2: Can this kit be used in high-humidity environments?
A: Yes, it tolerates 90% to 95% relative humidity in non-condensing conditions.
Q3: What is the insulation resistance rating?
A: Insulation resistance is 1,000 megaohms or more at 500 Volts DC.
Q4: Does the connector support crimp termination?
A: Yes, termination style includes receptacles or crimp pins.
Q5: What is the maximum operating temperature?
A: The ambient operating temperature range is -40 to 105°C in non-condensing environments.
