Product Overview

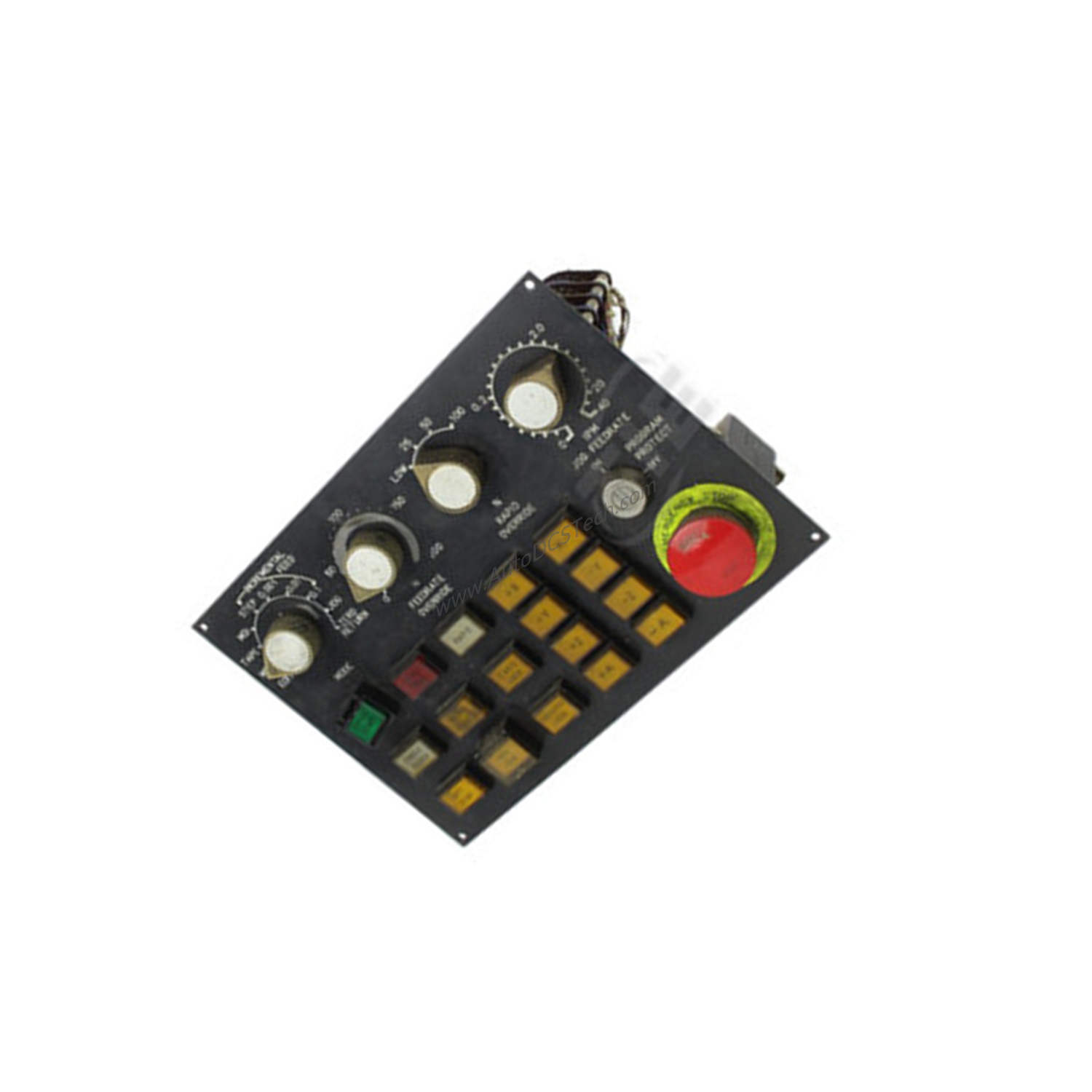

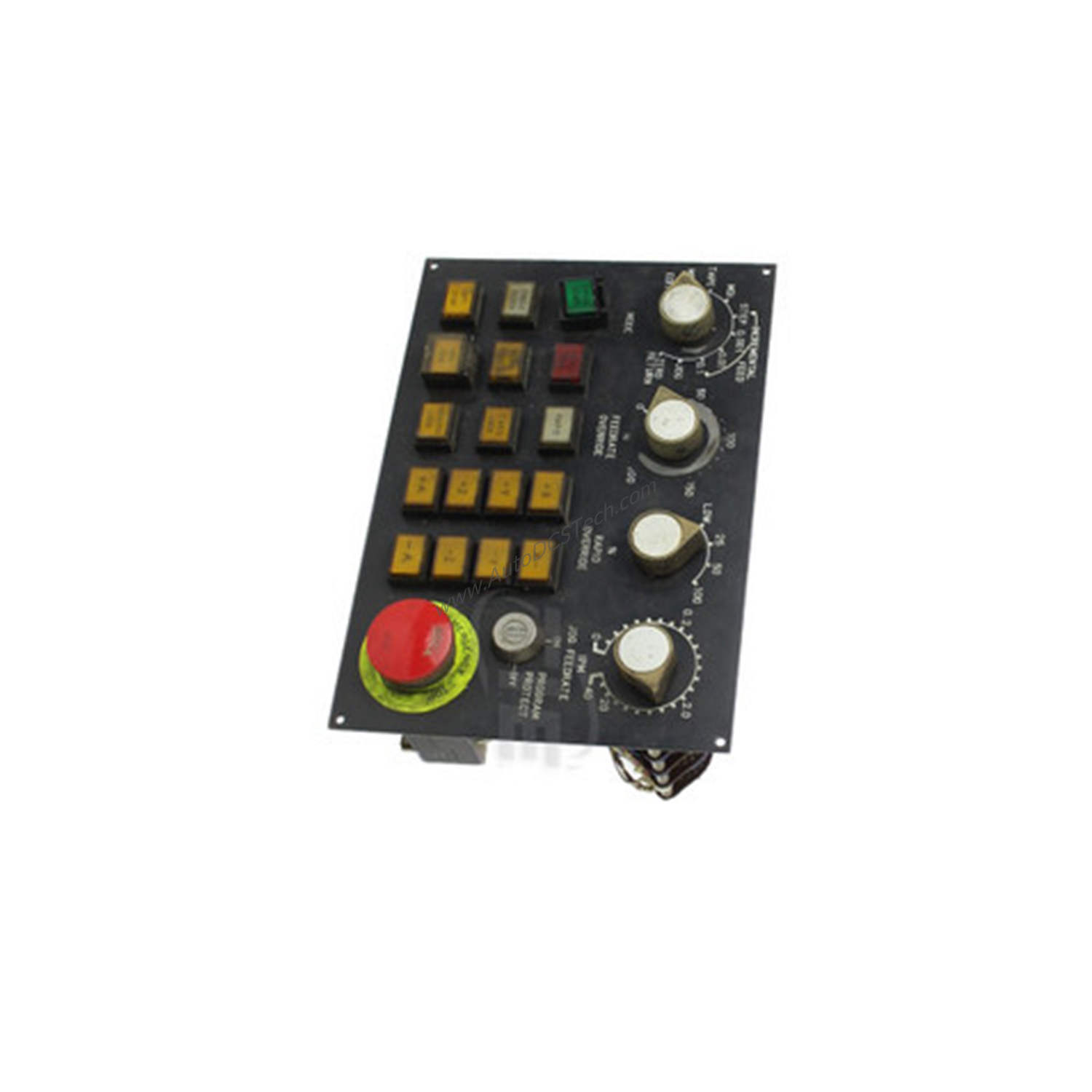

When industrial environments demand reliable operator control, the FANUC A02B-0051-C540 Operator Panel delivers a straightforward solution. This unit combines essential safety features with practical interface elements to streamline machine operation. The panel includes function keys for operator commands, a knob for mode selection, and a dedicated emergency stop button for immediate shutdown when needed.
Technical Specifications Breakdown
The A02B-0051-C540 is built with specific environmental ratings to suit diverse industrial settings. Key specifications include:
- Protection Class: IP20, guarding against solid objects larger than 12.5 mm
- Enclosure Rating: NEMA 1, suitable for indoor use in dry locations
- Cooling Method: Natural convection, requiring no fans or external cooling
- Operating Temperature Range: 0°C to 40°C ambient
- Humidity Tolerance: Up to 80% non-condensing during operation and storage
- Maximum Altitude: 1000 meters above sea level
- Weight: 5.44 lbs (2.47 kg)
These parameters ensure the panel operates reliably in typical factory floor conditions without additional cooling infrastructure.
Industry Applications
Manufacturing facilities often require operator panels that withstand moderate temperatures and humidity. The A02B-0051-C540 fits well in assembly lines, packaging machinery, and material handling systems where operators need quick access to mode changes and emergency stop functions. Its IP20 protection makes it suitable for clean indoor environments, while the natural cooling design reduces maintenance needs.
Installation & Setup Guidance
Mount the A02B-0051-C540 in a panel cutout according to the manufacturer's guidelines. Ensure the enclosure provides adequate support and that the ambient temperature stays within the 0°C to 40°C range. The unit's NEMA 1 rating means it should be installed indoors where it is not exposed to dripping water or excessive dust. Connect the emergency stop circuit to the machine's safety chain, and wire the function keys and mode knob to the corresponding PLC inputs.
Maintenance & Reliability
Routine inspection of the operator panel helps prolong its service life. Check the emergency stop button for proper mechanical operation. Clean the front surface with a dry cloth to remove dust that could obscure indicators. The natural cooling design means no filter cleaning is required, reducing downtime. Operating within the specified temperature and humidity limits ensures consistent performance.
Selection Guide & Purchasing Advice
Before ordering the A02B-0051-C540, verify that your control system supports the panel's interface requirements. Confirm the panel cutout dimensions and mounting depth are compatible with your enclosure. SpareTechPLC stocks this FANUC operator panel and can assist with availability and replacement options. Contact our team to confirm lifecycle status and ensure the unit meets your application needs.
Frequently Asked Questions
Q: What is the ambient temperature range for the A02B-0051-C540?
A: The panel operates from 0°C to 40°C ambient temperature.
Q: Does the A02B-0051-C540 require external cooling?
A: No, it uses natural cooling and does not need fans or other cooling devices.
Q: What is the weight of the A02B-0051-C540?
A: It weighs 5.44 lbs (2.47 kg).
Q: Is the emergency stop button included?
A: Yes, the unit features a dedicated emergency stop button for safety.
Q: Can the panel be used in humid environments?
A: Yes, it tolerates up to 80% non-condensing humidity during operation and storage.
