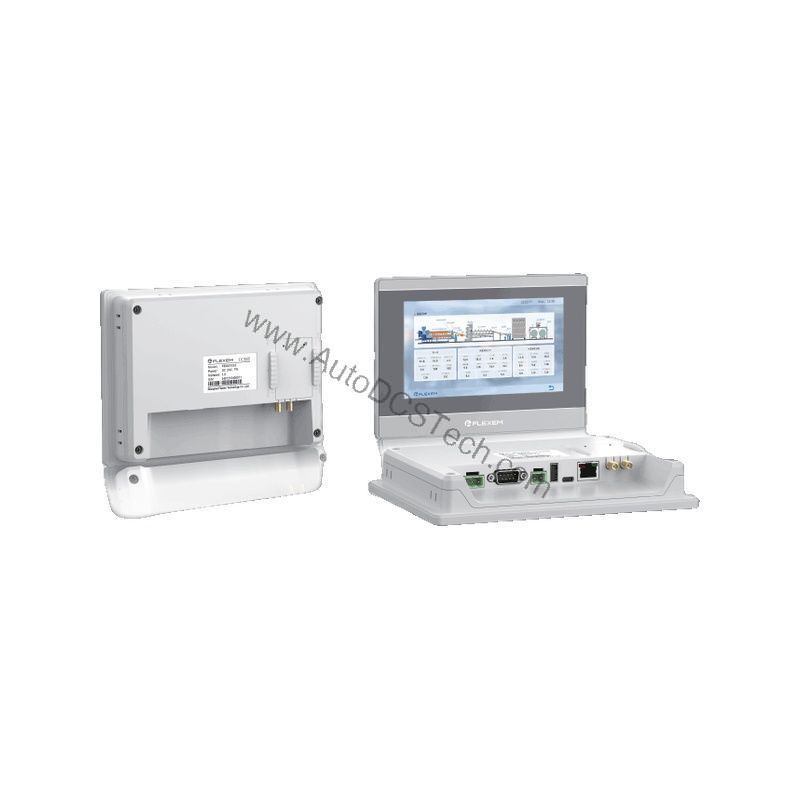

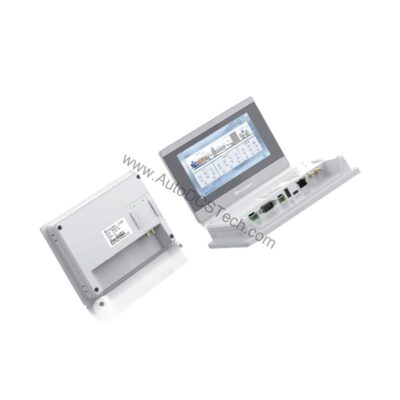

Flexem FE6370C 7" IoT HMI with IP65 Front Panel

Technical Specifications Breakdown

Key parameters for the FE6370C are listed below for quick reference:

Industry Applications and Use Cases

The FE6370C is well-suited for various industrial environments. The versatile serial ports (RS232, RS485, RS422) allow easy integration with PLCs, drives, and sensors. For example, in a packaging machine, the HMI can display real-time production counts and allow operators to adjust parameters via the touch screen. In a material handling system, it can monitor conveyor status and provide alarms. The improved CPU and storage ensure smooth operation of complex screens and data logging.

Installation and Setup Guidance

When installing the FE6370C, follow these practical steps. First, prepare a panel cutout of 190×136mm (+1.5/-0.0mm) to ensure a proper fit. The overall dimensions are 204×145×36.6mm (±0.3mm). Secure the HMI using the provided mounting clips. Connect the power supply to a DC24V source, with a working range of DC 9V~28V. The unit has built-in lightning surge protection, which helps safeguard against voltage spikes. For serial communication, wire the appropriate terminals for RS232, RS485, or RS422 as per your device's wiring diagram. Use the USB Type-C port for downloading programs or the USB Type-A port for connecting an USB drive. After power-up, configure the communication settings in the HMI software to match your PLC.

Maintenance and Reliability

The FE6370C is designed for long-term reliability. The LED backlight has a lifetime of 50,000 hours, reducing the need for frequent replacements. The 4-wire resistive touch screen is durable and responds well to gloved hands. To maintain optimal performance, keep the front panel clean and avoid exposing the unit to high UV environments, as this is prohibited. Operating temperature should remain between 0~50˚C, with storage between -20~60˚C. Environmental humidity should be 10~90%RH (non-condensing). Periodically check the connections and ensure the enclosure is sealed properly to maintain the IP65 rating. The unit uses natural cooling, so ensure adequate ventilation around the rear of the panel.

Flexem FE6370C 7-Inch IoT HMI: A Reliable Choice for Modern Automation

The Flexem FE6370C is a 7-inch IoT HMI from the FE 6300 series, designed to build on the success of the popular 6000 series. It delivers improved CPU performance and increased storage space, making it suitable for a range of application scenarios. This HMI combines a clear display, flexible connectivity, and robust protection, making it a practical choice for machine builders and system integrators.

Compatibility and Integration

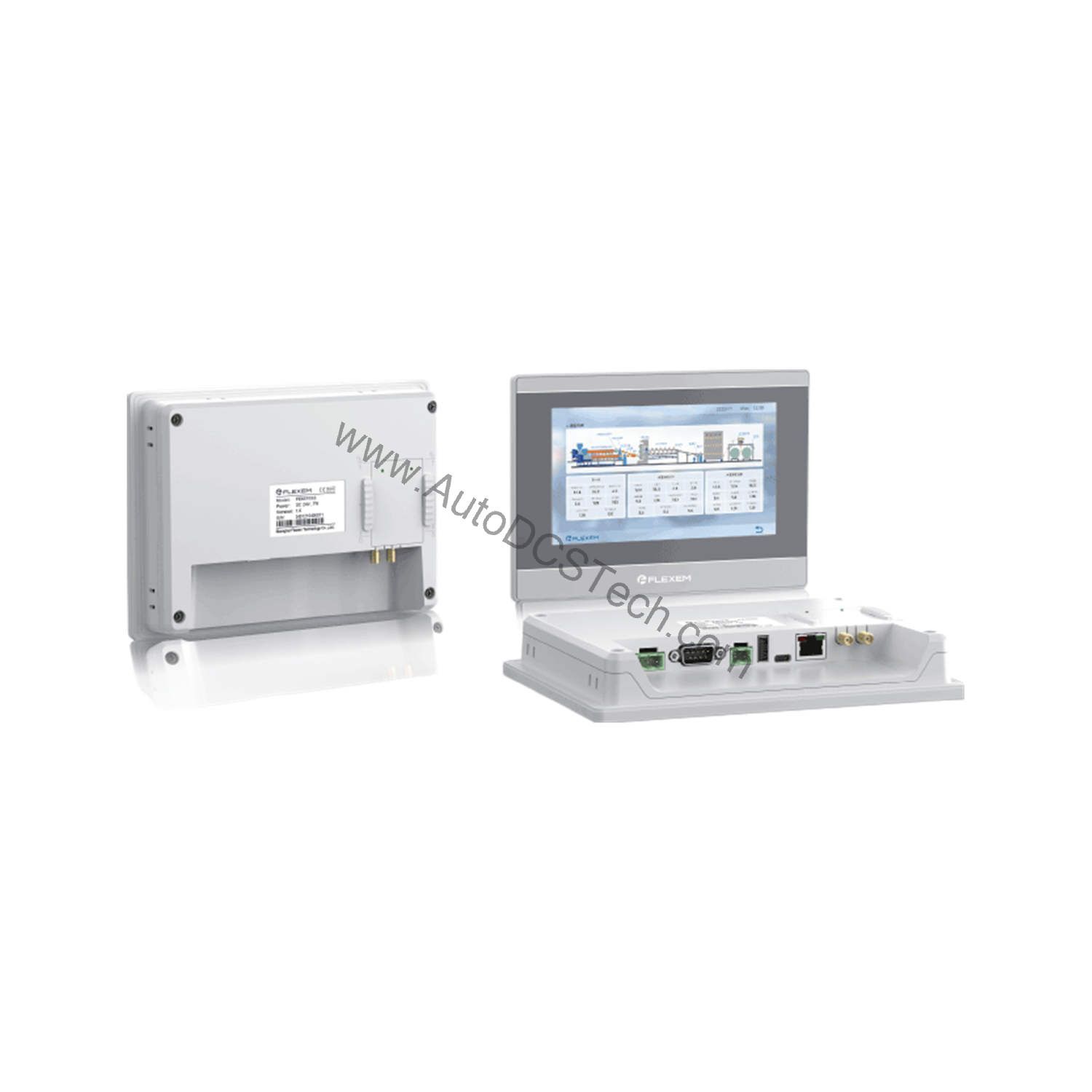

The FE6370C offers flexible serial connectivity. COM1 supports RS232, RS485, and RS422, allowing connection to a wide range of industrial devices. COM2 is dedicated to RS485, which is commonly used for multi-drop networks. COM3 provides RS232 for point-to-point communication. This flexibility enables the HMI to act as a central interface for multiple controllers. The built-in RTC (Real-Time Clock) ensures accurate time stamping for data logs and alarms. With 256MB DDR3 RAM and 4GB eMMC storage, the HMI can handle larger projects and store historical data locally. The USB ports facilitate easy data transfer and program updates.

Selection Guide and Purchasing Advice

When selecting an HMI for your application, consider the display size, resolution, and connectivity options. The FE6370C offers a 7-inch display with 800×480 resolution and 24-bit color, providing clear visuals. Its IP65 front protection is suitable for harsh environments. If you need a reliable HMI with multiple serial ports and robust construction, the FE6370C is a strong candidate. AutoDCSTech is an industrial automation parts supplier that can provide this model. Please verify current lifecycle status and availability with AutoDCSTech before ordering. They can also offer guidance on compatibility with your existing systems.

Troubleshooting and Common Issues

If the HMI does not power on, check the DC power supply and ensure the voltage is within the specified range. If the touch screen is unresponsive, verify that the calibration is correct and that no foreign objects are on the screen. For communication issues, confirm the serial port settings (baud rate, parity, etc.) match the connected device. If the display appears dim, the backlight may be aging, but with a 50,000-hour lifetime, this is unlikely in normal use. If you encounter persistent problems, consult the user manual or contact AutoDCSTech for technical support. Always power down the HMI before making any wiring changes.
