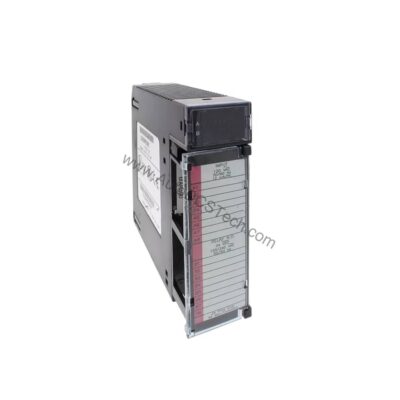

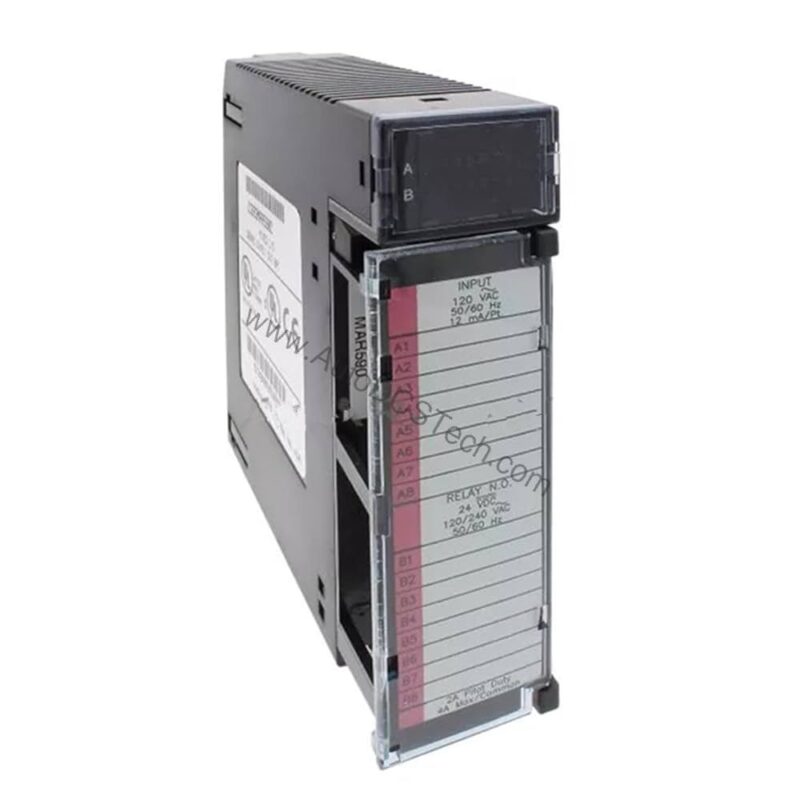

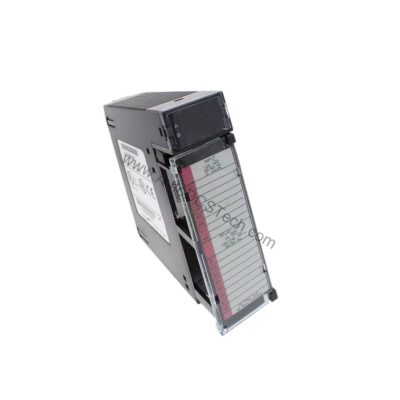

IC693MAR590: Series 90 30 Input/Relay Output Module for PLC Systems
The IC693MAR590 is the Series 90 30 Input/Relay Output Module for PLC Systems covered on this page. The attribute that decides whether it fits the existing installation without modification is 8 inputs/8 outputs.
This configuration's series 90 30 input/relay output module for plc systems is the attribute that drives the replacement decision. A processor or controller is selected on memory, scan time and platform compatibility before anything else. series 90 30 input/relay output module for plc systems sets how much programme fits, how fast the logic executes and which I/O and networks the unit can host — the three things that decide whether an existing application migrates without a rewrite. Confirming 8 inputs/8 outputs against the installed controller family is the check that prevents a processor that boots but cannot run the existing project.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC693MAR590 |
| Series | Series 90-30 |
| Part Number | IC693MAR590 |
| Number of Channels | 8 inputs/8 outputs |
| Rated Input Voltage | 0 to 132 Volts AC |
| Rated Output Voltage | 5 to 30 Volts DC / 5 to 250 Volts AC |
| Isolation Voltage | 1500 Volts RMS between field and logic side / 500 Volts RMS between inputs |
| Maximum Output Load | 2 Amps |
| Maximum Inrush | 5 Amps |
| Response Time | 15 milliseconds |
| Power Consumption | 80 milliAmps from 5 Volts DC / 70 milliAmps from relay 24 Volts DC |
| ON-state Voltage | 74 to 132 Volts AC |
| OFF-state Voltage | 0 to 20 Volts AC |
| ON-state Current | 6 milliAmps |
| OFF-state Current | 2.2 milliAmps for the duration of 30 milliseconds |
This part belongs to a discontinued platform (GE Series 90-30), superseded by PACSystems RX3i (IC695 series). We stock remaining new and refurbished units.
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic693mdl240-series-90-30-16-point-120-vac-discrete-input-module | confirm the configuration against your installation |
| ge-fanuc-ic693mdl645-positive-negative-discrete-input-module-for-series-90 | confirm the configuration against your installation |
| ge-ic693mdl646-series-90-30-discrete-input-module-16-channel-24vdc | confirm the configuration against your installation |
| ge-ic693mdl655-series-90-30-discrete-input-module-overview | confirm the configuration against your installation |
| ge-fanuc-ic693mdl740-series-90-30-positive-logic-output-module | confirm the configuration against your installation |
| ge-ic693mdl753-series-90-30-discrete-output-module-32-point | confirm the configuration against your installation |
| ge-ic693mdl940-relay-output-module-for-series-90-30 | confirm the configuration against your installation |
| ge-fanuc-ic693mcm001-digital-servo-interface-module-for-series-90-30 | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC693MAR590 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
