Product Overview

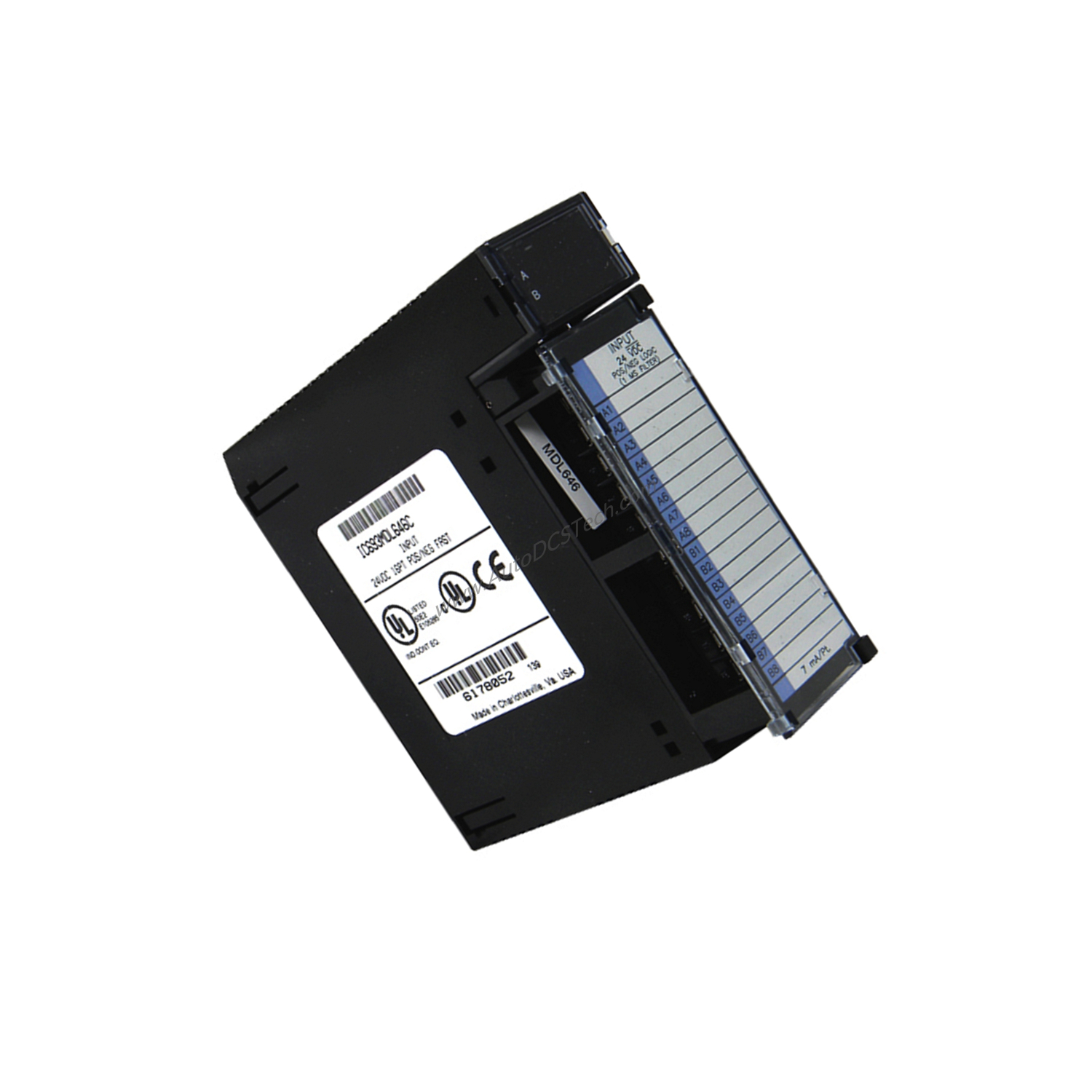

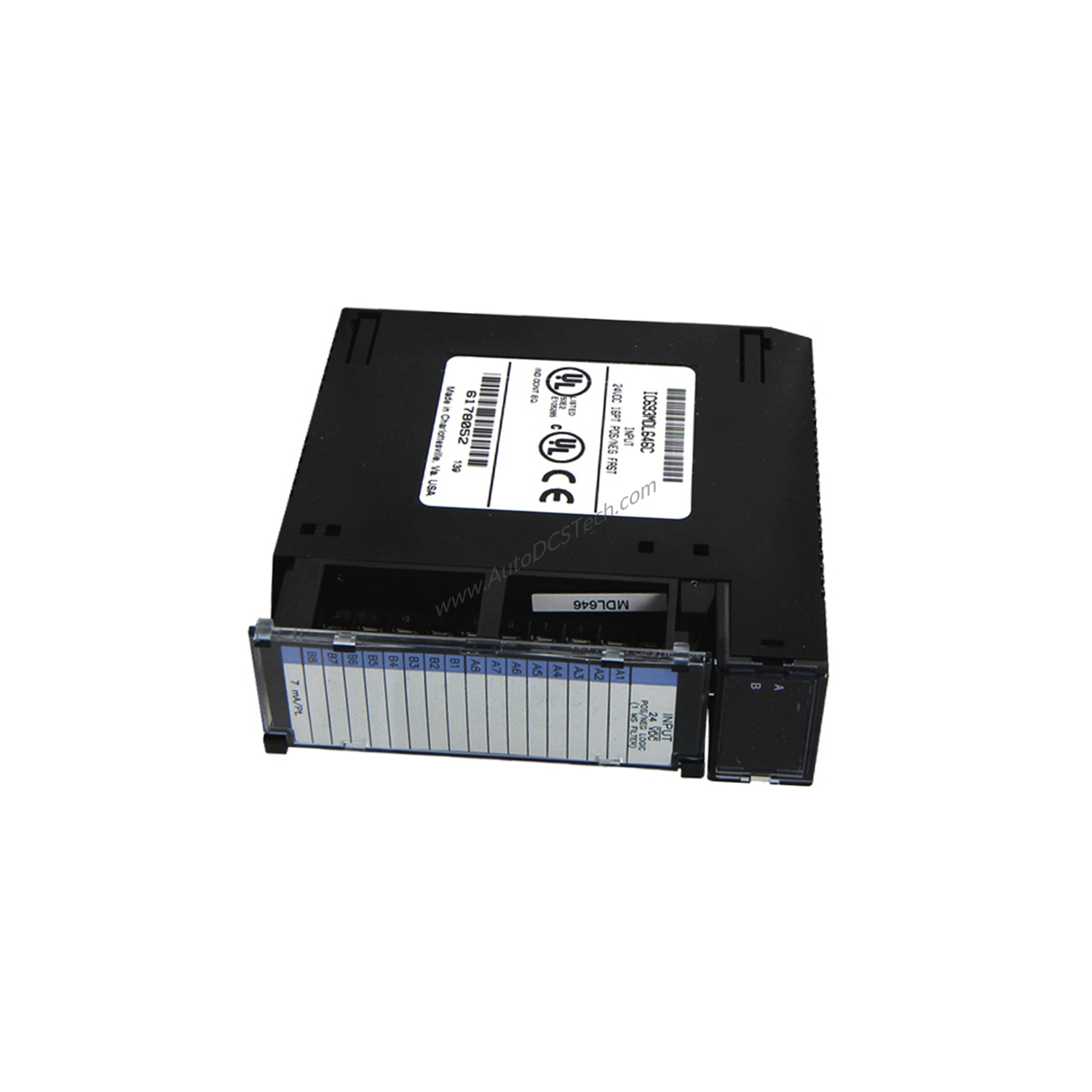

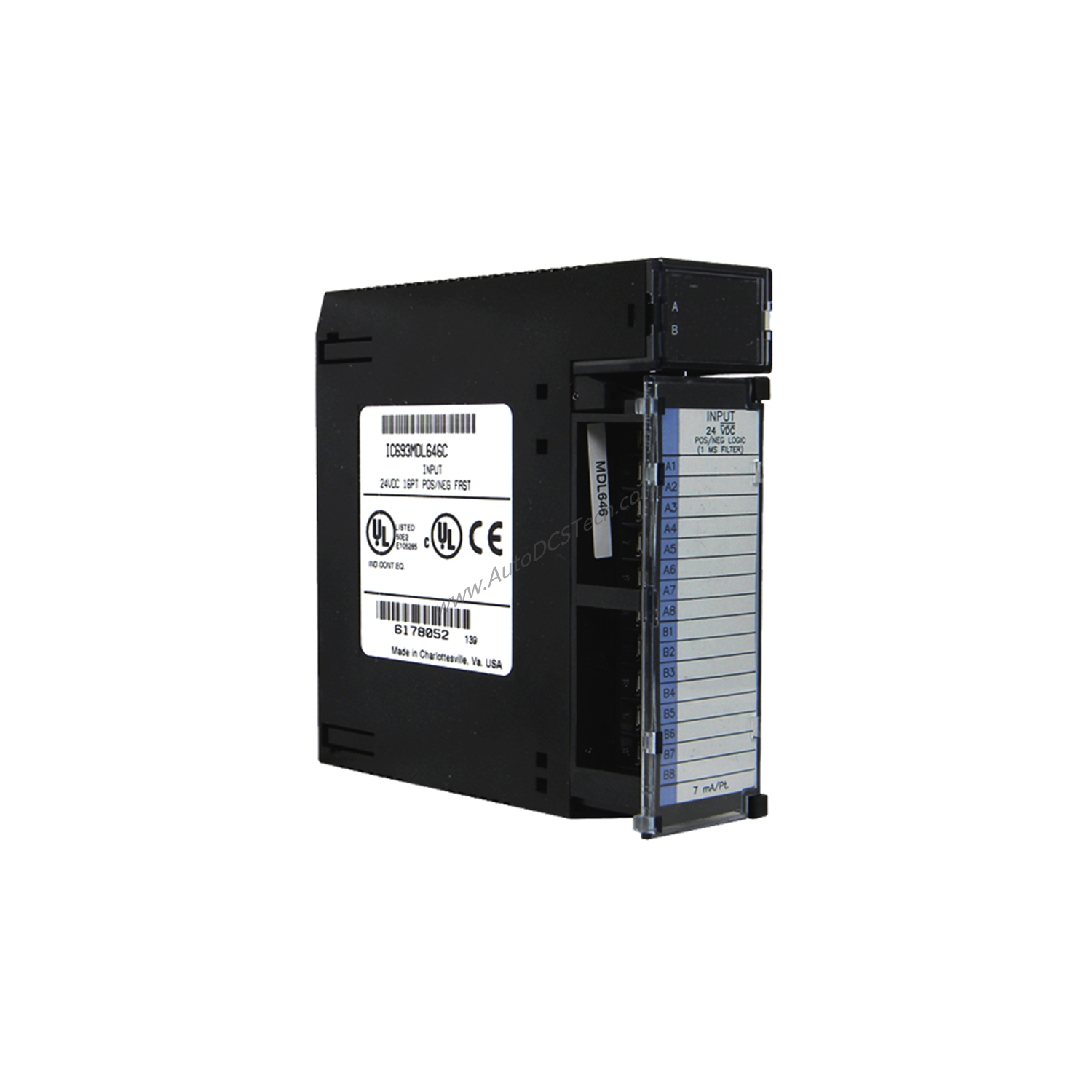

When your automation system needs reliable discrete input handling, the GE IC693MDL646 provides a robust solution. This Series 90-30 module, originally manufactured by GE Fanuc and now supported by Emerson Automation, delivers sixteen 24VDC input channels with flexible wiring options. It accepts a 0 to +30 Volts DC input voltage range and draws 80 mA @ 5VDC and 125 mA @ 24 VDC from the backplane.
Technical Specifications Breakdown
The IC693MDL646 offers key specifications that define its performance. It features Sixteen (16) input channels arranged as one group with a single common, simplifying wiring for binary field devices. The input voltage range spans 0 to +30 Volts DC, with a nominal input voltage of 24 VDC. Each channel draws 7 mA input current at rated voltage. The module provides 1500 Volts isolation between field side and logic side, ensuring robust noise immunity. On-state voltage is 11.5 to 30 Volts DC, while off-state voltage is 0 to +5 Volts DC. On-state current requires a minimum of 3.2 mA, and off-state current is 1.1 mA maximum. Typical on response time is 1 ms, and off response time is 1 ms maximum.
Industry Applications
In manufacturing environments, the IC693MDL646 connects to push buttons, limit switches, proximity sensors, and auxiliary contacts. Its positive/negative logic wiring configuration adapts to both sourcing and sinking field devices. For example, in a packaging line, the module monitors sensor inputs to trigger conveyor control sequences. The 1 ms response time ensures fast detection of machine states, supporting high-speed production.
Installation & Setup Guidance
Mount the IC693MDL646 into any Series 90-30 rack slot. Connect field wiring to the 20-terminal swing-door connector, which includes a wiring insert for reference. Use the color-code indicator to confirm it is a low-voltage module. Ensure the input voltage stays within 0 to +30 Volts DC and that each channel receives at least 3.2 mA for reliable on-state detection. Verify backplane current draw does not exceed the power supply capacity.
Maintenance & Reliability
Periodically inspect the module for dust accumulation on the terminal block and LEDs. Check that the swing door closes securely to protect connections. Monitor the Module OK LED and individual channel status LEDs for normal operation. Since the product lifecycle status is discontinued/obsolete, verify current availability with SpareTechPLC before ordering.
Compatibility & Integration
The IC693MDL646 integrates seamlessly with Series 90-30 PLC racks and CPUs. It works with GE Fanuc and Emerson Automation controllers that support this platform. No special communication protocols are required; the module communicates via the backplane. Ensure your system power supply can handle the module's current draw.
Selection Guide & Purchasing Advice
Before purchasing the IC693MDL646, confirm your rack has an available slot and that your power supply can provide 80 mA @ 5VDC and 125 mA @ 24 VDC. Verify the input voltage range matches your field devices (0-30 VDC). As this product is discontinued/obsolete, contact SpareTechPLC to check stock and explore replacement options if needed.
Troubleshooting & Common Issues
If a channel fails to turn on, measure the input voltage at the terminal—it must be between 11.5 and 30 VDC. If the channel stays on, check for leakage current above 1.1 mA. Verify the common wiring is correct for the chosen logic configuration. If the Module OK LED is off, check backplane power and seating.
Frequently Asked Questions
Q: What is the input voltage range of the IC693MDL646?
A: The input voltage range is 0 to +30 Volts DC, with a nominal input voltage of 24 VDC.
Q: How many channels does this module have?
A: It has sixteen (16) input channels arranged as one group with a single common.
Q: Can I use both positive and negative logic wiring?
A: Yes, the module supports positive/negative logic wiring configuration.
Q: What is the isolation rating?
A: The module provides 1500 Volts isolation between field side and logic side.
Q: Is the IC693MDL646 still in production?
A: No, its product lifecycle status is discontinued/obsolete. Please contact SpareTechPLC for current availability.
