Product Overview

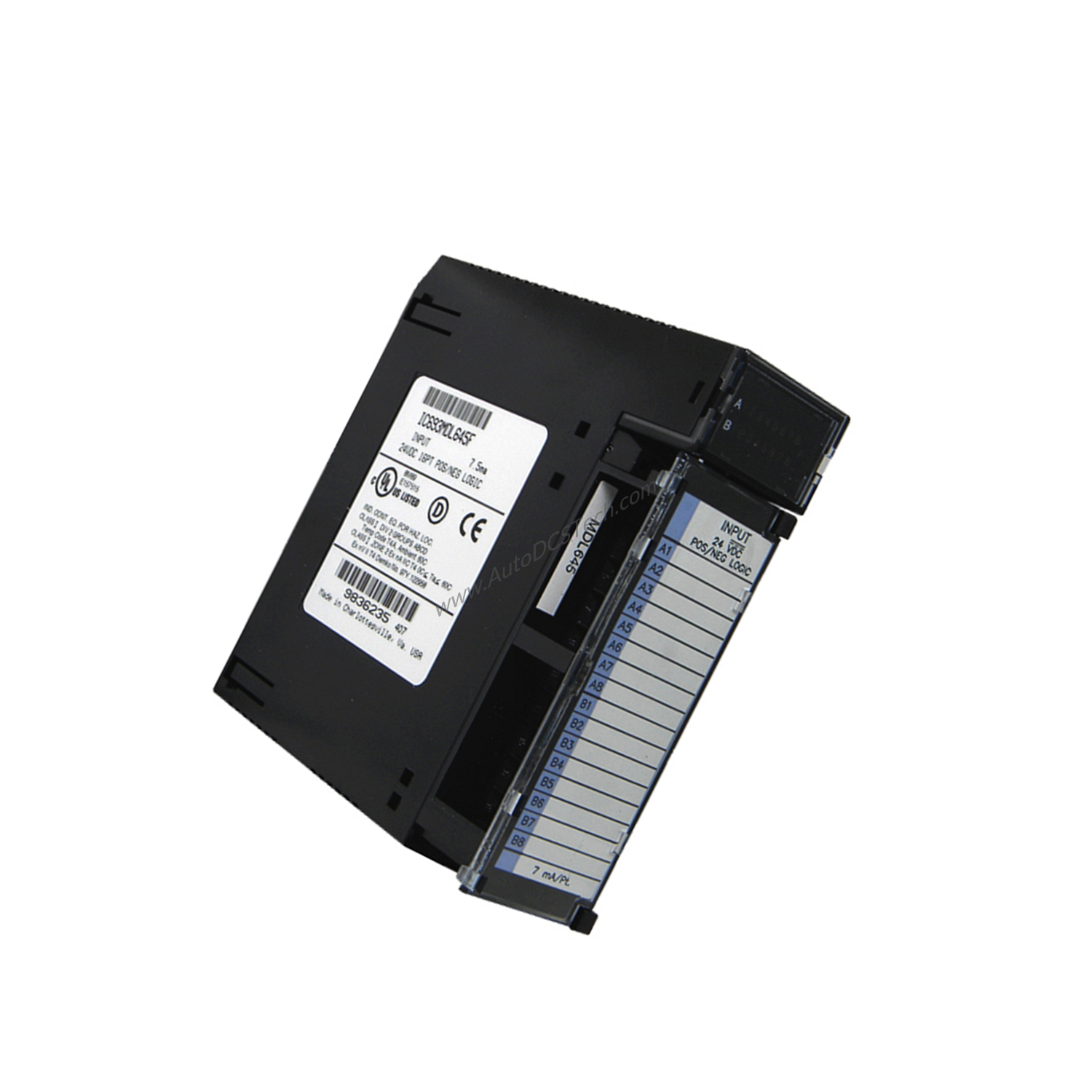

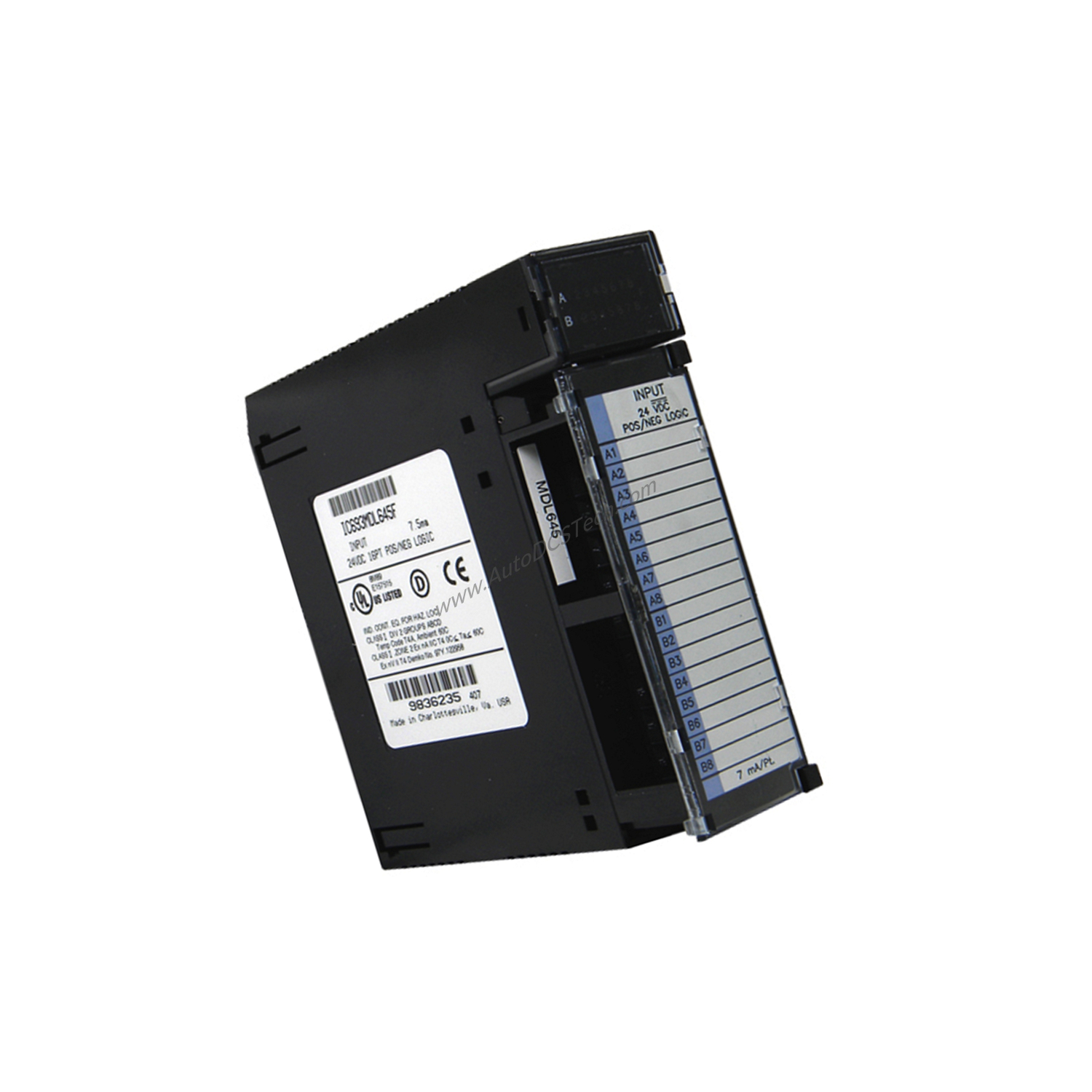

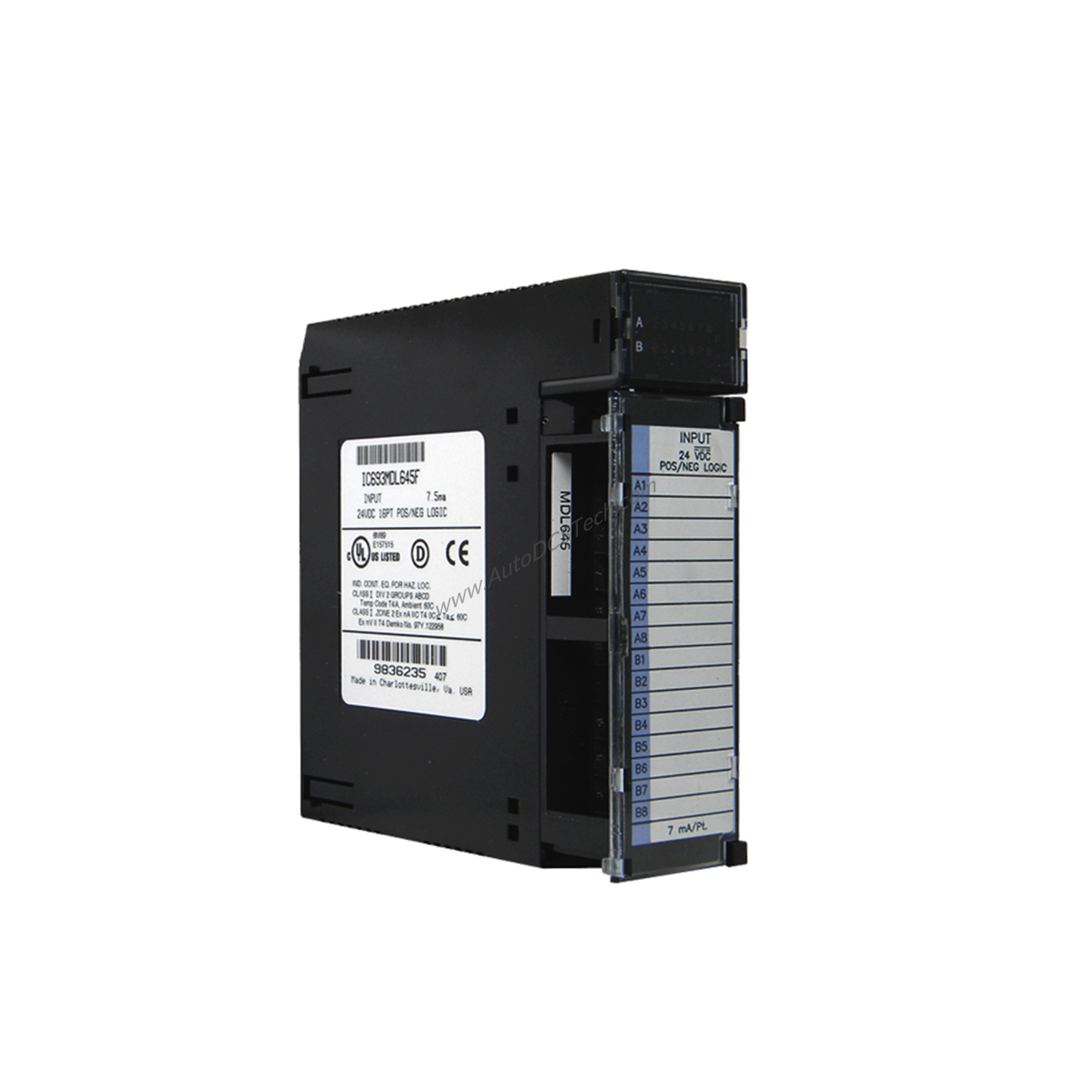

When your Series 90-30 PLC system needs reliable signal detection from pushbuttons, limit switches, or proximity sensors, the GE Fanuc IC693MDL645 delivers consistent performance. This positive/negative logic input module provides sixteen (16) input channels with a 0-30 VDC operating range, making it ideal for diverse industrial sensing applications.
Technical Specifications
- Input Voltage Range: 0-30 VDC
- Nominal Input Voltage: 24 VDC
- Input Current: 7 mA
- Number of Points: Sixteen (16)
- Response Time: 7 ms on, 7 ms off
- Internal Power Used: 80 mA at 5 VDC, 125 mA at 24 VDC Isolated
- Module Width: Single (1) slot
- Connector Type: Terminal Block (20 screws), included with module
Industry Applications
The IC693MDL645 interfaces with standard input devices such as pushbuttons, limit switches, proximity switches, and auxiliary contacts. In manufacturing lines, it monitors machine status signals. In material handling systems, it detects conveyor positions. The 7 ms response time suits most discrete control applications where fast but not ultra-high-speed detection is required.
Installation & Setup Guidance
Mount the IC693MDL645 into any available slot of a Series 90-30 5-slot or 10-slot baseplate. The module uses a 20-screw terminal block for field wiring. Each of the sixteen input channels has a dedicated LED indicator for quick visual status confirmation. Ensure the external voltage signal stays within 0-30 VDC to avoid damage. The module draws 80 mA from the 5 VDC backplane bus and 125 mA from the isolated 24 VDC bus (or user-supplied power).
Maintenance & Reliability
From a maintenance engineer's perspective, the IC693MDL645 offers straightforward troubleshooting via its sixteen (16) LED indicators—one per channel. These LEDs confirm whether the signal voltage from the connected device reaches the input point. Regular inspection of terminal block connections and verifying that input voltages stay within the 0-30 VDC range helps maintain reliability. Since this module is discontinued, verify current lifecycle status and availability with SpareTechPLC before ordering.
Compatibility & Integration
The IC693MDL645 integrates seamlessly with GE Fanuc Series 90-30 PLC systems using 5-slot or 10-slot baseplates. The module stores received voltage signals in the %I status table for easy access by the PLC program. It works with any Series 90-30 CPU that supports discrete input modules.
Selection Guide & Purchasing Advice
Before purchasing the IC693MDL645, confirm your baseplate compatibility (5-slot or 10-slot) and ensure your application requires 16 input points with 0-30 VDC range. The module uses a single input group with one common terminal. SpareTechPLC offers this discontinued module for legacy system support—contact us for current stock and replacement options.
Frequently Asked Questions
What is the input voltage range of the IC693MDL645?
The input voltage range is 0-30 VDC, with a nominal input voltage of 24 VDC.
How many input points does this module have?
It has sixteen (16) input points, each with a dedicated LED indicator.
What is the response time of the IC693MDL645?
The response time is 7 ms for both ON and OFF states.
Is the IC693MDL645 still in production?
No, this product is discontinued/obsolete. Please contact SpareTechPLC for current availability and replacement options.
What type of connector does the module use?
It uses a 20-screw terminal block, which is included with the module.
