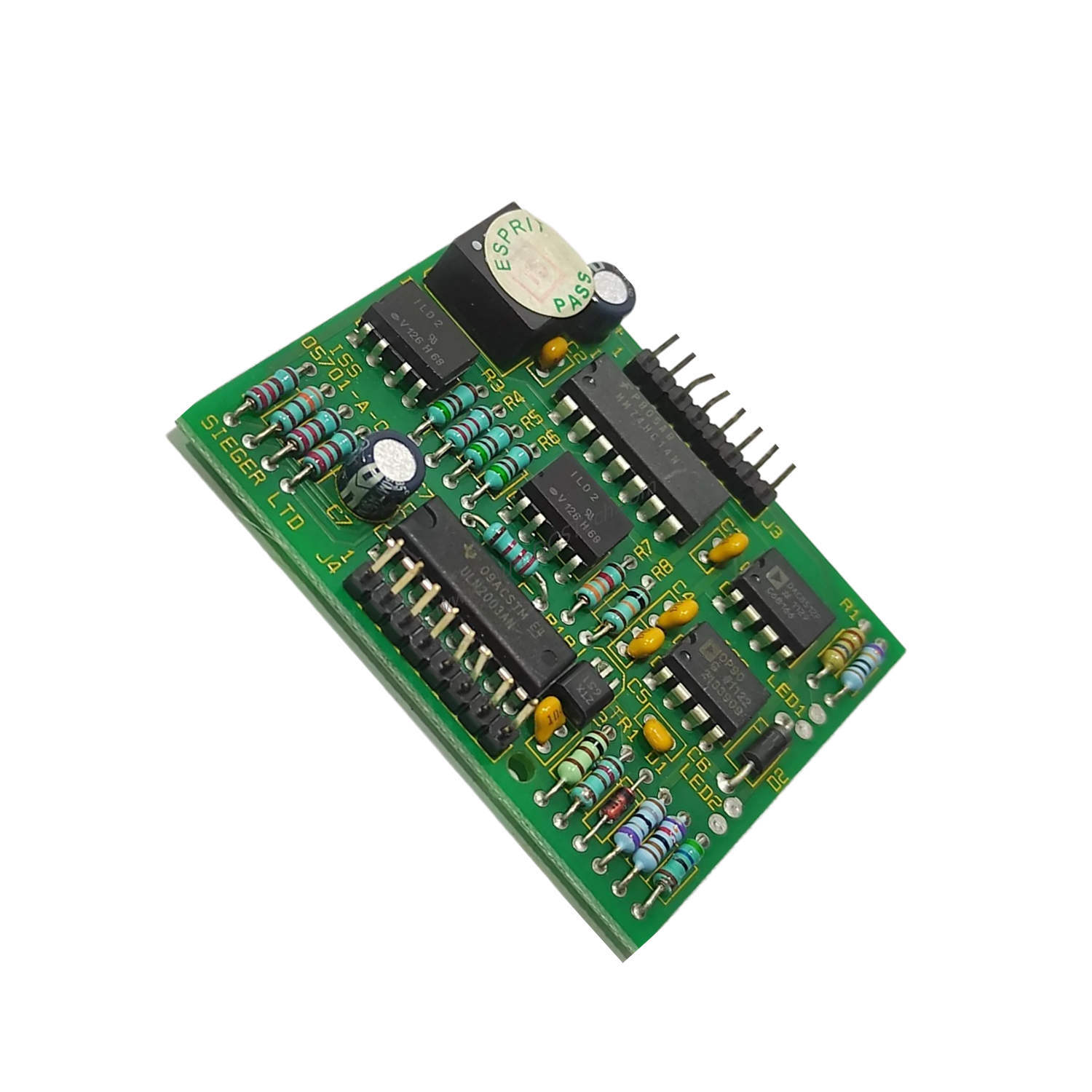

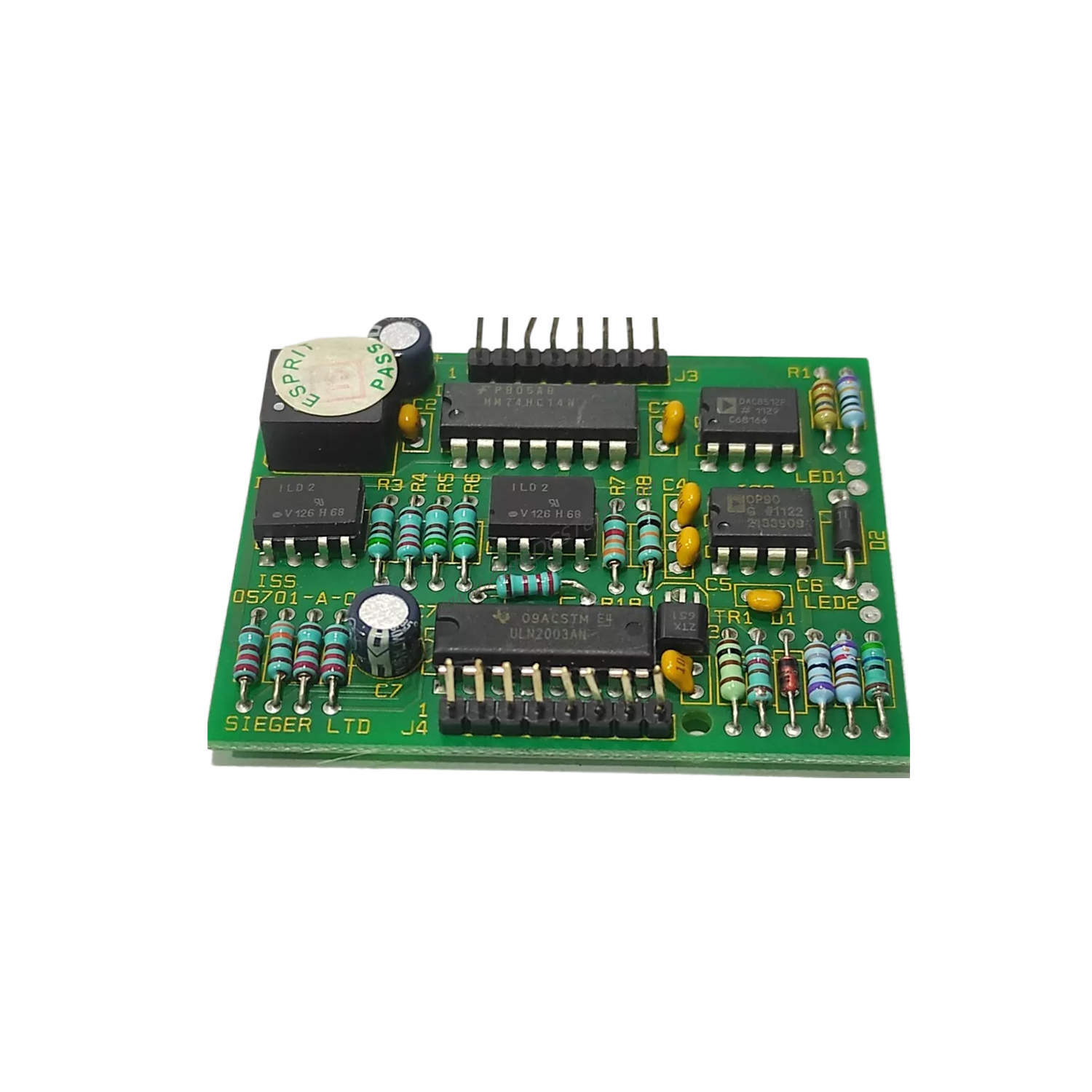

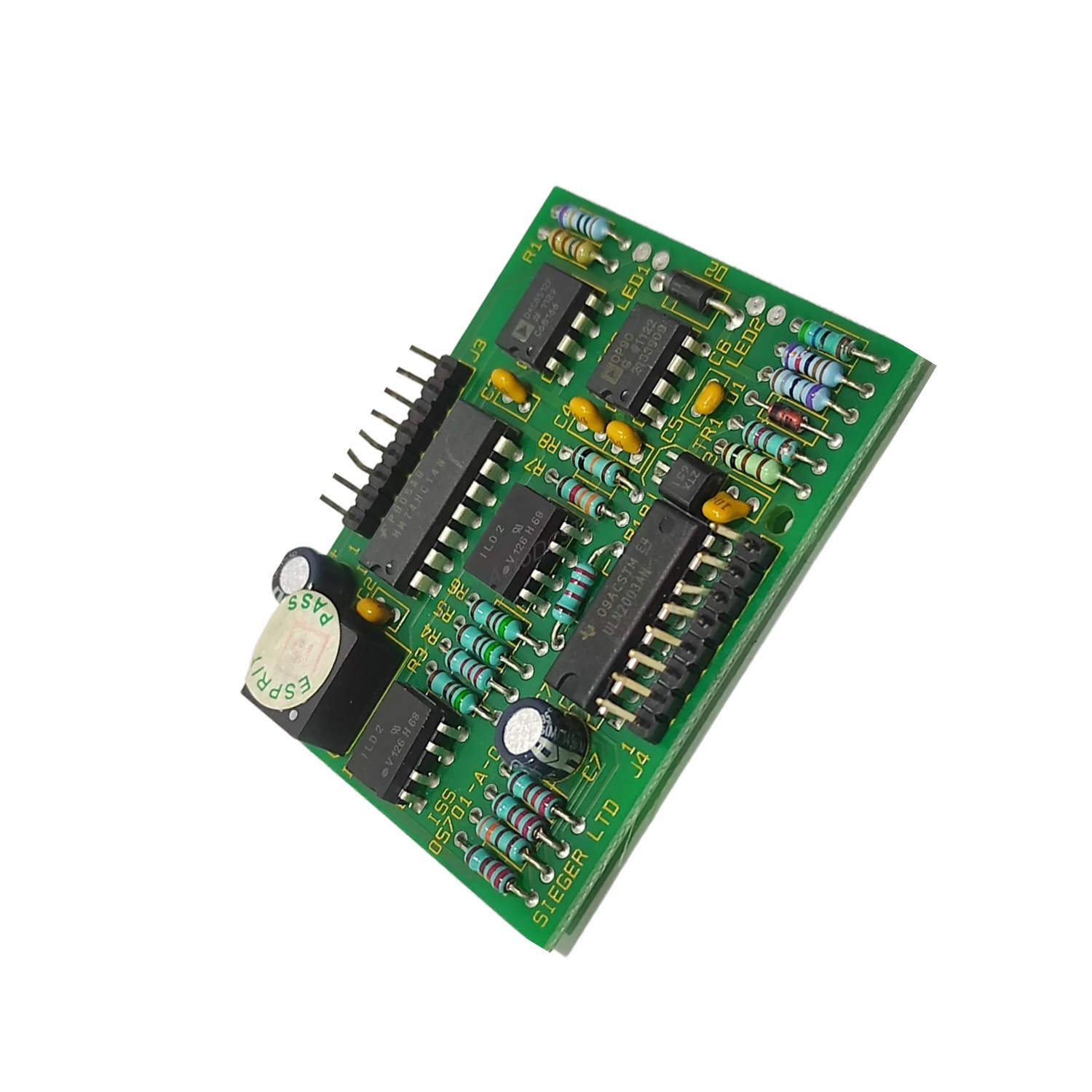

What Is the Honeywell 05701-A-0284?
When combustible gas leaks threaten personnel and equipment, the Honeywell 05701-A-0284 Catalytic Sensor Drive delivers precise detection. This module drives catalytic bead sensors, converting gas concentration into a measurable signal for safety systems. Designed for continuous operation in harsh industrial environments, it ensures early warning of flammable gas hazards.
Technical Specifications Breakdown
The 05701-A-0284 is engineered for critical safety monitoring. Key parameters from the product data include:
- Part Number: 05701-A-0284
- Brand: Honeywell
- Product Type: Catalytic Sensor Drive
These specifications define its role as a dedicated interface between catalytic sensors and control systems. The module provides stable excitation and signal conditioning for reliable gas measurement.
Industry Applications
Oil & Gas Refineries
In refineries, the 05701-A-0284 monitors for methane and other hydrocarbons near processing units. Its catalytic sensor drive ensures fast response to leaks, enabling automatic shutdown or alarm activation.
Chemical Processing Plants
Chemical facilities use this module to detect flammable vapors in storage areas and reaction vessels. The drive maintains sensor accuracy even in the presence of background contaminants.
Wastewater Treatment
Biogas from digesters contains methane. The 05701-A-0284 provides continuous monitoring in confined spaces, protecting workers from explosion risks.
Installation & Setup Guidance
Mount the 05701-A-0284 in a clean, dry enclosure away from extreme vibration. Connect the catalytic sensor per Honeywell's wiring diagram, ensuring proper polarity and shielding. After installation, perform a bump test with a known gas concentration to verify calibration. Use only approved cables to maintain signal integrity.
Maintenance & Reliability
Regular inspection of the 05701-A-0284 ensures long-term performance. Check sensor connections for corrosion and verify zero and span readings monthly. Replace catalytic sensors according to manufacturer guidelines. This proactive approach reduces unplanned downtime and extends system life.
Compatibility & Integration
The 05701-A-0284 integrates with Honeywell safety controllers and distributed control systems. It accepts standard catalytic bead sensors and outputs a linear signal for gas concentration. Verify compatibility with your existing Honeywell system before ordering.
Buying Guide & Selection Advice
Before purchasing the 05701-A-0284, confirm your sensor type and required cable length. SpareTechPLC stocks this module for immediate shipment. Contact our team to verify availability and ensure the part matches your application. We provide fast delivery and expert support for industrial automation needs.
Frequently Asked Questions
What type of sensor does the 05701-A-0284 drive?
It drives catalytic bead sensors for combustible gas detection.
Can I use this module with non-Honeywell sensors?
The 05701-A-0284 is designed for Honeywell-compatible catalytic sensors. Consult the manual for specific sensor models.
How do I test the module after installation?
Perform a bump test with a calibration gas of known concentration to verify sensor response and signal output.
What is the typical response time?
Response time depends on the sensor used. The module provides fast signal conditioning for real-time monitoring.
Does SpareTechPLC offer technical support for this product?
Yes, our team can assist with selection, integration, and troubleshooting for the 05701-A-0284.
