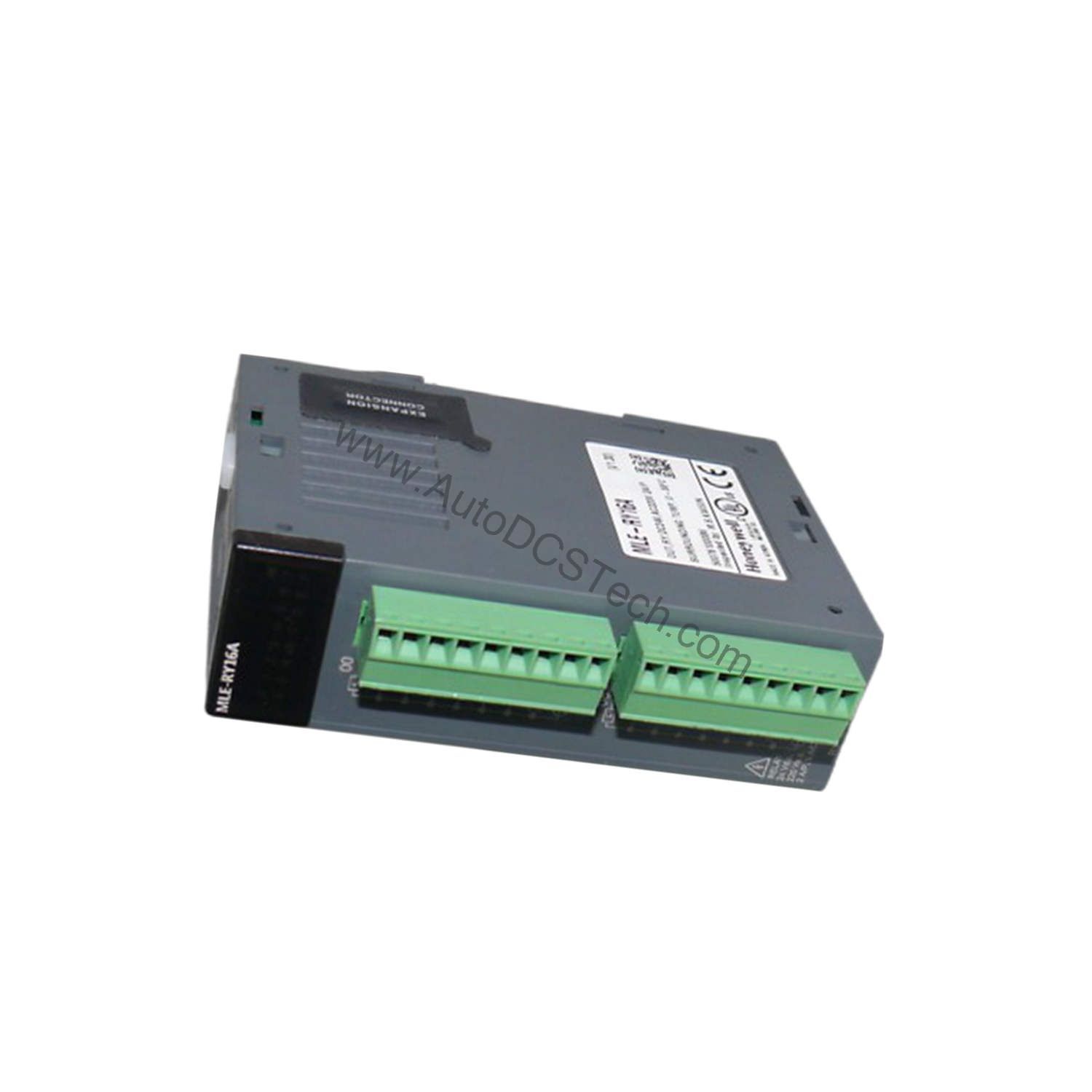

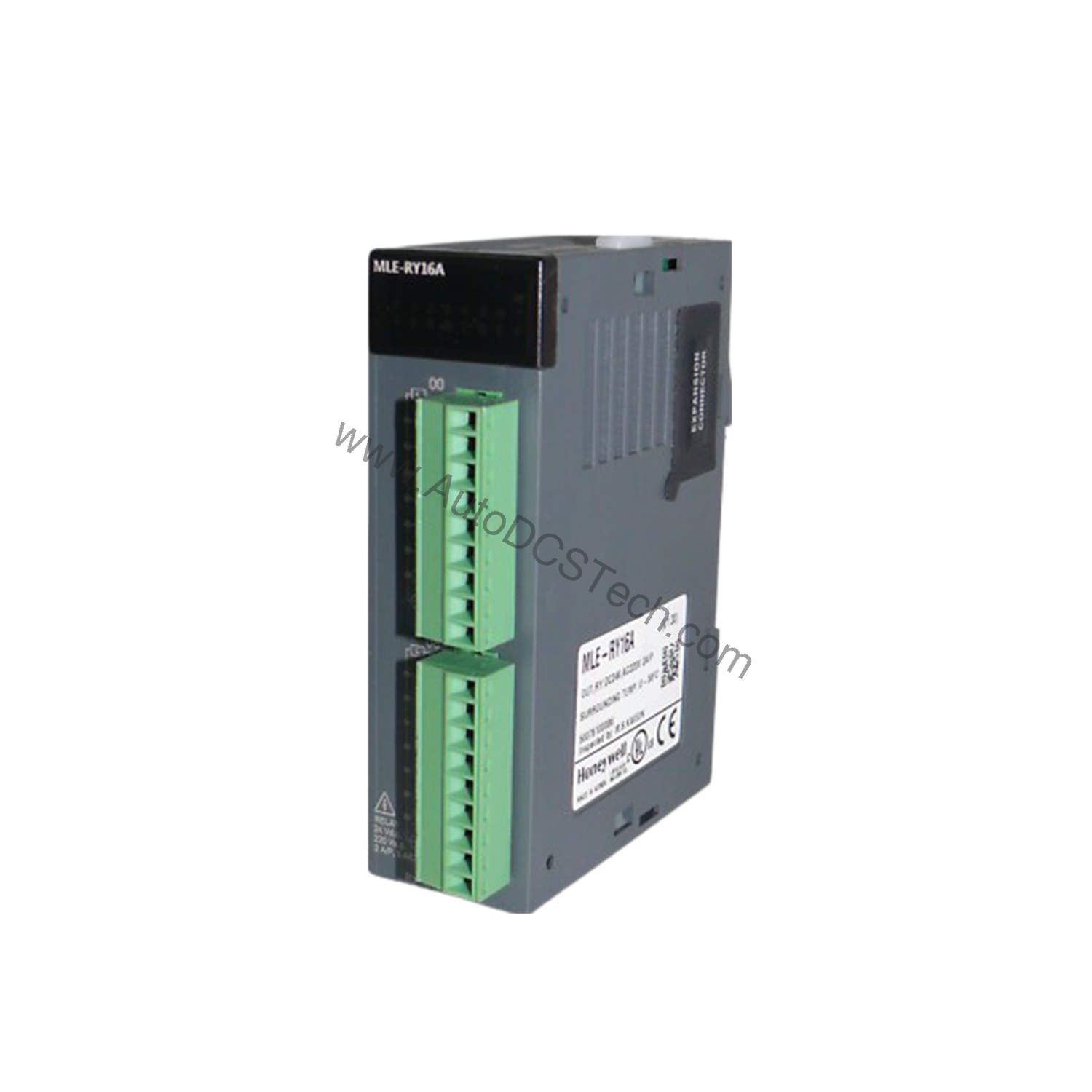

Honeywell MLE-RY16A Digital Output Relay Module 16 Channel

Technical Specifications Breakdown

Key parameters for the MLE-RY16A are listed below for quick reference:

Industry Applications for the MLE-RY16A

Packaging Machinery

In packaging lines, the module switches actuators and sensors at high cycle rates. The 3600 times/hr on/off frequency supports rapid operations, while the 10ms/12ms response times ensure timely actuation. Its 16 channels allow control of multiple stations from one module, reducing wiring and panel space.

Material Handling Systems

Conveyor systems often require discrete outputs for motor contactors and diverters. The relay outputs can handle AC 220V loads up to 2A, making them suitable for direct switching of small motors or pilot devices. The 8-point common method simplifies grouping of loads with similar power sources.

Process Control Panels

For chemical or water treatment plants, the module provides isolated relay outputs that protect the PLC from inductive spikes. Although no surge absorber is built in, external suppression may be added. The LED indicators per channel aid in quick status checks during commissioning and maintenance.

Installation & Setup Guidance

When installing the MLE-RY16A, follow standard practices for relay output modules. Ensure the power supply is off during wiring. Connect the DC 24V input to the module's power terminals, observing polarity. For output wiring, use the 9-pin terminal block connectors (X2) for secure connections. Each common (COM) terminal handles up to 5A, so distribute loads accordingly to avoid overloading a single COM. Verify that the load voltage does not exceed AC250V or DC125V as per the max load current rating. For inductive loads, consider external surge suppression to extend relay life.

Maintenance & Reliability

Routine inspection of the module is recommended every 6 to 12 months, depending on the operating environment. Check for loose terminal connections, signs of overheating, or dust accumulation. The relay mechanical life is rated at 20 million operations or more, while electrical life varies with load conditions—for example, 100,000 operations at AC 200V/1.5A or DC 24V/1A. To maximize relay life, avoid exceeding the specified load ratings and consider derating for inductive loads. Keep the module in a clean, dry enclosure to prevent corrosion of contacts.

Reliable 16-Channel Relay Output for Industrial Control

Industrial control panels often face the challenge of switching multiple loads with limited space and wiring complexity. The Honeywell MLE-RY16A digital output module addresses this by consolidating 16 relay output points into a single compact unit. Designed for use in programmable logic controller (PLC) systems, this module provides a straightforward interface between the controller and field devices such as contactors, solenoid valves, and indicator lamps. With a rated input voltage of DC 24V and a load capacity of 2A for resistive loads, it handles typical industrial signals without requiring additional interposing relays.

Selection Guide & Purchasing Advice

When selecting a replacement or new module, verify compatibility with your existing PLC system. The Honeywell MLE-RY16A is a proven solution for discrete output applications. For availability and current lifecycle status, contact AutoDCSTech. Our team can confirm stock, provide datasheets, and advise on alternatives if this model is discontinued. We specialize in industrial automation parts, ensuring you get the right component for your system.

Troubleshooting & Common Issues

If an output channel fails to energize, first check the LED indicator. If the LED is on but the load is not powered, the relay contact may be worn or the wiring may be loose. If the LED is off, verify the input signal from the PLC and the module's power supply. For intermittent operations, check the common terminal connections and ensure the load current is within the 2A (resistive) or 5A/COM limit. If the module is not responding at all, measure the internal current consumption—should be around 420mA—to confirm the module is powered. Always disconnect power before inspecting wiring.
