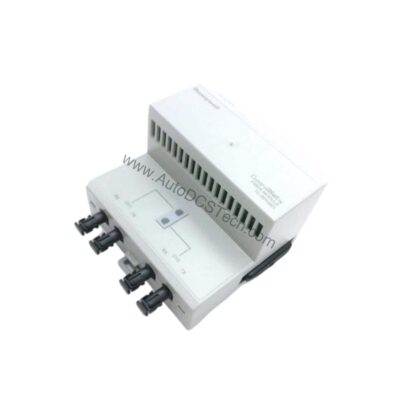

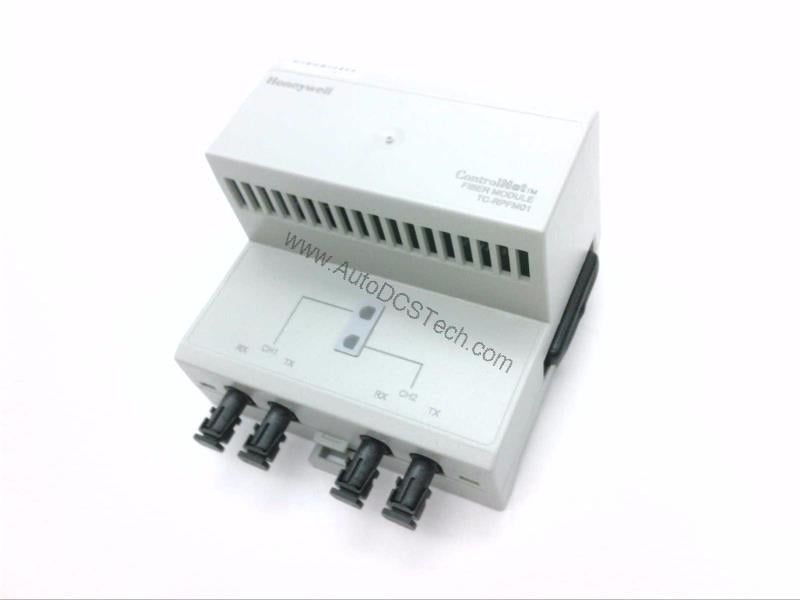

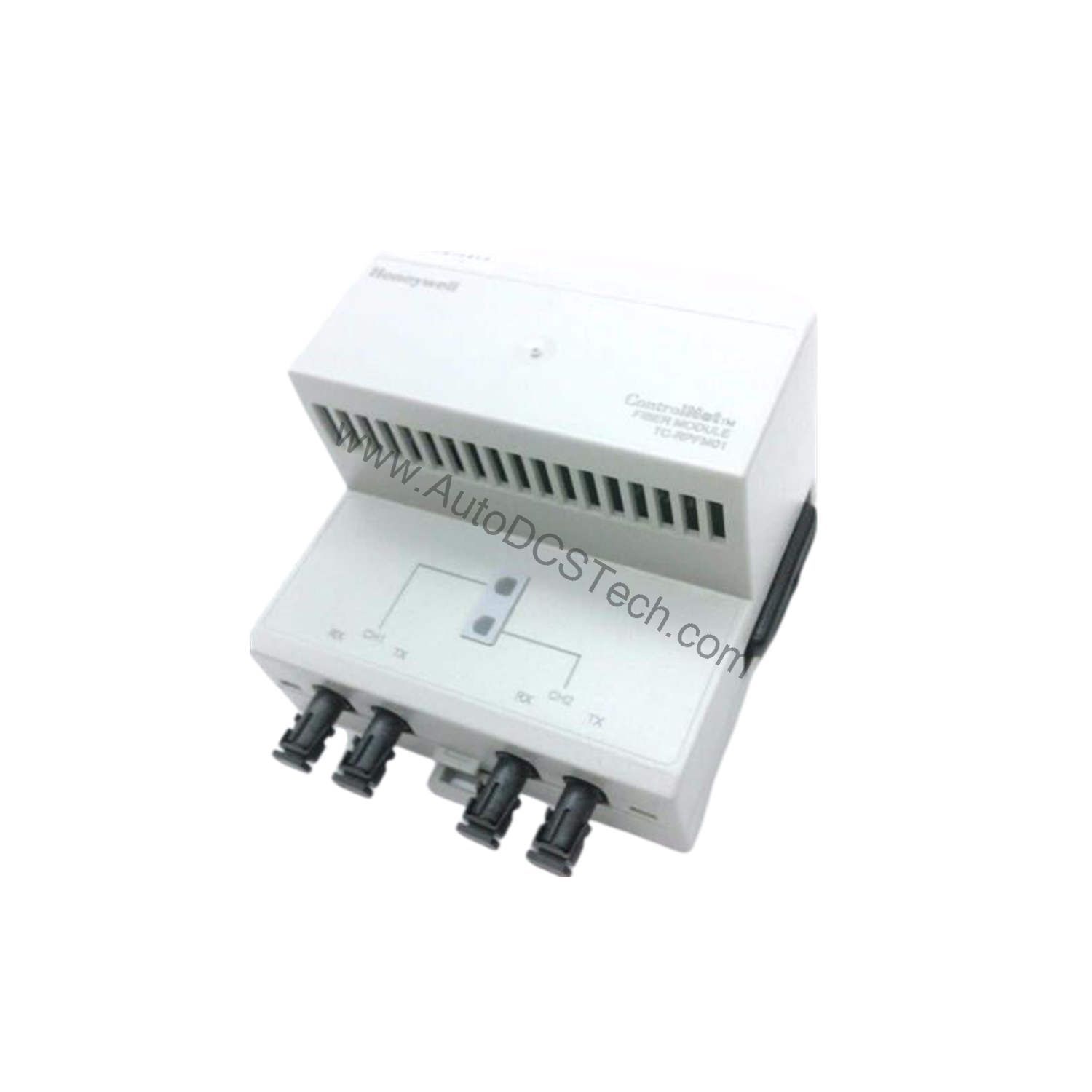

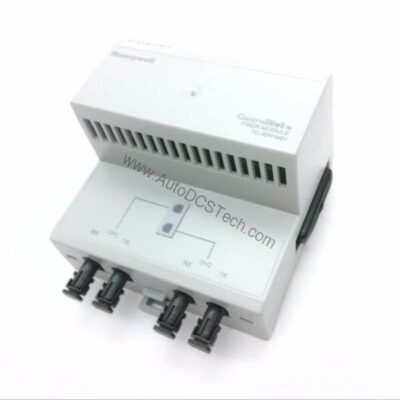

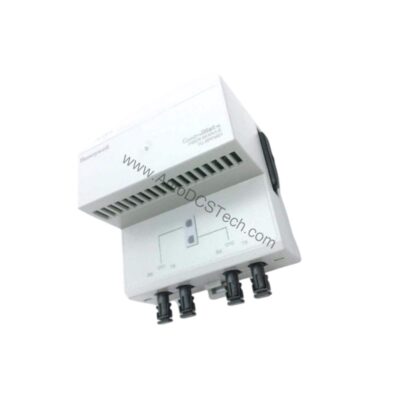

Honeywell TC-RPFM01 ControlNet Fiber Module for Non-Hazardous Areas

Technical Specifications Breakdown

Key parameters for the TC-RPFM01 are listed below for quick reference:

Industry Applications

Here are three typical applications:

• Remote I/O Networking: Connect control panels across large facilities, such as in mining or water treatment plants, where distances exceed copper limits. The 3km transmission range and 5M bit/s rate ensure responsive control.
• Electromagnetic Noise Prone Environments: In steel mills or welding shops, fiber optics are immune to EMI, unlike copper. The galvanic isolation between the TTL bus and ControlNet further protects against ground loops and voltage transients.
• Process Automation: In chemical or pharmaceutical plants, the module's wide temperature range and humidity tolerance (95% non-condensing) allow installation near process areas, reducing cable runs.

Installation & Setup Guidance

Proper installation is key to maximizing performance. Follow these engineer-level guidelines:

• Mounting: Secure the module in a suitable enclosure, ensuring adequate airflow. The compact dimensions (94 x 94 x 87 mm) allow for space-efficient panel layouts.
• Fiber Connections: Use 62.5/125 micron fiber cables with ST connectors. Ensure the connectors are clean before mating to avoid signal loss. The power budget of 13.3dB provides headroom for splices and connectors, but keep the total link loss below this value.
• Bus Connections: The internal bus uses a 30-pin male output and a 30-pin female input connector. Align the connectors carefully to avoid bent pins. The module is powered through the Repeater Adapter module, so ensure that adapter is correctly installed and powered.
• Configuration: Set the communication rate to 5M bit/s on all connected devices. Verify that the ControlNet network parameters match the module's settings.

Maintenance & Reliability

To ensure long-term reliability, follow a periodic inspection schedule:

• Visual Checks: Every 6 months, inspect fiber connectors for dust or damage. Clean with a lint-free wipe and appropriate solvent if needed.
• Environmental Monitoring: Verify that the ambient temperature stays within –20°C to 70°C and humidity below 95% non-condensing. Use enclosure heaters or coolers if necessary.
• Vibration and Shock: The module withstands 15g peak shock (11ms) and 2g vibration from 10Hz to 500Hz. Ensure mounting brackets are tight to prevent loosening over time.
• Fiber Inspection: Use an optical power meter to measure link loss annually. If loss approaches 13.3dB, check for damaged cables or connectors.

Compatibility & Integration

The TC-RPFM01 is designed to work with Honeywell ControlNet systems. It integrates with a Repeater Adapter module, which supplies power and interfaces with the control network. The fiber optic interface is standard, so it can connect to any ControlNet fiber network using 62.5/125 micron fiber and ST connectors. The module's galvanic isolation ensures compatibility with various grounding schemes, reducing the risk of ground loops.

Selection Guide & Purchasing Advice

When selecting the TC-RPFM01, verify that your application requires fiber optic extension for ControlNet. If your distances are under 1km and EMI is not an issue, copper might be sufficient. However, for long runs or noisy environments, this fiber module is the right choice.

At AutoDCSTech, we stock the Honeywell TC-RPFM01 and can advise on compatibility with your existing system. Contact our team to confirm availability and lifecycle status. We recommend verifying current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

• No Communication: Check that the fiber cables are properly connected and the connectors are clean. Verify that the Repeater Adapter module is powered and the bus connectors are fully seated.
• Intermittent Errors: Measure the optical power at the receiver. If the link loss is close to 13.3dB, inspect for damaged fiber or excessive splices. Also, check for sources of vibration that might cause micro-bending.
• High Error Rate: Ensure that the communication rate is set to 5M bit/s on all nodes. Check for ground loops; the galvanic isolation should help, but verify that the module is not grounded through other paths.
• Module Overheating: If the ambient temperature exceeds 70°C, provide additional cooling. Ensure that the module is not blocked by other components.

For persistent issues, consult the Honeywell documentation or contact AutoDCSTech for technical support.
