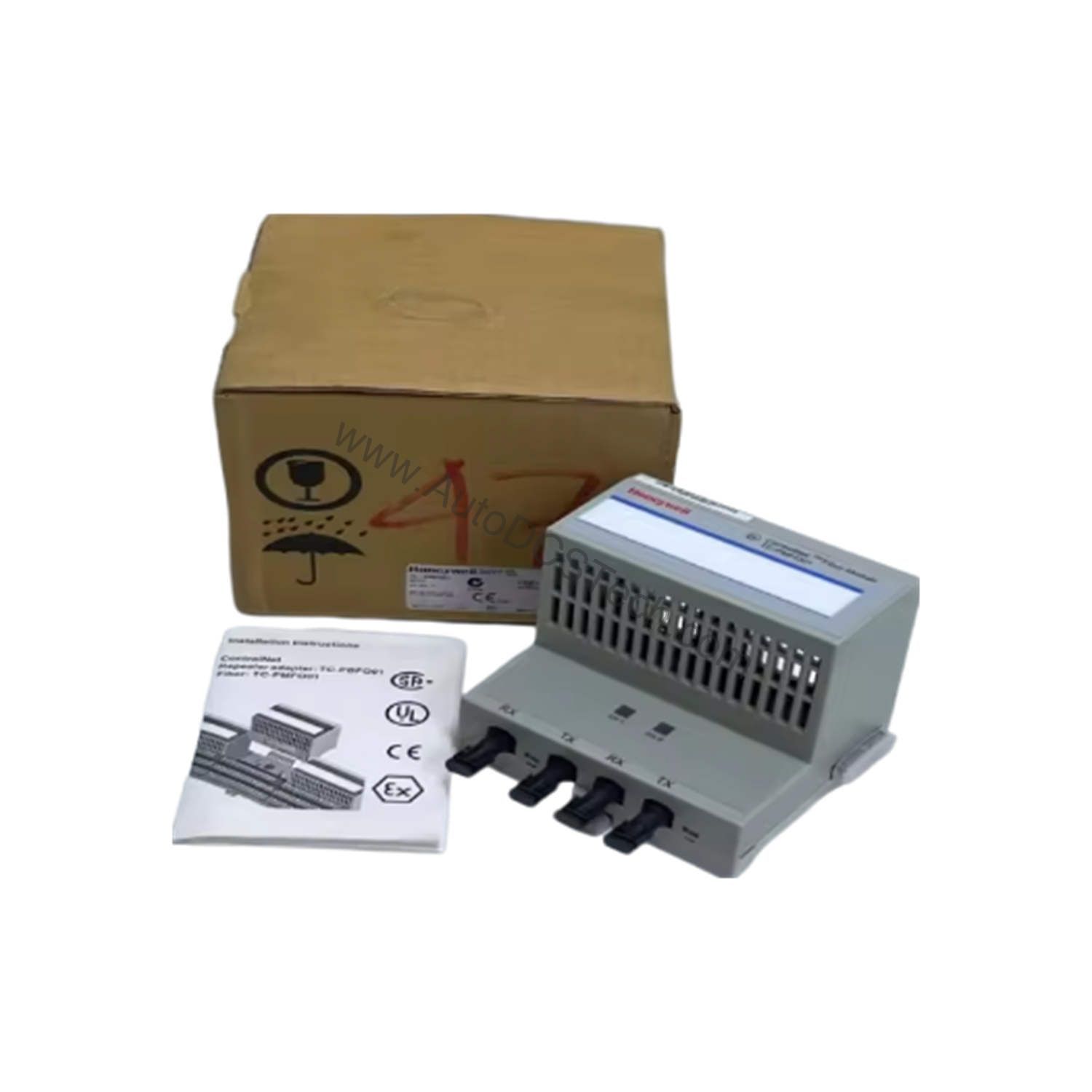

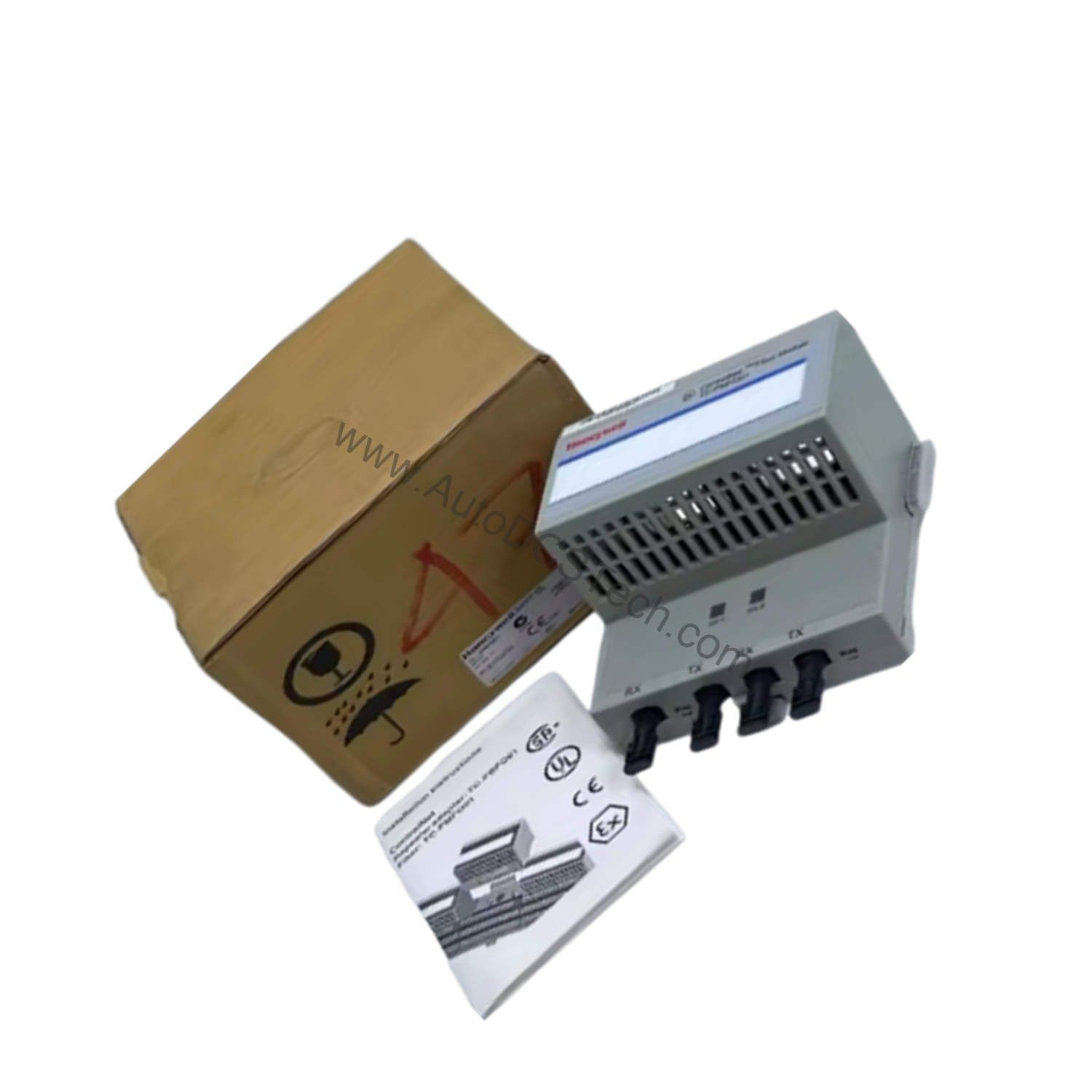

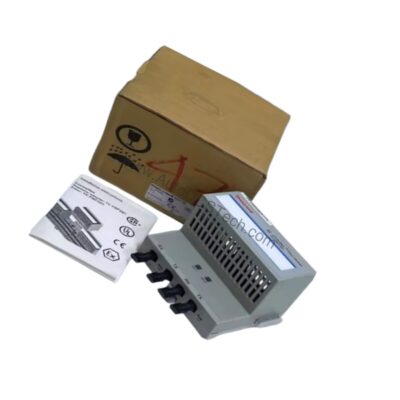

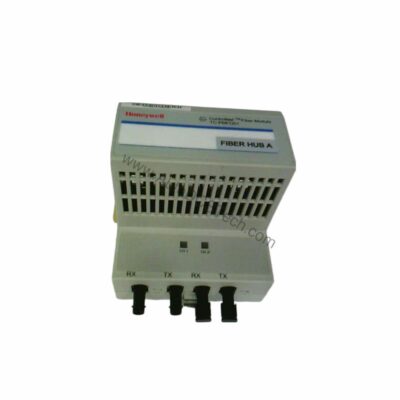

Honeywell TC-PMFO01 ControlNet Fiber Module for Hazardous Locations

Product Overview

Industrial networks operating in explosive atmospheres demand components that combine reliable data transmission with intrinsic safety. The Honeywell TC-PMFO01 ControlNet Fiber Module is engineered precisely for such environments. This module extends ControlNet communication over fiber optic cabling, providing galvanic isolation and robust performance in hazardous locations.

The TC-PMFO01 is part of Honeywell's proven line of industrial communication modules. It converts electrical ControlNet signals to optical signals, enabling safe and reliable data transfer over long distances.

Technical Specifications Breakdown

Key parameters for the TC-PMFO01 are listed below for quick reference:

Industry Applications

The TC-PMFO01 is designed for hazardous locations, making it suitable for oil and gas refineries, chemical processing plants, and pharmaceutical manufacturing facilities. In these settings, the module enables ControlNet communication between controllers and field devices while maintaining intrinsic safety.

For example, in a chemical plant, the module can link a control room to remote I/O panels located in explosive zones. The fiber optic transmission distance of up to 3 km allows for wide-area coverage without signal degradation. The 1300nm wavelength and 13.3dB power budget ensure reliable data integrity over long cable runs.

Another application is in offshore platforms, where space is limited and safety is paramount. The module's compact dimensions (94 x 94 x 87 mm) and IP20 rating (with appropriate housing) allow for flexible installation in existing cabinets.

Installation & Setup Guidance

When installing the TC-PMFO01, follow these engineering guidelines:

1. Power Supply: Power is supplied through the Repeater Adapter module. Ensure the repeater adapter is properly connected and rated for the system.
2. Fiber Optic Connections: Use 62.5/125 micron fiber with ST connectors (plastic or ceramic). Verify that the fiber ends are clean and properly seated.
3. Bus Connections: The module uses a 30-pin male connector for output and a 30-pin female connector for input. Match these to the corresponding repeater adapter ports.
4. Housing Requirement: Since the module has IP20 protection, it must be installed in a separate housing with IP54 or better when used in the field. This protects against dust and water ingress.
5. Environmental Conditions: Operate the module within the ambient temperature range of –20°C to 70°C and relative humidity up to 95% non-condensing.

Maintenance & Reliability

Regular inspection of the fiber optic connections is essential to maintain signal quality. Check for dust or damage on the ST connectors and clean them with appropriate fiber optic cleaning tools.

Periodically verify that the module is securely mounted and that all connectors are tight. The module is designed to withstand shock up to 15g peak and vibration of 2g from 10Hz to 500Hz, but physical stress should be minimized.

Because the module is intended for hazardous locations, any maintenance must be performed by qualified personnel following local safety regulations. Do not open the module or attempt repairs; replace the unit if a fault is detected.

Compatibility & Integration

The TC-PMFO01 is designed to work with Honeywell ControlNet systems. It interfaces with a Repeater Adapter module, which provides power and bus connectivity. The module uses a vendor-specific TTL internal bus, so it is not compatible with standard ControlNet copper interfaces.

For integration, ensure that the repeater adapter module is compatible with your ControlNet scanner. The communication rate of 5M bit/s matches standard ControlNet specifications.

Selection Guide & Purchasing Advice

When selecting a fiber module for hazardous locations, consider the following:

• Fiber Type: The module supports 62.5/125 micron fiber. Ensure your existing fiber infrastructure matches this specification.
• Distance Requirements: With up to 3 km transmission distance, this module covers most plant-wide applications.
• Safety Certifications: The module carries CENELEC classification II (1) 2G EEx ia/ib IIB/IIC T4 and DMT 99 ATEX E 036 X, making it suitable for Zone 1 and Zone 2 hazardous areas.

AutoDCSTech offers the Honeywell TC-PMFO01 for immediate purchase. Contact our team to verify availability and lifecycle status before ordering.

Troubleshooting & Common Issues

If the module fails to communicate, check the following:

• Fiber Optic Link: Verify that the fiber is connected to the correct ST ports and that the connectors are clean.
• Power Supply: Ensure the repeater adapter is powered and providing the required voltage (5.4Vdc as per internal bus specifications).
• Bus Connections: Confirm that the 30-pin connectors are fully seated and not damaged.
• Distance: If the fiber run exceeds 3 km, signal loss may occur. Use a power meter to verify the optical power budget.

If issues persist, consult the system documentation or contact AutoDCSTech for technical support.
