Allen-Bradley 22D-D012N104 PowerFlex 40P Drive 12A 480VAC

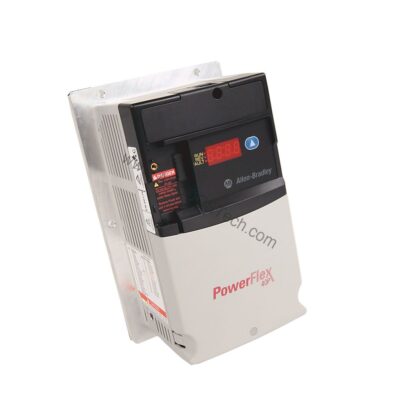

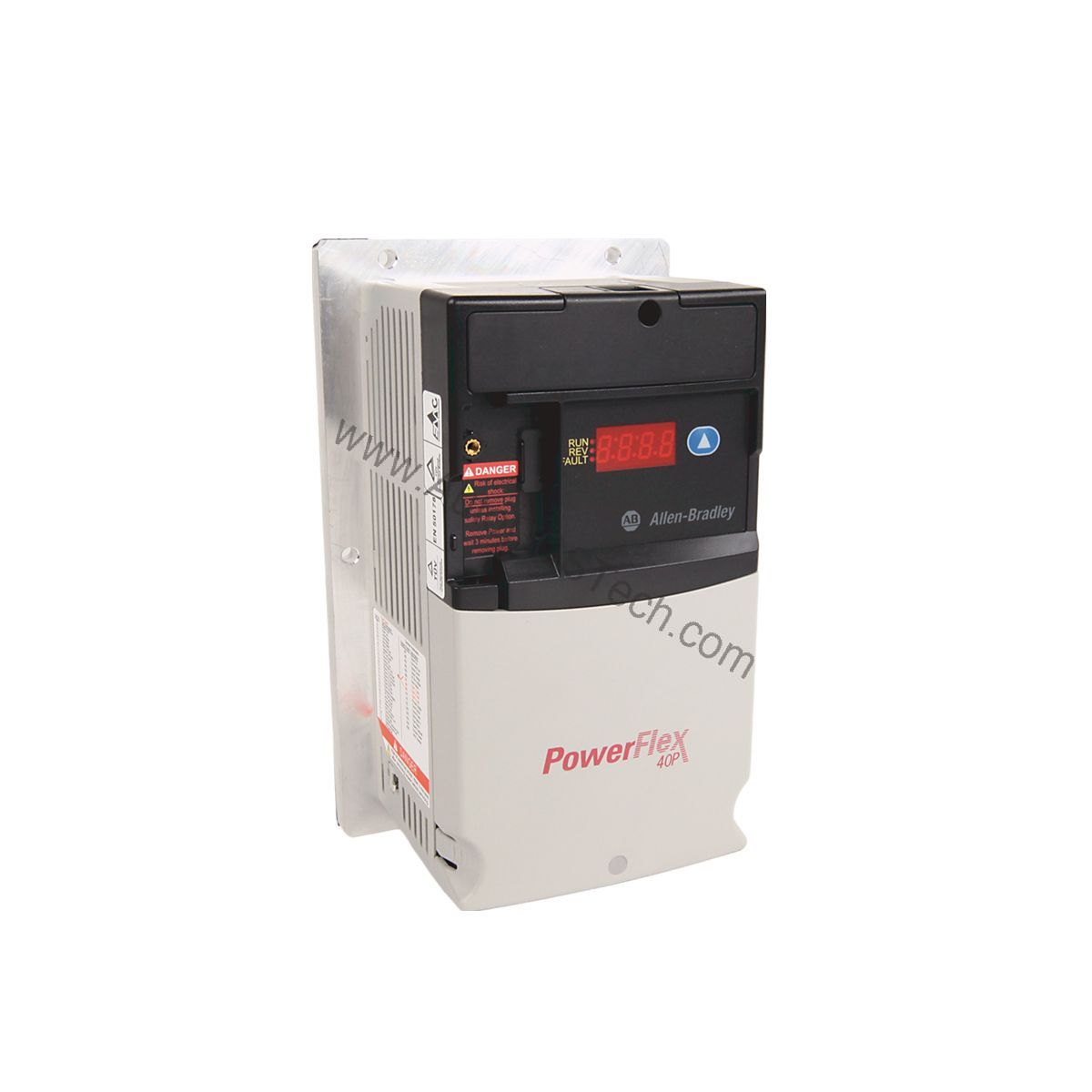

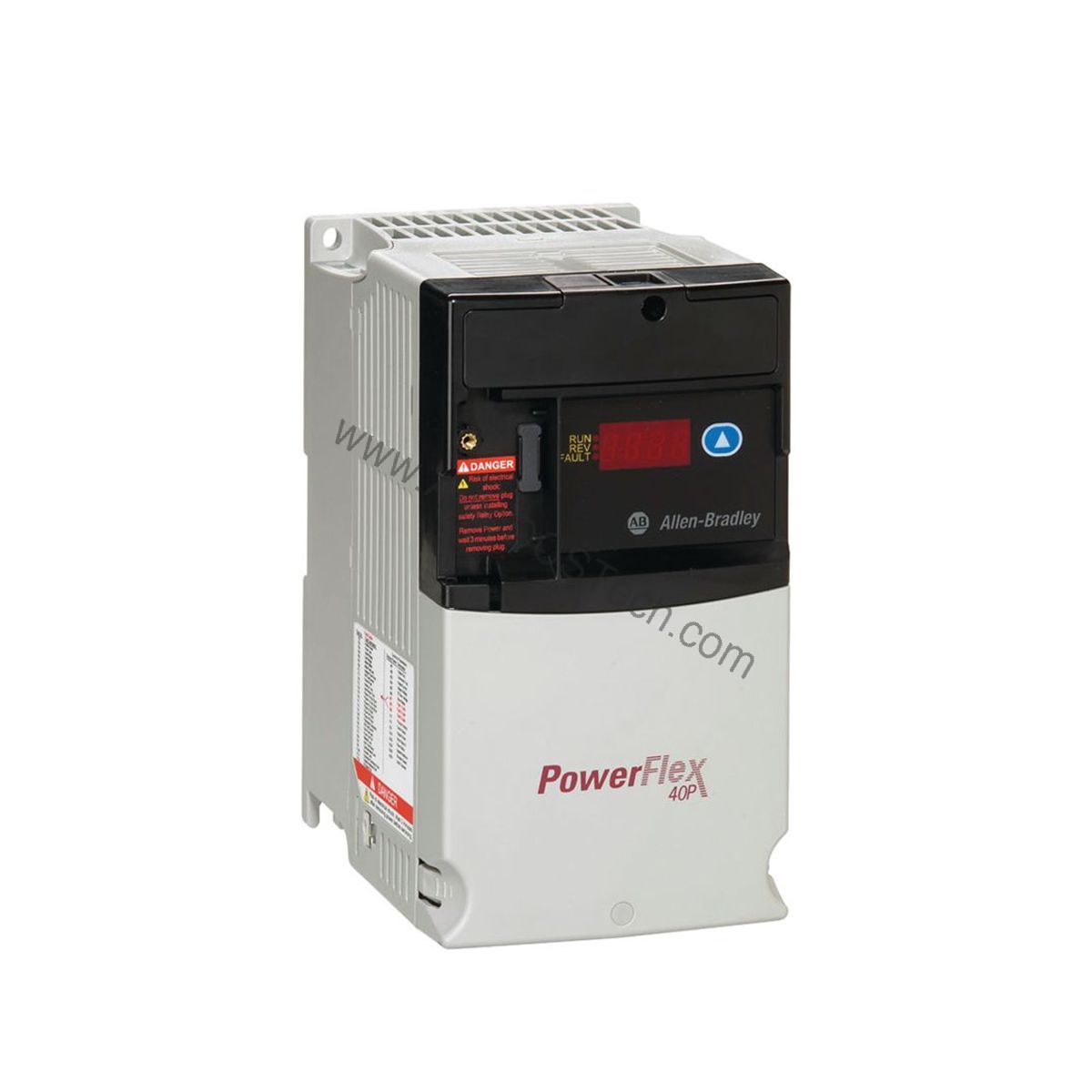

The Allen-Bradley 22D-D012N104 PowerFlex 40P Drive

Industrial motor control demands precision and durability. The Allen-Bradley 22D-D012N104 delivers both in a compact, panel-mount package. This PowerFlex 40P series drive is engineered for applications where space is tight and performance is non-negotiable.

Technical Specifications Breakdown

Key parameters for the 22D-D012N104 are listed below for quick reference:

Built for Real-World Industrial Applications

This drive shines in sectors like material handling, automotive, and beverage production. Its sensorless vector control and volts-per-hertz modes allow precise speed regulation. The integral 4-digit display and keypad simplify local operation. For maintenance engineers, the clear status LEDs and reset button reduce downtime during troubleshooting.

Installation and Setup Guidance

Mount the 22D-D012N104 on a flat panel or DIN rail inside an IP20-rated enclosure. Ensure adequate clearance for airflow. The RS-485 port supports PC programming and multi-drop networks, making commissioning straightforward. Use the DIP switches to configure the analog input and output to match your control signal requirements.

Maintenance and Reliability

Regularly inspect the cooling fins and internal fan for dust buildup. Verify that the input voltage stays within the rated 480 Volts AC. Because this unit lacks a CE-compliant filter, plan for external filtering if your facility requires EMC compliance. Periodic checks of terminal torque and wiring integrity prevent loose connections.

Compatibility and Integration

The 22D-D012N104 integrates easily with existing control systems. It offers 2 semi-programmable digital inputs, 5 fully programmable digital inputs, 2 opto outputs, and 1 form C relay output. The DIP-switch-selectable analog I/O provide flexibility for speed reference and feedback. The Zero Stacking feature allows multiple drives to be mounted side-by-side, saving valuable panel space.

Selection Guide and Purchasing Advice

When selecting a replacement drive, verify the frame size and enclosure rating. The 22D-D012N104 is a Size C frame with IP20 open type. At AutoDCSTech, we stock this model and can confirm availability. Contact our team to check lifecycle status and ensure this part meets your application requirements.

Troubleshooting and Common Issues

If the drive fails to start, check the input power and control wiring. A blank display may indicate a blown fuse or missing phase. If the motor runs erratically, verify the analog input scaling and DIP switch settings. Always consult the user manual for fault codes. For persistent issues, contact AutoDCSTech for technical support.
