Product Overview

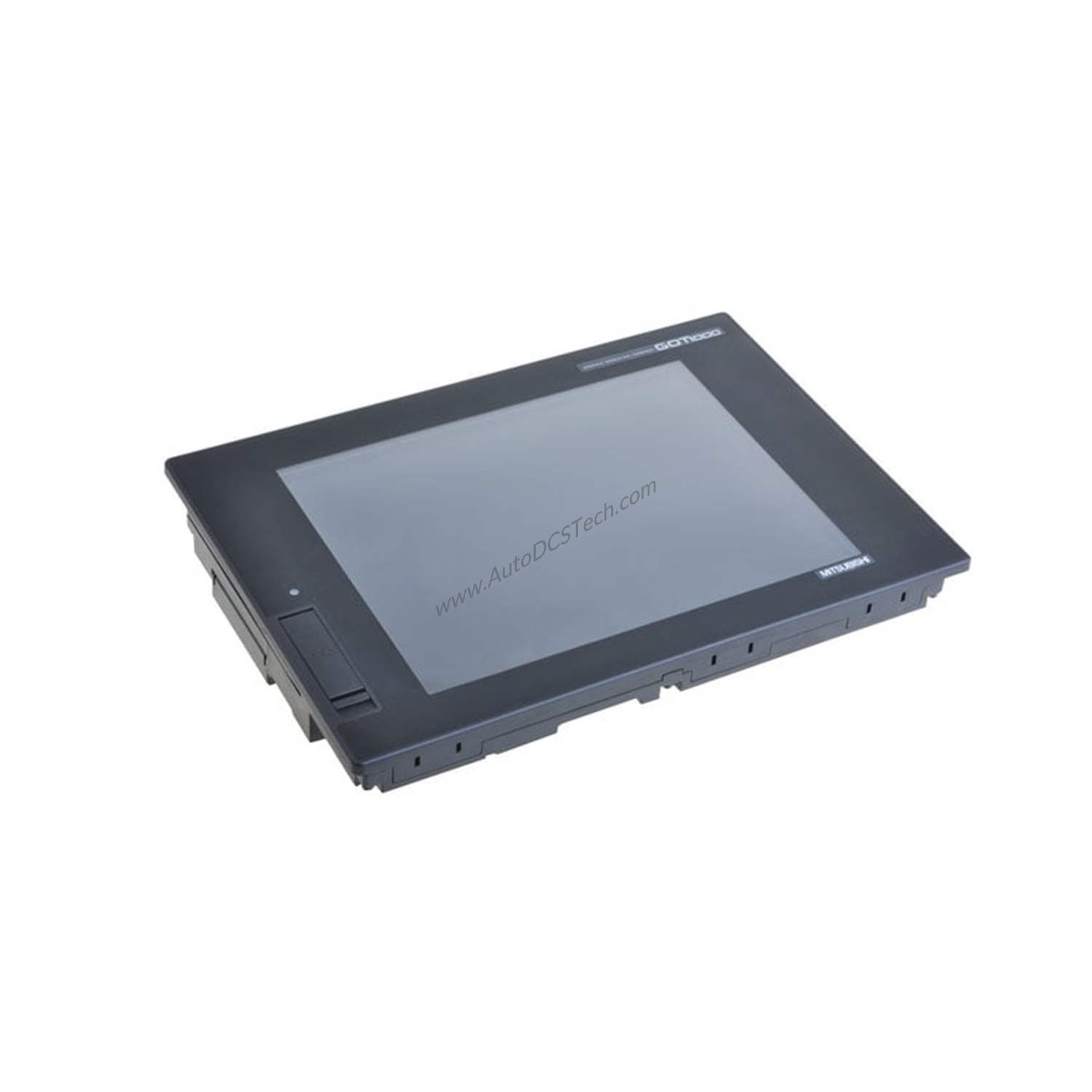

When production lines demand reliable operator interface, the Mitsubishi GT1672-VNBA delivers a robust solution. This GOT1000 Series Graphic Operation Terminal combines a 10.4" TFT color LCD display with an analog resistive touch panel, making it suitable for industrial environments where clarity and responsiveness matter.
Technical Specifications
The GT1672-VNBA offers a display size of 21.1 cm x 15.8 cm and supports 4,096 colors for clear visualization of process data. The backlight uses a replaceable cold-cathode fluorescent tube with an OFF detection function. Operators can set the backlight off time and screen save time to extend component life. Input power supply voltage ranges from 100 to 240VAC (+10% -15%) at 50/60Hz±5%. Maximum apparent power is 100VA, and power consumption stays at 39W or less. Panel cut dimensions measure 28.9 cm x 20 cm, while external dimensions are 4.9 cm x 30.3 cm x 21.4 cm. The unit weighs 2.3 kg.
Industry Applications
In manufacturing environments, the GT1672-VNBA serves as a primary HMI for monitoring and controlling automated processes. Its 10.4" screen provides ample space for displaying machine status, alarm logs, and production metrics. The analog resistive touch panel works reliably even when operators wear gloves, a common requirement in assembly and packaging lines. For facilities upgrading older operator terminals, this model offers a straightforward replacement path within the GOT1000 ecosystem, reducing integration time.
Installation & Setup Guidance
Mount the GT1672-VNBA into a panel cutout of 28.9 cm x 20 cm. Ensure the enclosure provides adequate ventilation around the unit to maintain proper cooling. Connect the input power supply within the 100 to 240VAC range, observing the +10% -15% tolerance. Use the appropriate communication cables to link the terminal with your PLC or controller. Verify that the backlight OFF detection function is configured according to your operational requirements.
Maintenance & Reliability
Periodically inspect the cold-cathode fluorescent tube backlight for dimming or failure. The replaceable design allows quick field replacement, minimizing downtime. Set the backlight off time and screen save time to reduce wear when the terminal is idle. Keep the touch panel clean using a soft, dry cloth. Regularly check power connections and ensure the input voltage stays within the specified range to prevent damage.
Compatibility & Integration
The GT1672-VNBA integrates with Mitsubishi Electric PLCs and other automation devices through the GOT1000 series architecture. It supports standard industrial communication protocols available within the Mitsubishi ecosystem. Verify compatibility with your existing controller before ordering. The terminal can be configured using Mitsubishi's screen design software.
Selection Guide & Purchasing Advice
Before purchasing the GT1672-VNBA, confirm that your application requires a 10.4" TFT display with 4,096 colors and an analog resistive touch panel. Check the panel cut dimensions (28.9 cm x 20 cm) to ensure proper fit in your enclosure. Verify that your facility's power supply matches the 100 to 240VAC input range. SpareTechPLC stocks this model and can assist with availability and shipping details. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Frequently Asked Questions
Q1: What is the display size of the GT1672-VNBA?
A: The display size is 21.1 cm x 15.8 cm, with a 10.4" screen diagonal.
Q2: Can the backlight be replaced?
A: Yes, the cold-cathode fluorescent tube backlight is replaceable and includes an OFF detection function.
Q3: What is the input voltage range for this terminal?
A: The input power supply voltage is 100 to 240VAC (+10% -15%) at 50/60Hz±5%.
Q4: How much does the GT1672-VNBA weigh?
A: The unit weighs 2.3 kg.
Q5: What type of touch panel does it use?
A: It uses an analog resistive type touch panel.
