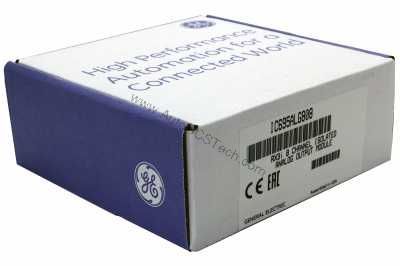

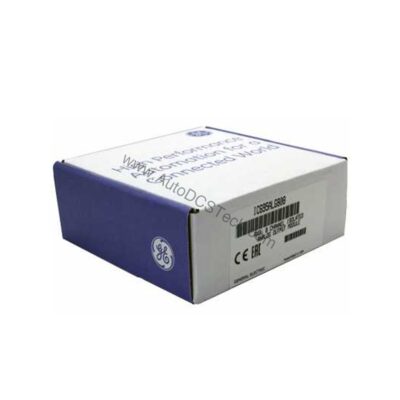

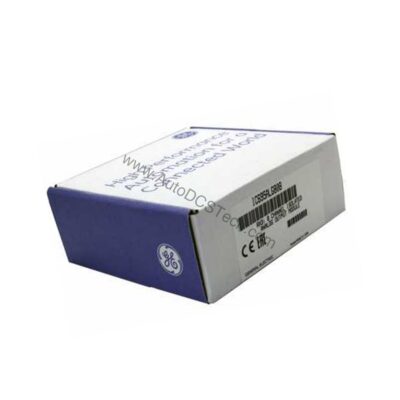

IC695ALG808: PACSystem RX3i Isolated Analog Output Module
The IC695ALG808 is the PACSystem RX3i Isolated Analog Output Module covered on this page. The attribute that decides whether it fits the existing installation without modification is 7.25 Watts maximum (Vuser=24V).
On this unit pacsystem rx3i isolated analog output module is the figure that decides fit and function. A processor or controller is selected on memory, scan time and platform compatibility before anything else. pacsystem rx3i isolated analog output module sets how much programme fits, how fast the logic executes and which I/O and networks the unit can host — the three things that decide whether an existing application migrates without a rewrite. Confirming 7.25 Watts maximum (Vuser=24V) against the installed controller family is the check that prevents a processor that boots but cannot run the existing project.
| Feature | Specification |
|---|---|
| Manufacturer | GE Fanuc / GE Intelligent Platforms |
| Brand | GE |
| Part Number | IC695ALG808 |
| Series | PACSystem RX3i |
| Part Number | IC695ALG808 |
| Product Description | Isolated analog output module |
| Number of Channels | 8 |
| Voltage Range | 0 to +10 Volts, -10 to +10 Volts |
| Current Range | 0 to 20 milliamps / 4 to 20 milliamps |
| Backplane Power Requirements | 80 milliamps (maximum) at 3.3 Volts |
| Module Resolution | ±10V: 14 bits |
| 0 to 20mA / 4 to 20mA | 15 bits |
| Isolation Voltage | 2550 Volts DC for 1 second |
| Data Format | Floating point IEEE 32 bit |
| Maximum Output Load | 1350 Ohms |
| Update Rate | 8 milliseconds |
| Maximum Power Dissipation | 7.25 Watts |
| External Power Supply | 19.2V to 30V (24V nominal) |
| External Current Input | 160 mA |
| Output Settling Time | 2 milliseconds, 0 to 95% (voltage or current output) |
| Current Draw | 360 mA maximum at 3.3V |
| Power Dissipation | 7.25 Watts maximum (Vuser=24V) |
| Calibrated Accuracy | Accurate to within 0.15% of full scale at 25degrees C |
Related Configurations
Other published configurations in the same family — confirm the distinguishing specification against your installation:
| Related Part Number | Configuration Difference |
|---|---|
| ge-ic695alg600-universal-analog-input-module-for-pacsystems-rx3i | confirm the configuration against your installation |
| ge-ic695alg106-pacsystem-rx3i-analog-input-module-overview | confirm the configuration against your installation |
| ge-ic695alg112-pacsystem-rx3i-analog-input-module-overview | confirm the configuration against your installation |
| ge-fanuc-ic695alg306-isolated-thermocouple-input-module-for-rx3i | confirm the configuration against your installation |
| ge-ic695alg312-isolated-thermocouple-input-module-for-pacsystem-rx3i | confirm the configuration against your installation |
| ge-fanuc-ic695alg412-rx3i-strain-gauge-input-module | confirm the configuration against your installation |
| ge-ic695alg508-pacsystem-rx3i-rtd-input-module-by-emerson | confirm the configuration against your installation |
| ge-ic695alg608-analog-input-module-for-pacsystem-rx3i | confirm the configuration against your installation |
Availability & Condition at AutoDCSTech
| Part Number | IC695ALG808 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
