Product Overview

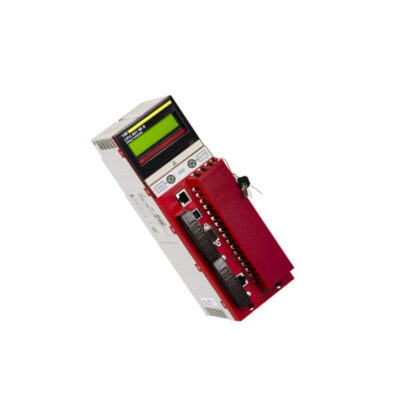

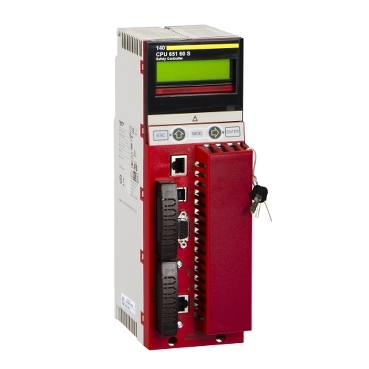

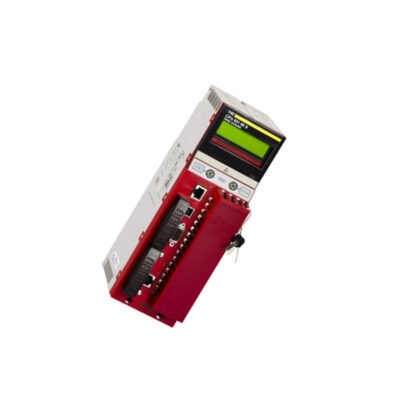

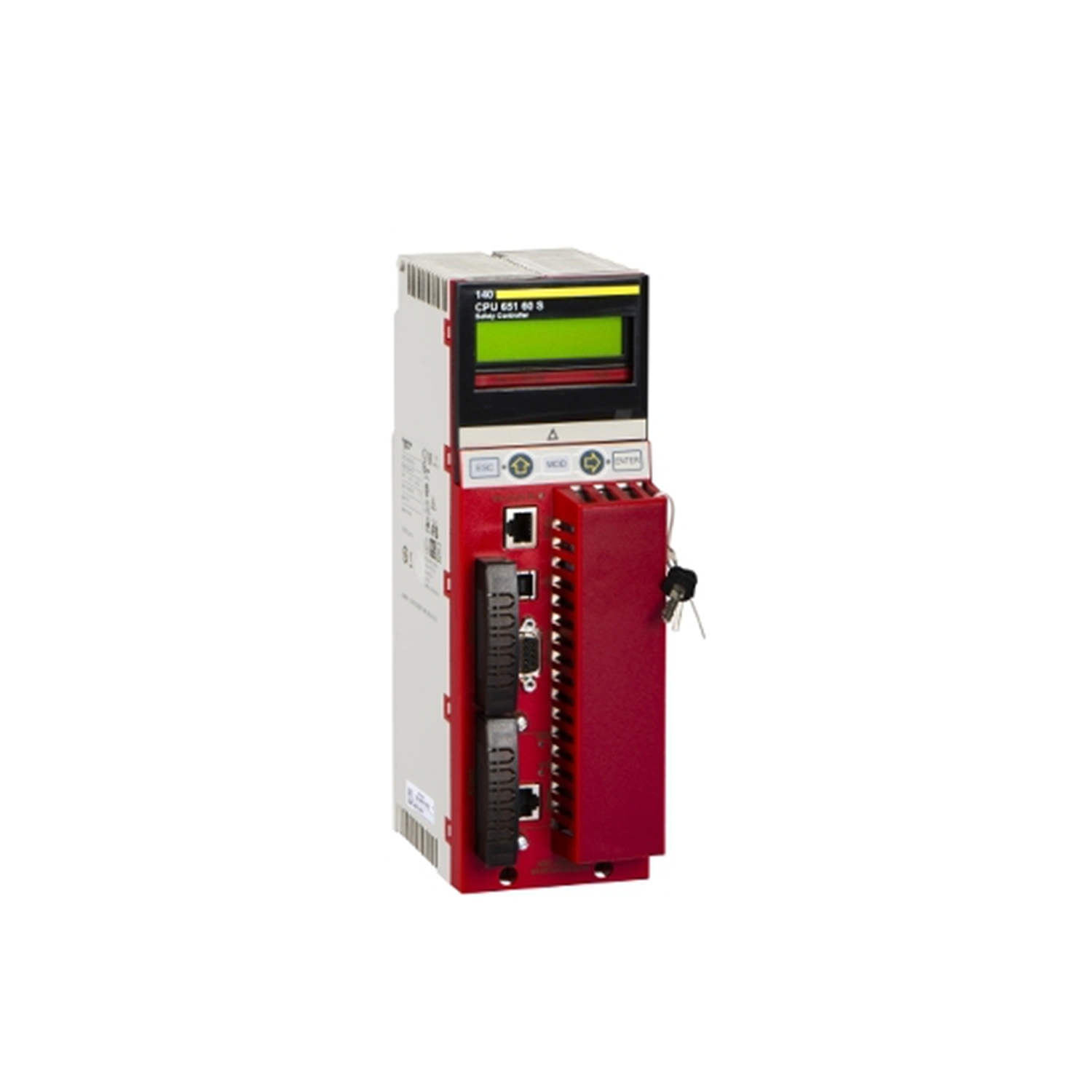

For maintenance engineers managing safety-critical processes, the Schneider 140CPU65160S Unity safety processor delivers robust performance within the Modicon Quantum automation platform. Designed for applications demanding high reliability, this processor integrates seamlessly into existing Quantum architectures, providing a deterministic control environment with a 266 MHz clock frequency and 1024 kB internal RAM. Its Unity Pro XL safety software designation ensures compliance with stringent safety standards, making it a cornerstone for fail-safe operations.
Technical Specifications Breakdown
Key parameters for the 140CPU65160S are listed below for quick reference:
| Feature | Specification |
|---|---|
| Clock Frequency | 266 MHz |
| Internal RAM | 1024 kB |
| Bus Current Requirement | 2760 mA |
| Execution Time (Boolean) | 0.105…0.15 µs |
| Execution Time (Word) | 0.09…0.12 µs |
| Execution Time (Fixed-Point Arithmetic) | 0.96…1.02 µs |
| Integrated Connections | 1 Ethernet TCP/IP, 1 Modbus, 1 Modbus Plus, 1 USB |
| Product Certifications | CSA, C-tick, TÜV Rheinland (SIL3), CSA HazLoc |
| Battery Backup | Lithium battery 990XCP98000, 10-year life |
Industry Applications
This processor excels in process safety applications such as emergency shutdown systems (ESD) and burner management. Its SIL3 certification from TÜV Rheinland ensures compliance with functional safety standards, reducing risk in oil and gas, chemical, and power generation facilities. The ability to handle up to 31 remote I/O stations makes it suitable for distributed plant-wide safety networks, minimizing wiring costs while maintaining integrity.
Installation & Setup Guidance
When installing the 140CPU65160S, ensure the backplane provides adequate bus current (2760 mA required). Mount the processor in a local rack with up to 16 slots, avoiding Hot Standby configurations for discrete I/O. Connect the Modbus Plus network via the SUB-D 9 female connector, and use the USB type B port for local programming with Unity Pro XL. For remote I/O, configure up to 31 stations using the integrated Ethernet TCP/IP or Modbus Plus links. Always verify the key switch memory port is set correctly before power-up.
Maintenance & Reliability
To maintain reliability, inspect the lithium battery (990XCP98000) annually; its 10-year design life ensures long intervals between replacements. Monitor the LCD display (2 lines of 16 characters) for error codes. The processor’s 1.5 ms master task overhead allows predictable cycle times. Keep the enclosure clean and within rated conditions (CE marked). For SIL3 systems, perform periodic functional tests as per your safety lifecycle plan.
Compatibility & Integration
The 140CPU65160S integrates with Modicon Quantum racks via the local backplane. It supports up to 6 Ethernet modules (140NOE77111) for network expansion. Communication protocols include Modbus, Modbus Plus, Ethernet TCP/IP, and USB, enabling connectivity with HMIs, SCADA, and other controllers. The processor can manage unlimited discrete I/O (13 slots max locally) and unlimited analog I/O (26 slots max locally), though Hot Standby applications restrict these.
Selection Guide & Purchasing Advice
When selecting a safety processor, verify that the 140CPU65160S meets your application’s SIL requirements. With its TÜV Rheinland SIL3 certification, it is ideal for high-risk processes. SpareTechPLC stocks this unit and can advise on lifecycle status. Please verify current lifecycle status and availability with SpareTechPLC before ordering to ensure compatibility with your system.
Troubleshooting & Common Issues
If the processor fails to communicate, check the Ethernet activity (green COM LED) and collision (red ERR LED) indicators. A blank LCD may indicate power loss or battery failure. For Modbus connection issues, inspect the RJ45 connectors and verify the bus current draw does not exceed 2760 mA. If the key switch is set to memory port off, the processor will not accept program downloads. Always consult the Unity Pro XL documentation for detailed diagnostics.
