Ensuring Process Continuity with the 140CPU67261C

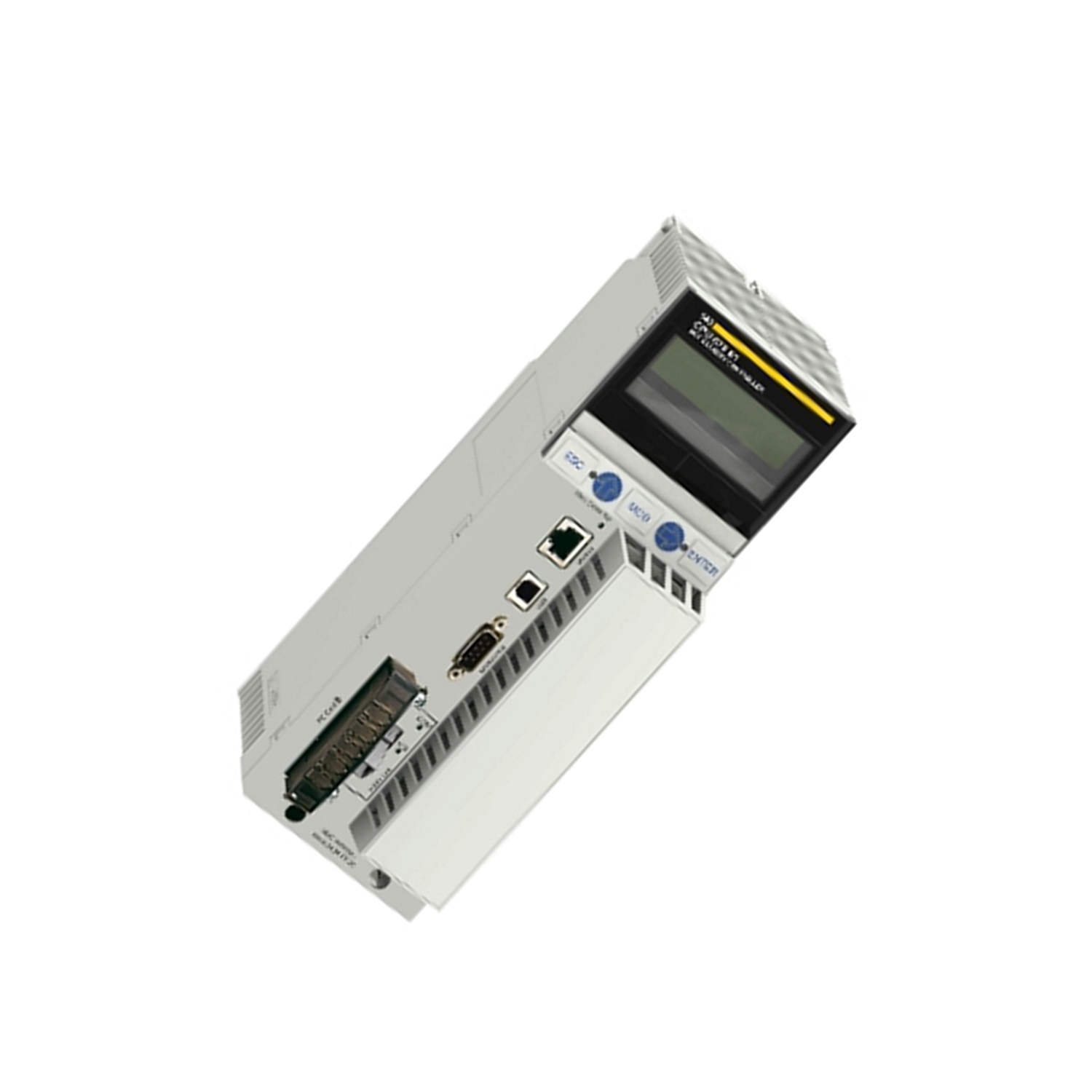

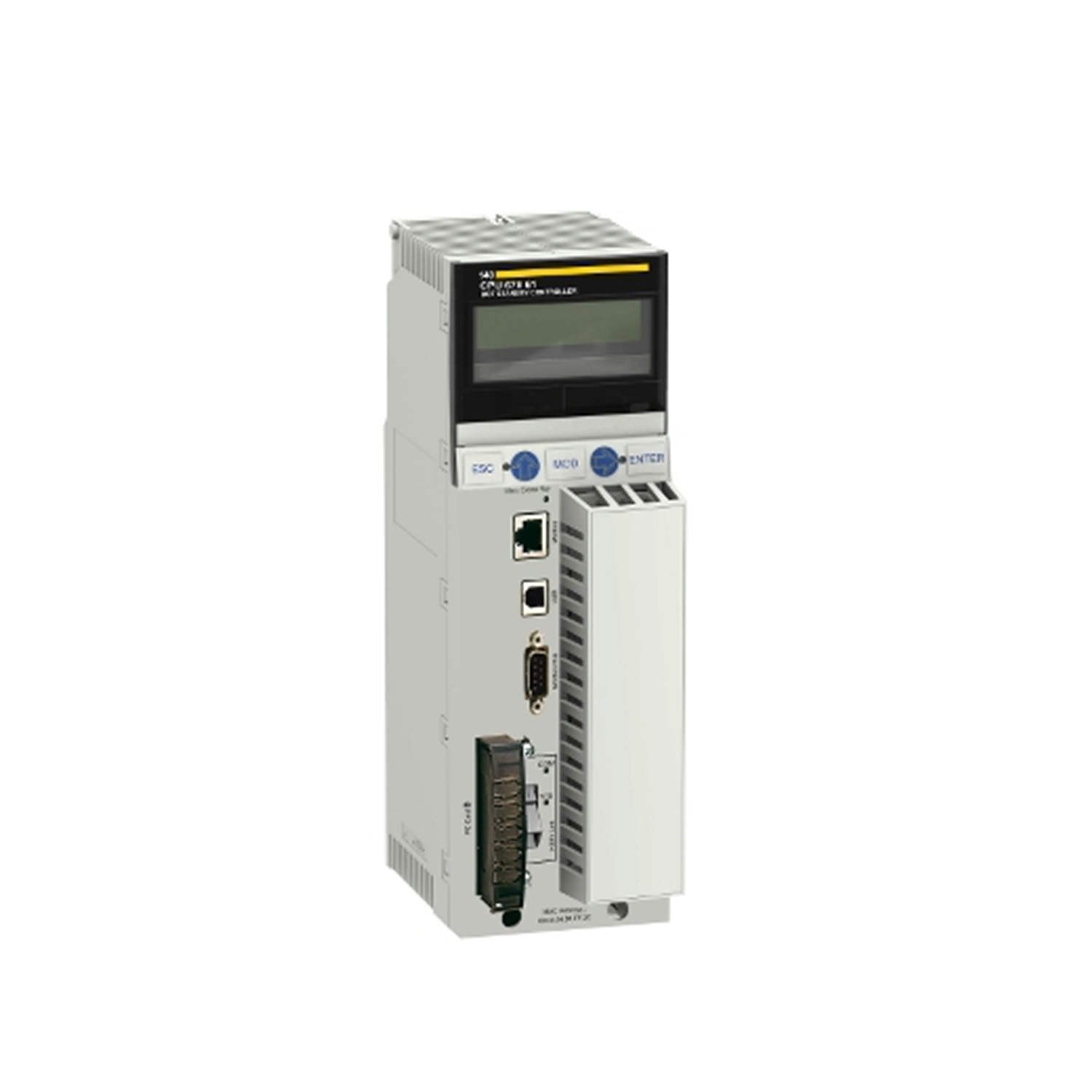

In high-stakes industrial environments, an unplanned controller failure can halt production lines, compromise safety, and incur significant financial losses. The Schneider Electric 140CPU67261C Unity Hot Standby Processor, part of the Modicon Quantum series, is engineered to eliminate this risk. It provides a dedicated redundant architecture that automatically switches control to a secondary processor without interruption, maintaining operational continuity for critical processes.
Technical Specifications Breakdown
Key parameters for the 140CPU67261C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Unity Hot Standby Processor |
| Product Line | Modicon Quantum |
| Processor Speed | 266 MHz Clock Frequency |
| Memory Capacity | 11,264 kB RAM (1,536 kB dedicated to data); expandable via 8 MB PCMCIA |
| Discrete I/O Points | 31,744 remote I/O; 8,000 distributed I/O per network |
| Analog I/O Points | 1,984 remote I/O; 500 distributed I/O per network |
| Communication Protocols | Ethernet TCP/IP, Modbus Plus, Profibus DP, USB, fiber optic |
| Power Consumption | 2,760 mA bus current requirement |
Industry Applications for Redundant Control
This processor is ideal for continuous process industries where downtime is unacceptable. In oil and gas pipeline monitoring, the 140CPU67261C manages up to 31,744 remote discrete I/O points, ensuring valve and sensor data is always available. For water treatment plants, the dual local rack integration allows seamless failover between primary and secondary controllers, maintaining chemical dosing and filtration without interruption. The hot standby configuration provides fault-tolerant operation, directly reducing the risk of costly unplanned outages.
Installation and Setup Guidance
When integrating this module into a Modicon Quantum rack, ensure the backplane provides sufficient bus current — the processor requires 2,760 mA. The dual local rack setup must be wired with the included fiber optic connection (LC single-mode) for primary-to-secondary PLC communication, supporting distances up to 16 km. Use the key switch to lock memory port access during commissioning. Configure the hot standby parameters in Unity Pro software to match your application structure; note that periodic fast tasks and interrupt tasks are forbidden in hot standby applications.
Maintenance and Reliability
Regular inspection of the processor’s LED indicators is recommended: a green LED for Ethernet activity and a red LED for Ethernet collision provide immediate status feedback. The unit features a conformal coating (Humiseal 1A33) for protection against moisture and contaminants. Periodically verify that the PCMCIA memory card (if used) is seated correctly. For safety-rated systems, follow general inspection practices — do not disassemble the processor or apply contact cleaners.
Compatibility and Integration
The 140CPU67261C communicates via Ethernet TCP/IP, Modbus Plus, Profibus DP, USB, and fiber optic. It supports up to six Ethernet, six Modbus Plus, and six Profibus DP connections, plus one USB port. For distributed I/O, it handles 63 stations across three Modbus Plus networks. Remote I/O is supported via S908, Quantum, and X80 protocols, each accommodating up to 31 stations. This broad protocol support ensures seamless integration into existing Schneider Electric or third-party systems.
Selection Guide and Purchasing Advice
When selecting a Unity Hot Standby Processor, verify that your system requires the redundancy features this model offers. The 140CPU67261C is designed for fault-tolerant control and is not suitable for local I/O in hot standby mode. For current lifecycle status and availability, please contact SpareTechPLC before ordering. Our team can help confirm compatibility with your existing Modicon Quantum backplane and I/O modules.
