Solving Long-Distance I/O Communication in Harsh Industrial Environments

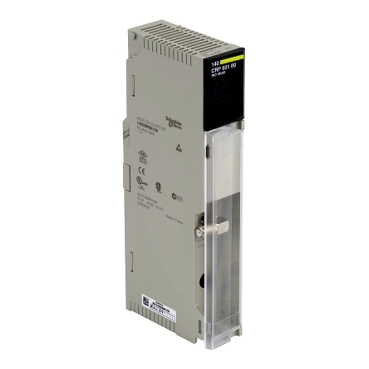

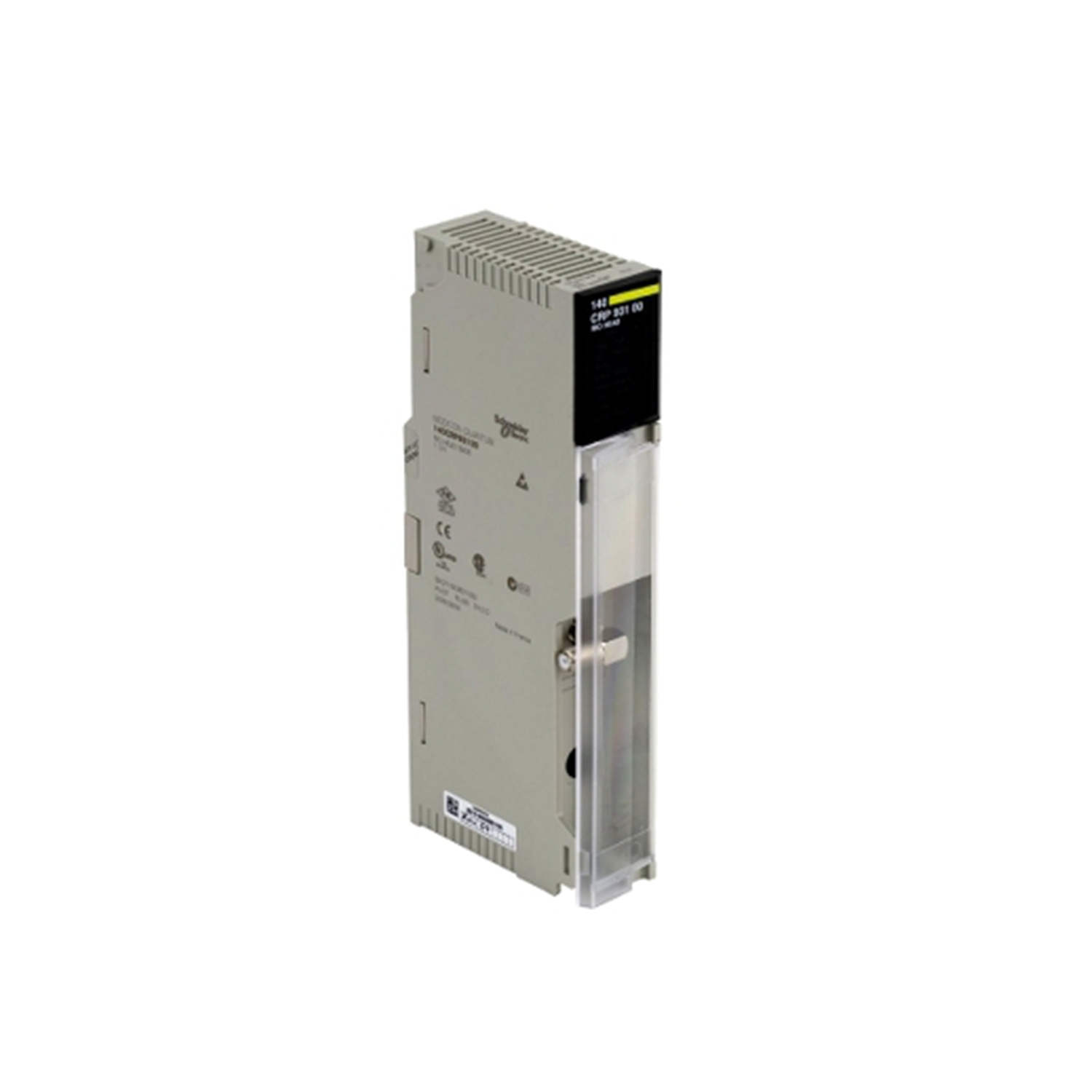

In large-scale industrial plants, control cabinets are often separated by hundreds of meters. Running parallel copper cables for every I/O point becomes costly and susceptible to electrical noise. The Schneider Electric 140CRP93100C, a Remote I/O head module from the Modicon Quantum series, addresses this challenge by enabling reliable fiber optic communication over distances up to 500 meters. This module acts as the head-end adaptor for remote I/O drops, consolidating data transmission at 2.5 Mbps while supporting both daisy chain and star topologies for flexible network design.
Technical Specifications Breakdown
Key parameters for the 140CRP93100C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Line | Modicon Quantum |
| Part Number | 140CRP93100C |
| Communication Port | 1x Fiber Optic Port |
| Data Transmission Rate | 2.5 Mbps |
| Connection Distance (Max) | 500 meters via Fiber Optic |
| Supported Topology | Daisy Chain, Star Topology |
| Mounting | Backplane Slot |
| Power Consumption | 5.4 W |
| Operating Voltage | 5 VDC (via Backplane) |
| Protection Class | IP20 |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | -40 °C to 85 °C |
| Relative Humidity | 5% to 95% non-condensing |
Industry Applications: Where Fiber Optic RIO Excels
This module is ideal for applications requiring distributed I/O across large footprints, such as material handling systems, water treatment plants, and oil & gas facilities. The fiber optic link provides galvanic isolation, eliminating ground loop issues common in long copper runs. With a maximum of 31 drops per network and 64 I/O words per drop, the 140CRP93100C supports substantial I/O counts while maintaining deterministic performance. The 2.5 Mbps data rate is sufficient for most discrete and analog control loops, ensuring timely data exchange.
Installation & Setup Guidance
Mount the module into any standard backplane slot of a Modicon Quantum rack. The module draws power directly from the backplane at 5 VDC, so no external power supply is needed. For fiber optic connections, use a 75 Ohm coaxial cable with an F-type connector (elbowed, single cable). Ensure the optical cable is routed away from high-voltage power lines to maintain signal integrity. The module supports both daisy chain and star topologies; for star configurations, use an appropriate fiber optic hub. After installation, the module performs a LAN controller check and memory check during startup.
Maintenance & Reliability
The 140CRP93100C is designed for indoor use with IP20 protection. Its conformal coating (Humiseal 1A33) protects against moisture and dust. Operate within 0 °C to 60 °C and 5% to 95% non-condensing humidity. Periodic inspection of the fiber optic connector for cleanliness is recommended. The module can be stored at -40 °C to 85 °C, making it resilient to temperature extremes during downtime.
Compatibility & Integration
This RIO head module is compatible with Quantum 200/500/800 series and Symax systems (any mix). It integrates seamlessly into Modicon Quantum automation platforms. The module uses a single fiber optic port for communication, and the network can include up to 31 drops. Each drop supports 64 input and 64 output words.
Selection Guide & Purchasing Advice
When selecting a Remote I/O head module, consider network distance, topology requirements, and environmental conditions. The 140CRP93100C offers a proven solution for fiber optic-based remote I/O. At SpareTechPLC, we stock this module and can help you verify lifecycle status and availability before ordering.
Troubleshooting & Common Issues
If communication fails, check the fiber optic cable for damage or excessive bending. Verify the coaxial cable is properly terminated with the F-type connector. Ensure the module is seated correctly in the backplane slot. The module's diagnostic startup includes LAN controller and memory checks; if these fail, the module may need replacement.
