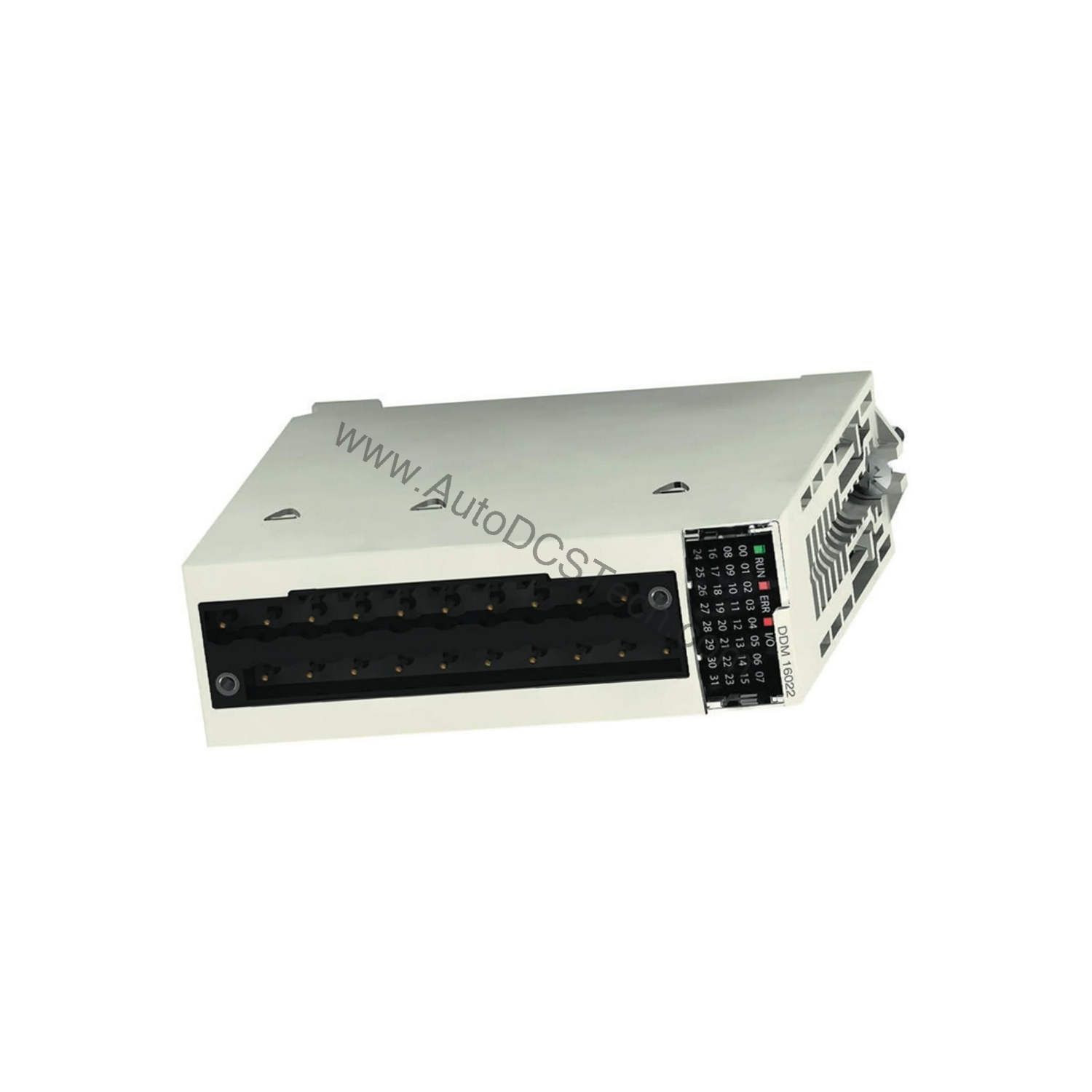

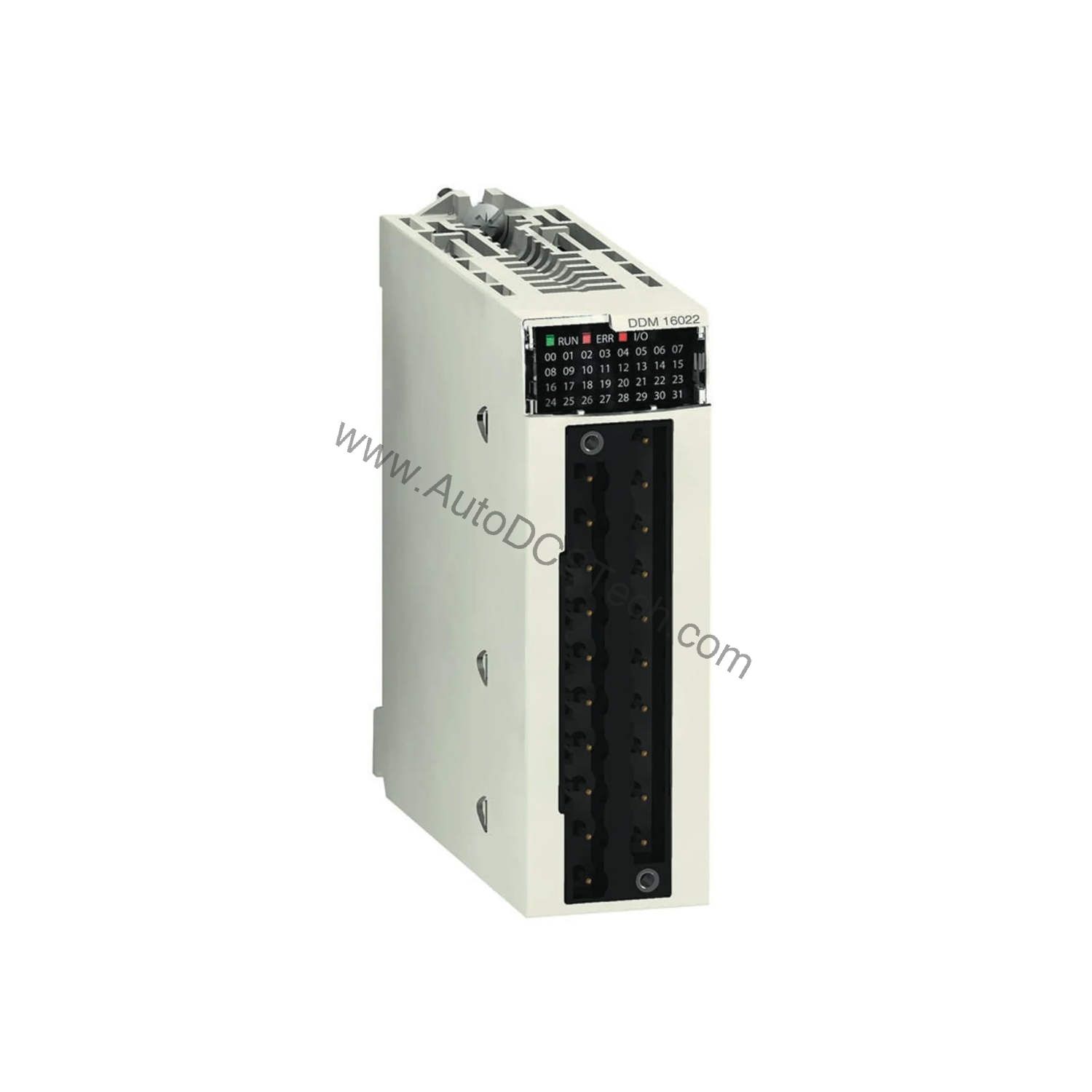

Schneider BMXDDM16022 Discrete Mixed I/O Module for Modicon X80

Technical Specifications Breakdown

Key parameters for the BMXDDM16022 are listed below for quick reference:

Industry Applications

Manufacturing Line Control

In discrete manufacturing, the BMXDDM16022 is used for monitoring sensors and controlling actuators. With 8 inputs compatible with 2-wire/3-wire proximity sensors per IEC 60947-5-2 and IEC 61131-2 type 3, it can detect part presence or position. The 8 solid-state outputs, each rated at 0.625 A, can drive small solenoid valves or indicator lights. The 4 ms input response ensures quick detection of events, reducing cycle time.

Packaging Machinery

Packaging systems often require mixed I/O for tasks like product detection and reject actuation. The module’s ability to parallel up to 2 outputs allows driving slightly higher loads without additional components. The overvoltage and short-circuit protection (via transil diode and external fuse) safeguard the module in electrically noisy environments.

Material Handling Systems

Conveyor systems benefit from the BMXDDM16022’s DIN rail mount and compact size. The 24V DC operation matches common sensor and actuator voltages. The Modbus protocol enables easy data exchange with PLCs for status monitoring and diagnostics via the green/red LEDs (RUN, ERR, I/O).

Installation & Setup Guidance

Mount the BMXDDM16022 on a standard DIN rail within an IP20-rated enclosure. Ensure the ambient temperature stays between -20°C and 60°C. Use an external fast-blow fuse (0.5 A per group of input channels) for input protection. For outputs, a 2 A external fuse is recommended for short-circuit protection. Wire inputs as current sink (logic positive) and outputs as solid-state switches. Connect the Modbus network via the appropriate terminals. Avoid running signal cables near high-voltage lines to maintain insulation resistance above 10 MOhm at 500 V DC.

Maintenance & Reliability

The BMXDDM16022 has an MTBF of 450,000 hours, indicating high reliability. Periodically inspect the module for dust accumulation, as IP20 offers limited protection. Check that all connections are secure and fuses are intact. The module includes reverse polarity protection on inputs and outputs, reducing damage risk from wiring errors. Monitor the status LEDs: a steady green RUN LED indicates normal operation; a red ERR LED signals a fault. For environments with high vibration (up to 3 gn) or shock (up to 30 gn), ensure the DIN rail is firmly secured.

Compatibility & Integration

This module is part of the Modicon X80 range and communicates via Modbus protocol. The 24V DC sensor power supply (19...30 V) can power external sensors. The module supports paralleling of up to 2 outputs for increased current capacity. Always verify compatibility with your specific PLC model and firmware version.

Selection Guide & Purchasing Advice

When selecting a mixed I/O module, consider the number of I/O points, response time, and protection features. For higher output current or different voltage levels, explore other Modicon X80 modules. AutoDCSTech offers this module with detailed specifications and support. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

If the module fails to communicate, check the Modbus wiring and termination. A red ERR LED may indicate a blown fuse or overcurrent condition—inspect the external fuses (0.5 A input, 2 A output). If outputs do not switch, verify the output voltage is within 19...30 V DC and load impedance is at least 48 Ohm. For input issues, ensure the input current is above 3 mA for state 1 and below 1.5 mA for state 0. Use the voltage detection thresholds (sensor fault 18 V) for diagnostic hints. If problems persist, consult the full manual or contact AutoDCSTech support.

Competitive Comparison: Why the BMXDDM16022 Stands Out in Mixed I/O

In the world of industrial automation, selecting the right discrete I/O module can significantly impact system reliability and response. The Schneider BMXDDM16022 offers a balanced mix of input and output channels within the Modicon X80 series, providing engineers with a compact solution for demanding applications. Compared to modules with slower response times or fewer channels, the BMXDDM16022 delivers a 4 ms typical response time and solid-state outputs, ensuring faster and more durable switching. Its 24V DC operation aligns with standard industrial control voltages, while the Modbus communication protocol simplifies integration into existing networks. This module’s 8 inputs and 8 outputs reduce the need for multiple separate modules, saving panel space and wiring costs.
