Product Overview

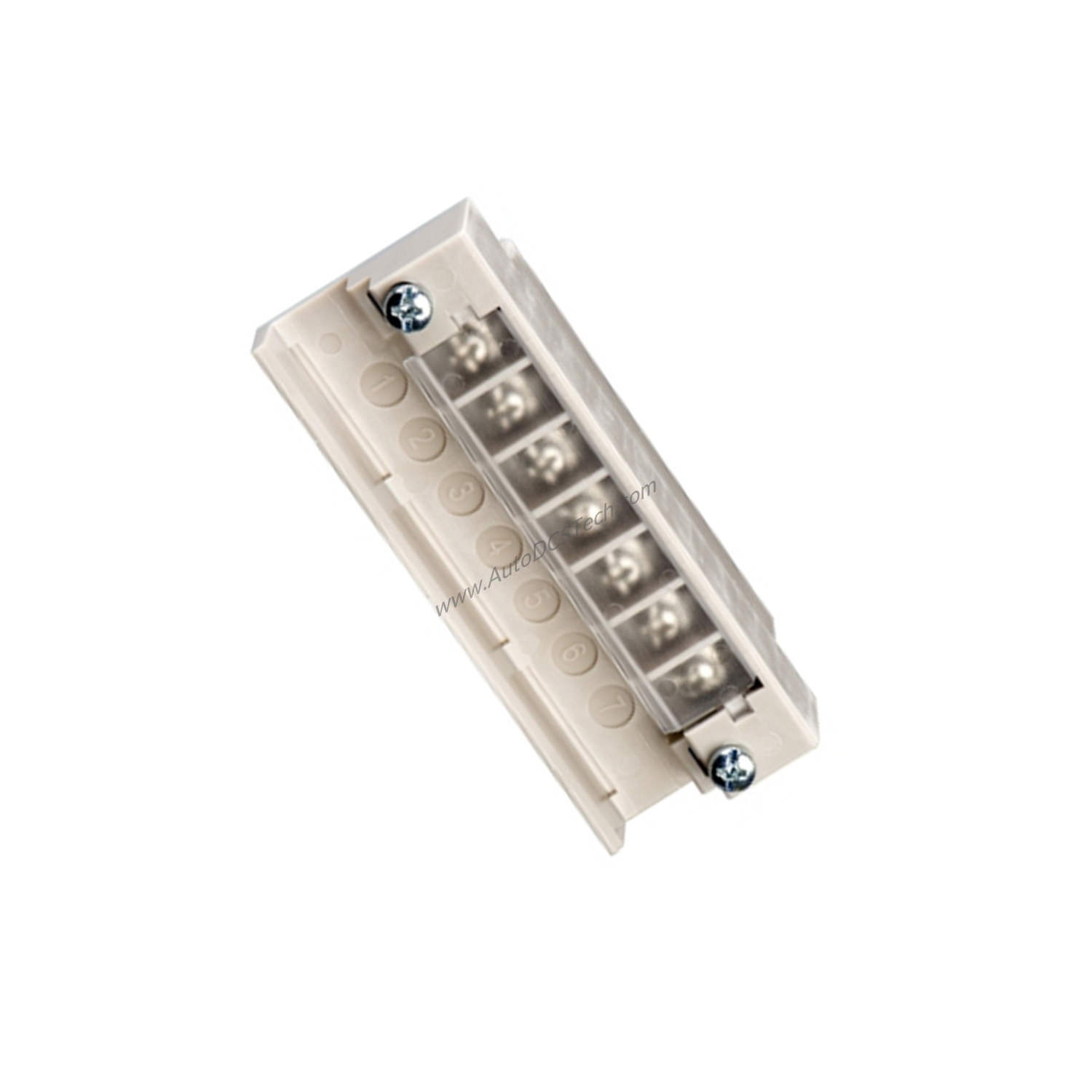

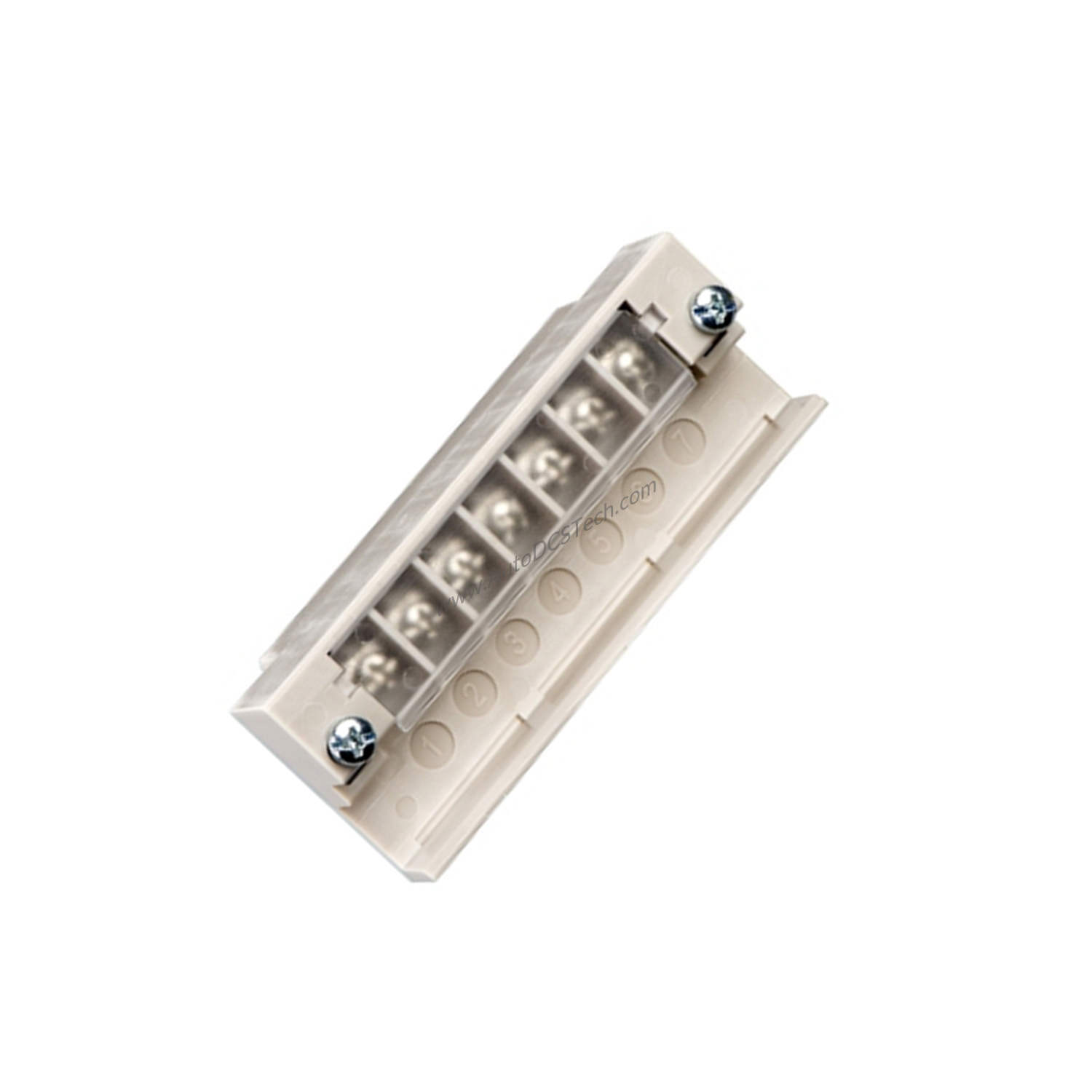

When building or maintaining a Modicon Quantum automation system, reliable power distribution is critical. The Schneider Electric 140XTS00500 field power connector addresses this need directly. Designed for Modicon power supply modules, this 7-pin connector ensures secure and consistent electrical connections. Its compact dimensions—approximately 5.91 inches in length, 3.94 inches in width, and 0.98 inches in height—allow for easy integration into control panels. The IP20 degree of protection makes it suitable for indoor environments where protection against solid objects larger than 12.5 mm is required.
Technical Specifications Breakdown
The 140XTS00500 offers key specifications that define its role in the system:
- Number of Pins: 7 pins – provides the necessary connections for field power distribution.
- IP Degree of Protection: IP20 – protects against touch by fingers and objects greater than 12.5 mm, but not against moisture. Ideal for clean, dry industrial environments.
- Weight: 0.31 lbs (0.14 kg) – lightweight yet durable, simplifying installation and reducing panel load.
- Dimensions: Length approx. 5.91 in (150 mm), Width approx. 3.94 in (100 mm), Height approx. 0.98 in (25 mm) – compact footprint for space-constrained cabinets.
- Product Compatibility: Works with a wide range of Modicon Quantum power supply modules including 140CPS21400, 140CPS22400, 140CPS11420, 140CPS51100, 140CPS11100, 140CPS21100, 140CPS52400, 140CPS12420, 140CPS41400, and 140CPS42400.
Industry Applications
The 140XTS00500 excels in discrete manufacturing, process control, and infrastructure automation where Modicon Quantum platforms are deployed. For example, in a water treatment facility, the connector reliably delivers power to the control system's power supply modules, ensuring uninterrupted operation of PLCs and I/O racks. Similarly, in automotive assembly lines, its robust design supports consistent power distribution, reducing the risk of unexpected downtime. The IP20 rating confirms its suitability for indoor electrical rooms and control cabinets.
Installation & Setup Guidance
Installing the 140XTS00500 is straightforward. First, verify that the power supply module is disconnected from all power sources. Align the connector's 7 pins with the corresponding receptacle on the compatible 140CPS module. Gently push until fully seated, ensuring a secure mechanical and electrical connection. No special tools are required. After installation, visually inspect the connection for any gaps or misalignment. Always follow the manufacturer's guidelines for torque and wiring practices to maintain system integrity.
Maintenance & Reliability
Regular inspection of the 140XTS00500 connector is recommended to ensure long-term reliability. Check for signs of physical damage, corrosion, or loose connections during routine system maintenance. Because the connector is IP20 rated, it should be kept free of dust and debris. Periodic cleaning with a dry, lint-free cloth is sufficient. The robust construction of this Schneider Electric connector minimizes wear, contributing to extended service life and reduced total cost of ownership. For critical applications, consider spare units to minimize downtime.
Compatibility & Integration
The 140XTS00500 is specifically designed for the Modicon Quantum automation platform. It integrates seamlessly with the following power supply modules: 140CPS21400, 140CPS22400, 140CPS11420, 140CPS51100, 140CPS11100, 140CPS21100, 140CPS52400, 140CPS12420, 140CPS41400, and 140CPS42400. This broad compatibility simplifies inventory management and ensures that one connector type supports multiple system configurations. Always confirm the exact module part number before ordering to guarantee a proper fit.
Selection Guide & Purchasing Advice
Before purchasing the 140XTS00500, verify that your power supply module is among the compatible models listed. If you are upgrading an existing system, check the pin count and physical dimensions to ensure the connector fits within your panel layout. SpareTechPLC stocks this field power connector and can provide current availability and lifecycle status. Contact our team for assistance with bulk orders or replacement needs. We are committed to helping you maintain your Modicon Quantum system efficiently.
Frequently Asked Questions
Q1: Is the 140XTS00500 compatible with all Modicon Quantum power supply modules?
A1: It is compatible with a wide range of 140CPS series modules, including 140CPS21400, 140CPS22400, 140CPS11420, 140CPS51100, 140CPS11100, 140CPS21100, 140CPS52400, 140CPS12420, 140CPS41400, and 140CPS42400. Always verify your specific module.
Q2: What does the IP20 rating mean for this connector?
A2: IP20 means the connector is protected against touch by fingers and solid objects larger than 12.5 mm, but not against water ingress. It is suitable for indoor, dry environments.
Q3: Can I use the 140XTS00500 with third-party power supplies?
A3: The connector is designed specifically for Schneider Electric Modicon Quantum power supply modules. Using it with other brands is not recommended and may cause compatibility issues.
Q4: What are the dimensions of the 140XTS00500?
A4: The connector measures approximately 5.91 inches (150 mm) in length, 3.94 inches (100 mm) in width, and 0.98 inches (25 mm) in height.
Q5: Does SpareTechPLC offer support for obsolete or discontinued models?
A5: Please contact SpareTechPLC directly to verify the current lifecycle status and availability of the 140XTS00500 before ordering.
