IC693CPU331 Modular CPU: Reliable Control for GE Series 90-30 PLCs

Why Choose a Modular CPU for Your PLC System?

When your manufacturing line demands reliable and scalable control, the choice of CPU becomes critical. The GE Fanuc IC693CPU331 modular CPU offers a proven solution for Series 90-30 PLC systems, balancing performance with flexibility. This article examines its specifications, applications, and value for industrial automation professionals.

Introducing the IC693CPU331 Modular CPU

The IC693CPU331 is a single-slot modular CPU from GE Fanuc, part of the Series 90-30 family. It is designed to handle medium-scale control tasks with an 80188 processor running at 10 MHz. This CPU provides 16 Kbytes of user program memory and supports up to 512 discrete inputs and 512 discrete outputs, along with 128 words of analog input and 64 words of analog output.

With a typical scan rate of 0.4 milliseconds per 1K of Boolean logic, the IC693CPU331 delivers consistent performance for logic-intensive applications. It draws 350 mA from the backplane at +5 VDC and operates in temperatures from 32 to 140 degrees Fahrenheit.

Technical Specifications and Performance

The IC693CPU331 uses an 80188 microprocessor with a clock speed of 10 MHz. Its user memory is 16 Kbytes, stored in RAM by default, with optional EPROM or EEPROM support. The CPU includes 680 timers and counters, a shift register, and 1280 bits of discrete global memory.

For communication, the module has one built-in serial port supporting SNP slave and SNP-X slave protocols. This port is accessible through the PLC power supply connector. The CPU supports expansion via up to four expansion baseplates or four remote I/O baseplates, making it suitable for growing systems.

Applications in Modern Manufacturing

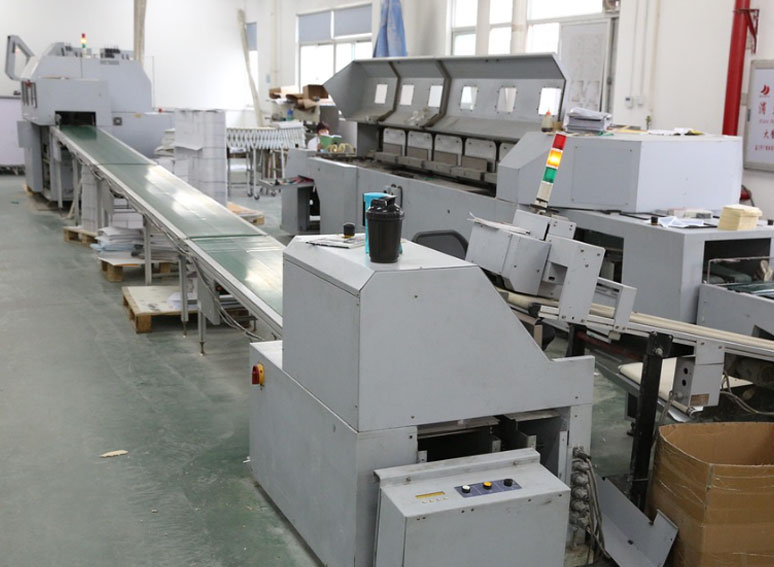

In discrete manufacturing environments, the IC693CPU331 excels at controlling conveyor systems, packaging machinery, and assembly stations. Its 512 discrete I/O points handle numerous sensors and actuators, while the 128 analog input words manage process variables like temperature or pressure.

For batch processing applications, the CPU's 64 analog output words provide precise control over valves and drives. The 680 timers and counters enable complex sequencing and counting tasks, common in food and beverage or pharmaceutical production lines.

Real-World Application Example

Consider a typical automotive parts assembly line where multiple stations must coordinate. The IC693CPU331 can manage up to 512 discrete inputs from proximity sensors and limit switches, while controlling 512 discrete outputs for pneumatic actuators and motors. Its 0.4 ms scan rate ensures rapid response to changes, reducing cycle time and improving throughput.

Compatibility and Integration

The IC693CPU331 is compatible with GE Fanuc 90-30 PLCs and installs in any CPU baseplate (5-slot or 10-slot) in slot 1. It supports expansion baseplates and remote I/O baseplates, allowing system growth. For advanced communication, a separate CMM module is needed for SNP master, SNP-X master, CCM, or RTU slave protocols. A PCM module handles RTU master support.

The CPU works with an optional SLP (State Logic Processor) for multi-tasking control. An AD693CMM301 module can add two additional serial ports. This modular approach lets engineers tailor the system to specific application needs.

Business Value and ROI

Investing in the IC693CPU331 reduces total cost of ownership through reliable operation and easy maintenance. Its 16 Kbytes memory and 512 I/O capacity handle many mid-range applications without requiring a larger, more expensive controller. The modular design simplifies upgrades—adding expansion baseplates or remote I/O as production grows.

With a typical scan rate of 0.4 ms, the CPU minimizes cycle times, boosting machine throughput. The battery-backed clock and override function enhance uptime by preserving data and allowing manual control during troubleshooting.

Frequently Asked Questions About the IC693CPU331

What is the maximum user program memory of the IC693CPU331?

The IC693CPU331 has a maximum user program memory of 16 Kbytes. This memory is RAM type by default, with optional EPROM or EEPROM support for non-volatile storage.

How many discrete I/O points does the IC693CPU331 support?

The CPU supports 512 discrete inputs and 512 discrete outputs. It also handles 128 words of analog input and 64 words of analog output, providing comprehensive I/O capability for medium-scale applications.

What communication protocols are built into the IC693CPU331?

The IC693CPU331 includes one serial port that supports SNP slave and SNP-X slave protocols. For master protocols or additional ports, separate CMM or PCM modules are required.
