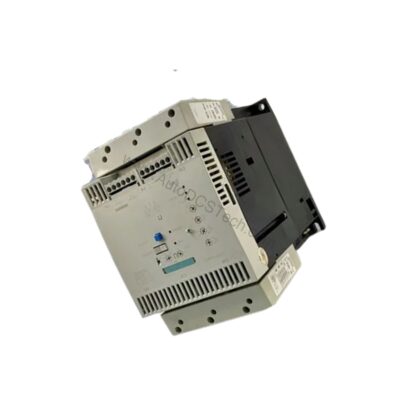

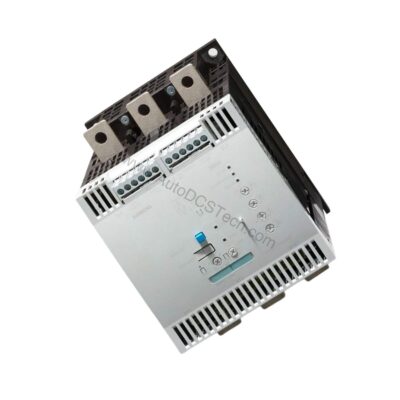

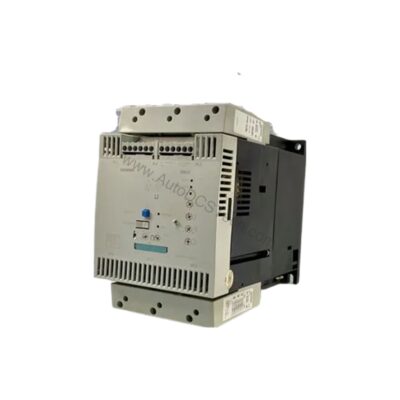

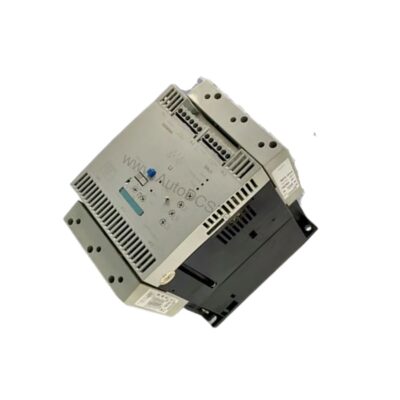

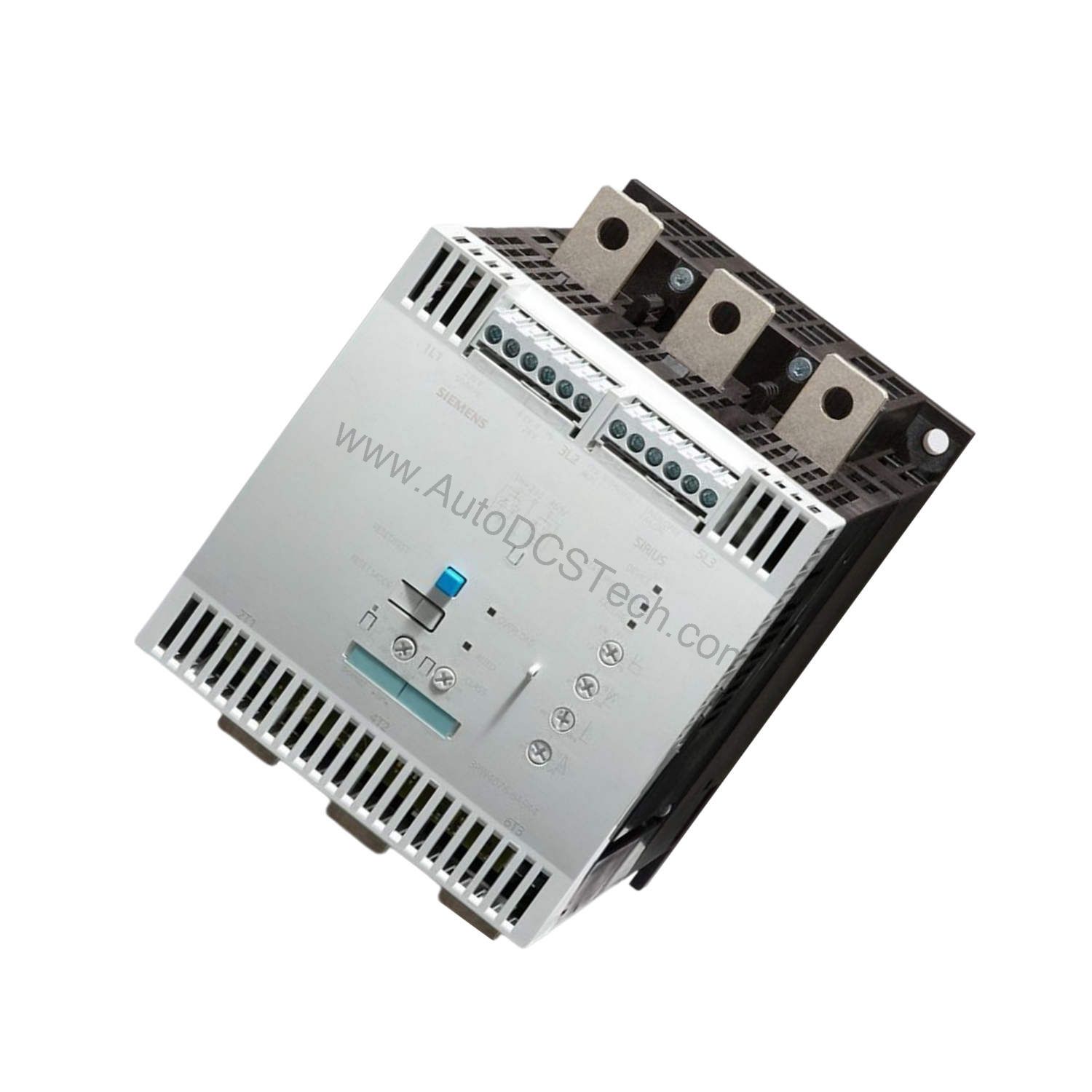

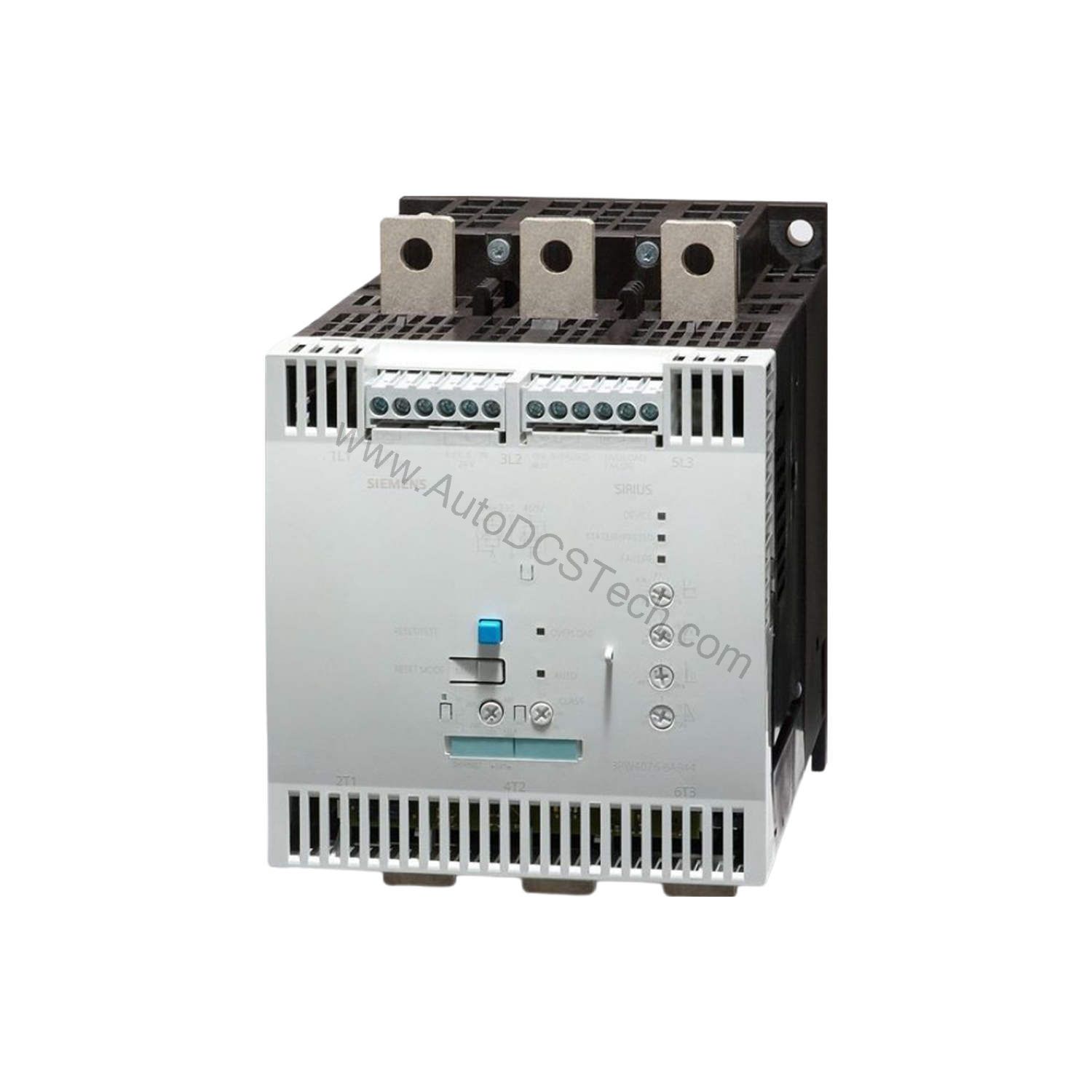

3RW4076-6BB44 432A 250kW Soft Starter

Introduction to the 3RW4076-6BB44 Soft Starter

When motor starting causes voltage dips or mechanical stress, the 3RW4076-6BB44 provides a controlled solution. This Siemens SIRIUS soft starter is designed for three-phase motors in demanding industrial environments. With a rated operational current of 432 A at 40 °C, it delivers 250 kW at 400 V in a standard circuit. The device operates on a 200-460 V AC supply, making it versatile for global installations.

Key Features and Technical Specifications

The 3RW4076-6BB44 integrates essential protection functions to safeguard your motor and system. Its thyristor-based design ensures smooth voltage ramping, reducing inrush current and mechanical shock. The integrated bypass contact system minimizes power loss during continuous operation, improving energy efficiency.

• Rated operational current: 432 A at 40 °C, 385 A at 50 °C, 335 A at 60 °C
• Rated power: 250 kW at 400 V (standard circuit, 40 °C)
• Operating voltage: 200-460 V AC (standard circuit)
• Control supply voltage: 230 V AC (50/60 Hz)
• Insulation voltage: 600 V
• Integrated bypass contact system: Yes
• Intrinsic device protection: Yes
• Motor overload protection: Yes
• Adjustable current limitation: Yes
• External reset: Yes

These features address common pain points such as overheating, nuisance tripping, and excessive motor wear. The adjustable current limitation allows precise tuning to match your motor's characteristics, preventing overloads without unnecessary shutdowns.

Applications and Use Cases

The 3RW4076-6BB44 suits heavy-duty applications like conveyors, pumps, fans, and compressors. For example, in a pumping station, the soft starter gradually increases voltage to eliminate water hammer and pipe stress. Similarly, in a conveyor system, it reduces belt slippage and mechanical shock during startup. Its wide operating voltage range (200-460 V AC) accommodates various regional power grids, simplifying integration. The device also supports high-altitude installations up to 5000 m, making it suitable for mining or mountainous sites.

Installation and Mounting Guidelines

Proper installation ensures reliable performance. The 3RW4076-6BB44 uses screw fixing and offers flexible mounting orientations. With an additional fan, the unit can be mounted on a vertical surface with ±90° rotation and ±22.5° tilt front-to-back. Without a fan, the allowable rotation is ±10° and tilt is ±10°. Maintain minimum clearances: 100 mm upward, 75 mm downward, and 5 mm sideways. The maximum wire length is 300 m, and the main circuit accepts busbar connections, while auxiliary circuits use screw terminals. For detailed wiring, refer to the official Siemens manual.

Maintenance and Reliability

Routine inspection is essential for long service life. The integrated bypass contact system reduces heat generation, lowering stress on internal components. Periodically check for dust accumulation and ensure adequate ventilation. The device is rated IP00, so it requires enclosure protection in dusty or wet environments. Environmental classification during operation is 3K6, 3C3, 3S2, meaning no ice formation, no salt mist, and no sand ingress. Regular verification of the overload protection settings helps prevent motor damage. Follow the manufacturer's guidelines for any maintenance procedures.

Compatibility and Integration

The 3RW4076-6BB44 integrates easily into existing motor control centers. It provides two NO contacts and one CO contact for auxiliary signaling, allowing status feedback to PLCs or HMIs. The control supply accepts 230 V AC at 50 or 60 Hz, with tolerances of -15%/+10%. This flexibility makes it compatible with standard control systems. For advanced monitoring, the device can be paired with external thermistor relays (not integrated). Always verify compatibility with your specific motor and controller.

Troubleshooting Common Issues

If the soft starter fails to start, check the control supply voltage and frequency. Ensure the operating voltage is within 200-460 V AC. Overload trips may occur if the motor current exceeds the adjustable limit; recalibrate using the front panel. The device includes a red fault signal display for quick diagnosis. If the unit overheats, verify ambient temperature and mounting clearances. For persistent issues, consult the Siemens documentation or contact AutoDCSTech for support.

Product Support and Availability

The 3RW4076-6BB44 is a phased-out product; the preferred successor is the Siemens 3RW5076-6AB14. AutoDCSTech can assist with availability and alternative recommendations. Contact our team to confirm stock and delivery options.
