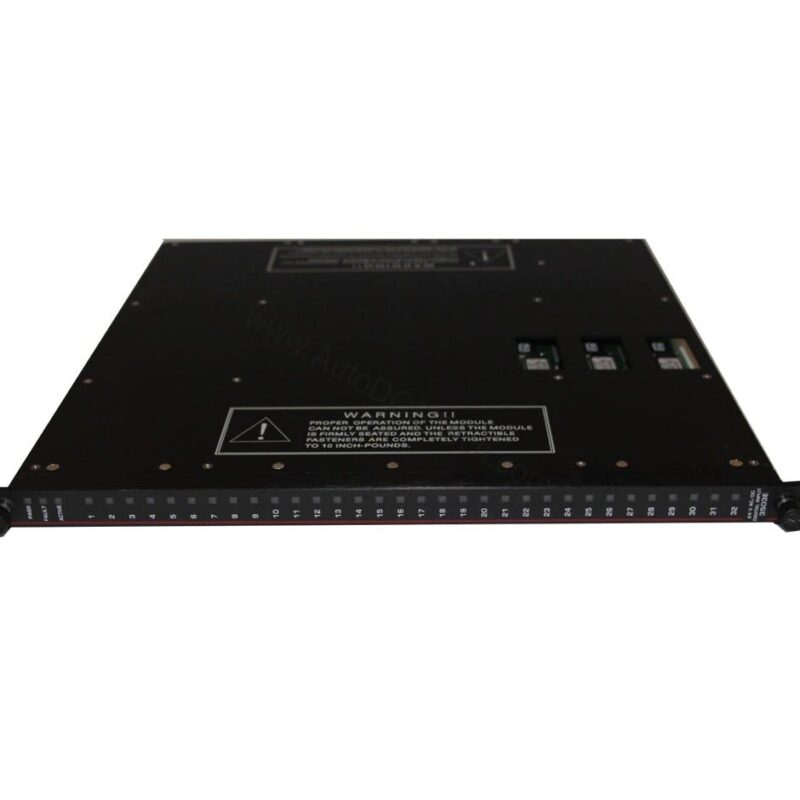

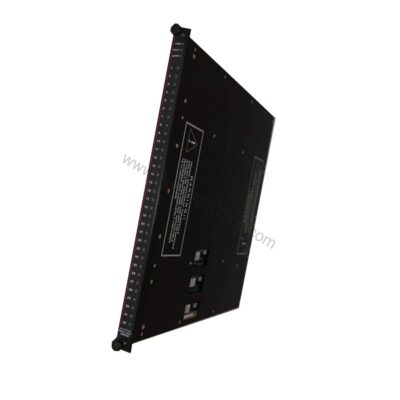

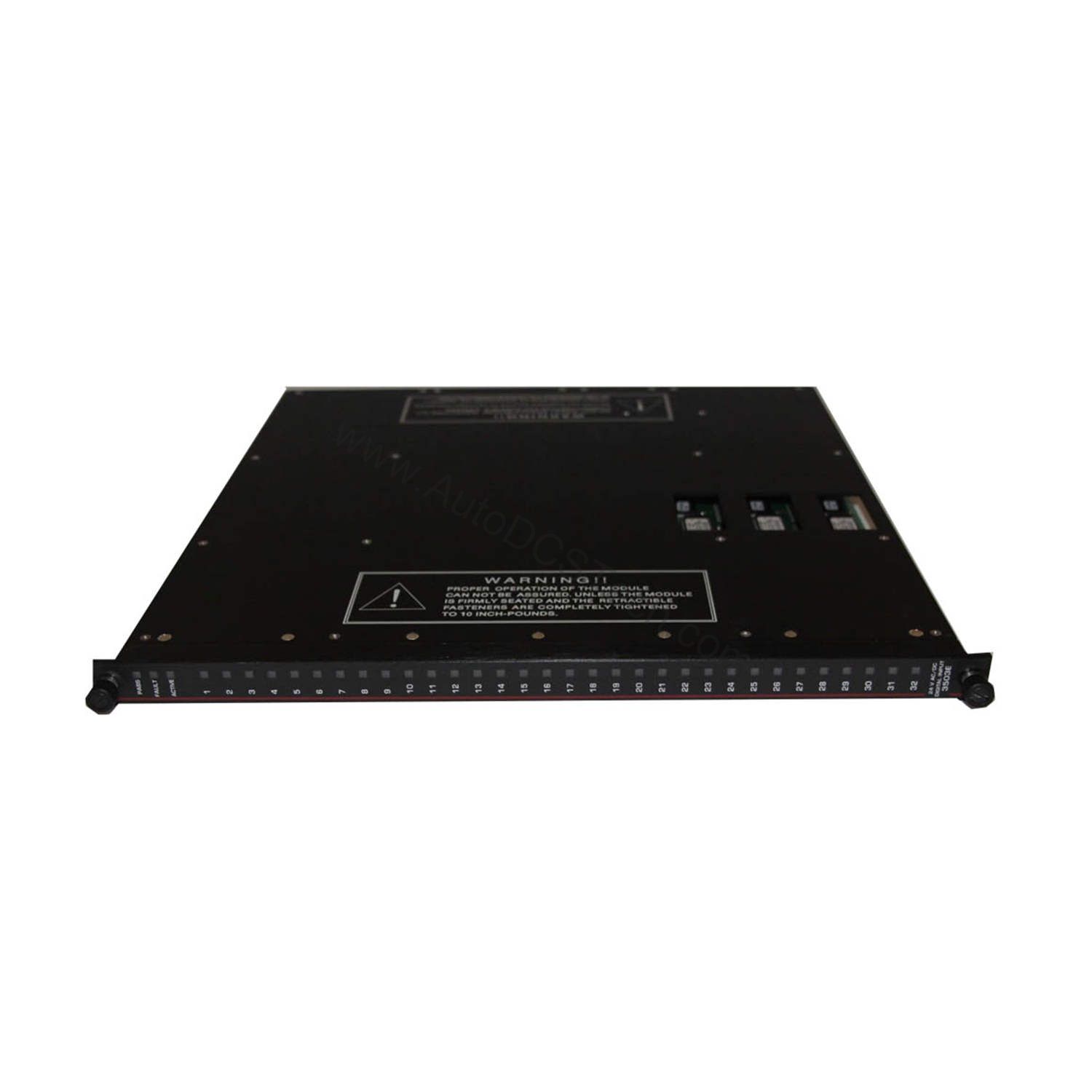

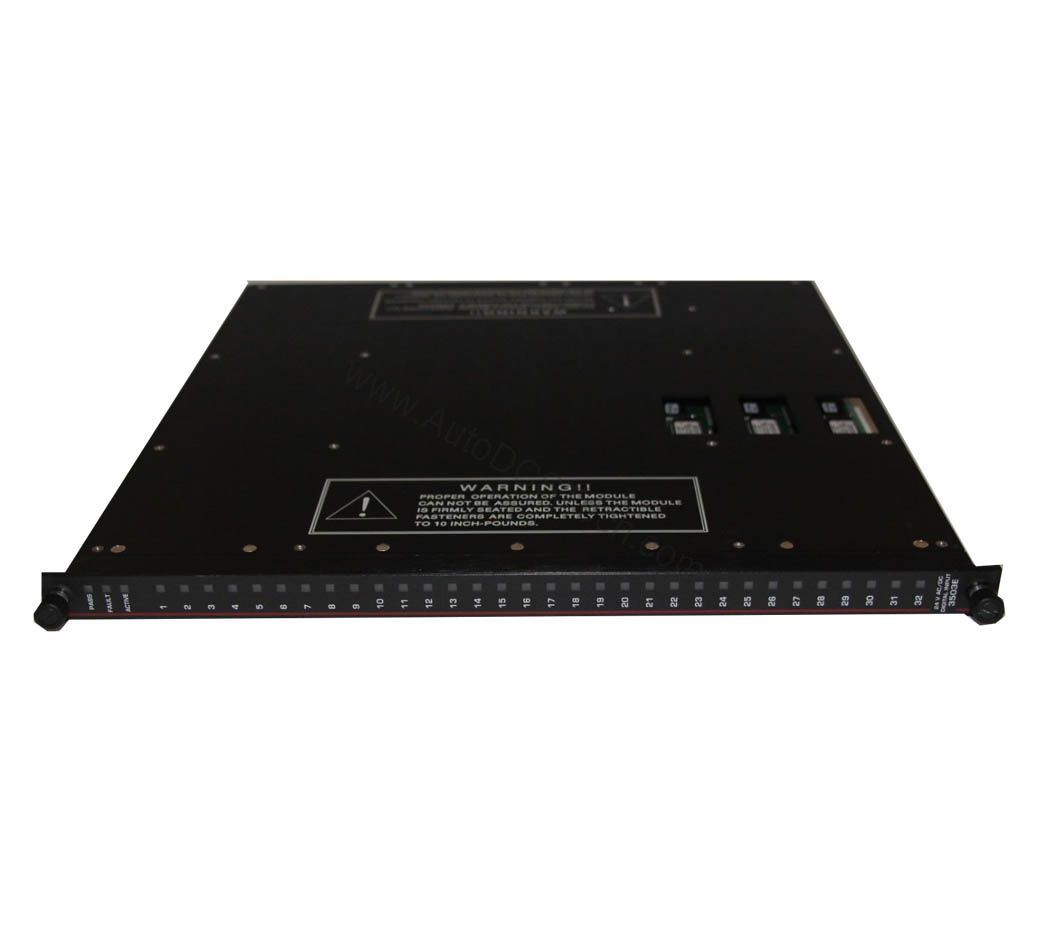

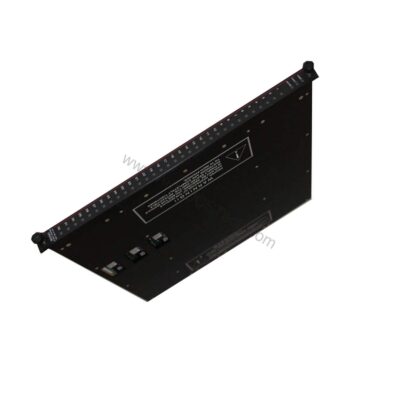

3505E TMR 24 VDC Digital Input Module

Introduction to the Triconex 3505E

When a safety system must detect every input state with absolute certainty, the 3505E from Triconex delivers the reliability you need. This digital input module uses Triple Modular Redundant (TMR) architecture to ensure fault-tolerant operation in demanding industrial environments. With a low threshold of 24 VDC, it is engineered for de-energize-to-trip safety loops where precise voltage detection is critical.

Part of the Triconex family, the 3505E provides 32 input points commoned in groups of 8, giving you flexible wiring options. Its dark red color code helps identify it quickly in a populated chassis, reducing installation errors. The module is mechanically keyed to prevent improper insertion, protecting your system from accidental damage.

Key Features and Technical Specifications

The 3505E is built around TMR technology, which means three independent channels process each input. This design ensures that a single point failure does not compromise the safety function. The module accepts a DC input range of 20-42.5 VDC, with a maximum voltage of 42.5 VDC. The switching levels are clearly defined: OFF to ON occurs above 12 VDC, while ON to OFF happens below 4 VDC. This hysteresis of 2 VDC prevents chatter and ensures stable state changes.

• 32 input points, commoned in groups of 8
• Input voltage range: 20-42.5 VDC
• Maximum voltage: 42.5 VDC
• OFF to ON threshold: > 12 VDC
• ON to OFF threshold: < 4 VDC
• Nominal turn-on current: 3 mA to 5 mA
• Typical hysteresis: 2 VDC
• Input delay: < 8 ms (OFF to ON), < 15 ms (ON to OFF)
• Point isolation: 1500 VDC
• Nominal input impedance: > 1.25 KΩ
• Field power load per ON point: 0.5 watts (nominal), 1.5 watts at max field voltage
• Diagnostic indicators: Input status per point, module status (PASS, FAULT, ACTIVE)
• Stuck test: ON (self-test capability)

One standout feature is the 3505E's stuck-ON self-test. This function closes an internal switch to simulate a zero input, allowing the optical isolation circuitry to verify that a point can return to the OFF state. During the test, the last data reading is frozen in the I/O communication processor, so the system remains aware of the last valid state. This capability is vital for safety systems that rely on de-energize-to-trip logic, as it detects inputs that might otherwise remain stuck ON.

Applications and Use Cases

The 3505E is ideal for safety instrumented systems in process industries such as oil and gas, chemical, and power generation. Its low-threshold 24 VDC input makes it suitable for monitoring limit switches, pressure switches, and other discrete sensors. Because the module supports hot-spare capability, you can replace a faulty module without shutting down the process, minimizing downtime.

For example, in an emergency shutdown system, the 3505E can monitor the status of multiple safety devices. The stuck-ON test ensures that a failed sensor does not go undetected, maintaining the integrity of the safety loop. The TMR architecture provides the high availability required for critical applications, where a single failure must not lead to a spurious trip.

Installation and Setup

Installing the 3505E is straightforward. The module requires a separate external termination panel (ETP) with a cable interface to the Tricon backplane. Ensure that the chassis is properly configured and that the module is mechanically keyed to match the slot. The dark red color code helps identify the correct module type.

When wiring, connect the field inputs to the ETP according to the wiring diagram. The module's input impedance of > 1.25 KΩ ensures minimal loading on the field devices. Verify that the input voltage is within the 20-42.5 VDC range to avoid damage. After installation, power up the system and check the module status indicators: PASS, FAULT, and ACTIVE. A PASS indication confirms that the module is operating correctly.

Maintenance and Reliability

Routine maintenance of the 3505E is minimal due to its solid-state design. However, periodic inspection is recommended to ensure that all connections remain secure and that the module is free from dust and contamination. The stuck-ON self-test can be run manually to verify input functionality. Always follow the manufacturer's safety manual for any maintenance procedures.

The TMR architecture enhances reliability by allowing the module to continue operating even if one channel fails. The diagnostic indicators provide real-time status, enabling quick fault detection. With proper care, the 3505E offers long service life in harsh industrial environments.

Compatibility and Integration

The 3505E is designed for use with Tricon systems. It supports hot-spare capability, meaning you can have a redundant module ready to take over if the primary fails. The module communicates with the Tricon backplane via the external termination panel. Ensure that your system firmware is compatible with the 3505E to take advantage of all features.

For integration, the module's input points are grouped in 8s, which simplifies wiring and troubleshooting. The diagnostic data, including input status and module status, is accessible through the Tricon system, allowing for remote monitoring.

Troubleshooting and Common Issues

If the 3505E does not operate correctly, first check the module status indicators. A FAULT indication may point to a wiring issue or an input voltage out of range. Verify that the field voltage is between 20-42.5 VDC. If an input point does not change state, use the stuck-ON test to determine if the point is stuck. The test will freeze the last data reading, so note the state before running the test.

Another common issue is input delay. The 3505E has an OFF-to-ON delay of less than 8 ms and an ON-to-OFF delay of less than 15 ms. If your application requires faster response, ensure that the input signal meets the threshold levels. For persistent problems, consult the official Triconex documentation or contact AutoDCSTech for technical support.

Product Support and Availability

The 3505E is available from AutoDCSTech. We stock this module and can ship it promptly to minimize your downtime. Our team can assist with product selection and technical questions. Contact us for current availability and lifecycle status.
