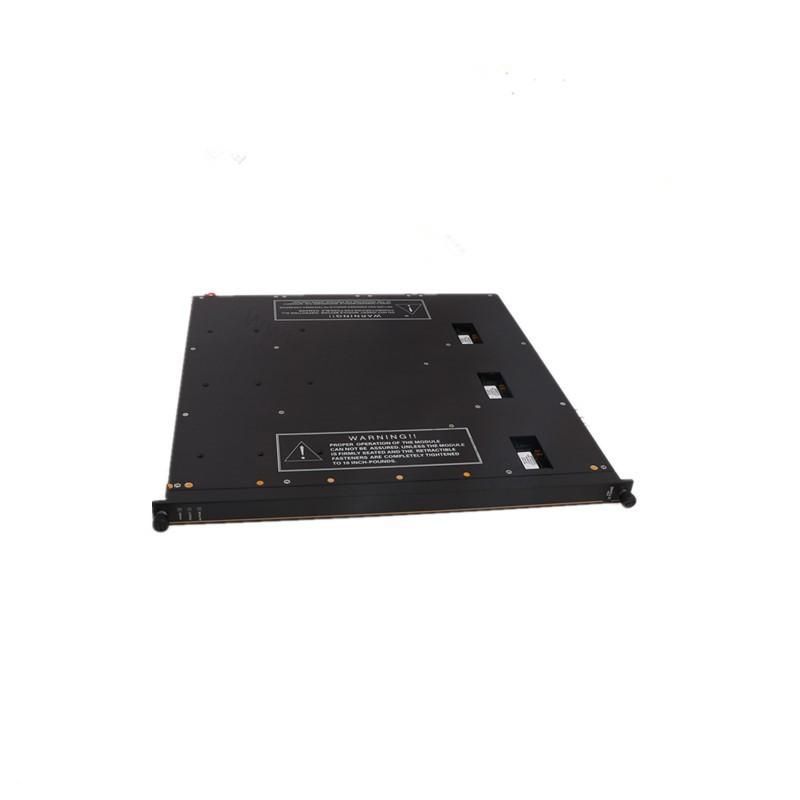

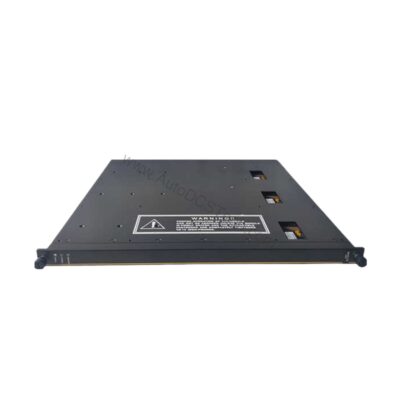

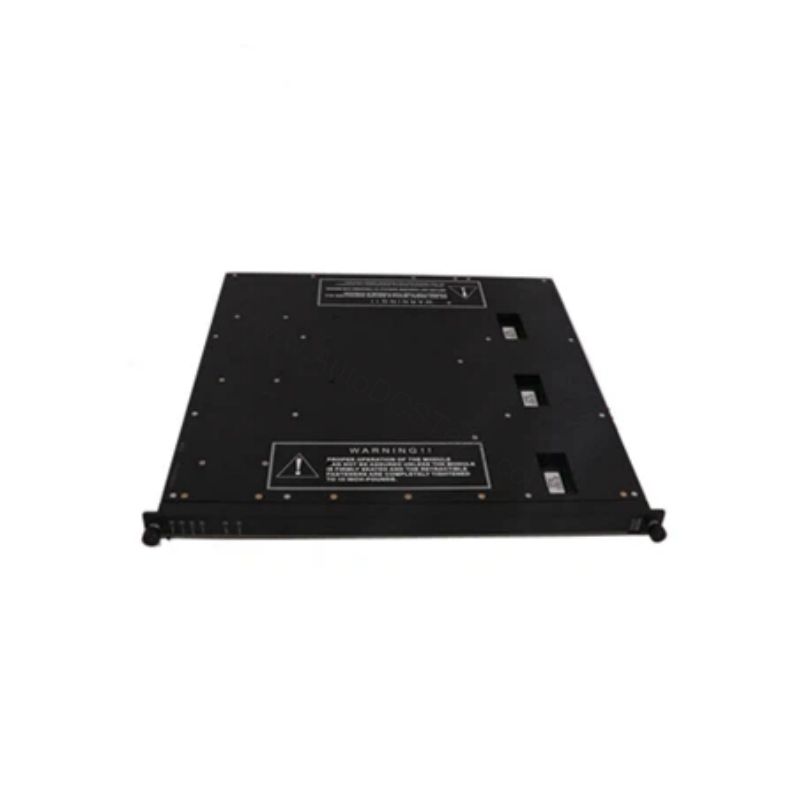

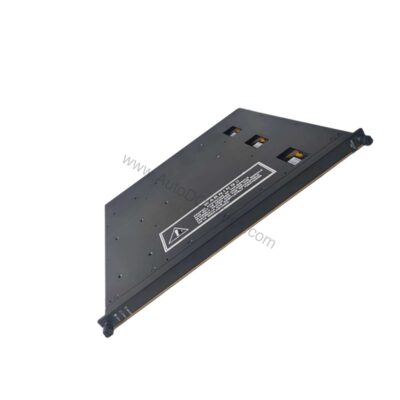

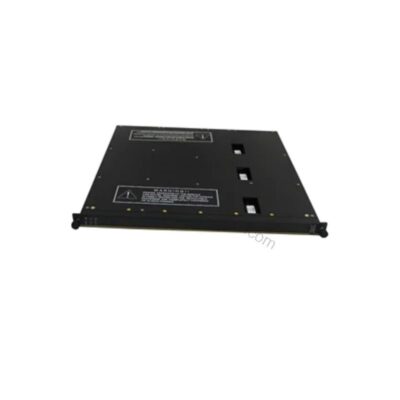

3704E 64-Channel TMR Analog Input Module

Introduction to the Triconex 3704E

When a process demands high-density analog input monitoring with fault tolerance, the 3704E from Triconex stands out. This TMR (Triple Modular Redundant) analog input module is engineered for critical control applications where signal integrity and continuous operation are non-negotiable.

With 64 single-ended input points, the 3704E consolidates numerous field signals into one module, reducing cabinet space and wiring complexity. Its 12-bit resolution ensures accurate representation of analog values, while the 75 ms update rate keeps pace with fast-changing process variables.

Key Features and Technical Specifications

The 3704E is built around a triple-redundant architecture that provides high availability. Each input channel accepts 0-5V or 0-10V DC signals, with an overrange capability of +6%. The module also supports 0-20 mA current inputs when used with an external shunt resistor—250 Ω for 5V range or 500 Ω for 10V range.

• Input Points: 64 single-ended, non-isolated
• Input Update Rate: 75 ms
• Resolution: 12 bits
• Accuracy: < 0.25% of full-scale range from 0° to 60°C
• Input Resistance: 30 MΩ (DC) minimum
• Power-Off Resistance: 30 MΩ (DC) typical
• Leg-to-Leg Isolation: 200 kΩ typical
• Normal Mode Rejection: -1 dB @ 8 Hz, -12 dB @ 60 Hz, -18 dB @ 120 Hz
• Input Overrange Protection: 150 VDC / 115 VAC continuous

One distinctive feature is the high input resistance of 30 MΩ, which minimizes loading on the signal source. This is particularly valuable when connecting to high-impedance sensors or when long cable runs are involved, as it preserves signal accuracy.

Real-World Applications and Use Cases

In a chemical processing plant, the 3704E can monitor multiple temperature and pressure transmitters simultaneously. Its TMR architecture ensures that a single point of failure does not compromise the safety system. Furthermore, the fast update rate of 75 ms allows the control system to respond quickly to process upsets.

For turbine control systems, the 3704E provides the high-density analog input needed to track vibration, speed, and temperature signals. Consequently, operators gain a comprehensive view of machine health, enabling predictive maintenance strategies.

In addition, the module's overrange protection up to 150 VDC or 115 VAC safeguards the electronics from accidental connection to power circuits, reducing the risk of damage during commissioning.

Installation and Setup Guide

When installing the 3704E, ensure the module is properly seated in the Triconex chassis. Connect field wiring to the terminal blocks, observing correct polarity for voltage inputs. For current inputs, install the appropriate shunt resistor across the input terminals as specified in the datasheet.

Because the inputs are single-ended and not isolated, it is essential to maintain a common ground reference between the module and field devices. This practice minimizes ground loop noise and ensures accurate readings.

After wiring, configure the module using the Triconex programming software. Set the input range (0-5V or 0-10V) and verify the scaling parameters match your process requirements.

Maintenance and Reliability Tips

Regular inspection of the 3704E is recommended to ensure reliable operation. Check that all terminal connections are tight and free from corrosion. Periodically verify the module's status indicators—PASS, FAULT, and ACTIVE—to confirm normal operation.

Because the module operates over a wide temperature range (0° to 60°C), ensure adequate ventilation in the cabinet to prevent overheating. Additionally, keep the module free from dust and moisture, which can degrade performance over time.

Following the manufacturer's maintenance manual is crucial for safety-critical applications. Any deviation from recommended procedures could compromise system integrity.

Compatibility and Integration

The 3704E is designed for use within Triconex safety systems. It integrates seamlessly with Triconex controllers and communication modules, allowing for straightforward data exchange and diagnostics. For detailed compatibility information, refer to the official Triconex documentation.

Troubleshooting and Common Issues

If the FAULT indicator is lit, check for wiring errors or an overrange condition on any input. Verify that the input voltage or current is within the specified limits. Also, confirm that the shunt resistors (if used) are correctly rated and installed.

In case of erratic readings, inspect the field wiring for loose connections or electromagnetic interference. The module's normal mode rejection helps filter 60 Hz noise, but proper shielding and grounding remain essential.

Product Support and Availability

The 3704E is available through AutoDCSTech, a trusted supplier of industrial automation parts. Contact AutoDCSTech for current pricing and lead times. Please verify lifecycle status and availability before ordering.
