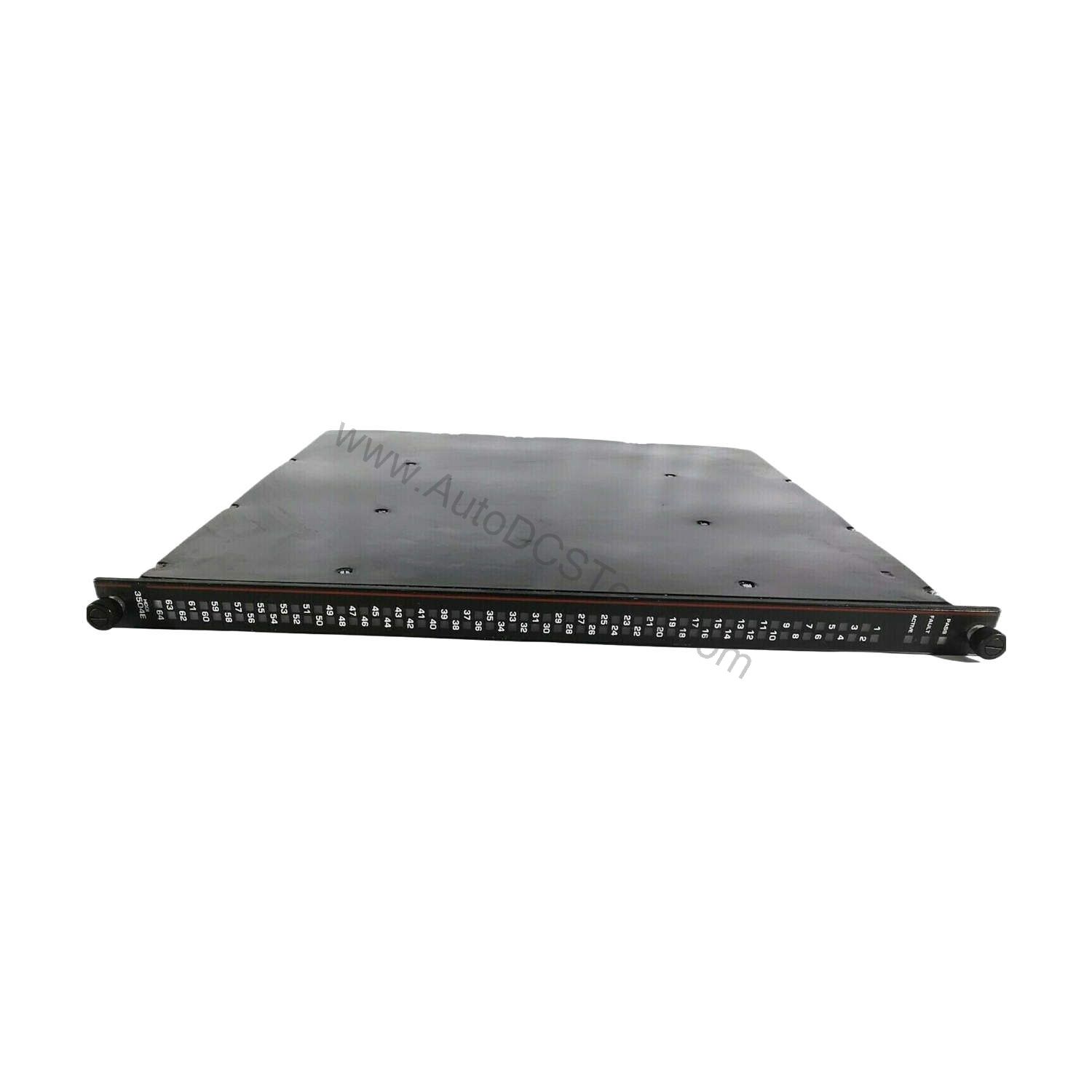

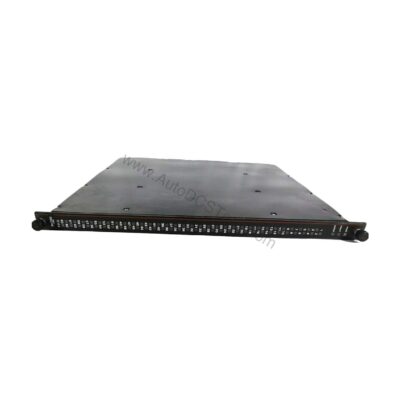

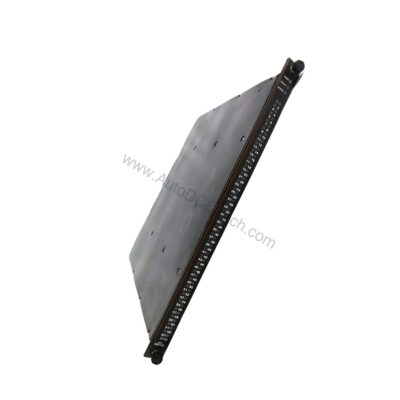

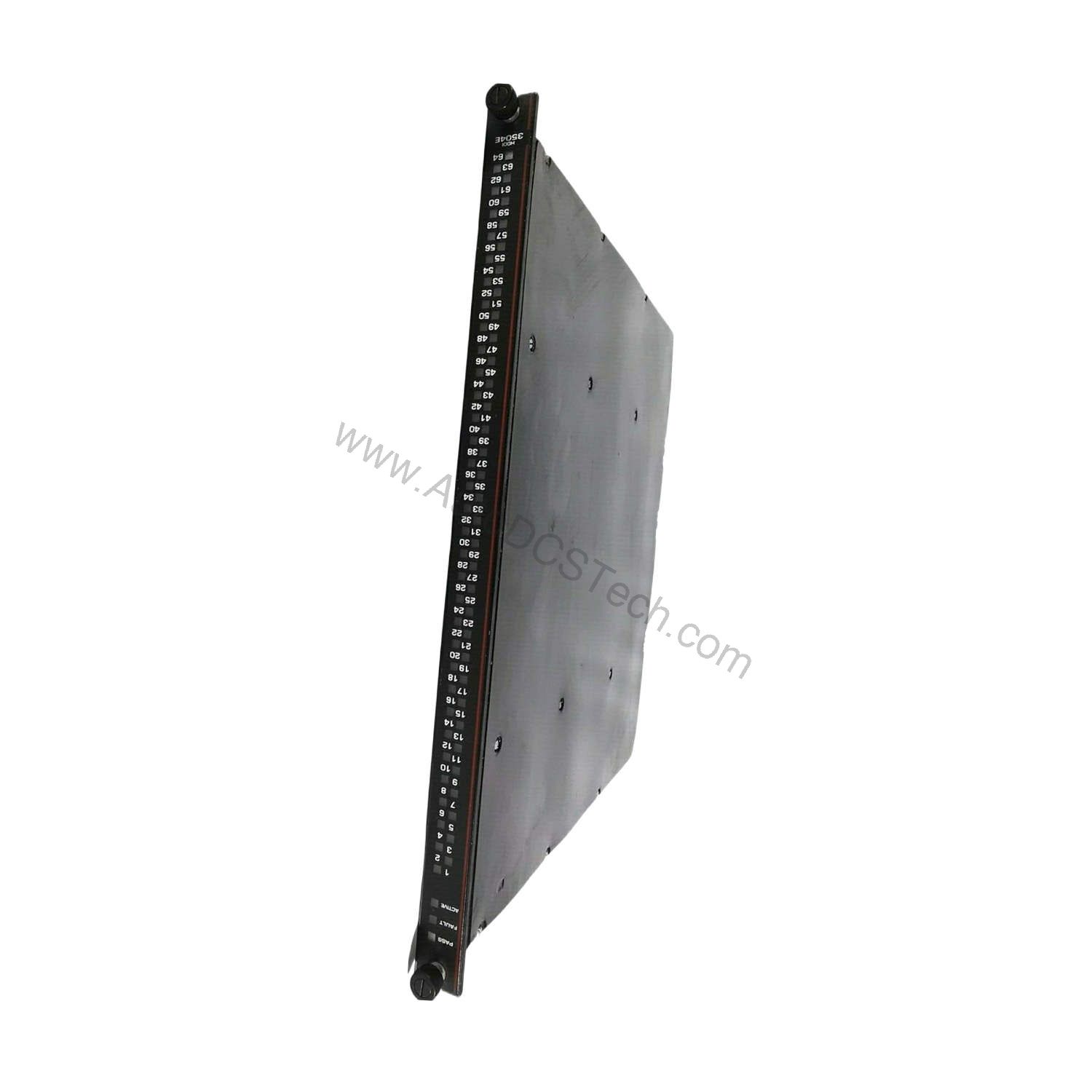

3504E 64-Point TMR High Density Digital Input Module

3504E High Density Digital Input Module Overview

The Triconex 3504E is a high density digital input module designed for demanding industrial safety and control applications. As a Triple Modular Redundant (TMR) module, it provides enhanced reliability by processing input signals through three independent channels, ensuring fault tolerance and continuous operation. With 64 commoned, DC-coupled input points, the 3504E efficiently consolidates numerous field signals into a single module, reducing cabinet space and wiring complexity.

Key Features and Technical Specifications

• Input voltage: 24 or 48 VDC nominal, with ranges of 20–36 VDC and 40–72 VDC respectively.
• Number of input points: 64, commoned and DC-coupled.
• Switching levels (24 VDC): Off-to-On at 15 VDC typical (18 VDC worst-case), On-to-Off at 8 VDC typical (6 VDC worst-case), with 4 VDC typical hysteresis.
• Switching levels (48 VDC): Off-to-On at 27 VDC typical (32 VDC worst-case), On-to-Off at 14 VDC typical (11 VDC worst-case), with 7 VDC typical hysteresis.
• Input delay: Less than 10 ms for both Off-to-On and On-to-Off transitions.
• Input over-range protection: Continuous 115 VAC or 150 VDC.
• Status indicators: One per point for On/Off state, plus module-level Pass, Fault, and Active indicators.
• Color code: Dark red.

The 3504E also features a stuck test function that verifies both ON and OFF states, ensuring early detection of field wiring faults. Its diagnostic glitch duration of 1 ms every 2–3 seconds helps identify transient conditions without nuisance trips.

Applications and Use Cases

The 3504E is well-suited for safety instrumented systems in process industries such as oil and gas, chemical, and power generation. Its high point density makes it ideal for monitoring large numbers of field contacts, such as limit switches, pushbuttons, and relay contacts. The TMR architecture provides the high availability required for emergency shutdown and fire and gas systems, where a single point of failure must not compromise safety.

Installation and Setup

When installing the 3504E, ensure that the module is properly seated in the Triconex chassis and that all field wiring is terminated correctly. The module accepts 24 or 48 VDC inputs, so verify that the applied voltage matches the configured range. Use the status indicators to confirm correct operation after power-up. For detailed wiring diagrams and configuration steps, refer to the official Triconex documentation.

Maintenance and Reliability

Regular inspection of the 3504E is recommended to ensure reliable operation. Check for loose connections, signs of overheating, and proper seating of the module. The TMR design inherently provides fault tolerance, but periodic testing of the stuck test feature can help verify that the module detects field faults as expected. Follow the manufacturer's guidelines for maintenance intervals and procedures.

Compatibility and Integration

The 3504E is designed for use with Triconex safety systems, including the Tricon and Tricon CX controllers. It integrates seamlessly with TriStation 1131 for configuration and diagnostics. The module's DC-coupled inputs are compatible with a wide range of field devices, making it a versatile choice for various safety applications.

Troubleshooting and Common Issues

If the 3504E does not respond as expected, first verify that the input voltage is within the specified range and that the field wiring is correct. Check the status indicators for fault conditions. If a point fails to change state, use the stuck test feature to identify potential wiring or sensor issues. For persistent problems, consult the official Triconex troubleshooting guide or contact technical support.

Product Support and Availability

The 3504E is available from AutoDCSTech. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can assist with product selection and technical inquiries.
