What Makes the 3RW4444-6BC44 a Reliable Choice for High-Feature Applications?

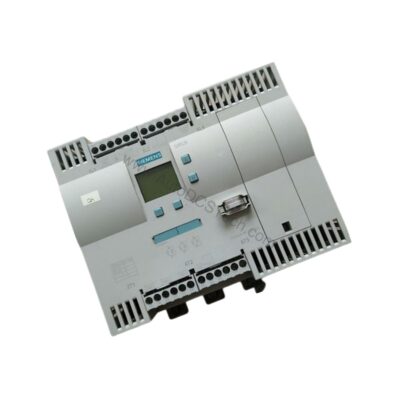

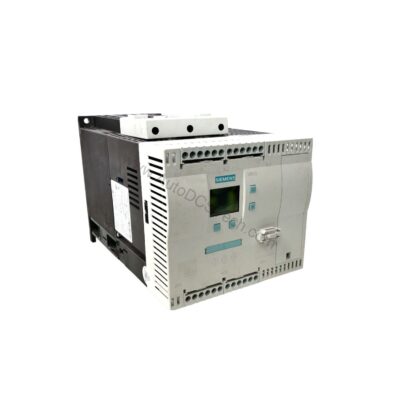

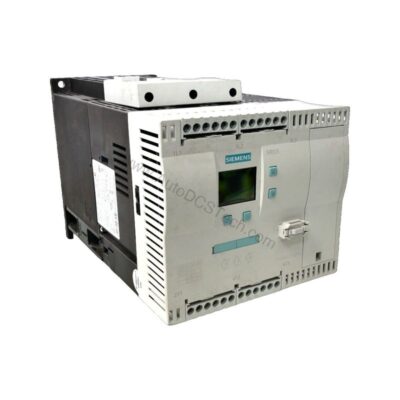

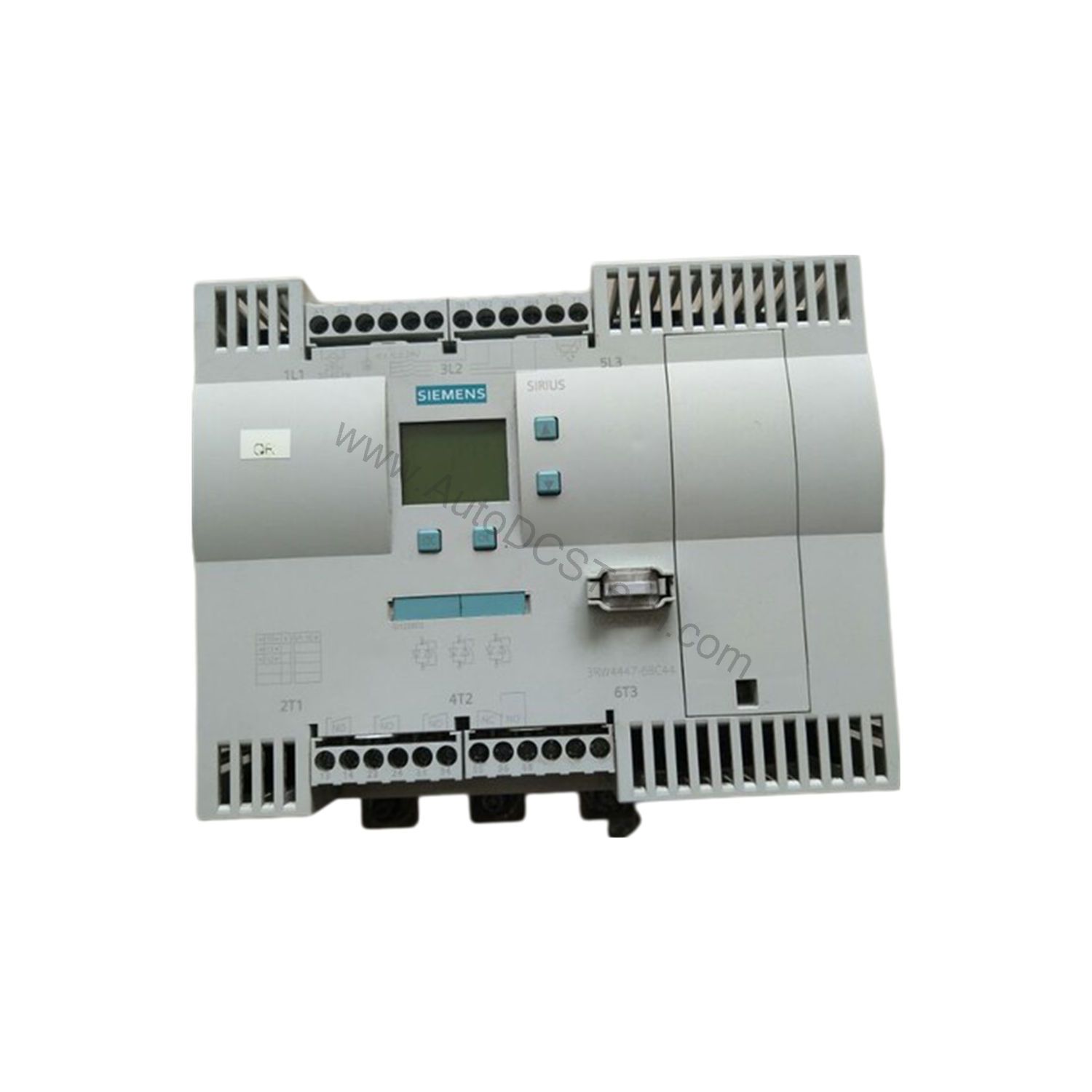

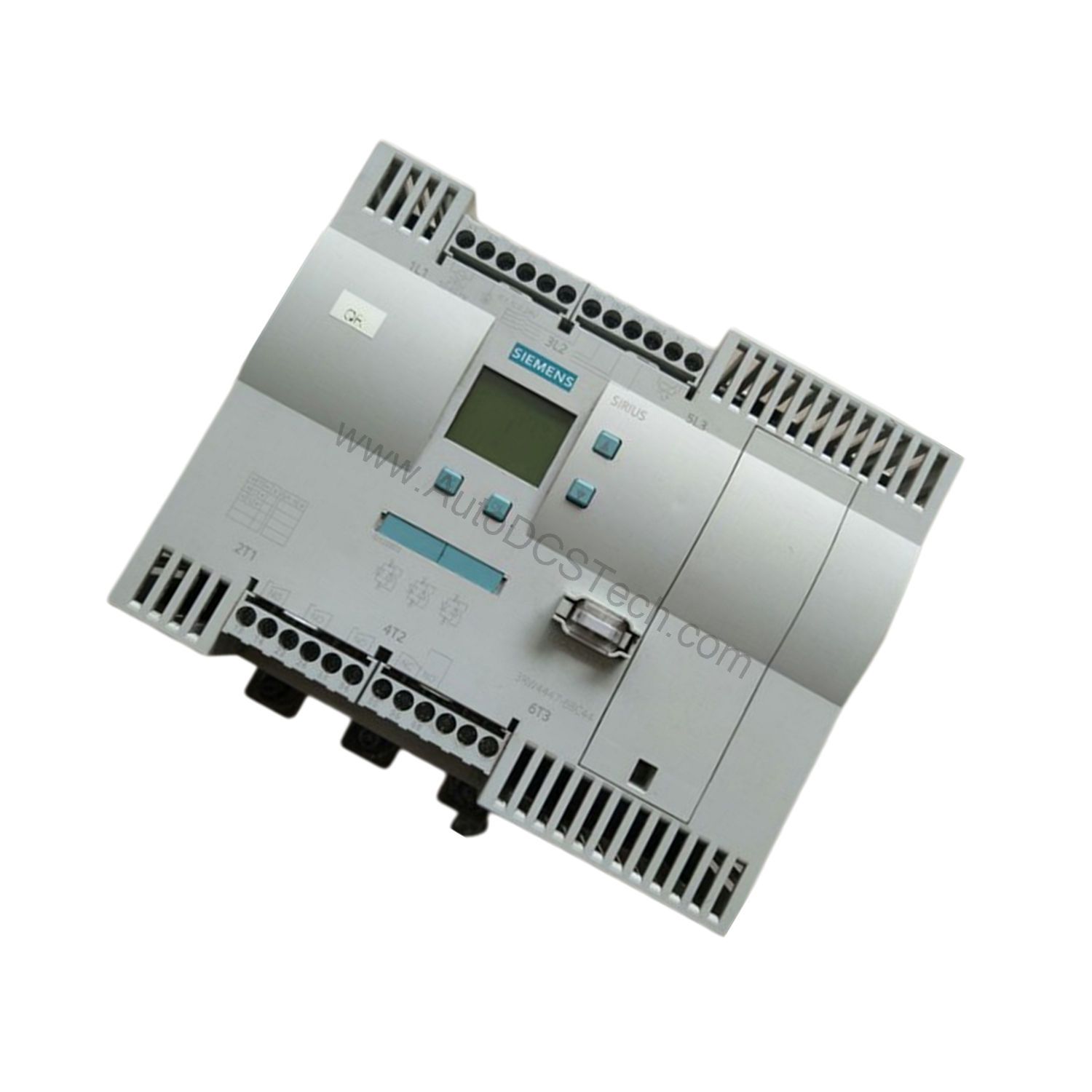

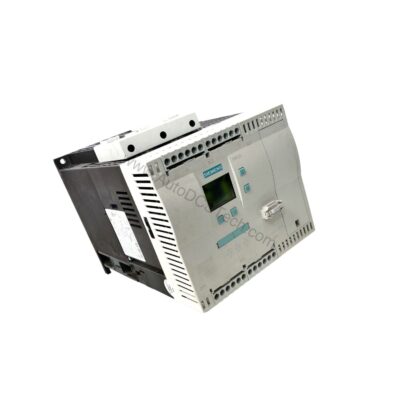

When motor starting demands precise control and robust protection, the 3RW4444-6BC44 from the Siemens SIRIUS family stands out. Designed for high-feature applications, this soft starter integrates advanced functions like motor overload protection, thermal resistor evaluation, and adjustable current limitation—all in one unit. Its screw terminals and busbar connections simplify installation, while the integrated bridging contact system and thyristors ensure dependable operation.
With a rated operating current of 250 A at 40 °C in standard circuit, and 433 A in inside-delta circuit, the 3RW4444-6BC44 handles demanding three-phase squirrel-cage motors. It supports a wide operating voltage range of 200–460 V AC, making it versatile across global installations. The control supply voltage is 230 V AC at 50/60 Hz, with tolerances of -15%/+10%.
Key Features & Technical Specifications
- Rated current: 250 A (standard circuit, 40 °C); 433 A (inside-delta, 40 °C)
- Rated power: 132 kW (standard, 400 V); 250 kW (inside-delta, 400 V)
- Operating voltage: 200–460 V AC (standard and inside-delta)
- Control supply: 230 V AC, 50/60 Hz
- Operating frequency: 50–60 Hz (±10%)
- Adjustable rated current: min. 50 A
- Continuous operating current: 115% of I_e at 40 °C
- Active power loss: 110 W typical at 40 °C
- Protection class: IP00
- Mounting: screw fixing; rotatable ±90°
One distinctive spec is the inside-delta circuit capability, which boosts the rated current to 433 A and power to 250 kW—ideal for high-inertia loads. This feature allows the soft starter to control larger motors than its physical size suggests, offering significant cost savings.
Applications & Use Cases
The 3RW4444-6BC44 suits a range of industrial applications, from pumps and fans to compressors and conveyors. Its adjustable current limitation helps reduce mechanical stress during startup, extending equipment life. In inside-delta configuration, it excels in high-torque scenarios like crushers or mixers. Additionally, the integrated motor overload protection and thermal resistor evaluation ensure safe operation even in harsh environments.
Installation & Setup
Mounting the 3RW4444-6BC44 is straightforward with screw fixing. The unit can be rotated ±90° on a vertical mounting plane, offering flexibility in tight panels. Maintain clearances: 100 mm upward, 5 mm sideways, and 75 mm downward to adjacent components. Connect main circuits via busbar connections; auxiliary circuits use screw-type terminals. Conductor cross-sections range from 70 to 240 mm² (front clamping) or 120 to 185 mm² (back clamping). Ensure the control supply voltage (230 V AC) is within tolerance to avoid malfunctions.
Maintenance & Reliability
Regular inspection of the soft starter is essential for long-term reliability. Check for dust accumulation on the IP00 enclosure and verify that all connections remain tight. The integrated bridging contact system reduces wear on the thyristors, lowering maintenance frequency. With a derating temperature of 40 °C, ensure adequate ventilation to maintain rated current. Following the manufacturer's manual, periodically test the overload protection and thermal resistor functions to confirm they operate correctly.
Compatibility & Integration
The 3RW4444-6BC44 integrates seamlessly into existing motor control systems. Its control supply accepts 230 V AC at 50 or 60 Hz, matching standard industrial power. The unit provides three NO contacts and one changeover contact for auxiliary signaling, plus a display for fault indication. The screw terminals simplify wiring to PLCs or motor control centers. For communication, refer to the official datasheet—this model does not list specific fieldbus protocols.
Troubleshooting & Common Issues
Common issues with soft starters include overcurrent trips or thermal overloads. The 3RW4444-6BC44 includes intrinsic device protection and motor overload protection to mitigate these. If the unit trips, check the motor current against the adjustable rated current (min. 50 A) and verify the operating voltage stays within 200–460 V AC. The fault display helps diagnose problems quickly. For persistent issues, consult the Siemens manual or contact AutoDCSTech for support.
Product Support & Availability
The 3RW4444-6BC44 is available from AutoDCSTech. Contact us for current pricing and lead times. We ensure genuine Siemens parts and fast delivery to minimize downtime.
Availability & Condition at AutoDCSTech
| Part Number | 3RW4444-6BC44 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
