Overview: Siemens 6AV2124-0MC01-0AX0 TP1200 Comfort Panel

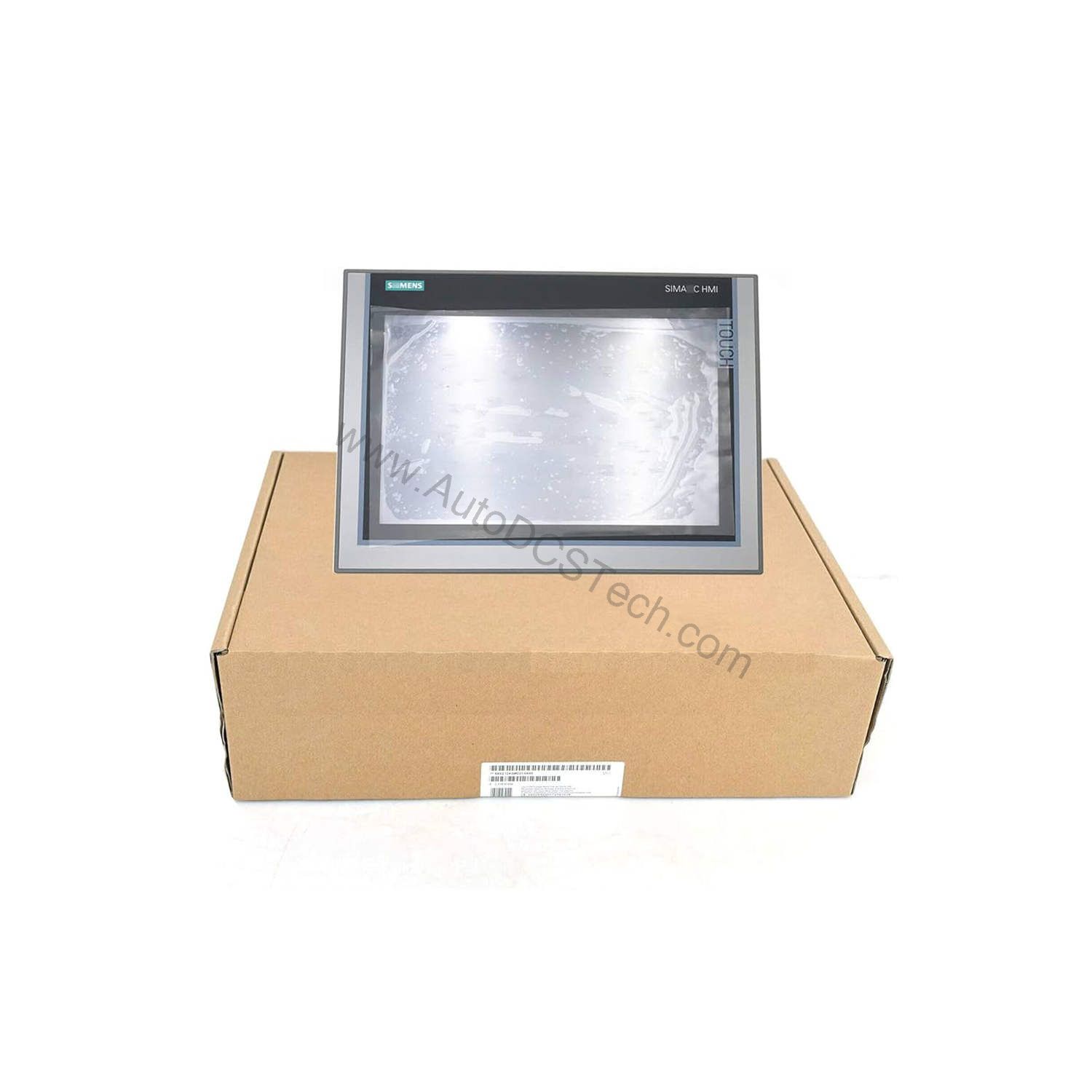

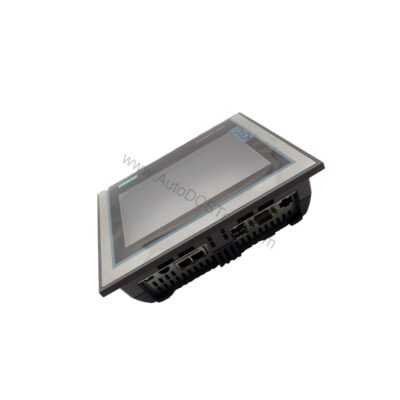

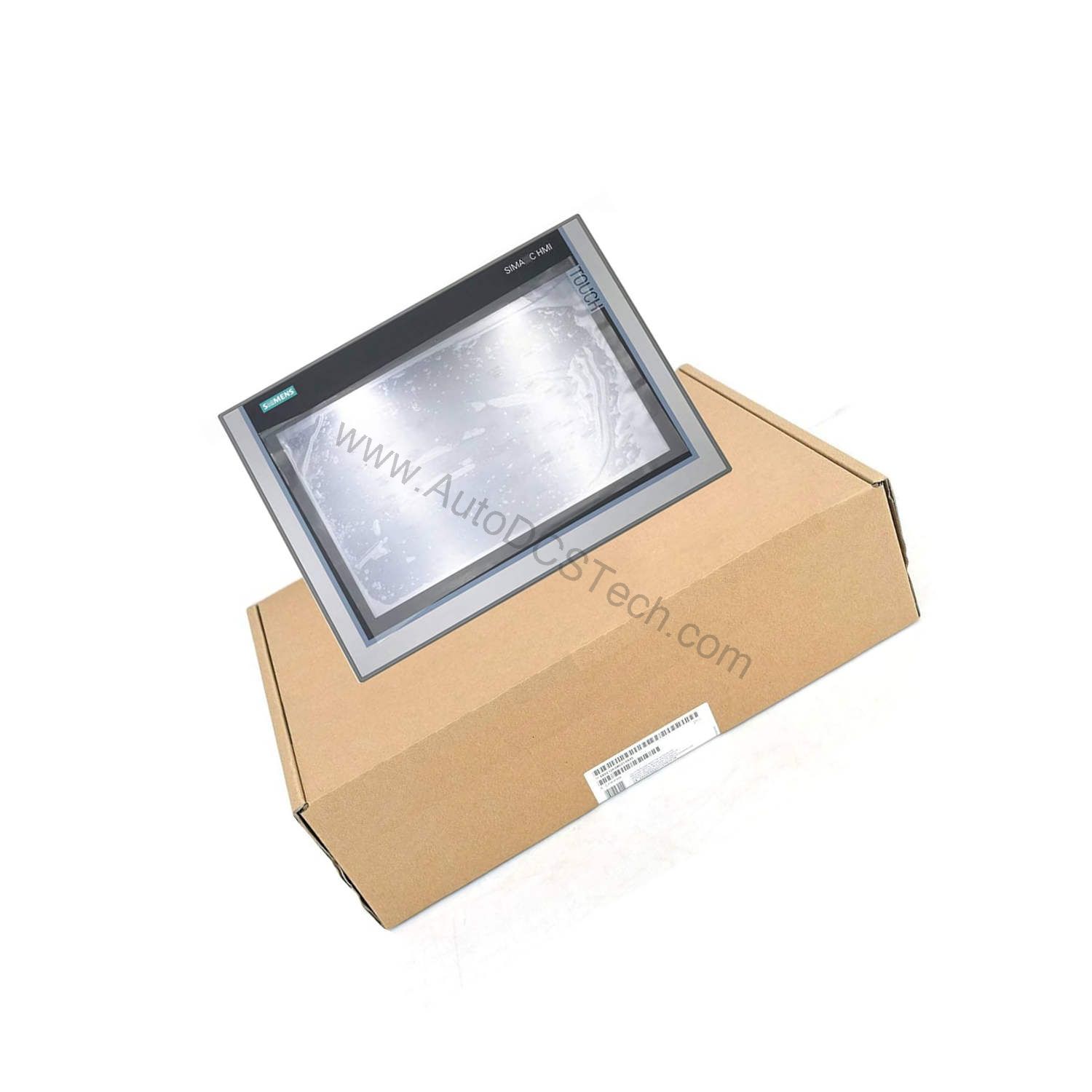

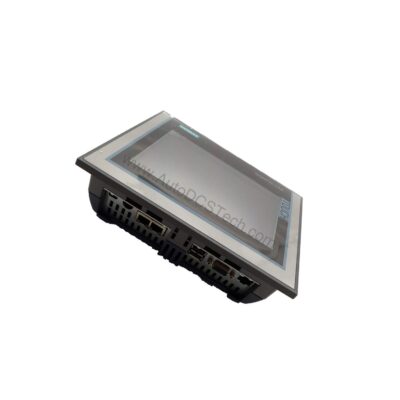

When production uptime and operator clarity are non-negotiable, the 6AV2124-0MC01-0AX0 from Siemens provides a dependable touch-based interface. This SIMATIC HMI TP1200 Comfort Panel pairs a 12.1-inch widescreen TFT display with 16 million colors, ensuring process data is easy to read at a glance. Built for vertical mounting, this unit supports both portrait and landscape orientations, adapting to your existing panel layout without major rework.

From a cost perspective, the TP1200 Comfort reduces engineering effort through its 12 MB configuration memory and compatibility with WinCC Comfort V11 and later. This means shorter commissioning times and lower project lifecycle costs. Its robust design, including IP65 front protection, helps avoid downtime caused by dust or water ingress in industrial environments.

Key Features and Technical Specifications

The 6AV2124-0MC01-0AX0 is engineered for performance and longevity. Its key specifications directly impact operational efficiency and total cost of ownership.

• Display: 12.1-inch TFT, 1280 x 800 pixels, 16,777,216 colors – provides clear visualization of complex processes.
• Backlight: 80,000 hours MTBF at 25°C, dimmable from 0-100% – reduces energy consumption and extends service life.
• Processor: X86 architecture – ensures responsive interaction even with data-intensive screens.
• Memory: 12 MB user memory, plus Flash and RAM – accommodates large projects and reduces the need for frequent data transfers.

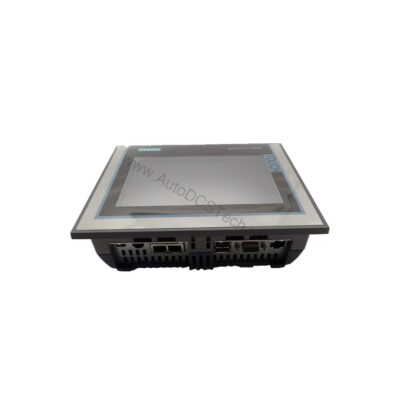

• Interfaces: 1x Industrial Ethernet (2-port switch), 1x RS 422/485, 2x USB 2.0, 1x USB Mini B – offers flexible connectivity for various controllers and peripherals.
• Protocols: PROFINET, PROFIBUS, MPI, EtherNet/IP, Modbus, and more – ensures compatibility with a wide range of automation systems.
• Power Supply: 24 V DC (19.2-28.8 V range), 0.85 A rated current – efficient power usage lowers operational costs.
• Environmental: IP65 front, IP20 rear; operating temperature 0-50°C (vertical) – built for demanding shop-floor conditions.

One distinctive feature is the 40 direct touch keys that can be used as S7 input I/O. This allows operators to trigger actions without navigating through screens, speeding up routine tasks and reducing error rates.

Cost-Efficiency and ROI Considerations

Investing in the 6AV2124-0MC01-0AX0 delivers measurable returns. The long-life backlight (80,000 hours) minimizes replacement frequency, directly cutting maintenance costs. Dimmable backlighting also reduces energy usage, especially in facilities that operate 24/7.

Moreover, the panel’s support for WinCC Comfort and TIA Portal streamlines programming and diagnostics. Fewer engineering hours translate into lower project costs. The integrated PROFINET switch reduces the need for additional network hardware, saving on both equipment and installation expenses.

Applications and Use Cases

This HMI is suitable for a variety of industrial sectors, including manufacturing, process control, and machine building. Its robust protocol support makes it ideal for connecting to Siemens S7-1200/1500/300/400 PLCs, as well as Allen-Bradley and Modicon controllers. For example, in a packaging line, the TP1200 can display real-time production metrics, alarm history, and recipe management, enabling quick operator responses and reducing waste.

Furthermore, the panel’s marine approvals (GL, ABS, BV, DNV, LRS, Class NK) make it a cost-effective choice for shipboard automation, where reliability and certification are critical.

Installation and Setup

Mounting the 6AV2124-0MC01-0AX0 is straightforward. The unit fits into a 310 mm x 221 mm cutout with a total depth of 64 mm. It supports both portrait and landscape orientations, and can be tilted up to 35 degrees without external ventilation. Ensure the ambient temperature stays within the specified range (0-50°C for vertical installation) to maintain optimal performance.

For wiring, use the 24 V DC supply within the 19.2-28.8 V range. Connect the Ethernet and PROFIBUS cables to the respective ports. The two USB ports allow for easy connection of a mouse, keyboard, or memory stick for data transfer.

Maintenance and Reliability

To maximize uptime, follow a simple maintenance routine. Periodically inspect the front bezel for cracks or damage that could compromise the IP65 seal. Clean the touch screen with a soft, dry cloth to ensure accurate touch response. Verify that the backlight brightness is adequate; if it dims over time, it can be adjusted via the dimming function.

The panel’s robust construction and long-life components reduce the likelihood of unexpected failures. However, as with any electronic device, ensure proper grounding and surge protection to avoid damage from electrical transients.

Compatibility and Integration

The 6AV2124-0MC01-0AX0 excels in connectivity. It supports PROFINET, PROFIBUS, MPI, EtherNet/IP, Modbus, and more, allowing integration into diverse automation architectures. It can communicate with Siemens S7-1200/1500/300/400, LOGO!, WinAC, SINUMERIK, and SIMOTION, as well as Allen-Bradley, Mitsubishi, and Modicon controllers. This versatility reduces the need for multiple HMIs, lowering inventory and training costs.

Additionally, the panel supports OPC UA Client and Server, enabling data exchange with higher-level systems for analytics and reporting.

Troubleshooting Common Issues

If the display does not power on, check the 24 V DC supply and ensure it is within the permissible range. If communication fails, verify the IP settings and cable connections. For PROFINET issues, confirm that the device name and IP address are correctly configured in TIA Portal.

If the touch screen becomes unresponsive, recalibrate it via the operating system settings. For persistent problems, consult the Siemens documentation or contact AutoDCSTech for technical support.

Availability and Support

The 6AV2124-0MC01-0AX0 is available from AutoDCSTech. Contact us for current pricing and lead times. Our team can assist with product selection and technical inquiries.
