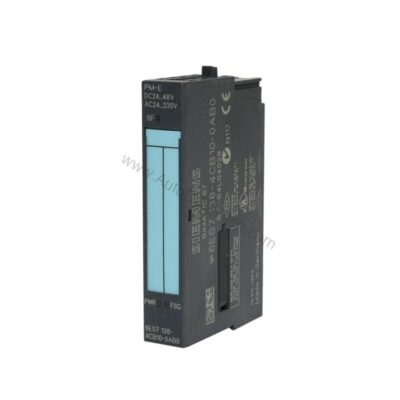

6ES7138-4CB10-0AB0 24-56.7VDC Power Module PM-E ET200S

Introduction to the Siemens 6ES7138-4CB10-0AB0 Power Module

When supply voltage fluctuations threaten your ET200S system, the 6ES7138-4CB10-0AB0 from Siemens provides reliable power distribution and monitoring. This Simatic DP Power Module PM-E is engineered for the ET200S distributed I/O system, ensuring stable operation of all connected electronic modules.

As a maintenance engineer, you need components that simplify troubleshooting and reduce downtime. The 6ES7138-4CB10-0AB0 delivers clear diagnostic feedback through its LED indicators and status byte, allowing quick identification of load voltage issues.

Key Features and Technical Specifications

The 6ES7138-4CB10-0AB0 offers a wide input range and robust protection features. Below are the critical parameters you can rely on:

• Rated value (DC): 24 to 56.7 V DC, 24 to 48 V / 120 V / 130 V AC
• Reverse polarity protection: Yes
• Power loss, typ.: 5 W
• Isolation tested with: 1500 V DC
• Dimensions (LxWxH): 5.2 cm x 1.5 cm x 8.1 cm
• Weight: 0.034 kg

One distinctive aspect is the replaceable fuse (5 mm x 20 mm) that protects the module and downstream electronics. This fuse can be swapped quickly without replacing the entire module, reducing maintenance time.

Real-World Applications and Benefits

In manufacturing plants, the 6ES7138-4CB10-0AB0 is often used to power ET200S stations controlling conveyors, packaging machines, and material handling systems. Its ability to handle both DC and AC load voltages makes it versatile for mixed-voltage environments.

Because it monitors the supply voltage for all electronic modules in its voltage group, you gain early warning of potential power issues. This proactive approach helps prevent unexpected production stops, aligning with a cost-benefit strategy that minimizes downtime.

Installation and Setup Guidance

When installing the 6ES7138-4CB10-0AB0, place it to the right of the interface module in the ET200S station, except when using an IM151-1 COMPACT. The supply voltage is fed via the TM-P terminal module, so ensure proper seating.

For wiring, always observe the rated values: up to 10 A for DC loads at 30 °C, and up to 8 A for AC loads at the same temperature. Derate accordingly at higher temperatures—9 A DC at 40 °C, 7 A DC at 60 °C, and 7 A AC at 40 °C, 5 A AC at 60 °C.

Remember that the module's fuse is an additional fuse; external overcurrent protection is still required in the supply lines per national regulations.

Maintenance and Reliability Tips

Regular inspection of the 6ES7138-4CB10-0AB0 is straightforward. Check the green PWR LED to confirm power presence, and the red SF LED for group errors. The backup FSG LED indicates fuse status.

Periodically verify that the fuse is intact and that the terminal connections are tight. Because the module has a replaceable fuse, you can quickly restore operation after a fault, minimizing downtime.

Environmental factors matter: keep the module within its operating temperature range to maintain full current-carrying capacity. Adequate ventilation around the ET200S station helps sustain performance.

Compatibility and Integration

The 6ES7138-4CB10-0AB0 is designed for the Siemens ET200S system, working with IM151 interface modules. It communicates status via the process input image (PII), allowing your PLC to read the power module's health.

It supports both DC and AC load voltages, making it compatible with a wide range of field devices. The module's parameter length is 3 bytes, and it provides diagnostic functions such as load voltage monitoring.

Troubleshooting Common Issues

If the SF LED lights up, check the load voltage and fuse. A blown fuse often indicates an overload or short circuit downstream. Replace the fuse with the specified type: IEC 127-2/1, 250 V, 10 A, fast-acting.

If the PWR LED is off, verify that the supply voltage is within the rated range and that the terminal module is properly connected. Use the status byte in the PII to get detailed diagnostic information.

Product Support and Availability

The 6ES7138-4CB10-0AB0 is available from AutoDCSTech, an industrial automation parts supplier. Contact AutoDCSTech for current stock and lifecycle status before ordering.
