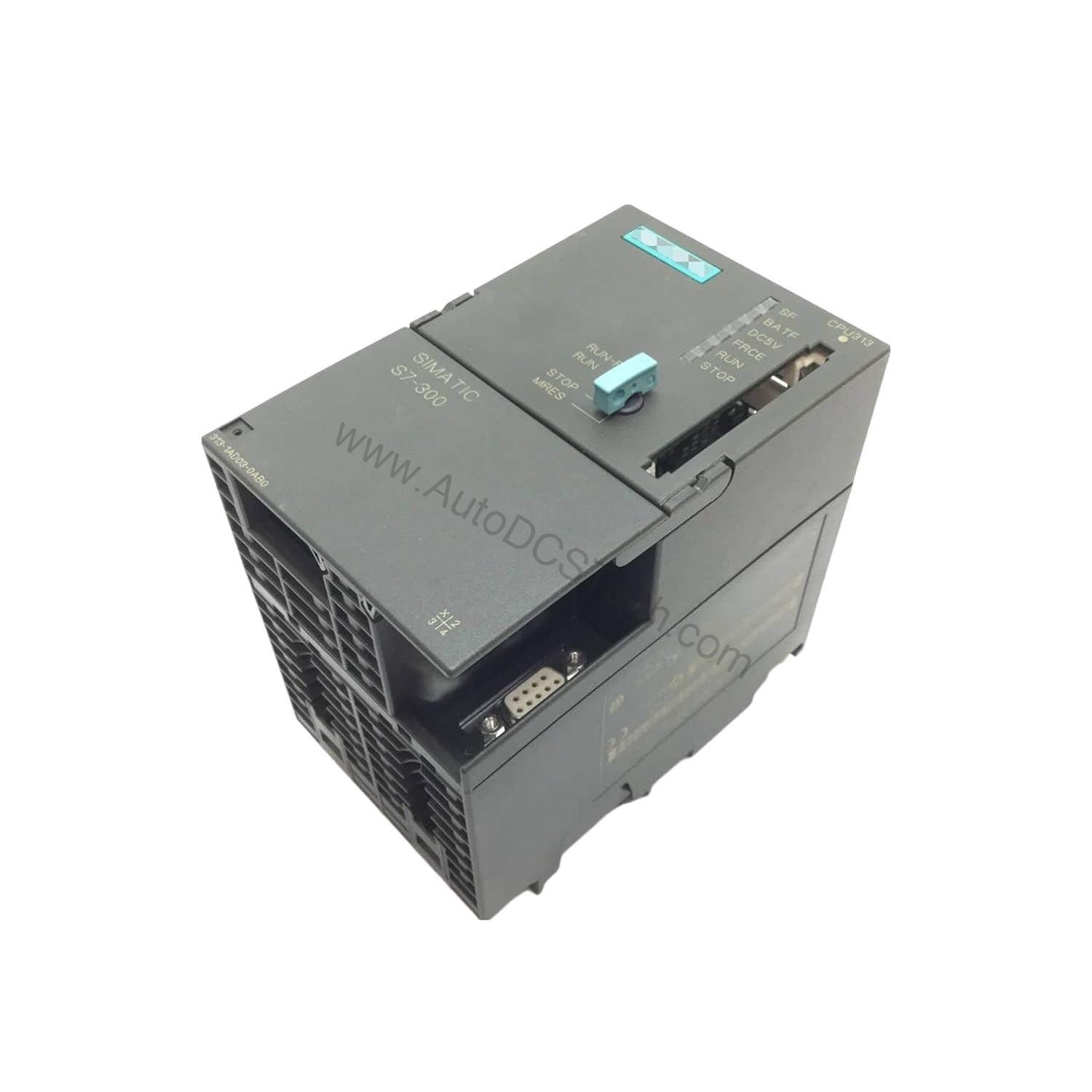

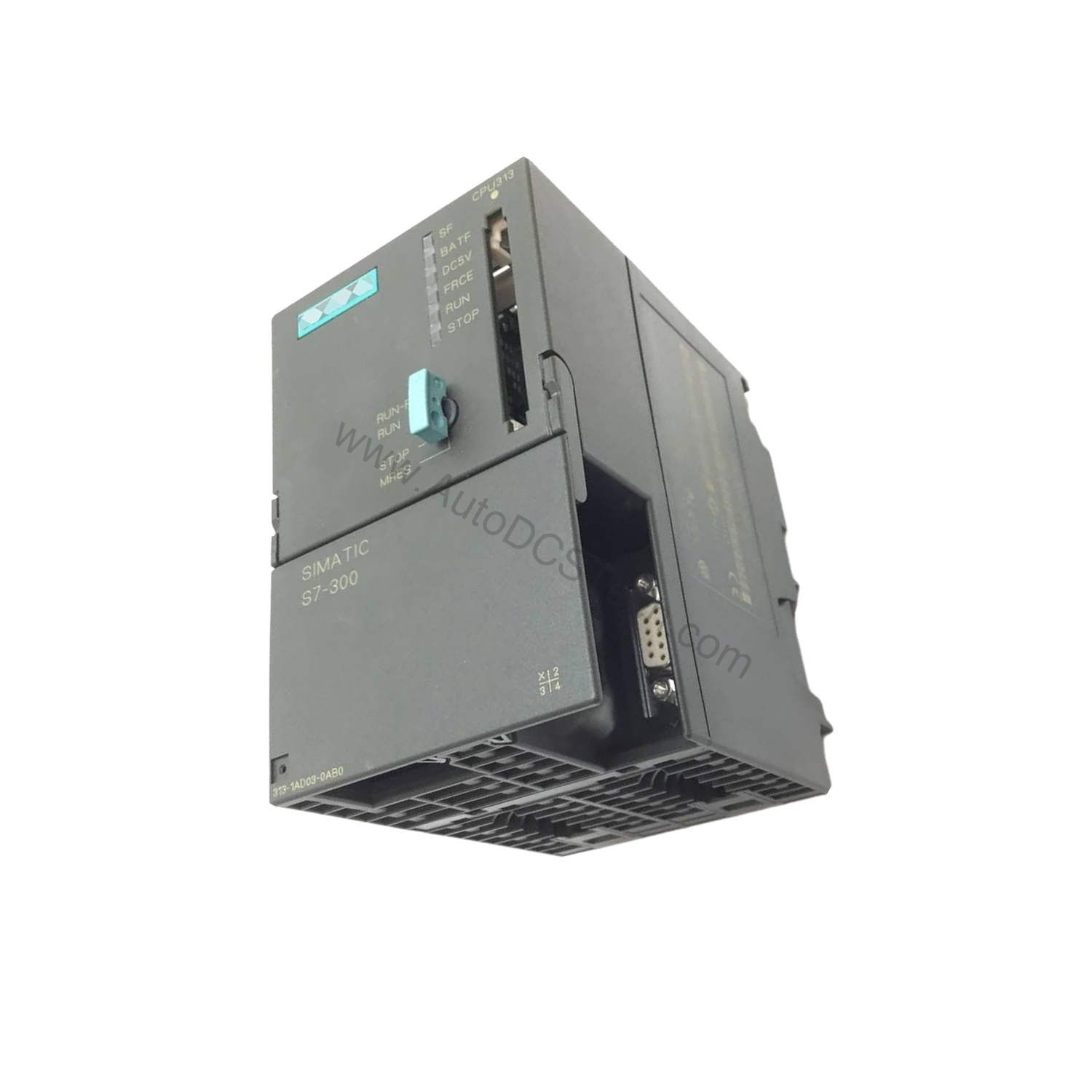

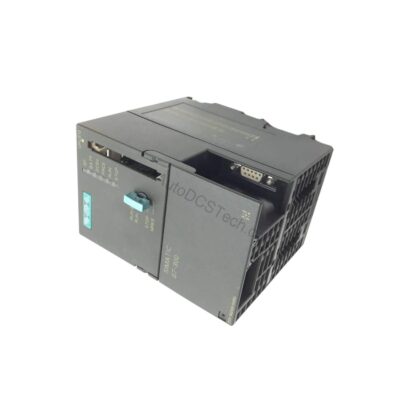

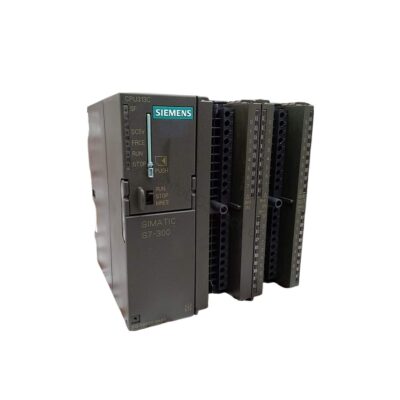

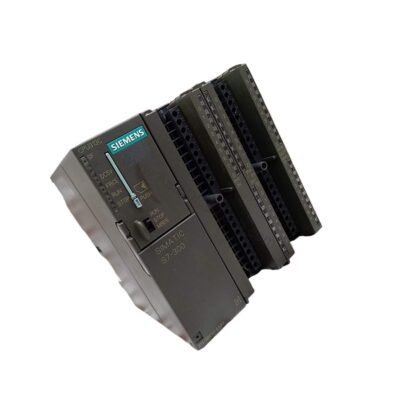

Introduction to the Siemens 6ES7313-1AD03-0AB0 CPU 313
When your control system demands dependable logic processing in a compact footprint, the 6ES7313-1AD03-0AB0 from Siemens delivers. This SIMATIC S7-300 CPU 313 integrates a 24V DC power supply, eliminating the need for a separate power module. With 12KB of integrated work memory, it handles moderate automation tasks efficiently. The CPU supports up to 4Mbyte of expandable FEPROM load memory, giving you flexibility for program storage.
Key Features and Technical Specifications
The 6ES7313-1AD03-0AB0 is engineered for reliability in industrial environments. Its robust design ensures stable operation across a wide input voltage range. Below are the critical parameters you can expect:
- Supply voltage: 24V DC nominal, permissible range 20.4V to 28.8V DC.
- Inrush current: 8A typical.
- Power loss: 8W typical.
- Work memory: 12KB integrated (approx. 4K instructions).
- Load memory: Expandable via Flash-EPROM up to 4Mbyte; integrated RAM 20KB.
- Backup without battery: 72 bytes for memory bits, times, counters, and data.
- Processing times: Bit operations 0.6µs typical, word operations 2µs, fixed-point arithmetic 3µs, floating-point 60µs.
- Counters: 64 S7 counters, counting range 1 to 999.
- Timers: 128 S7 timers, time range 10ms to 9990s.
- Digital channels: 256 inputs, 256 outputs.
- Analog channels: 64 inputs, 32 outputs.
- MPI interface: Supports up to 32 nodes, transmission rate 187.5 kbit/s.
- Dimensions: 80mm x 125mm x 130mm; weight approx. 530g.
These specs ensure the CPU can handle typical control logic without performance bottlenecks.
Applications and Use Cases
The 6ES7313-1AD03-0AB0 suits small to medium-sized machines, such as packaging equipment, material handling systems, and simple process controls. Its integrated power supply simplifies panel design, reducing wiring and component count. In retrofit scenarios, this CPU can replace older S7-300 models, providing a familiar programming environment with enhanced memory. For engineers upgrading from S5 systems, the STEP 7 V5.0 software support eases migration.
Installation and Setup
Mounting the CPU on a standard S7-300 DIN rail is straightforward. Ensure the 24V DC supply is within the permissible range to avoid damage. Connect the MPI interface for programming and communication. Use a memory card (optional) to expand load memory. Always follow the manual for proper grounding and shielding to minimize electrical noise.
Maintenance and Reliability
Regular inspection of the power supply and connections helps prevent unexpected downtime. The CPU's low power loss (8W) reduces heat buildup, extending component life. With battery backup, you can retain all blocks; without battery, 72 bytes of retentive data are preserved. Periodic checks of the backup battery voltage are recommended to ensure data integrity.
Compatibility and Integration
The 6ES7313-1AD03-0AB0 communicates via MPI, supporting PG/OP communication, global data, and S7 basic communication. It can act as an S7 communication server. Up to 4 static and 4 dynamic connections are available. The CPU supports up to 8 modules per rack, with a maximum of 1 rack. For DP master functionality, a CP 342-5 module can be added.
Troubleshooting Common Issues
If the CPU fails to start, check the power supply voltage and LED indicators. Verify that the memory card is properly seated. For communication errors, confirm MPI settings and cable lengths (max 50m without repeaters). If the program does not run, ensure the work memory is not full and that the OB1 cycle is correctly configured.
Product Support and Availability
AutoDCSTech stocks the 6ES7313-1AD03-0AB0 and can provide technical support. Contact us for current availability and lead times. We ensure genuine Siemens parts for your automation needs.
Availability & Condition at AutoDCSTech
| Part Number | 6ES7313-1AD03-0AB0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
