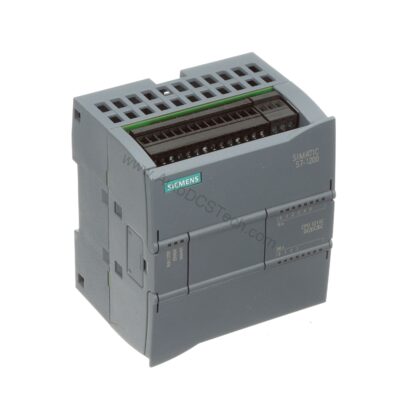

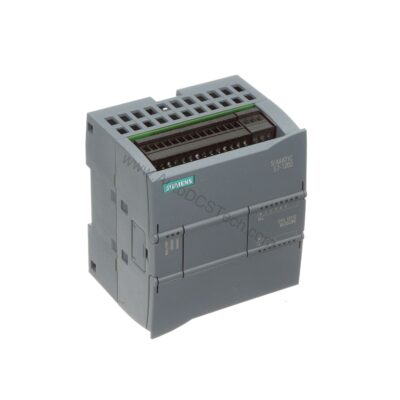

Key Features and Technical Specifications
- Integrated I/O: 6 digital inputs (24 V DC), 4 relay outputs (2 A), 2 analog inputs (0-10 V DC).
- Supply voltage: DC 20.4-28.8 V, with reverse polarity protection.
- Work memory: 50 KB integrated; load memory: 1 MB integrated, expandable with SIMATIC Memory Card.
- Processing times: 0.08 µs for bit operations, 1.7 µs for word operations, 2.3 µs for floating point arithmetic.
- Digital inputs: 6 total, all usable as high-speed counters (HSC), with parameterizable input delays from 0.2 ms to 12.8 ms.
- Relay outputs: 4, with max switching capacity of 2 A resistive load, 30 W DC or 200 W AC lamp load.
- Analog inputs: 2, voltage range 0-10 V DC, input resistance ≥100 kΩ, resolution 10 bit.
- Interfaces: PROFINET (1 port), supports PROFINET IO Controller and Device, OPC UA server, and Modbus.
- Power loss: typ. 8 W.
- Ambient temperature: -20 °C to 60 °C horizontal, -20 °C to 50 °C vertical.
- Degree of protection: IP20.
Real-World Applications
In packaging machinery, the 6ES7211-1HE40-0XB0 handles high-speed counting and positioning tasks with its integrated HSC inputs. For material handling systems, the relay outputs switch inductive loads reliably, while the analog inputs monitor sensor feedback. Its compact size allows mounting in control cabinets with limited space, and the wide temperature range suits harsh production floors.
Installation and Setup
Mount the CPU on a standard DIN rail or directly to a wall using the integrated mounting holes. Ensure adequate clearance for ventilation and cable routing. Connect the 24 V DC supply to the L+ and M terminals, observing polarity. For digital inputs, use shielded cables up to 500 m (50 m for technological functions). For relay outputs, use shielded cables up to 500 m or unshielded up to 150 m. Analog input cables should be twisted and shielded, with a maximum length of 100 m.
Maintenance and Reliability
Routine inspection of the power supply and I/O wiring is recommended to prevent downtime. The CPU features a maintenance-free backup without battery, ensuring data retention. Its robust design withstands vibration up to 2 g on wall mounting and 1 g on DIN rail, and shock up to 15 g peak. These characteristics contribute to long service life in demanding environments.
Compatibility and Integration
The 6ES7211-1HE40-0XB0It supports PROFINET IO Controller and Device, allowing connection to remote I/O and HMIs. OPC UA server capability enables data exchange with higher-level systems. Modbus support (via CM modules) and PROFIBUS (via CM 1243-5 or CM 1242-5) expand its connectivity options. Up to 3 communication modules and 1 signal board can be added.
Troubleshooting and Common Issues
If the CPU fails to start, check the supply voltage is within 20.4-28.8 V DC and that reverse polarity protection is not triggered. For input signal issues, verify the input delay settings and cable shielding. For relay output problems, ensure the load current does not exceed 2 A and that lamp loads are within 30 W DC or 200 W AC. Use the diagnostic buffer and LED indicators (RUN/STOP, ERROR, MAINT) for quick fault identification.
Product Support and Availability
The 6ES7211-1HE40-0XB0 is available at AutoDCSTech. Contact our team for current stock, pricing, and technical support.
Availability & Condition at AutoDCSTech
| Part Number | 6ES7211-1HE40-0XB0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
