6ES7132-6BF01-0BA0 8-Ch 24V DC 0.5A Digital Output Module

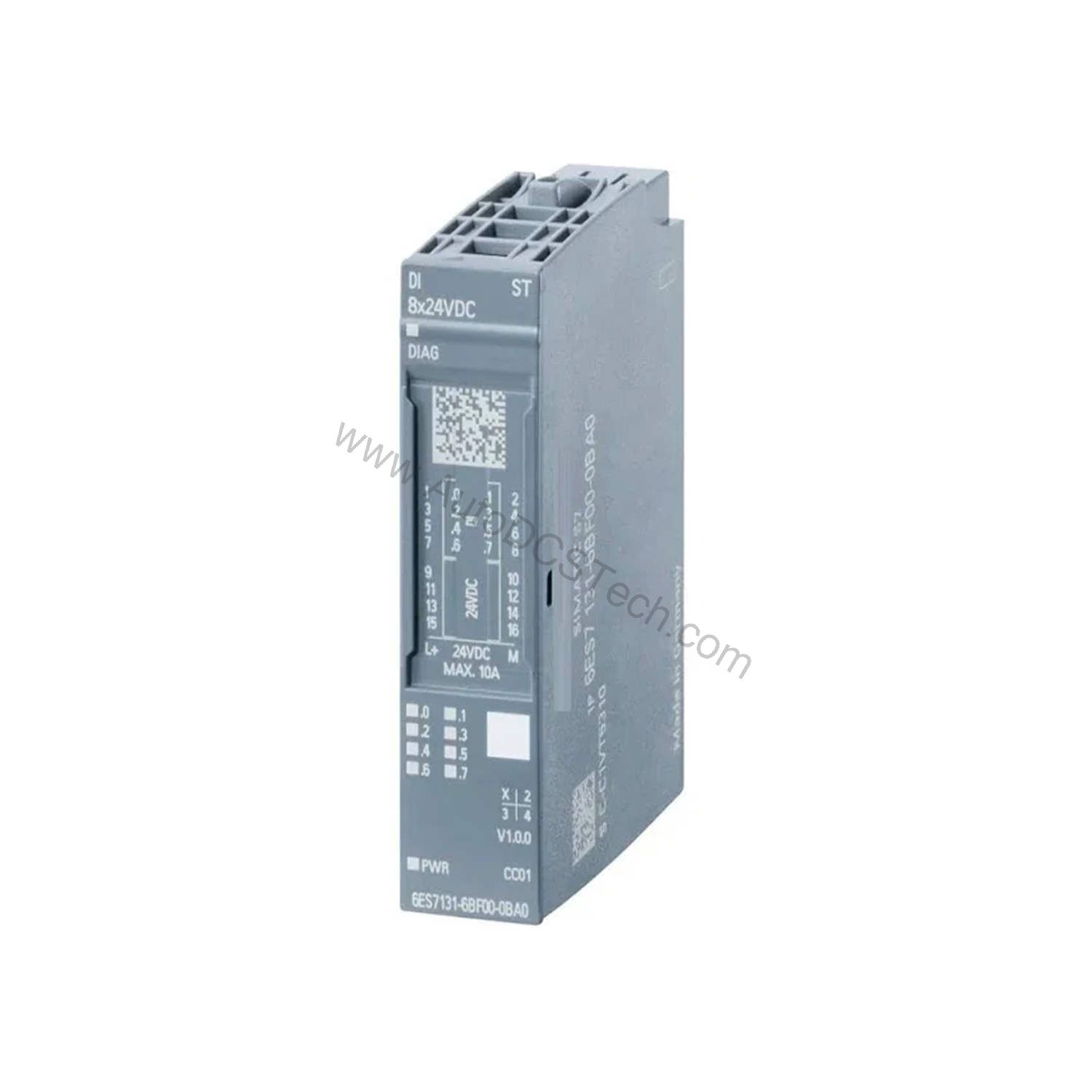

Introduction to the Siemens 6ES7132-6BF01-0BA0

When your control system demands reliable switching of actuators, valves, or indicators, the 6ES7132-6BF01-0BA0 from Siemens delivers consistent performance. This SIMATIC ET 200SP digital output module provides eight channels of 24V DC output, each rated for 0.5A. It is designed as a source output (PNP, P-switching), making it suitable for a wide range of industrial applications.

With a compact width of just 15 mm, this module saves valuable cabinet space while offering robust diagnostics. The module supports substitute value output and monitors for short-circuits to L+ and ground, as well as wire breaks. These features help maintain system uptime and simplify troubleshooting.

Key Features and Technical Specifications

The 6ES7132-6BF01-0BA0 is engineered for precision and durability. Below are the critical specifications that define its performance:

• Output type: Source output (PNP, current-sourcing)
• Number of digital outputs: 8
• Rated supply voltage: 24V DC (permissible range 19.2V to 28.8V DC)
• Output current per channel: 0.5A max
• Total output current per module: 4A max
• Short-circuit protection: Yes, response threshold typ. 1A
• Power loss: Typ. 1W
• Isolation tested with: 707V DC (type test)
• Dimensions (W x H x D): 15 mm x 73 mm x 58 mm
• Weight: Approx. 30 g

One distinctive feature is the module's ability to handle inductive loads with a built-in limitation of inductive shutdown voltage to typ. L+ (-50V). This protects connected devices from voltage spikes, enhancing system reliability.

Applications and Use Cases

Its fast switching response—50 µs for 0 to 1 and 100 µs for 1 to 0 at rated load—ensures precise timing in high-speed processes. Additionally, the module supports parallel switching of two outputs for redundant control of a load, which is valuable in safety-critical applications.

Thanks to its wide operating temperature range (-30°C to 60°C horizontal, -30°C to 50°C vertical), the module can be deployed in demanding environments, including outdoor or unheated facilities.

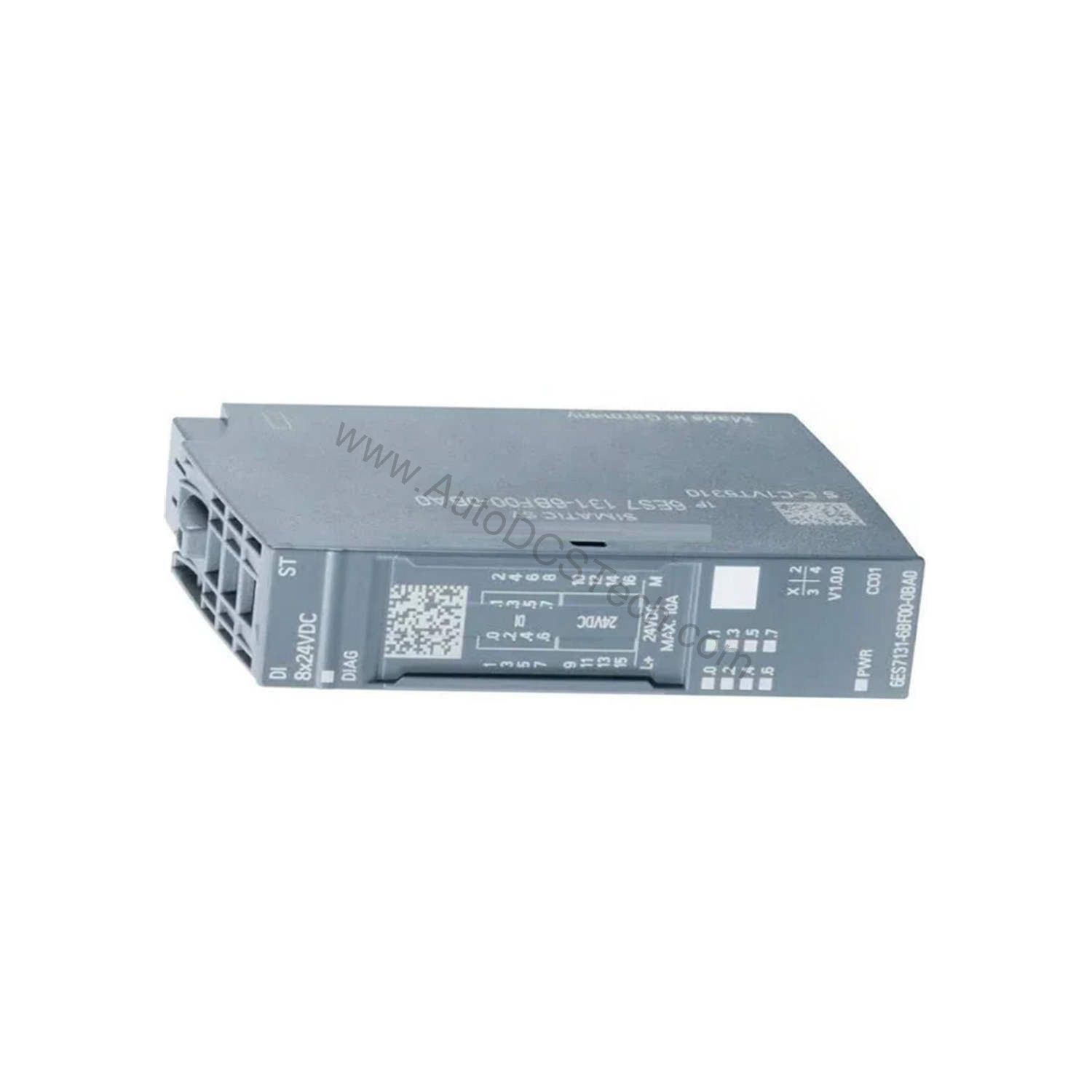

Installation and Setup

Mounting the 6ES7132-6BF01-0BA0 is straightforward with the SIMATIC ET 200SP system. It fits onto a BaseUnit type A0, which provides the electrical and mechanical interface. The module features automatic encoding and a mechanical coding element (type A) to prevent incorrect insertion.

For wiring, the module supports 1-wire, 2-wire, and 3-wire connections directly with BU type A0. For 4-wire connections, you will need a potential distributor module. Ensure that the supply voltage is within the permissible range (19.2V to 28.8V DC) and that the total current does not exceed 4A per module.

Maintenance and Reliability

Routine inspection of the module's LED indicators—green PWR LED for supply voltage and green/red DIAG LED for module diagnostics—can help detect issues early. The module provides diagnostic alarms for wire breaks, short-circuits to M or L+, and supply voltage monitoring. These diagnostics allow you to address problems before they cause downtime.

Given its solid-state design, the module requires minimal maintenance. However, periodic checks of the wiring and BaseUnit connections are recommended to ensure long-term reliability.

Compatibility and Integration

The 6ES7132-6BF01-0BA0 is fully integrated into the SIMATIC ET 200SP ecosystem. It is configurable with STEP 7 TIA Portal from version V14 and STEP 7 from V5.5 SP3. For PROFIBUS and PROFINET networks, GSD files are available (GSD Revision 3 and 5, and GSDML V2.3).

Note that the module is not suitable for isochronous mode or PWM applications, so verify your system requirements before selection.

Troubleshooting and Common Issues

If a channel fails to switch, check the supply voltage and the load resistance. The module supports load resistances from 48Ω to 12kΩ. If a wire break occurs, the module will indicate it via the diagnostic LED and alarm. For short-circuits, the module's protection limits the current to typ. 1A, preventing damage.

For safety-related tripping, the module is suitable for use in safety functions up to PL d (ISO 13849-1) and SIL 2 (IEC 61508) when used with standard modules. Refer to the Siemens FAQ Entry ID: 39198632 for detailed guidance.

Product Support and Availability

AutoDCSTech offers the 6ES7132-6BF01-0BA0 for immediate shipment. Contact our team for pricing and availability.
