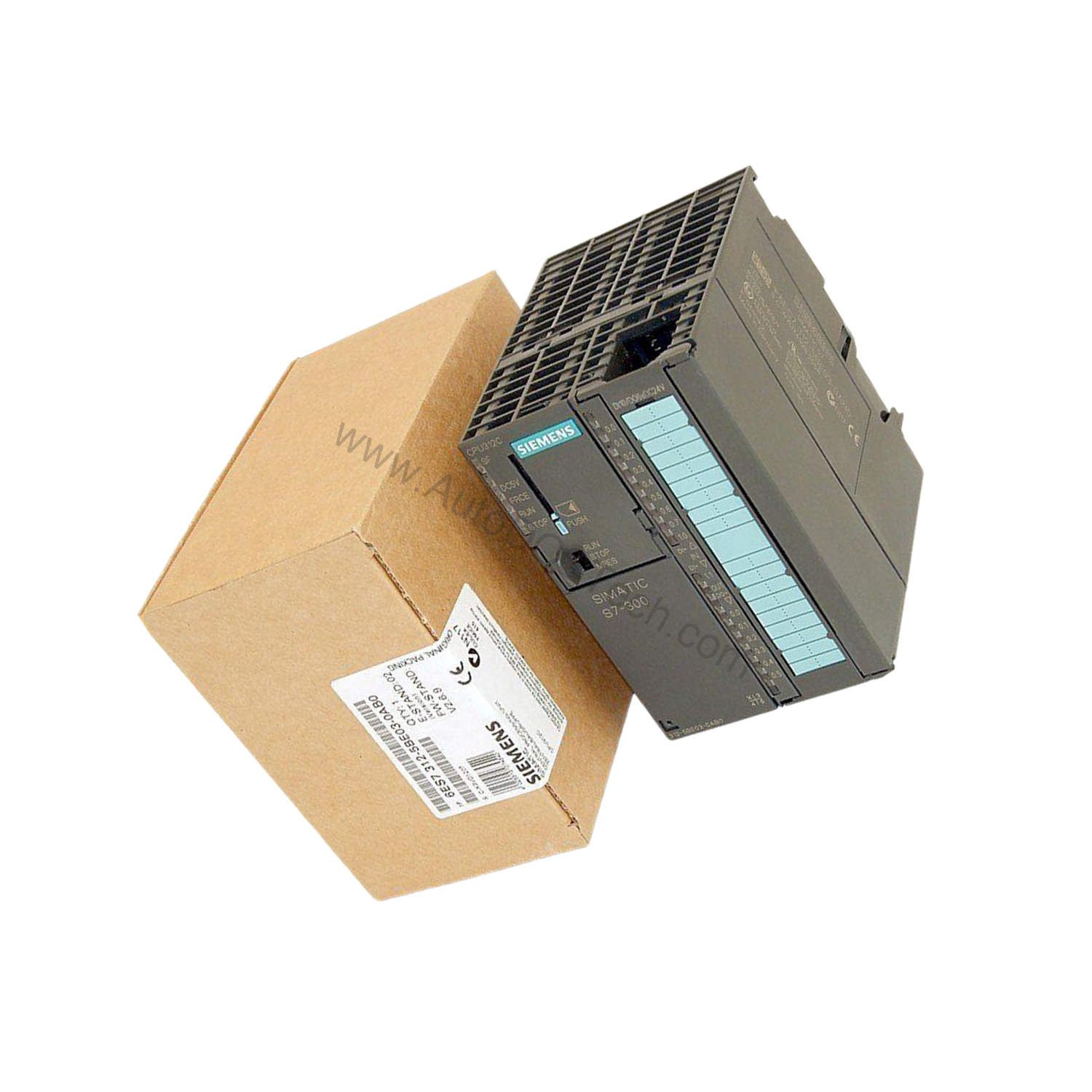

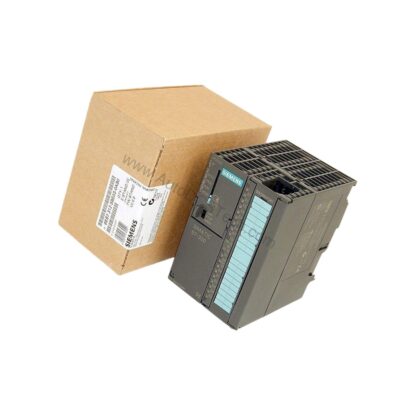

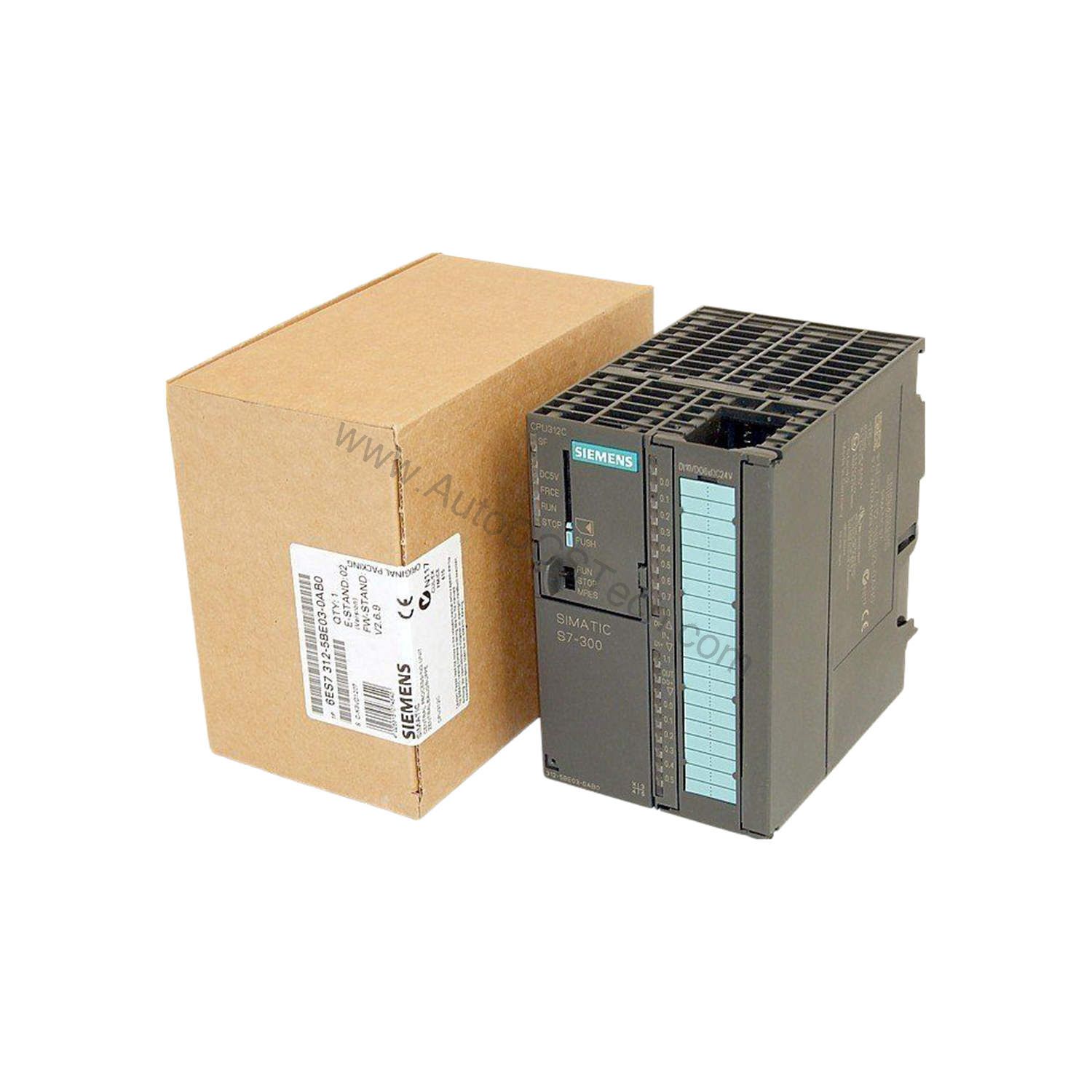

6ES7312-5BE03-0AB0 24V DC CPU 312C Compact PLC

Key Features and Technical Specifications

The 6ES7312-5BE03-0AB0 is built to handle demanding control tasks with precision. Its technical specifications highlight its capabilities:

• Integrated I/O: 10 digital inputs and 6 digital outputs are built-in, with 8 inputs usable for technological functions like counting and measuring.
• Fast Counters: Two counters operate at 10 kHz, enabling high-speed counting applications without additional modules.
• Working Memory: 32 kbyte of integrated working memory provides ample space for your control program.
• Supply Voltage: Rated at 24V DC, with a permissible range of 20.4V to 28.8V, ensuring stable operation in industrial environments.
• Output Current: Each digital output can source up to 500 mA (rated value), suitable for driving relays, contactors, and indicator lamps.
• Processing Speed: Bit operations execute in as little as 0.2 µs (typical), ensuring fast logic response.
• Communication: An integrated MPI interface (RS 485) supports programming and simple networking.

These specifications make the 6ES7312-5BE03-0AB0 a versatile choice for various automation tasks.

Applications and Use Cases

Its integrated digital I/O and fast counters make it suitable for applications such as packaging machinery, material handling, and simple assembly lines. The 10 kHz counters can handle high-speed pulse counting from encoders or proximity sensors, while the 24V DC I/O interfaces directly with standard industrial sensors and actuators. Moreover, the CPU's compact design saves valuable cabinet space, which is often a critical factor in retrofit projects or space-constrained new builds.

Installation and Setup

Mounting the 6ES7312-5BE03-0AB0 is straightforward. It fits onto a standard S7-300 DIN rail. The 40-pin front connector (required, not included) provides all I/O and power connections. Ensure the 24V DC supply is within the permissible range (20.4V to 28.8V) and protected with a miniature circuit breaker (type C, min. 2A or type B, min. 4A) as recommended. The CPU requires a micro memory card (MMC) for program storage and data retention; the MMC is not included and must be ordered separately. For programming, use STEP 7 V5.3 SP2 or higher with the appropriate hardware update.

Maintenance and Reliability

As a solid-state electronic device, the 6ES7312-5BE03-0AB0 requires minimal maintenance. However, periodic inspection is recommended to ensure reliable operation. Check that the front connector is securely seated and that the 24V DC supply is clean and within tolerance. The CPU's backup is guaranteed by the MMC, which is maintenance-free and retains the program and data without a battery. This design eliminates the need for battery replacement, reducing long-term maintenance costs and downtime.

Compatibility and Integration

The 6ES7312-5BE03-0AB0 is part of the Siemens SIMATIC S7-300 family. It supports up to 8 modules per rack (max. 1 rack) and can operate with up to 8 FMs and 8 CPs (PtP) or 4 CPs (LAN). The integrated MPI interface allows connection to programming devices, operator panels, and other S7-300 stations. For larger systems, you can use CPs to add PROFIBUS or Industrial Ethernet connectivity. This flexibility ensures the CPU can be integrated into existing or new automation architectures.

Troubleshooting and Common Issues

One common issue is the CPU not starting due to a missing or unformatted MMC. Always ensure the MMC is properly inserted and formatted. Another issue could be incorrect wiring of the 24V DC supply, causing the CPU to fail to power up. Verify the supply voltage is within the specified range. If the CPU does not communicate via MPI, check the MPI cable and address settings. For detailed diagnostics, use the STEP 7 software to read the CPU's diagnostic buffer, which provides specific error codes and messages.

Product Support and Availability

At AutoDCSTech, we supply genuine Siemens spare parts like the 6ES7312-5BE03-0AB0. This CPU is available for order, and our team can assist with any technical questions. Contact us to confirm current availability and lead times for your project.
