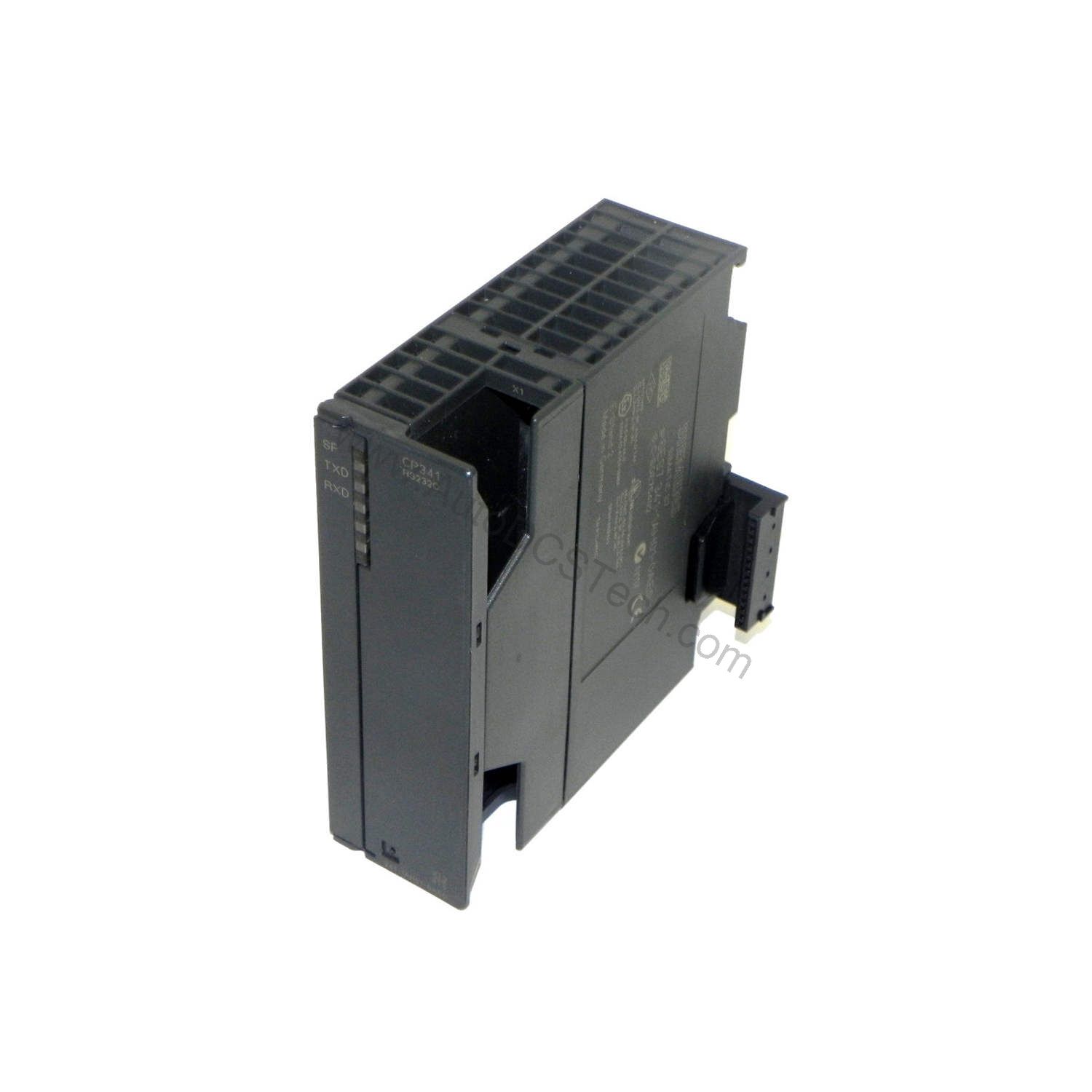

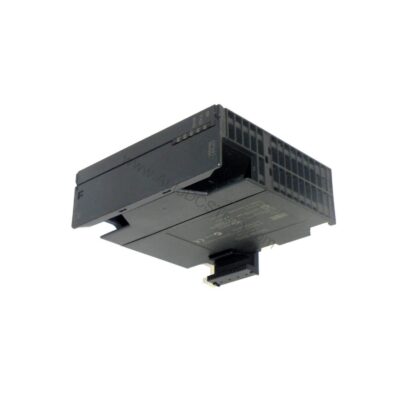

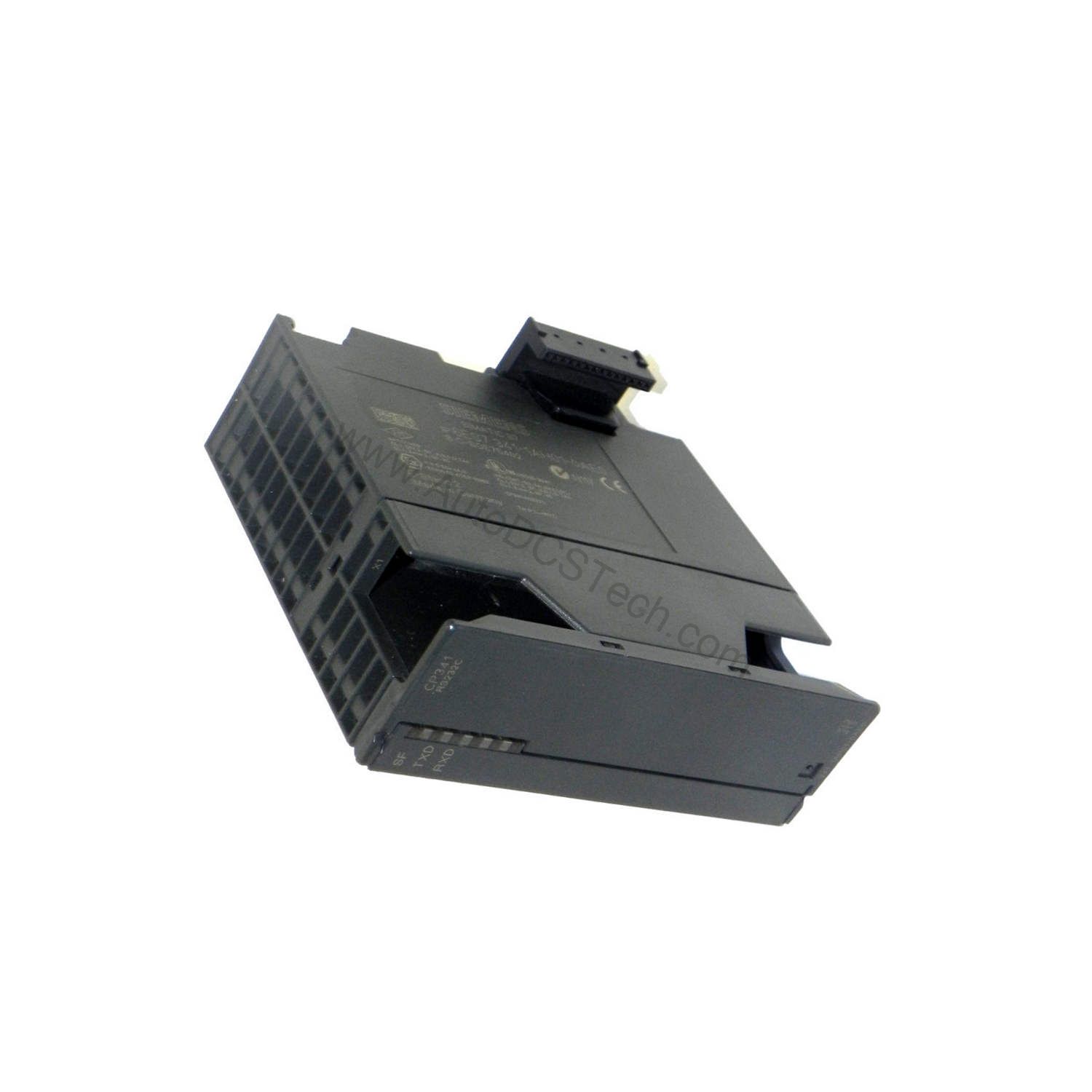

6ES7341-1AH01-0AE0 RS232C CP341 Communication Processor

Key Features and Technical Specifications

The 6ES7341-1AH01-0AE0 is engineered for robust performance. Below are the core specifications extracted directly from the datasheet:

• Supply Voltage: 24 V DC rated value
• Input Current from L+: Max 200 mA
• Backplane Bus Current (5 V DC): Max 70 mA
• Power Loss: Max 4.8 W
• Interfaces: 1 isolated RS232C (V.24) interface
• Transmission Rate: 0.3 to 76.8 kbit/s (max)
• Cable Length: Max 15 m
• Connector: 9-pin sub D connector
• Integrated Protocols: 3964(R), ASCII, RK512, customer-specific drivers (reloadable)
• Telegram Length (max): 1024 bytes for all protocols
• Dimensions (W x H x D): 40 mm x 125 mm x 120 mm
• Weight: Approx. 300 g

One distinctive feature is the support for multiple protocols, including 3964(R), ASCII, and RK512. This flexibility allows seamless integration with various legacy and modern devices, reducing the need for additional converters.

Applications and Use Cases

The 6ES7341-1AH01-0AE0For instance, in a packaging line, it can communicate with a barcode scanner to track products in real time. Similarly, it can interface with a weigh scale to ensure precise filling operations. Its isolated interface protects against ground loops, enhancing signal integrity in electrically noisy environments.

Installation and Setup

Installing the CP341 module is straightforward. It mounts directly on the S7-300 DIN rail. The power supply connects via three screw-type terminals: L+, M, and GND. Ensure the 24 V DC supply is stable and within rated limits. For the RS232C connection, use a 9-pin sub D connector and a shielded cable up to 15 meters. Configure the module using the included configuration package on CD, which simplifies protocol setup.

Maintenance and Reliability

To maintain reliable operation, periodically inspect the module for dust accumulation and ensure proper ventilation. Verify that all connectors are tight and free from corrosion. The module's low power loss (4.8 W) contributes to thermal stability, reducing the risk of overheating. Regular checks of the transmission cable for wear can prevent intermittent communication failures.

Compatibility and Integration

Designed for the SIMATIC S7-300 family, the 6ES7341-1AH01-0AE0It supports a range of protocols, making it compatible with many third-party devices that use RS232C. The customer-specific drivers are reloadable, allowing customization for unique communication requirements.

Troubleshooting Common Issues

If communication errors occur, first check the baud rate settings—they must match the connected device. Verify the cable length does not exceed 15 meters. Ensure the 24 V DC supply is present and within tolerance. If using half-duplex mode, remember that 76.8 kbit/s is only achievable in half-duplex; for full-duplex, lower rates apply. Consult the manual for detailed diagnostics.

Product Support and Availability

The 6ES7341-1AH01-0AE0 is available from AutoDCSTech. Please verify current lifecycle status and availability with our team before ordering. We are ready to assist with your automation needs.
