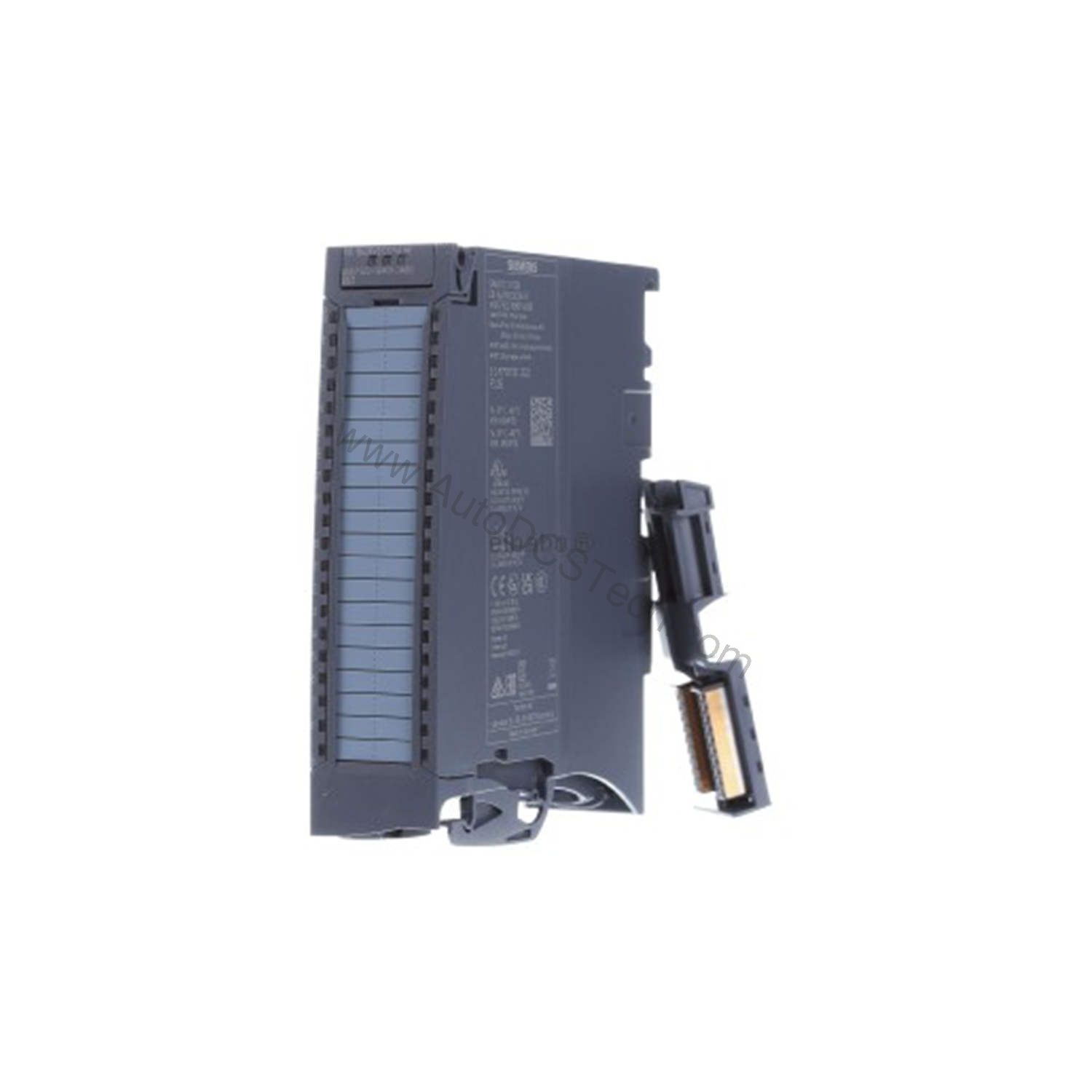

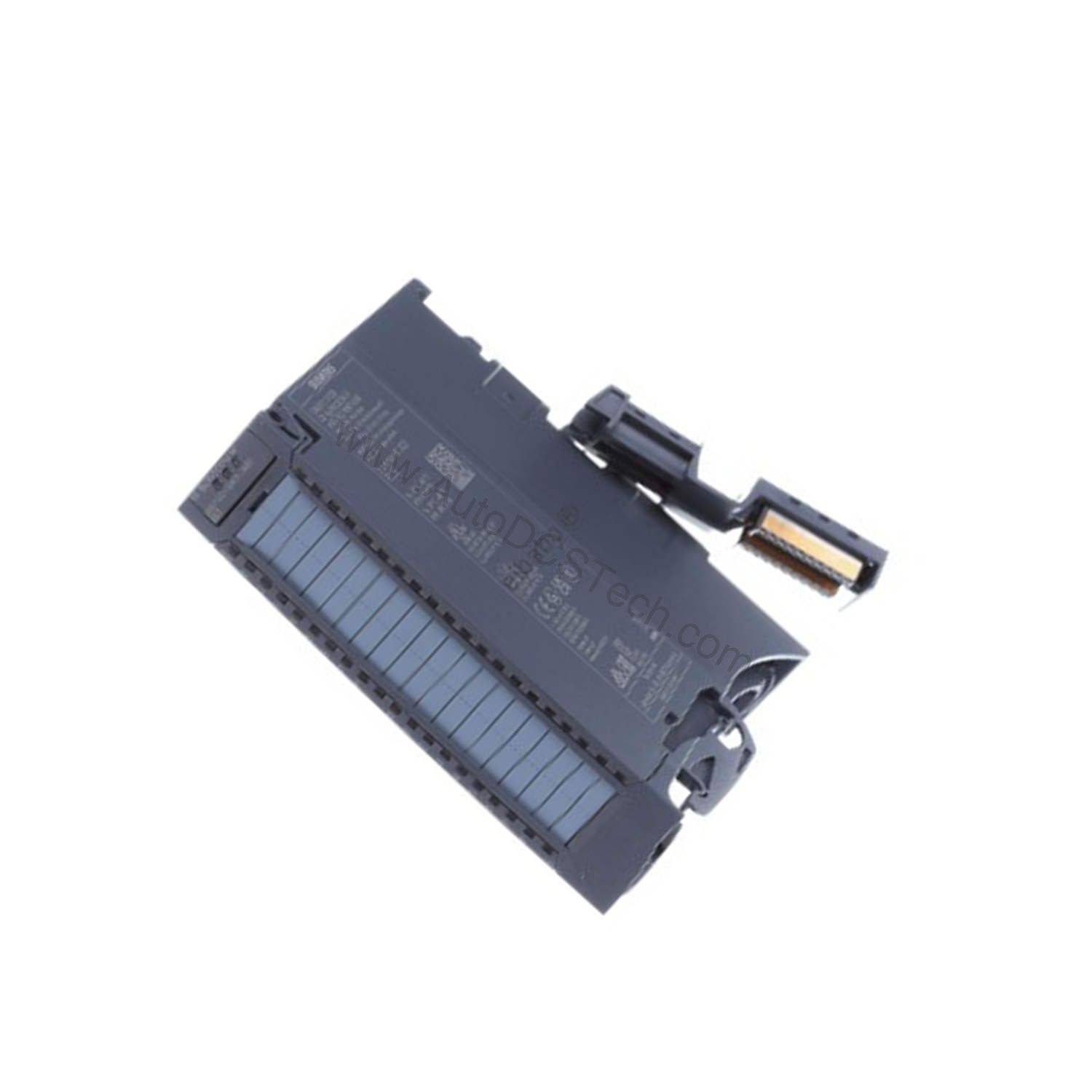

6ES7522-1BH01-0AB0 16 Ch 24V DC Digital Output Module

Introduction to the Siemens 6ES7522-1BH01-0AB0

Industrial automation has evolved from simple relay logic to sophisticated, safety-conscious control systems. The Siemens 6ES7522-1BH01-0AB0 digital output module represents this evolution, offering high functionality and reliability for demanding applications. As part of the SIMATIC S7-1500 family, this module provides 16 channels in groups of 8, with a rated output current of 0.5 A per channel and 4 A per group. It supports safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015, making it a robust choice for modern automation systems.

Key Features and Technical Specifications

The 6ES7522-1BH01-0AB0 is engineered for precision and durability. Here are its core specifications:

• Output type: Transistor, current-sourcing
• Number of channels: 16, in groups of 8
• Rated output voltage: 24 V DC (permissible range 19.2 V to 28.8 V)
• Output current per channel: 0.5 A (max)
• Output current per group: 4 A (max)
• Output current per module: 8 A (max)
• Short-circuit protection: Yes, clocked electronically (response threshold typ. 1 A)
• Inductive shutdown voltage limitation: L+ (-53 V)
• Switching frequency: Max 100 Hz with resistive load, 0.5 Hz with inductive load, 10 Hz with lamp load
• Diagnostics: Single-channel diagnostics, wire-break, short-circuit, supply voltage monitoring
• Safety classification: SIL2 (EN IEC 62061:2021), Cat. 3 / PL d (EN ISO 13849-1:2015)

One distinctive feature is the integrated operating cycle counter, which tracks switching cycles for connected actuators. This aids predictive maintenance by providing data on actuator wear, helping to reduce unexpected downtime.

Applications and Use Cases

The 6ES7522-1BH01-0AB0 is suitable for a wide range of industrial applications, including material handling, packaging, and process control. The module's safety-related tripping capability allows it to be used in safety circuits up to PL d, which is critical for emergency stop functions and guarding systems. Furthermore, the module supports isochronous mode and prioritized startup, enabling precise timing in motion control applications.

Installation and Setup

Mounting the 6ES7522-1BH01-0AB0 is straightforward within a SIMATIC S7-1500 rack. The front connector (screw terminals or push-in) must be ordered separately. Ensure the supply voltage is within the permissible range (19.2 V to 28.8 V DC) and that the module is properly grounded. The module supports hot swapping, but always follow the manufacturer's guidelines for safe installation and removal.

Maintenance and Reliability

Regular inspection of the module and its wiring is recommended to ensure reliable operation. Check for loose connections and signs of overheating. The module's diagnostics can help identify issues such as wire breaks or short circuits. With proper care, the 6ES7522-1BH01-0AB0 offers a long service life, reducing total cost of ownership.

Compatibility and Integration

This module is designed for the SIMATIC S7-1500 system and is configurable with STEP 7 TIA Portal from V13 SP1. It supports PROFIBUS (GSD V1.0 / V5.1) and PROFINET (GSD V2.3) communication, allowing seamless integration into existing networks. The module also supports I&M data (I&M0 to I&M3) for easy identification and maintenance.

Troubleshooting and Common Issues

Common issues with digital output modules include wire breaks, short circuits, and overcurrent conditions. The 6ES7522-1BH01-0AB0 provides diagnostic alarms and LED indicators to quickly pinpoint problems. If a channel fails, check the load resistance (must be between 48 Ω and 12 kΩ) and ensure the output current does not exceed 0.5 A. For persistent issues, consult the module's manual or contact AutoDCSTech for support.

Product Support and Availability

The Siemens 6ES7522-1BH01-0AB0 is available from AutoDCSTech. Contact our team for pricing and lead times. We are committed to providing genuine parts and expert support for your automation needs.
