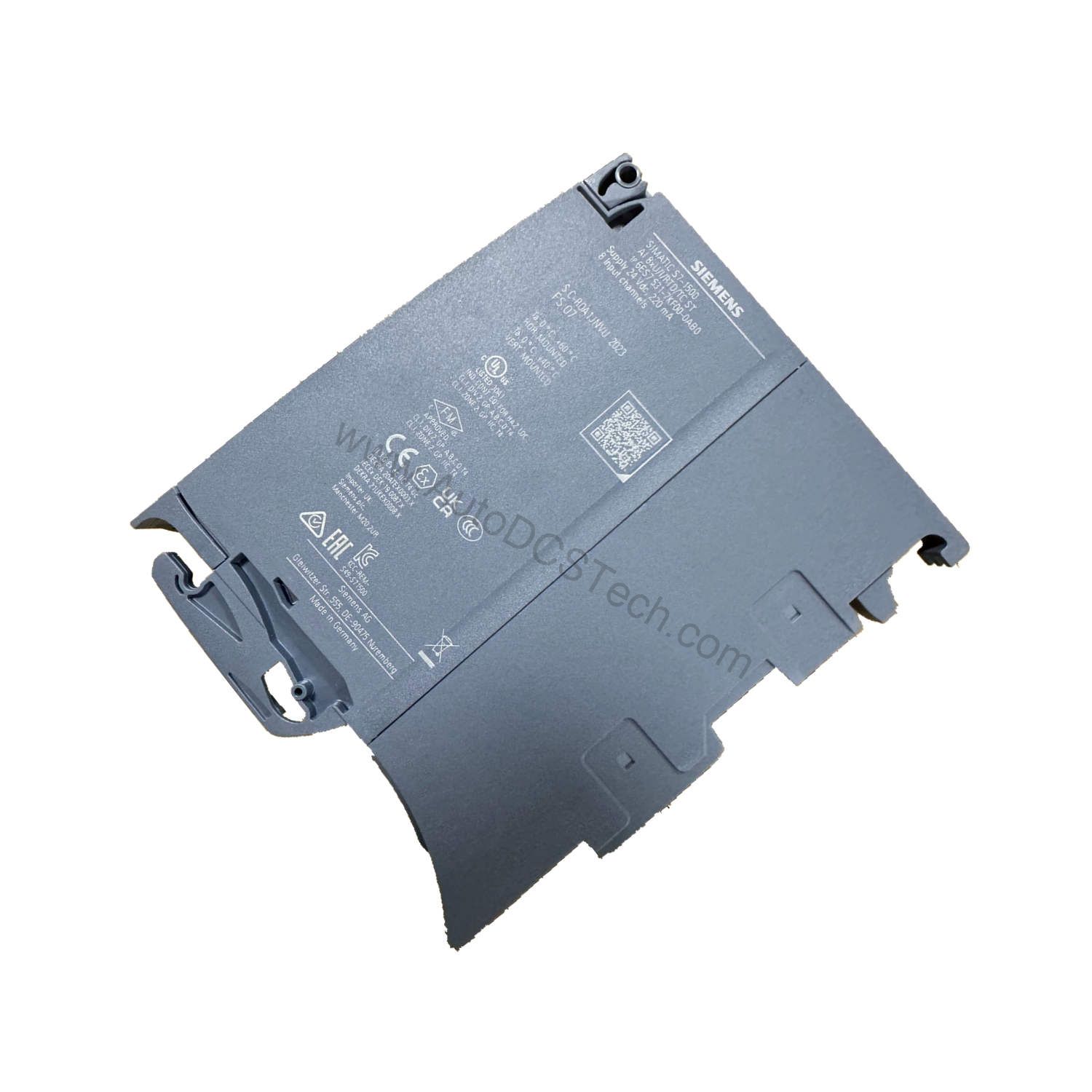

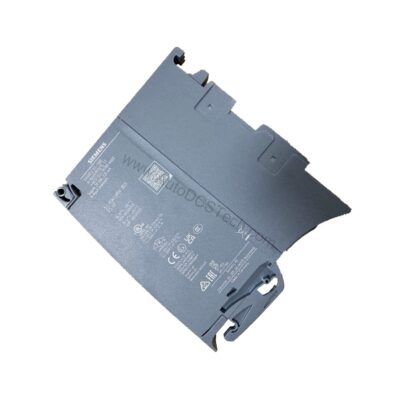

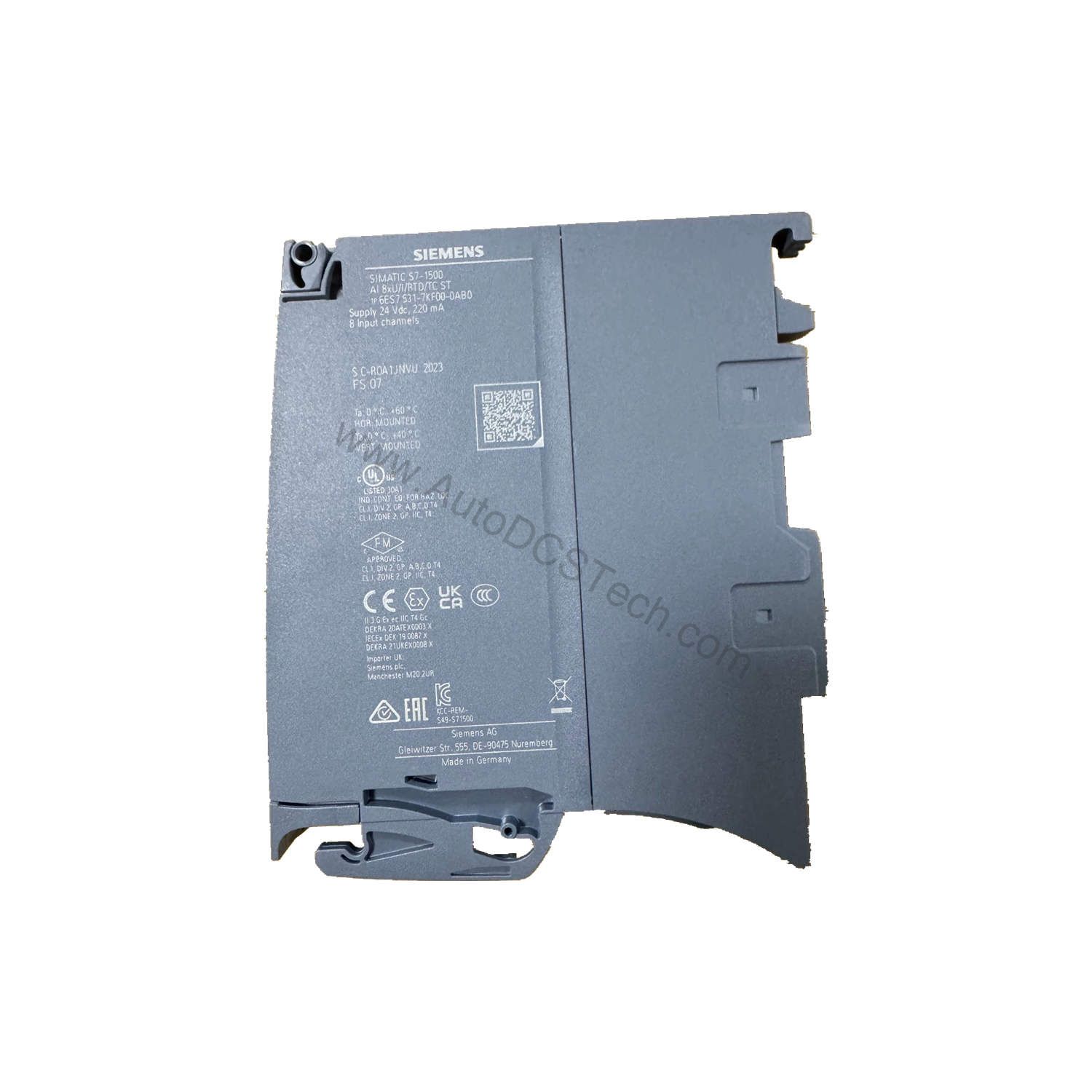

6ES7531-7KF00-0AB0 8-Ch Analog Input Module

Key Features and Technical Specifications

The 6ES7531-7KF00-0AB0 is a high-density analog input module with eight channels, each configurable for voltage, current, or thermocouple measurements. Four channels also support resistance and resistance thermometer (RTD) inputs. With a 16-bit resolution and an accuracy of 0.3%, it provides precise data for critical control loops.

• Analog inputs: 8 channels for voltage, current, or thermocouple; 4 channels for RTD/resistance.
• Input ranges: Voltage from -10 V to +10 V, current from 0 to 20 mA, and thermocouple types B, E, J, K, N, R, S, T.
• RTD support: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000, LG-Ni1000, and PTC.
• Resolution: 16-bit including sign.
• Accuracy: 0.3% over full temperature range.
• Supply voltage: 24 V DC (20.4 to 28.8 V).
• Current consumption: Max 240 mA.
• Power loss: Typ. 2.7 W.
• Isolation: Between channels and backplane bus, and between channels and power supply.

One distinctive feature is the ability to handle both 2-wire and 4-wire transducers for current measurement, with a maximum burden of 820 ohms for 2-wire transmitters. This flexibility simplifies integration with various field devices.

Applications and Use Cases

For example, in a temperature monitoring system, the module can read thermocouples (types J, K, T) and RTDs (Pt100) simultaneously, reducing the need for multiple modules. Its ability to measure voltage and current also makes it suitable for monitoring analog signals from transmitters, drives, and other equipment. The module's diagnostic functions, including wire-break detection and limit value alarms, help maintain process reliability by alerting operators to potential issues early.

Installation and Setup

Mounting the 6ES7531-7KF00-0AB0 is straightforward. It fits on a standard S7-1500 mounting rail and connects to the backplane bus automatically. The module is 35 mm wide, 147 mm high, and 129 mm deep, with a weight of approximately 310 g. Before installation, ensure the supply voltage is within the permissible range of 20.4 to 28.8 V DC. The module includes a shield bracket and shield terminal for connecting cable shields, which is essential for maintaining signal integrity in noisy industrial environments. For thermocouple and RTD measurements, use shielded cables with maximum lengths of 50 m and 200 m, respectively.

Maintenance and Reliability

Routine maintenance for this module is minimal. However, periodic inspection of the wiring and connectors is recommended to ensure secure connections and prevent signal degradation. The module's diagnostic LEDs (RUN, ERROR, PWR) provide a quick visual status check. The module supports reparameterization and calibration during RUN, allowing adjustments without stopping the process. To maintain accuracy, verify the module's calibration periodically, especially if the operating environment experiences temperature fluctuations. The module is designed for horizontal installation with an ambient temperature range of 0 to 60 °C, and vertical installation from 0 to 40 °C.

Buyer's Guide: Siemens 6ES7531-7KF00-0AB0 Analog Input Module

This SIMATIC S7-1500 analog input module is engineered to handle a wide variety of sensor types, making it a versatile component for industrial automation. In this guide, we will evaluate its key specifications, real-world applications, installation considerations, and maintenance needs to help you determine if it fits your process requirements.

Compatibility and Integration

This module is part of the SIMATIC S7-1500 family and is fully integrated with STEP 7 TIA Portal (V12 or higher). It supports PROFIBUS and PROFINET communication via GSD files, allowing seamless integration into existing networks. The module also supports I&M data (I&M0 to I&M3) for identification and maintenance, simplifying asset management. With firmware version V2.0.0 and hardware functional status FS01, it is ready for modern automation architectures.

Common Issues and Troubleshooting

One common issue is wire-break detection, which is active for specific ranges (1 to 5 V, 4 to 20 mA, TC, R, RTD). If a wire-break alarm occurs, inspect the field wiring and connections. Another issue could be overflow or underflow, which may indicate an input signal outside the configured range. The module provides diagnostic alarms and limit value alarms (two upper and two lower) to help identify such conditions. If the module fails to communicate, verify the supply voltage and backplane connection. For persistent issues, consult the official Siemens documentation or contact AutoDCSTech for support.

Support and Availability

AutoDCSTech offers the 6ES7531-7KF00-0AB0 as a genuine Siemens part. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can assist with technical questions and provide documentation to support your integration.
